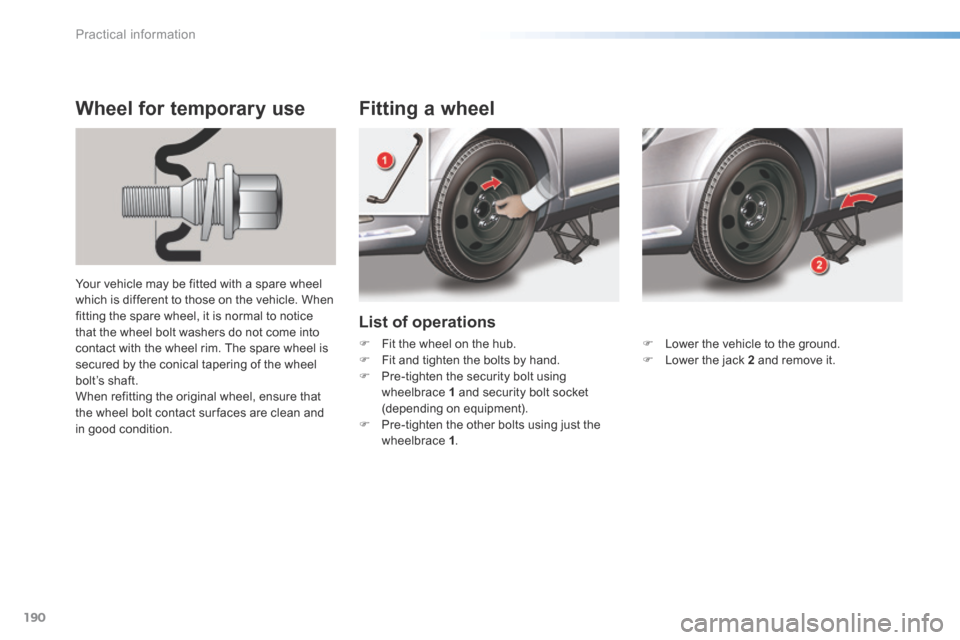

Fitting a wheel
Wheel for temporary use
Your vehicle may be fitted with a spare wheel
which is different to those on the vehicle. When
fitting the spare wheel, it is normal to notice
that the wheel bolt washers do not come into
contact with the wheel rim. The spare wheel is
secured by the conical tapering of the wheel
bolt’s shaft.
When refitting the original wheel, ensure that
the wheel bolt contact sur faces are clean and
in good condition. F
Lower the vehicle to the ground.
F Lower the jack 2 and remove it.
F
Fit the wheel on the hub.
F Fit and tighten the bolts by hand.
F Pre-tighten the security bolt using
wheelbrace 1 and security bolt socket
(depending on equipment).
F Pre-tighten the other bolts using just the
wheelbrace 1 .
Practical information

191
If your vehicle is fitted with a spare
wheel of a different size to those on the
vehicle, you must not exceed 50 mph
(80 km/h) whilst using the spare wheel.
The wheel bolts are specific to the type
of wheel.
If the type of wheel is changed,
check with your CITROËN dealer or a
qualified workshop that the wheel bolts
are compatible with the new wheels.
Take care to note down the code
number engraved on the head of the
security bolt socket. This will enable
you to obtain a replacement security
bolt socket from your dealer.
F
Tighten the security bolt using
wheelbrace 1 and security bolt socket
(depending on equipment).
F Tighten the other bolts using just the
wheelbrace 1 .
F Refit the protectors on the bolts.
F Stow the tools in the carrier box.
F Return the suspension to the normal
position.
F Check that the tyre pressure is correct and
have the balancing checked.Tyre under-inflation detection
The space-saver type or steel spare
wheel does not have a sensor.
The punctured wheel must be repaired
by a CITROËN dealer or a qualified
workshop.
8
Practical information

197
Rear lamps (Saloon)
Identify the failed bulb.
1. Brake lamps and sidelamps: P21W/5 W
2. Sidelamps: R5W
3. Reversing lamps: H21W
4. Foglamps: H21W
5. Direction indicators: PY21WBoot lid-mounted lamps
F Refit the bulb holder H .
F Check that the bulb holder H is secured
correctly by the two clips E .
F Refit the connector G .
F Replace and fix the trim F with its 3 clips.
F
Open the boot.
F Using a flat screwdriver, remove the 3 clips
which fix the trim in the lamp area.
F Partially remove the trim F .
F d isconnect the connector G .
F Unclip the bulb holder H .
F Replace the failed bulb.
8
Practical information

204
Changing a fuse
The 2 fuseboxes are located below the dashboard and under the bonnet.
Before replacing a fuse, it is necessary to:
- determine the cause of the fault and have it
remedied,
- switch off all electric consumers,
- park the vehicle and switch off the ignition,
- identify the failed fuse using the allocation
tables and diagrams presented on the
following pages. Good
Failed
Tw e e z e r
If the fault recurs soon after replacing the
fuse, have the electrical system checked by a
CITROËN dealer or a qualified workshop. To replace a fuse, it is essential to:
- use the special tweezer, placed on the
cover close to the fuseboxes, to extract
the fuse from its holder and check the
condition of its filament,
- always replace a failed fuse by a fuse of
equivalent rating (same colour); a different
rating could cause a fault (risk of fire). The replacement of a fuse not
mentioned in the tables below may
cause a serious fault on your vehicle.
Contact a CITROËN dealer or a
qualified workshop.CITROËN declines all responsibility
for the costs incurred in repairing your
vehicle or faults resulting from the
installation of accessories that are not
supplied or recommended by CITROËN
and not installed in conformity with its
requirements, particularly when the
total consumption of additional devices
exceeds 10 milliamperes.
Installation of electrical
accessories
Your vehicle’s electrical system
is designed to operate with either
standard or optional equipment.
Before installing electrical equipment
or accessories on your vehicle, consult
a CITROËN dealer or a qualified
workshop.
Replacing a fuse
Practical information

210
12 V battery
Access to the battery
The battery is located under the bonnet.
For access to it:
F open the bonnet using the interior release
lever, then the exterior safety catch,
F secure the bonnet stay,
F remove the plastic cover to gain access to
the two terminals,
F if necessary, unclip the fusebox to remove
the battery. F
Raise the lever D fully to release the
clamp E .
Disconnecting the (+) terminal
The presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a CITROËN dealer
or a qualified workshop is essential
when replacing or disconnecting the
battery.
Procedure for starting the engine using another battery or charging your battery when it is flat.
Reconnecting the (+) terminal
F
Position the open clamp E of the cable on
the positive post (+) of the battery.
F Press down on the clamp to position it
correctly on the battery post.
F Lock the clamp by lowering the lever D .
Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.
Practical information

218
Roof bars
The design of your vehicle requires the use
of roof bars that are tested and approved by
CITROËN, for your safety and to avoid damage
to the roof and tailgate.
Regardless of the type of loading equipment
to be transported on the roof (bicycle carrier,
ski carrier...), it is imperative that you add
transverse roof bars. Any securing or lashing to
components other than the roof bars is strictly
prohibited.
Recommendations
F Distribute your load evenly, avoiding
overloading on one side.
F Arrange the heaviest part of the load as
close as possible to the roof.
F Anchor the load securely and draw
attention to it if any part of it is
overhanging.
F Drive gently, as the vehicle will be more
liable to the effects of side winds (vehicle
stability may be altered).
F Remove the roof bars as soon as they are
no longer needed. Maximum load that can be distributed
on the roof bars (for a loading height
not exceeding 40 cm; except bicycle
carrier): 80 kg.
If the height exceeds 40 cm, adapt your
speed to the profile of the road to avoid
damaging the roof bars and the fixings
on the roof.
Please refer to national legislation in
order to comply with the regulations
concerning the transportation of objects
which are longer than the vehicle.
Practical information

221
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.
accessories
"Comfort":
front and rear parking sensors, isotherm
module, reading lamp, sun blinds, headrest-
mounted coat hanger...
"Transport solutions":
boot liner, boot carpet, towbars, towbar wiring
harness, transverse roof bars, bicycle carrier,
ski carrier, roof boxes, boot dividers, boot net,
boot organiser, sliding boot tray, platform on
towbar, ...
"Style":
alloy wheels, rear spoiler, chromed mirror
shells, door sill protectors, gear lever knobs...
"Security and safety":
anti-intrusion alarm, warning triangle and
high visibility vest, breathalyzer, first aid kit,
snow chains, non-skid covers, security wheel
bolts, vehicle tracking system, child seats, fire
extinguisher, caravan mirror, pet cage and seat
belt, dog guard...
"Protection":
mats*, seat covers, mud flaps, bumper
protectors, vehicle covers, door and boot sill
protectors...
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.
8
Practical information

297

Level 1Level 2 Level 3 Comments
Internet
Secondary page Bluetooth
connection Search
Start the search for a device to connect.
Connect / Disconnect Start or end the Bluetooth connection to the
selected device.
Update Import contacts from the selected telephone to
save them in the audio system.
Delete Delete the selected telephone.
Confirm Save the settings.
Internet
Secondary page Transfer rate Reset
Reset the usage monitor, them confirm.
Confirm
Internet
Secondary page WiFi connection All
Display all Wi-Fi networks.
Secure Display secure Wi-Fi networks.
Stored Memorise the selected Wi-Fi network(s).
Add Add a new Wi-Fi network.
Activate / Deactivate Activate or deactivate a Wi-Fi network.
Connect Select a Wi-Fi network found by the system and
connect to it.
.
Audio and Telematics

333
