Mode selectionDisplays in the instrument panel
F Automatic mode: gear selector in
position D.
F Manual mode: gear selector in position M .
F SPORT programme: gear selector in
position D and button A pressed.
F SNOW programme: gear selector in
position D and button B pressed. The position of the gear selector and the driving
mode are displayed in the right hand dial of the
instrument panel.
A position grille associated with the gear selector
allows you to view the selected position.
Automatic gearbox
Automatic gearbox which offers a choice
between the comfort of fully automatic
operation, enhanced by the sport and snow
programmes, or manual gear changing.
Two driving modes are provided:
-
automatic operation for electronic control
of the gears by the gearbox, associated
with:
● a SPORT programme for a more
dynamic driving style,
● a SNOW programme to improve driving
when the grip is poor,
- manual operation for sequential changing
of the gears by the driver. As a safety measure:
-
position P can be disengaged only
by pressing the brake pedal,
- when a door is opened, an audible
signal is heard if the gear selector
is not in position P ,
- always make sure that the gear
selector is in position P before you
leave your vehicle.
If the gearbox is in position P but the
position of the gear selector is different,
reposition the gear selector at P so that
you can start the vehicle.
Driving

114
System which reduces fuel consumption by recommending the most appropriate
g e a r.
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one (or more) gear(s). You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. In fact, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.Example:
- You are in third gear.
- You press the accelerator pedal.
Gear efficiency indicator*
Operation
With an automatic gearbox, the system
is only active in manual mode.
* Depending on engine. On BlueHDi Diesel 150 versions with manual
gearbox, the system may suggest changing into
neutral so that the engine can go into standby
(STOP mode with Stop & Start), in certain
driving conditions. In this case, N is displayed
in the instrument panel. The information appears in the instrument
panel in the form of an arrow.
On vehicle fitted with a manual gearbox,
the arrow may be accompanied by the gear
recommended.
The system adapts its gear change
recommendation according to the
driving conditions (slope, load, ...) and
the demands of the driver (power,
acceleration, braking, ...).
The system never suggests:
- engaging first gear,
- engaging reverse gear.
- The system may suggest that you engage
a higher gear.
driving

116
- with a manual gearbox, when you fully
depress the clutch pedal,
- with an automatic gearbox:
● gear lever in position D or M , when you
release the brake pedal,
● or gear lever in position N and brake
pedal released, when you place the gear
lever in position D or M ,
● or when you engage reverse gear.
Going into engine START
mode
The "ECO" warning lamp goes off
and the engine starts automatically:
Special cases: START invoked
automatically
In this case the "ECO" warning
lamp flashes for few seconds, then
goes off.
This operation is perfectly normal. For safety reasons or to ensure smooth
operation, START mode is invoked
automatically when:
- you open the driver's door,
- you unfasten the driver's seat belt,
- the speed of the vehicle exceeds 15 mph
(25 km/h) with a manual gearbox or 2 mph
(3 km/h) with an an automatic gearbox for
blueH di d iesel versions,
- the electric parking brake is being applied,
- some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system. With a manual gearbox in STOP mode,
if a gear is engaged without fully
depressing the clutch pedal, a warning
lamp comes on or an alert message
is displayed asking you to depress the
clutch pedal to restart the engine.
Driving

117
Reactivation
Press the "ECO OFF" switch again.
The system is active again; this is confirmed
by the switch warning lamp going off and the
display of a message.The system is reactivated automatically
at every new start using the key.
Operating fault
In the event of a malfunction with the system,
the "ECO OFF" switch warning lamp flashes,
then comes on continuously.
have it checked by a CITROËN dealer or a
qualified workshop.
At any time, press the "ECO OFF" switch to
deactivate the system.
This is confirmed by the switch warning lamp
coming on accompanied by the display of a
message.
Deactivation
If the system has been deactivated
in STOP mode, the engine restarts
immediately.
In the event of a fault in ST
oP
mode, the vehicle may stall. All of
the instrument panel warning lamps
come on.
Depending on version, an alert
message may also be displayed asking
you to put the gear lever into position N
and put your foot on the brake pedal.
It is then necessary to switch off the
ignition, then restart the engine using
the key.
4
Driving

119
The loss of pressure detected does not
always lead to visible deformation of the
tyre. Do not rely on just a visual check.The alert is maintained until the tyre or
tyres concerned is reinflated, repaired
or replaced.
The spare wheel (space-saver type or a
steel rim) does not have a sensor.
Under-inflation alert
The aler t is given by the fixed illumination
of this warning lamp, accompanied by
an audible signal, and depending on
equipment, the display of a message.
In the event of a problem on one of the tyres,
the symbol or the message appears, according
to equipment, to identify it.
F
Reduce speed, avoid sudden steering
movements or harsh brake applications.
F Stop as soon as it is safe to do so. F
If you have a compressor (the one in the
temporary puncture repair kit for example),
check the four tyre pressures when cold.
If it is not possible to check the tyre
pressures at the time, drive carefully at
reduced speed.
or
F In the event of a puncture, use the
temporary puncture repair kit or the spare
wheel (according to equipment).
Operating fault
The flashing and then fixed
illumination of the under-inflation
warning lamp accompanied by
the illumination of the service warning lamp
indicates a fault with the system.
In this case, monitoring of the tyre pressures is
not assured.
This alert is also displayed when one or more
wheels is not fitted with a sensor (for example,
a space-saver or steel spare wheel).
Go to a CITROËN dealer or a qualified
workshop to have the system checked
or, following the repair of a puncture, to
have the original wheel, equipped with a
sensor, refitted.
Any tyre repair or replacement on a
wheel fitted with this system must be
carried out by a CITROËN dealer or a
qualified workshop.
If after changing a tyre, a wheel is not
detected by your vehicle (fitting snow
tyres for example), you must have the
system reinitialised by a CITROËN
dealer or a qualified workshop.
4
Driving

120
Fixed centred controls steering wheel
1Rotate
●
Scroll the various pages of information in the instrument panel screen.
● Move through the various menus in the instrument panel screen.
● Increase / Decrease values.
Short press ●
Open the main menu in the instrument panel screen ( only when stationary).
● Select and confirm information.
Long press Reset the trip data for the trip selected (if the corresponding trip computer page is
displayed).
2 Short press
●
Cancel the current operation.
● Return to the previous screen in the instrument panel screen.
Long press Return to the initial page in the instrument panel screen.
3 Short press
Increase the speed in steps of 1 mph (1 km/h) / Store the speed.
Press and hold Increase the speed in steps of 5 mph (5 km/h).
4 Short press
Decrease the speed in steps of 1 mph (1 km/h) / Store the speed.
Press and hold Decrease the speed in steps of 5 mph (5 km/h).
5 Short press Suspend or resume cruise control/speed limiter (depending on the mode
selected).
6 Short press Select cruise control or speed limiter mode (the cycle on this button will always
begin with selection of the speed limiter).
7 Short press Deactivate cruise control/speed limiter.
8 Short press ●
Accept an incoming call.
● End the current call.
● Open the telephone short-cut menu.
● Confirm in the list and in the telephone menu.
Long press Reject an incoming call.
9 Short press / Long press Horn.
10 Short press Activate / Deactivate Black Panel mode (comfortable night driving display).
11 Long press Activate voice recognition on the telephone via MirrorLink.
Driving

121
12Rotate
●
Radio: Scroll the pre-set stations.
● CD / MP3 / jukebox: Scroll through tracks or folders.
● Multifunction screen menus: Move and increase / decrease.
Short press ●
Multifunction screen menus: confirm the selection.
● Open the short-cut menus (depending on the page displayed in the
multifunction screen).
13 Short press ●
Cancel the current operation and return to the previous display in the
multifunction screen.
● Reject an incoming call.
Long press Return to the initial page in the multifunction screen.
14 Short press Access to the multifunction screen main menu.
15 Short press / Press and hold Volume increase.
16 Short press / Press and hold Volume decrease.
17 Short press ●
First press: mute.
● Second press: restore sound.
18 Short press
●
Radio: Automatic search of higher frequencies.
● CD / MP3 / jukebox: Search for the next track.
Maintained press CD / MP3 / jukebox: fast play in fast for ward.
19 Short press
●
Radio: Automatic search of lower frequencies.
● CD / MP3 / jukebox: Search for the previous track.
Press and hold CD / MP3 / jukebox: Fast play in fast back.
20 Short press ●
Radio: display the list of radio stations.
● CD / MP3: display the list of tracks and folders.
● Jukebox: display the list of albums.
Long press Update the list of radio stations.
21 Short press / Long press Horn.
22 Short press MODE: select the function displayed in the multifunction screen.
4
Driving

122

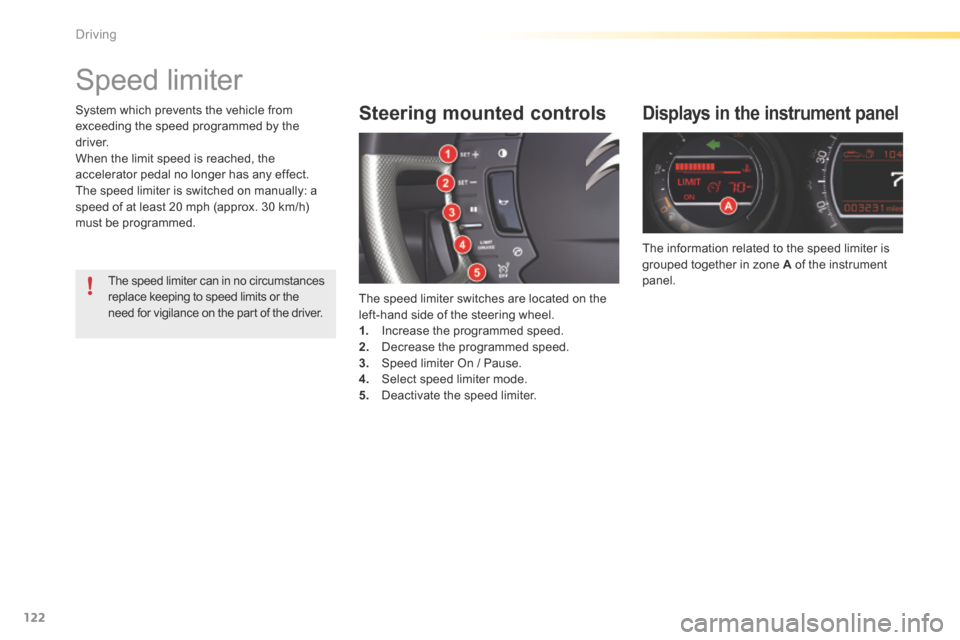

Speed limiter
Steering mounted controls
The speed limiter switches are located on the
left-hand side of the steering wheel.
1. Increase the programmed speed.
2. Decrease the programmed speed.
3. Speed limiter On / Pause.
4. Select speed limiter mode.
5. Deactivate the speed limiter.
Displays in the instrument panel
The information related to the speed limiter is
grouped together in zone A of the instrument
panel.
System which prevents the vehicle from
exceeding the speed programmed by the
driver.
When the limit speed is reached, the
accelerator pedal no longer has any effect.
The speed limiter is switched on manually: a
speed of at least 20 mph (approx. 30 km/h)
must be programmed.
The speed limiter can in no circumstances
replace keeping to speed limits or the
need for vigilance on the part of the driver.
Driving

123
F Press button 4 to select " LIMIT" speed
limiter mode.
The selection is confirmed by the display of the
" LIMIT " function in zone A of the instrument panel.
Activation
F Press button 3 when the desired maximum
speed is displayed.
The information "ON" then appears in zone A
of the instrument panel.
When the function is selected, the
last memorised speed and the
information " PAUS E " are displayed.
With the engine running, you can adjust the
memorised maximum speed, displayed in
zone A , by pressing:
F b utton 1 to increase the memorised
maximum speed.
F b utton 2 to decrease the memorised
maximum speed.
Successive presses will modify the limit
speed setting in steps of 1 mph (km/h) and a
continuous press in steps of 5 mph (km/h).
Programming
F Press button 3 .
This action causes the information " PAUS E " to
appear in zone A of the instrument panel.
This action does not cancel the memorised
maximum speed which remains displayed in
zone A of the instrument panel.
Pause / Resume
4
driving

124
The accelerator pedal has a stiff point at the
end of its travel. To exceed the maximum speed
setting at any time, you can press the pedal
all the way down. While the speed is being
exceeded, the speed displayed in zone A will
flash. Simply release the accelerator pedal to
return below the maximum speed and restore
the limiter function.
Return to normal
driving Operating fault
If there is a fault, a message is displayed
accompanied by an audible signal and
illumination of the SERVICE
warning lamp.
Have it checked by a CITROËN dealer or a
qualified workshop.
Exceeding the programmed
speed
In the event of a steep descent or
under excessive acceleration, the
speed limiter (which does not act
on the brakes) may not be able to
prevent the vehicle from exceeding the
programmed speed.
Use of a floor mat other than that
recommended by CITROËN may affect
the normal operation of the accelerator
pedal and hamper the operation of the
speed limiter.
Floor mats approved by CITROËN
are fitted with a 3rd fixing located in
the pedal area to avoid any risk of
inter ference with the pedals.
The speed will also flash if the speed limiter is
not able to prevent the vehicle from exceeding
the programmed speed setting (e.g. on a steep
descent or under excessive acceleration).
To reactivate the speed limiter, release the
accelerator to slow to a speed lower than the
programmed speed. F
Press button 5 .
F Or select the speed limiter function.
F Or stop the engine.
Driving
