Cruise control
Displays in the instrument panel
The information related to the cruise control is
grouped together in zone A of the instrument
panel.
Steering mounted controls
The cruise control switches are located on the
left-hand side of the steering wheel.
1. a ctivate the cruise control at the current
speed of the vehicle, then increase the
programmed speed.
2. a ctivate the cruise control at the current
speed of the vehicle, then decrease the
programmed speed.
3. Pause / Restore the cruise control.
4. Select cruise control mode.
5. Deactivate the cruise control.
System which automatically maintains the
vehicle speed programmed by the driver,
without any action on the accelerator pedal.
The cruise control is switched on manually:
the vehicle speed must be at least 25 mph
(40 km/h) and you must be in at least:
-
4th gear for a manual gearbox,
- 2nd gear for an automatic gearbox.
The driver must remain attentive and in
complete control of the vehicle.
You are recommended to keep your feet
within range of the pedals .
4
driving

126
Exceeding the programmed
speed
While cruise control is in operation, it is always
possible to go above the programmed speed
simply by pressing the accelerator pedal (for
example to overtake another vehicle).
The speed displayed in zone A flashes.
You only have to release the accelerator pedal
to return to the programmed speed.
Programming
The selection is confirmed by the display of the
"CRUISE " function in zone A of the instrument
panel.
When the function is selected, no cruising
speed has yet been memorised .
Once the desired speed has been reached
using the accelerator, press button 1 or 2 . The
cruising speed is then memorised and cruise
control is activated. The cruising speed is
displayed in zone A of the instrument panel,
and "ON" is displayed.
Adjusting the memorised
speed while the cruise
control is in operation
You can adjust the memorised speed,
displayed in zone A , by pressing:
- Button 1 to increase the speed.
- Button 2 to reduce the speed.
Successive presses will modify the cruise
speed in steps of 1 mph (km/h) and a
continuous press in steps of 5 mph (km/h).
You can then release the accelerator pedal.
The vehicle will automatically keep to the speed
chosen.
The vehicle speed may vary slightly from that
memorised.
If during cruise control the system cannot keep
to the cruise speed (e.g. on a steep descent),
then the speed flashes. If necessary, brake to
curb your speed.
F
Press button 4 to select " CRUISE" cruise
control mode.
Driving

127

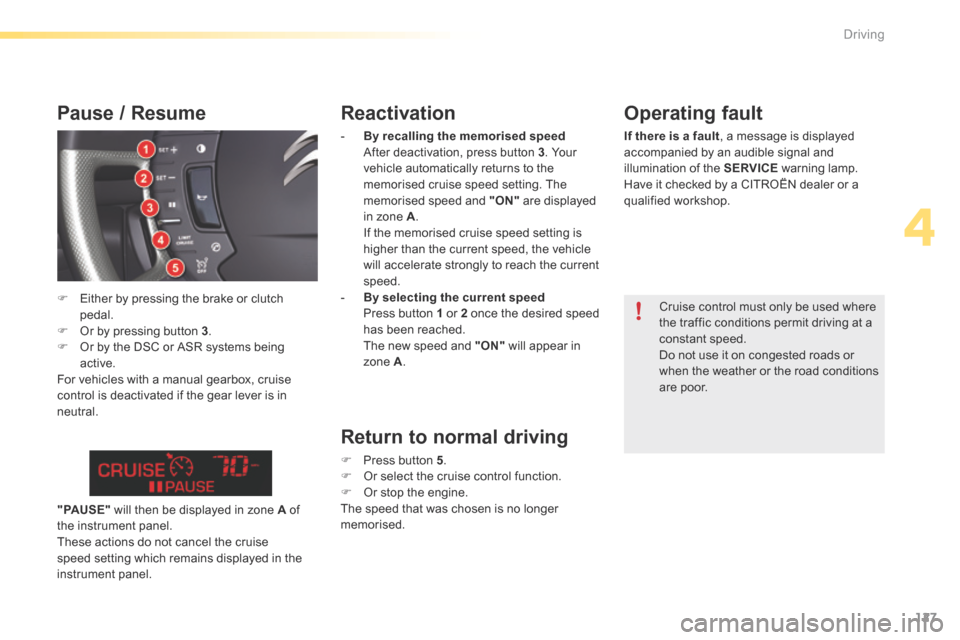

Reactivation
- By recalling the memorised speed
After deactivation, press button 3 . Your
vehicle automatically returns to the
memorised cruise speed setting. The
memorised speed and "ON" are displayed
in zone A .
If the memorised cruise speed setting is
higher than the current speed, the vehicle
will accelerate strongly to reach the current
speed.
- By selecting the current speed
Press button 1 or 2 once the desired speed
has been reached.
The new speed and "ON" will appear in
zone A .
Return to normal driving
F Press button 5 .
F Or select the cruise control function.
F Or stop the engine.
The speed that was chosen is no longer
memorised.
" PAUS E "
will then be displayed in zone A of
the instrument panel.
These actions do not cancel the cruise
speed setting which remains displayed in the
instrument panel.
Operating fault
If there is a fault , a message is displayed
accompanied by an audible signal and
illumination of the SERVICE warning lamp.
Have it checked by a CITROËN dealer or a
qualified workshop.
Cruise control must only be used where
the traffic conditions permit driving at a
constant speed.
Do not use it on congested roads or
when the weather or the road conditions
are poor.
Pause / Resume
F Either by pressing the brake or clutch
pedal.
F Or by pressing button 3 .
F Or by the DSC or ASR systems being
active.
For vehicles with a manual gearbox, cruise
control is deactivated if the gear lever is in
neutral.
4
Driving

129
Parking space sensors
System which measures the parking space
available between two vehicles or obstacles. It
measures the size of the space and gives you
information on:
- the possibility of fitting into a free space,
depending on the dimensions of your
vehicle and the distances necessary for
your manoeuvres,
- the level of difficulty of the manoeuvre to
be performed.
The system does not measure spaces which
are clearly much smaller or larger than the size
of the vehicle. The parking space sensor system warning
lamp can have three different states:
-
off: the system is not selected,
- on fixed: the system is selected but the
conditions for measuring are not yet met
(direction indicator not operating, speed too
high) or the measurement is terminated.
- flashing: measurement is in progress or
the message is being displayed. You can select the "parking space sensor"
system by pressing button A
. The fixed
illumination of the warning lamp indicates that
the system is selected.
During the measurement, the message
"Measurement in progress - Vmax 20 km/h
(12 mph)" is displayed in the instrument panel
screen.Displays in the instrument panel
4
Driving

130
Operation
You have identified a parking space:
F Press button A to select the system.
F Activate the direction indicator on the side
where the space is to be measured.
F During measurement, go for ward the
length of the space, at a speed less than
12 mph (approx. 20 km/h), to prepare for
your manoeuvre.
The system then measures the size of the space.
F The system informs you of the level
of difficulty of the manoeuvre via a
message in the instrument panel screen
accompanied by an audible signal.
F Depending on the message issued by the
system, you may or may not be able to
per form the manoeuvre.The system displays the following types of message:
Parking YES
Parking DIFFICULT
Parking NO The system is deselected automatically:
-
when you engage reverse gear,
- when you switch off the ignition,
- if measurement is not requested,
- within five minutes of selection of the
system,
- if the vehicle speed exceeds the
threshold of 45 mph (approx. 70 km/h) for
one minute.
If the lateral distance between your vehicle and
the parking space is too large, the system may
not be able to measure the space.
The system remains available after each
measurement and thus can measure more than
one space during your search.
In bad weather conditions or in winter, make
sure that the sensors are not covered by dirt, or
by ice or snow.
The parking space sensor system deactivates
the front parking sensors during space
measurement when you are in for ward gear.
If there is a fault, have the system
checked by a CITROËN dealer or a
qualified workshop.
Driving

131
Parking sensors
Operation
The parking sensors system cannot, in
any circumstances, replace the need for
vigilance on the part of the driver.
This system detects any obstacle (person,
vehicle, tree, barrier...) located in front of or
behind the vehicle, however, it will not be able
to detect obstacles located immediately below
the bumper.
An object, such as a stake, a roadworks cone
or any other similar object may be detected at
the start of the manoeuvre but may no longer
be detected when the vehicle moves nearer
to it.
At the front and/or at the rear
This system is comprised of proximity sensors,
installed in the front and/or rear bumper.
Visual and audible assistance
The proximity information is indicated by:
-
an audible signal which becomes more rapid
as the vehicle approaches the obstacle,
- a diagram in the multifunction screen, with
blocks which move closer to the vehicle.
The obstacle is located in relation to the emission
of the audible signal by the speakers; front or rear
and right or left.
When the distance between the vehicle and
the obstacle is less than approximately thirty
centimetres, the audible signal becomes
continuous and/or the "Danger" symbol appears,
depending on the multifunction screen version.
In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
When the speed of the vehicle is below
about 6 mph (10 km/h), some sources
of noise (motorcycle, lorry, pneumatic
drill, ...) may trigger the audible parking
sensor signals. The parking sensors are switched on
:
- by engaging reverse gear,
- at a speed below 6 mph (10 km/h) in
forward gear.
This is accompanied by an audible signal and
the display of the vehicle in the multifunction
screen.
The parking sensors are switched off :
- when you exit reverse gear,
- when the speed is higher than 6 mph
(10 km/h) in for ward gear,
- when the vehicle has been stationary for
more than three seconds in for ward gear.
4
Driving

133
Reversing camera (Tourer)
A reversing camera is activated automatically
when reverse gear is engaged.
The image is displayed in the navigation
screen.The space between the blue lines represents
the width of your vehicle except for the door
mirrors.
The blue lines represent the general direction
of the vehicle.
The red lines represent a distance of about
30 cm beyond the edge of your vehicle's rear
b u m p e r.
The green lines represent distances of
about 1 and 2 metres beyond the edge of your
vehicle's rear bumper.
The projected lines displayed in the
screen do not allow the vehicle to
be placed relative to tall obstacles
(vehicles that are close for example).
Deformation of the image is normal.
Clean the reversing camera regularly
using a sponge and a soft cloth.
When cleaning the vehicle with a high
pressure jet wash, keep the lance
at least 30 cm from the lens of the
camera.
This system is a driving aid that does
not replace the need for vigilance on
the part of the driver, who must retain
control of their vehicle at all times.
4
driving

134
"Hydractive III +" electronic suspension
The suspension automatically and instantly
adjusts to different driving styles and to
the profile of the road, providing the best
compromise between occupant comfort and
vehicle road holding.
The system alternates between soft and firm
suspension settings, maximising comfort at the
same time as constantly ensuring the highest
level of safety. It also automatically corrects
ride height, according to the vehicle load and
driving conditions.
In addition, the "Hydractive III +" system
allows you to choose between two modes of
suspension.
A change of suspension mode can be made
either when the vehicle is moving or when
stationary, by pressing button A.
Display in the instrument panel
The suspension mode selected is displayed in
the instrument panel screen.
Normal mode
This mode favours soft damping for
maximum comfort.
If the speed authorised for a
particular position is exceeded, the
vehicle reverts automatically to the
normal road position.
SPORT mode
This mode favours dynamic driving.
The warning lamp on button A comes
on in addition to the message in the
instrument panel screen.
SPORT mode is retained when you
switch off the engine.
Vehicle positions
Position changes may only be made when
the engine is running.
The adjustable ground clearance meets all
types of situation. Apart from a few specific
situations, the vehicle should be in the Normal
position.
F Press once on one of the adjustment
controls.
The change in position is indicated by a
message on the instrument panel screen.
Driving

135
Request not granted
The instrument panel screen temporarily displays a
message indicating that this position is not authorised.
The vehicle remains in the authorised position and the
instrument panel screen indicates this position to you.
Automatic variation of ground clearance
- If your speed exceeds 70 mph (approx.
110 km/h), on a good road sur face, ground
clearance is lowered. The vehicle returns
to its normal position if the road sur face
deteriorates or if your speed is lower than
55 mph (approx. 90 km/h).
- At low or medium speed, if the road sur face
is poor, ground clearance is increased. The
vehicle returns to its normal position as
soon as conditions allow.
- On switching off the ignition, the ground
clearance is reduced to the parking position
Normal position
If the speed authorised for a particular position
is exceeded, the vehicle reverts automatically
to the normal position.
Low position
To facilitate loading or unloading the vehicle.
For workshop inspections.
Not to be used in normal driving (not possible
if speed > 6 mph (10 km/h)).
High position
Changing a wheel (not possible if
speed > 6 mph (10 km/h)).
Mid-high position
For increased ground clearance (not possible
if speed > 25 mph (40 km/h)).
For use on difficult roads when travelling at
reduced speed, as well as on car park ramps.
For your safety if you are operating
underneath the vehicle, you must
suppor t the vehicle with axle stands.
4
Driving

137
Manual controls
Lighting off (ignition off)
Daytime running lamps (engine running).
Automatic illumination of headlamps.
Sidelamps.Dipped headlamps or main
beam headlamps.
B. Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main beam
headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Displays
The lighting is controlled directly by the driver
by means of the ring A and the stalk B .A.
Main lighting mode selection ring: turn it
to position the symbol required facing the
mark.
C. Foglamps selection ring.
The foglamps operate with the sidelamps and
the dipped and main beam headlamps.
Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is on.
5
Visibility
