4
IN BRIEF
E X T E R I O R
115
75
76
455178
Glass sun roof
The sun roof provides you with improved ventilation and brightness in the passenger compartment.
P i l o t e d D e fl e c t o r
T h i s d e fl e c t o r e n h a n c e s the aerodynamics and the braking oaf your vehicle.
P a r k i n g a s s i s t a n c e (display and sound)
This function warns you, whilst manoeuvring, by detecting obstacles located in front of and behind the vehicle.
Lane Departure Warning System
This driving assistance device warns you when you unwittingly cross a lane marking.
T h e X e n o n d u a l - f u n c t i o n d i r e c t i o n a l h e a d l a m p s
this additional lighting automatically provides you with enhanced visibility on bends.
T y r e d e fl a t i o n d e t e c t i o n
This function monitors the pressure of each tyre and warns you of tyres that a r e p u n c t u r e d o r d e fl a t e d .
Page 2 of 216
I
55
BA
D
C
B
A
IN BRIEF
A. Key release/storage.
B. Locking of the vehicle.C. Unlocking of the vehicle.D. Guide-me-home lighting.
REMOTE CONTROL KEY
21
O P E N I N G
133
OPENING THE BONNET
Inside the vehicle:
Pull the lever A towards you.
Outside the vehicle:
Lift the lever B located under the front edge close to the centre of the bonnet then lift the bonnet.
Press on button A to the left of the d a s h b o a r d t o o p e n t h e f u e l fi l l e r fl a p .
Opening and attaching the fuel cap B.
FUEL TANK
149
T a n k c a p a c i t y : approximately 72 litres
Page 3 of 216
6
B
A
IN BRIEF
1. L i f t t h e b o o t fl o o r u s i n g t h e s t r a p B.2. Anchor the strap on the roof of the boot.3. To remove the spare wheel, detach the belt then push the wheel forwards so as to be able to lift it.
SPARE WHEEL
Note: The tools are to be found in a protective holder inside the spare wheel.
157
O P E N I N G
This can be unlocked, vehicle stopped:With either the remote control or the key.Using the interior central unlocking button, or simply by opening a door.
From the outside, press on lever A.
Page 4 of 216
I
77
IN BRIEF
INTERIOR
63
83
69-67
73
35116
A u d i o a n d c o m m u n i c a t i o n systems
This equipment utilises the latest tech-nology: MP3 compatible RD4 radio, RT3 hands free kit, Bluetooth® tele-®
phone radio with navigation, JBL audio system.
Speed limiter
This driving assistance device allows you to select a maximum speed that you do not wish to exceed.
C r u i s e c o n t r o l
This system allows you to automati-cally maintain the vehicle speed at the value programmed by the driver, with-out the need to press the accelerator.
T h e a u t o m a t i c g e a r b o x
This device provides you with optimum driving conditions by combining a fully a u t o m a t i c m o d e , a l o n g w i t h t w o s p e c i fi c programmes, as well as a manual mode.
A u t o m a t i c a i r c o n d i t i o n i n g
This air conditioning system ensures comfort and a suf- fi c i e n t c i r c u l a t i o n o f a i r i n t h e cabin.
E l e c t r i c p a r k i n g b r a k e
The electric parking brake combines automatic locking when the engine is stopped, and automatic unlocking when accelerating (devices activated by default).Note: Manual locking/unlocking is possible.
Head-up display
This device projects a range of impor- t a n t i n f o r m a t i o n i n t o t h e d r i v e r ' s fi e l d o f vision. In this way, the driver does not need to take his eyes off the road.
Page 5 of 216
8
1
8
2
3
7
9
10
465
11
14
13
12
1617
15
1819
IN BRIEF
1. Head-up display cavity
2. Steering column adjustment
3. Controls - Lighting/Direction indicators/
Rear foglamps/Voice recognition
4. Instrument panel
5. Horn
6. Controls - Wipers
7. Front passenger's airbag deactivation
8. Driver's seat adjustment controls and memories
9. Controls - Windows/Rear view mirrors/Child safety
10. Driver's airbag
11. Controls at the steering wheel - Speed limiter and
Cruise control
12. Electric parking brake
13. Suspension controls - Ground clearance
adjustment/Sport mode
14. Automatic gearbox SPORT/SNOW mode controls
15. Head-up display controls
16. Oddments tray
17. F u e l fl a p c o n t r o l
18. Ignition switch
19. Controls - Radio controls under the steering wheel
D A S H B O A R D

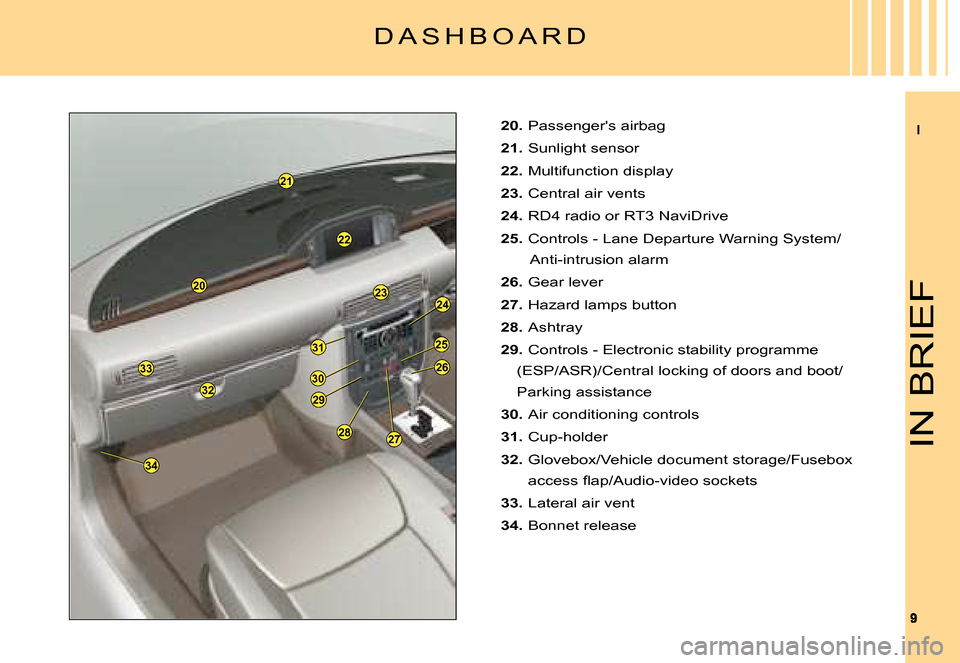

Page 6 of 216
I
99
2324
25
33
27
32
20
22
21
26
29
30
31
34
28IN BRIEF
20. Passenger's airbag
21. Sunlight sensor
22. Multifunction display
23. Central air vents
24. RD4 radio or RT3 NaviDrive
25. Controls - Lane Departure Warning System/
Anti-intrusion alarm
26. Gear lever
27. Hazard lamps button
28. Ashtray
29. Controls - Electronic stability programme
(ESP/ASR)/Central locking of doors and boot/
Parking assistance
30. Air conditioning controls
31. Cup-holder
32. Glovebox/Vehicle document storage/Fusebox
a c c e s s fl a p / A u d i o - v i d e o s o c k e t s
33. Lateral air vent
34. Bonnet release
D A S H B O A R D
Page 7 of 216
10
A
B
FED
C
21G
IN BRIEF
FRONT SEATS
C. Adjustment of the backrest angle.
D. Adjustment of the backrest lumbar support.
E. Seat height and slide adjustments.
F. Adjustment of the seat cushion angle.
G. Memorisation of dashboard adjustments:
- Driver's seat.
- Steering wheel.
- Exterior rear view mirrors.
- Head-up display.
You have the possibility to memo-rise two driving positions using buttons 1 and 2.
E l e c t r i c a d j u s t m e n t s
A. Adjustment of the backrest angle.
B. Controls for the heated seats.
5657
G E T T I N G S T A R T E D
The c o r r e c t p o s i t i o n i n g of the belt strap is through the middle of the shoulder. See "Seat belts".
To adjust the seat belt for height, compress the control and slide it in the desired direction.
SEAT BELT HEIGHT ADJUSTMENT
55
M a n u a l a d j u s t m e n t s
Page 8 of 216
I
1111
12
IN BRIEF
While the vehicle is stationary, unlock the steering wheel by pushing the lever forward.
Adjust the height and the reach of the steering wheel, then lock the position by pulling the lever upwards.
MANUAL STEERING COLUMN ADJUSTMENT
55
While the vehicle is stationary, adjust the height or the reach of the steering wheel by moving the control:forward or rearward to adjust the reach,
up or down to adjust the height.
Page 9 of 216
12
12
ba
c15
42
3
IN BRIEF
5461
1. Driver's electric window control.
2. Passenger's electric window control.
3. Right-hand rear electric window control.
4. Left-hand rear electric window control.
5. Deactivation control for rear electric windows and rear door opening from inside.
1. Selection of rear view mirror: a - Left hand side. b - Right hand side. c - Folded/Automatic deployment.
2. Mirror directional control.
ELECTRIC EXTERIOR REAR VIEW MIRRORSELECTRIC WINDOWS CONTROL
G E T T I N G S T A R T E D
The whole or just part of the bench-seat can be folded. It is necessary to remove the head restraints.
REAR SEATS
96
Note: The benchseat backrest can be folded in two sections. When you reposition the back-rest, make sure that it locks in place.
Page 10 of 216
I
1313
A
B
IN BRIEF
LIGHTING
Ring A
Sidelamps.
Dipped beams/main beams.
Lamps off.
Pull the control stalk towards youto change between dipped beam and main beam.
Front foglamps and rear foglamps on.
Front foglamps on.
S w i t c h i n g o f f
First action rearwards, rear foglamps off.
Second action rearwards, front and rear foglamps off.
Ring B
WIPERS
Control positions2. Rapid wipe.1. Normal wipe.I. Intermittent wipe.0. Off.
O n e p r e s s d o w n w a r d s : A U T O : Automatic wipe activated.
Single wipe.
