Citroen C6 2008 1.G Workshop Manual

54
II
A
W I N D O W S
if there has been a malfunction, you have to reinitialise the anti-pinch function for each window:Lower the window fully using the control, then close. It will rise only a few centimetres. Press repeatedly on the control until the window is fully closed.
Keep the control pressed for at least a few seconds after the window has fully closed.
WARNING
During this operation, the anti-pinch protection does not work.

55
II
S T E E R I N G C O L U M N A D J U S T M E N T – S E A T
B E L T H E I G H T A D J U S T M E N T
MANUAL ADJUSTMENT OF THE STEERING WHEEL FOR HEIGHT AND REACH
While the vehicle is stationary, unlock the steering wheel by push-ing the lever forward.
Adjust the height and the reach of the steering wheel, then lock the position by pulling the lever upwards.
ELECTRICAL ADJUSTMENT OF THE STEERING WHEEL FOR HEIGHT OR REACH
While the vehicle is stationary, adjust the height or the reach of the steering wheel by moving the control:forward or rearward to adjust the reachup or down to adjust the height.
The steering wheel adjustment is memorised with the driving posi-tion (See "Memorisation").

56
II
1
3
2
F R O N T S E A T S
ADJUSTMENT OF THE BACKREST ANGLE
Action the control 1 and adjust the angle of the backrest.
It is possible to tilt the backrest 45° forwards until it locks. To unlock it, press control 1.
ADJUSTMENTS TO THE HEIGHT AND ANGLE OF THE HEAD RESTRAINT
To raise it, pull upwards.
To lower it, press on the control 2 to unlock it, and simultaneously on the head restraint itself.
To adjust the angle of the head restraint, tilt it forwards or rearwards at the bottom.
To raise it, press control 2 to unlock it, then pull it upwards.
CONTROLS FOR THE HEATED SEATS
The front seats can be heated independently of each other . On the con-trols for the heated seats 3 located on the outer side of the seats, rotate the knob to select any of three heat intensities:
0: Off.
1: Slight heat.
2: Medium heat.
3: Maximum heat.
Note: The heated seats only operate when the engine is running.
SEAT HEIGHT AND SLIDE ADJUSTMENTS
See following page.

57
II
A
B
C
D
DCB
A
F R O N T S E A T S
Do not drive the vehicle with the head restraints removed; these must be in place, correctly adjusted.
ELECTRICAL ADJUSTMENTS
Adjustment of the backrest angle
To adjust the angle of the backrest, press button A.
Lumbar adjustment
To adjust the backrest lumbar support, press button B.
Seat height and slide adjustments
To slide the seat, press on the horizontal arrows on control C.
To adjust the seat for height, press on the vertical arrows on control C.
Adjustment of the seat cushion angle
To adjust the seat cushion angle, press on control D.
Note: These adustments remain available for a limited time:After you have opened a door
After you have switched off the ignition

58
II
21
M
M E M O R I S A T I O N
DRIVING POSITIONSMEMORISED VIABUTTONS 1 AND 2
To memorise a driving position:a. Place the igntion key in "Drive" position (second position).b. Make your adjustments of the seat, the steering wheel, the rear view mirrors and the Head-up Display.c. Press successively on button M then on button 1(fi rst driving position) or 2 (second driving position).
The memorisation is confi rmed by a sound signal.Note: The memorisation of a new driving position cancels and replaces the previous one.
The memorisation function allows to make the following dashboard adjustments:Driver's seat
Steering wheel
Exterior rear view mirrorsHead-up display.
See "Steering wheel adjustment", "Rear view mirrors" and "Head-up Display".
You have the possibility to memo-rise two driving positions using buttons 1 and 2.

59
II
23
1
S E A T B E L T S W A R N I N G L A M P
OPERATION
The driver's and the front and rear passengers' seats have sensors that detect non-fastening/unfas-tening of the seat belts.
The fastened/non-fastened status of the seat belts for each type of seat is indicated by the illumination or fl ashing of the warning lamps 1, 2 and 3.
FUNCTIONING OF THE SYSTEM OF DETECTION
Driver's and front passenger's seats
When you switch on the ignition:If the driver's seat belt is not fastened, the warning lamp 1 illuminates in the instrument panel.If the passenger's seat belt is not fastened, the warning lamp 3 lights up.
Above 20 km/h (12 mph), the warning lamp fl ashes for non-fastenin g/unfas-tening, accompanied by a message and a sound signal for around 2 min-utes. Then the warning lamp(s) 1 and/or 3 remain on.
Rear passengers'seats
When you switch on the ignition, warning lamp 2 lights up to make the driver and any passengers aware.
Once the doors are closed and the engine started, a message tells you the fastening status of the rear belts for 30 seconds.
After this time, if one or more of the rear belts are not fastened:Warning lamp 2 comes on, if your speed is less than around 20 km/h (12 mph).Warning lamp 2 fl ashes, accompanied by a message and a sound signal for about two minutes, if your speed is above around 2 0 km/h (12 mph).Note:The detection of non-fastening of rear seat belts is deactivated when you switch off the ignition or if one of the vehicle's doors is opened.
A child seat installed on the front passenger's seat may not b e detected.

60
II12

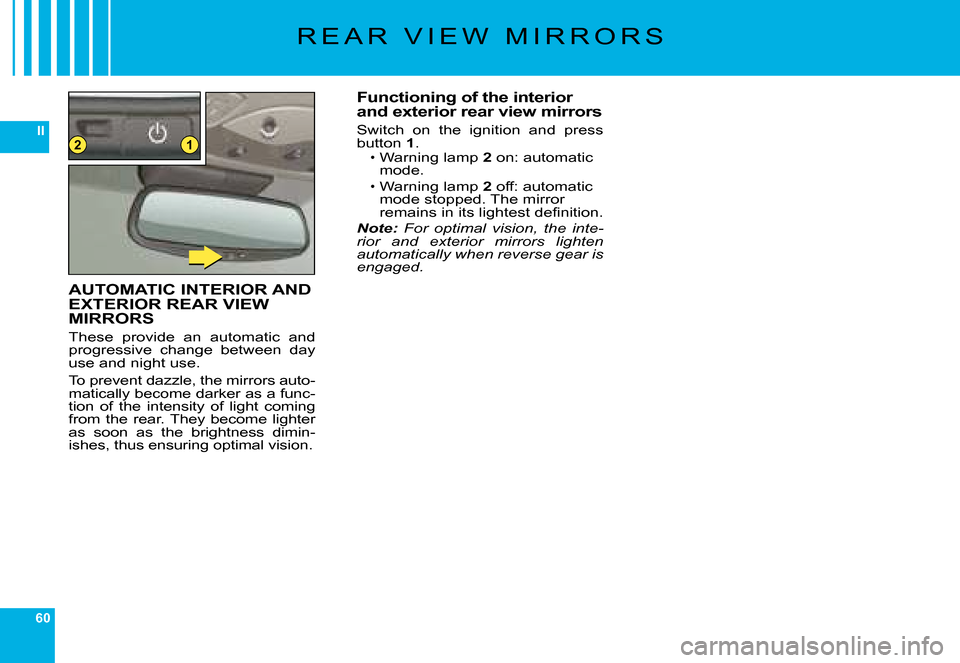

R E A R V I E W M I R R O R S
Functioning of the interior and exterior rear view mirrors
Switch on the ignition and press button 1.Warning lamp 2 on: automatic mode.
Warning lamp 2 off: automatic mode stopped. The mirror remains in its lightest defi nition.Note: For optimal vision, the inte-rior and exterior mirrors lighten automatically when reverse gear is engaged.

61
II
21
R E A R V I E W M I R R O R S
ELECTRIC EXTERIOR REAR VIEW MIRRORS
Features
The end of the glass in the exte-rior rear view mirrors is aspherical, so as to enlarge the lateral fi eld of vision.
Objects observed in the aspheri-cal part of the rear view mirrors are in reality closer than they appear.
You must take this into account in order to be properly aware of the distances involved.
Adjustment of the rear view mirrors
This can operate when the ignition is switched on.
The driver selects the rear view mirror by moving control 1, to the left or to the right, then adjusts the mirror in the four directions by acting on control 2.
Demisting-deicing of the rear view mirrors is linked with that fo r the rear screen.
The adjustments you have made to the rear view mirrors are included in the memorisation of driving positions. See "Memorisation".
Fold-back of door mirrors
When the vehicle is parked, the door mirrors can be folded back either manually or electrically.
Electric fold-back
From the central position, one press towards the rear on control 1 folds the rear view mirrors back.
To return them to the initial position, press again on cont rol 1 towards the rear.
Automatic fold-back
Automatic fold-back operates when you lock the doors.

62
II
1
R E A R V I E W M I R R O R S
ELECTRIC EXTERIOR REAR VIEW MIRRORS (CONTINUED)
In reverse gear: adjustment of the indexed positions for the passenger’s and driver’s rear view mirrors
With the engine running:1. Select the (driver's or passenger's) rear view mirror using control 1.2. Engage reverse gear, the mirror glass automatically positions itself to improve your vision of the pavement.3. If necessary, adjust the mirror to your preference using the electriccontrol.
Deactivation of the rear view mirror indexing function
To deactivate the function, move control 1 to the central position.

63
IIP
R
N
A
A
M A N U A L G E A R B O X / A U T O M A T I C
G E A R B O X
For safety:The gear lever can only be disengaged from position P if you are pressing the brake pedal.
When a door is opened, an audible signal sounds if the gear selector is not in position P.
Before leaving the vehicle, make absolutely certain that position P is selected.
