IN BRIEF
1. Head-up display cavity
2. Steering column adjustment
3. Controls - Lighting/Direction indicators/
Rear foglamps/Voice recognition
4. Instrument panel
5. Horn
6. Controls - Wipers
7. Front passenger's airbag deactivation
8. Driver's seat adjustment controls and memories
9. Controls - Windows/Rear view mirrors/Child safety
10. Driver's airbag
11. Controls at the steering wheel - Speed limiter and
Cruise control
12. Electric parking brake
13. Suspension controls - Ground clearance
adjustment/Sport mode
14. Automatic gearbox SPORT/SNOW mode controls
15. Head-up display controls
16. Oddments tray
17. F u e l fl a p c o n t r o l
18. Ignition switch
19. Controls - Radio controls under the steering wheel
D A S H B O A R D
Page 71 of 216
74
II
B
D
E
C
A

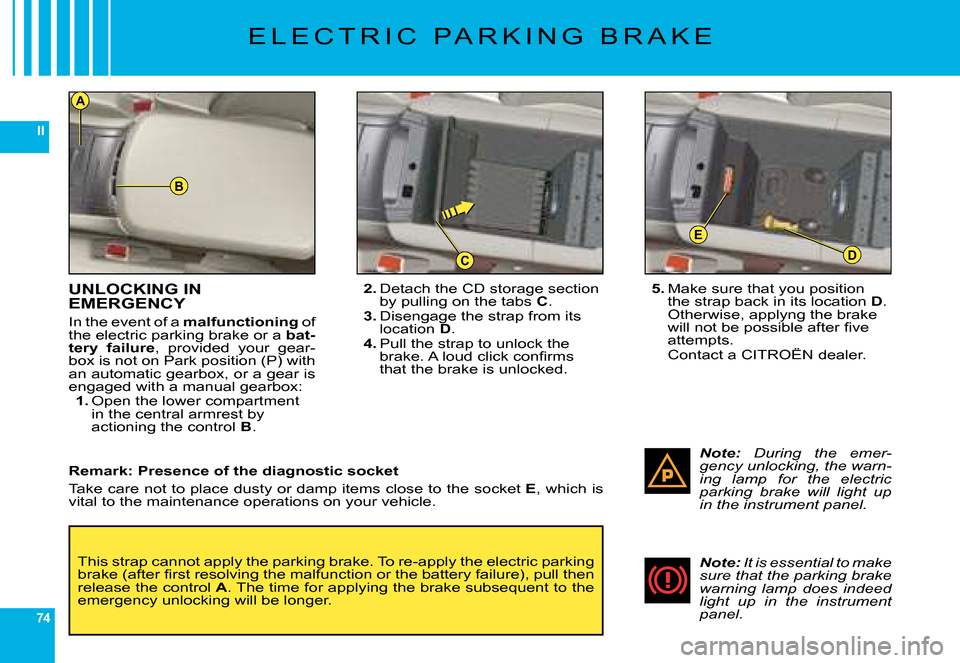

UNLOCKING INEMERGENCY
I n t h e e v e n t o f a malfunctioning o f t h e e l e c t r i c p a r k i n g b r a k e o r a bat-tery failure , p r o v i d e d y o u r g e a r - b o x i s n o t o n P a r k p o s i t i o n ( P ) w i t h a n a u t o m a t i c g e a r b o x , o r a g e a r i s e n g a g e d w i t h a m a n u a l g e a r b o x :1. O p e n t h e l o w e r c o m p a r t m e n t i n t h e c e n t r a l a r m r e s t b y a c t i o n i n g t h e c o n t r o l B.
E L E C T R I C P A R K I N G B R A K E
5. Make sure that you position the strap back in its location D. O t h e r w i s e , a p p l y n g t h e b r a k e w i l l n o t b e p o s s i b l e a f t e r fi v e a t t e m p t s . C o n t a c t a C I T R O Ë N d e a l e r .
T h i s s t r a p c a n n o t a p p l y t h e p a r k i n g b r a k e . T o r e - a p p l y t h e e l e c t r i c p a r k i n g b r a k e ( a f t e r fi r s t r e s o l v i n g t h e m a l f u n c t i o n o r t h e b a t t e r y f a i l u r e ) , p u l l t h e n release the control A . T h e t i m e f o r a p p l y i n g t h e b r a k e s u b s e q u e n t t o t h e e m e r g e n c y u n l o c k i n g w i l l b e l o n g e r .
Note: During the emer-gency unlocking, the warn-ing lamp for the electric parking brake will light up in the instrument panel.
2. D e t a c h t h e C D s t o r a g e s e c t i o n b y p u l l i n g o n t h e t a b s C.3. D i s e n g a g e t h e s t r a p f r o m i t s location D.4. P u l l t h e s t r a p t o u n l o c k t h e b r a k e . A l o u d c l i c k c o n fi r m s t h a t t h e b r a k e i s u n l o c k e d .
Note: It is essential to make sure that the parking brake warning lamp does indeed light up in the instrument panel.
Remark: Presence of the diagnostic socket
T a k e c a r e n o t t o p l a c e d u s t y o r d a m p i t e m s c l o s e t o t h e s o c k e t E , w h i c h i s v i t a l t o t h e m a i n t e n a n c e o p e r a t i o n s o n y o u r v e h i c l e .
