Page 7 of 216
10
A
B
FED
C
21G
IN BRIEF
FRONT SEATS
C. Adjustment of the backrest angle.
D. Adjustment of the backrest lumbar support.
E. Seat height and slide adjustments.
F. Adjustment of the seat cushion angle.
G. Memorisation of dashboard adjustments:
- Driver's seat.
- Steering wheel.
- Exterior rear view mirrors.
- Head-up display.
You have the possibility to memo-rise two driving positions using buttons 1 and 2.
E l e c t r i c a d j u s t m e n t s
A. Adjustment of the backrest angle.
B. Controls for the heated seats.
5657
G E T T I N G S T A R T E D
The c o r r e c t p o s i t i o n i n g of the belt strap is through the middle of the shoulder. See "Seat belts".
To adjust the seat belt for height, compress the control and slide it in the desired direction.
SEAT BELT HEIGHT ADJUSTMENT
55
M a n u a l a d j u s t m e n t s

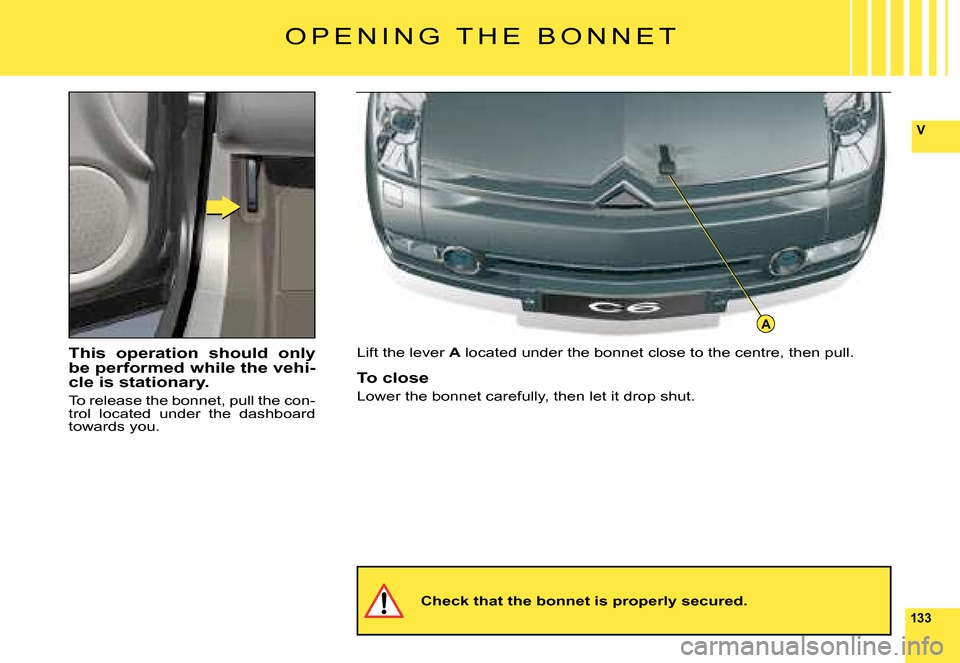

Page 130 of 216
133
V
A
This operation should only be performed while the vehi-cle is stationary.
To release the bonnet, pull the con-trol located under the dashboard towards you.
Lift the lever A located under the bonnet close to the centre, then pull.
To close
Lower the bonnet carefully, then let it drop shut.
Check that the bonnet is properly secured.
O P E N I N G T H E B O N N E T
Page 138 of 216
141
V
F2 F9 F6 F5 F1 F7 F4 F3 F10 F8 F13 F12 F14F17
SH
F11
F15
F15
G29 G30 G31 G32
G33 G34 G35
G36 G38 G40 G37 G39
F U S E S
D A S H B O A R D
FUSEBOXES
T h e r e a r e t w o f u s e b o x e s u n d e r t h e d a s h b o a r d , o n e i n the engine compartment and another in the boot under the left hand wing trim.
Dashboard fuses
To access the fuses under the dashboard, open the g l o v e b o x a n d t h e n d e t a c h t h e s t o w a g e c o v e r .
GoodBad
Replacement fuses
and pliers A
Pliers A
Box B
Box B
REPLACING A FUSE
Before replacing a fuse, you should ascertain the cause of the fault and have it remedied. The numbers of the f u s e s a r e i n d i c a t e d o n t h e f u s e b o x .
Replace the fuse that has blown with one of the s a m e r a t i n g ( s a m e c o l o u r ) .
Use the special pliers A p l a c e d o n t h e fl a p c l o s e t o t h e f u s e b o x e s . T h e fl a p a l s o h a s s p a r e f u s e s a v a i l a b l e .
Page 161 of 216
164
VII
BC
12345
A
AD
V E H I C L E I D E N T I F I C A T I O N
A Chassis number plateOn the left hand door centre pillar.
1. EU type approval number.2. V e h i c l e i d e n t i fi c a t i o n N o . (VIN).3. G r o s s v e h i c l e w e i g h t .4. G r o o s t r a i n w e i g h t .5. M a x i m u m w e i g h t o n f r o n t axle.6. M a x i m u m w e i g h t o n r e a r axle.B Body serial numberC Serial number on dashboardD Paint colour code Tyre reference Tyre pressuresOn front pillar.
T h e v e h i c l e t y p e a n d t h e i d e n t i fi c a t i o n n u m b e r a r e a l s o i n d i c a t e d o n t h e r e g i s t r a t i o n d o c u m e n t .
A l l C I T R O Ë N o r i g i n a l r e p l a c e m e n t p a r t s a r e a v a i l a b l e e x c l u s i v e l y w i t h i n t h e d e a l e r n e t w o r k .
F o r y o u r s a f e t y a n d i n o r d e r t o r e m a i n w i t h i n t h e t e r m s o f t h e g u a r a n t e e , y o u a r e a d v i s e d t o u s e o n l y C I T R O Ë N replacement parts.
