20. Passenger's airbag
21. Sunlight sensor
22. Multifunction display
23. Central air vents
24. RD4 radio or RT3 NaviDrive
25. Controls - Lane Departure Warning System/
Anti-intrusion alarm
26. Gear lever
27. Hazard lamps button
28. Ashtray
29. Controls - Electronic stability programme
(ESP/ASR)/Central locking of doors and boot/
Parking assistance
30. Air conditioning controls
31. Cup-holder
32. Glovebox/Vehicle document storage/Fusebox
a c c e s s fl a p / A u d i o - v i d e o s o c k e t s
33. Lateral air vent
34. Bonnet release
D A S H B O A R D
Page 13 of 216
16
12
3
IN BRIEF
SEAT BELTS WARNING LAMPTYRE DEFLATION DETECTION
T h i s f u n c t i o n w a r n s y o u o f t y r e s t h a t a r e d e fl a t e d o r p u n c t u r e d .
T y r e d e fl a t i o n a l e r t : The SERVICE warning lamp comes on and a vehicle outline is displayed.
" P u n c t u r e " : The "STOP" and tyre(s) punctured warning lamps light up, and a vehicle outline is displayed.
C o l o u r s c r e e n C N a v i D r i v e c o l o u r d i s p l a y
Display of tyres in g o o d c o n d i t i o n
T y r e v e r y d e fl a t e d
T y r e d e fl a t e d
" P u n c t u r e "
59- 45
The driver's and the front and rear passengers' seats have sensors that detect non-fastening/unfas-tening of the seat belts.
The fastened/non-fastened status of the seat belts for each type of seat is indicated by the illumination o r fl a s h i n g o f t h e w a r n i n g l a m p s 1, 2 and 3.
M O N I T O R I N G
Page 42 of 216
45
II
T R I P C O M P U T E R
TYRE DEFLATION DETECTION
T h i s f u n c t i o n w a r n s y o u o f t y r e s t h a t a r e d e fl a t e d o r p u n c t u r e d , b y m e a n s o f s e n s o r s t h a t c o n t i n u o u s l y m o n i t o r t h e s t a t u s o f t h e v e h i c l e ' s w h e e l s , g i v i n g y o u t h i s i n f o r m a t i o n o n t h e s c r e e n ( p r e s s t h e e n d o f t h e w i p e r c o n t r o l s t a l k o r o n the "TRIP" b u t t o n f o r a p e r m a n e n t d i s p l a y ) .
Colour screen CNaviDrive colour display
Display of tyres in good condition
Status from the sensors in the course of initialisation
Page 44 of 216
47
II
T R I P C O M P U T E R
Wheel not detected
The SERVICE w a r n i n g l a m p c o m e s o n a n d a v e h i c l e o u t l i n e i s d i s p l a y e d .
T h e w h e e l ( s ) c o n c e r n e d c a n b e i d e n t i fi e d f r o m t h e v e h i c l e o u t l i n e , o n w h i c h i t ( t h e y ) w i l l b e m i s s i n g . I f y o u h a v e n o t c h a n g e d a w h e e l , s u c h i n f o r m a t i o n i n d i c a t e s t h a t t h e s y s t e m i s m a l f u n c t i o n i n g .
C o n t a c t a C I T R O Ë N d e a l e r t o h a v e t h e f a u l t y s e n s o r ( s ) r e p l a c e d .
Colour screen CNaviDrive colour display
T h e d e fl a t i o n d e t e c t i o n s y s t e m i s a d r i v i n g a i d , b u t w h i c h d o e s n o t a b s o l v e t h e d r i v e r f r o m t h e n e e d t o b e v i g i l a n t a n d responsible.
T h i s s y s t e m d o e s n o t d i s p e n s e w i t h t h e r e q u i r e m e n t t o c h e c k t h e t y r e s o n a r e g u l a r b a s i s ( s e e " V e h i c l e i d e n t i fi c a - t i o n " ) , t o m a k e s u r e t h a t t h e v e h i c l e i s b e h a v i n g c o r r e c t l y a n d t o a v o i d p r e m a t u r e t y r e w e a r a r i s i n g f r o m d r i v i n g t o o f a s t e t c .
Do not forget to check the pressure in the spare wheel.
Any repair or replacement of a tyre on a wheel that is equipped with a sensor must be carried out by a CITROËN dealer.Any repair or replacement repair or
The system may suffer from temporary interference caused by radio transmissions on neighbouring frequencies.
Page 46 of 216
49
IIA
S I G N A L L I N G
LIGHTING CONTROL STALK
All vehicle lamps off
Sidelamps on
Dipped beams/main beams on
Dipped beams/main beams dipswitch
R o t a t e t h e r i n g A f o r w a r d s .
R o t a t e t h e r i n g A f o r w a r d s .
AUTOMATIC LIGHTING OF HEADLAMPS
S i d e l a m p s a n d d i p p e d b e a m s c o m e o n a u t o m a t i c a l l y i n p o o r a m b i e n t l i g h t , o r i f t h e w i p e r s a r e i n c o n t i n u o u s o p e r a t i o n . T h e y g o o u t a s s o o n a s t h e a m b i e n t l i g h t a g a i n b e c o m e s u f fi c i e n t o r w h e n t h e w i p e r s c e a s e t o o p e r a t e .
A c t i v a t i o n / d e a c t i v a t i o n o f t h i s f u n c t i o n i s p o s s i b l e i n t h e m e n u " P e r s o n a l i s a - t i o n / C o n fi g u r a t i o n " i n t h e " M a i n m e n u " .Note: Activation of this function is immediate while deactivation re quires the ignition to be switched off.
Take care not to cover the brightness sensor, which is visible from out-side the windscreen, behind the interior rear view mirror.
GUIDE-ME-HOME LIGHTING
T h i s f u n c t i o n s w i t c h e s o n y o u r h e a d l a m p s , t o l i g h t y o u r w a y w h e n y o u w i s h t o w a l k f r o m a c a r p a r k , f o r e x a m p l e .
T h i s f u n c t i o n i s a c t i v a t e d : M a n u a l l y b y p u l l i n g t h e control A t o w a r d s y o u , w i t h t h e i g n i t i o n s w i t c h e d o f f .
A u t o m a t i c a l l y , p r o v i d e d : T h e a u t o m a t i c l i g h t i n g o f h e a d l a m p s i s a c t i v a t e d . T o a c t i v a t e t h e g u i d e - m e - h o m e l i g h t i n g f u n c t i o n , s e l e c t i n t h e " M a i n m e n u " , t h e n i n " P e r s o n a l i s a t i o n / C o n fi g u r a t i o n " , t h e s u b - m e n u f o r l i g h t i n g a n d s i g n a l l i n g , t h e n a c t i v a t e t h e f u n c t i o n .
S e e " M u l t i f u n c t i o n d i s p l a y " .Note: It is possible to modify the duration of the guide-me-home lighting (approx. 60, 30 or 15 seconds) in the menu " P e r s o n a l i s a t i o n / C o n fi g u r a t i o n " .
Page 80 of 216
83
IIIA
B
C
A U T O M A T I C A I R C O N D I T I O N I N G

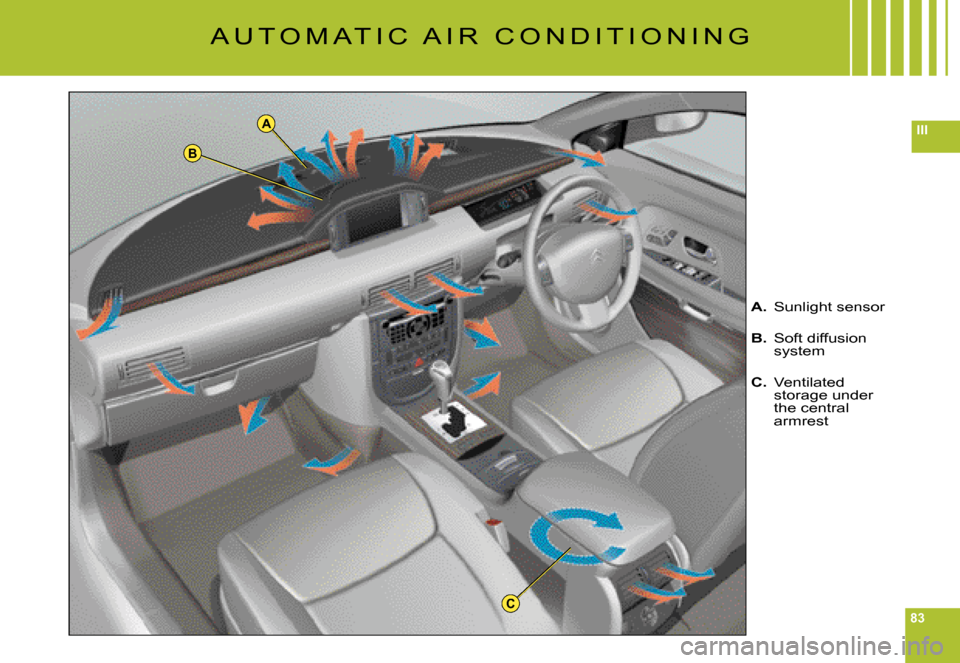

A. Sunlight sensor
B. Soft diffusion system
C. Ventilated storage under the central armrest
Page 81 of 216
84
III
A U T O M A T I C A I R C O N D I T I O N I N G
AIR CONDITIONING
This system automatically adjusts the temperature, the fl o w o f a i r a n d t h e d i s t r i b u t i o n o f a i r i n s i d e t h e c a b i n , depending on your desired comfort level.
Provided you retain automatic mode (by pressing button "AUTO") and all the air vents are open, you will main-tain an optimum comfort level, also removing humidity and misting, whatever the ambient climatic conditions.
The temperature inside the cabin cannot be lower than the temperature outside if the air conditioning is not operating.
To be effective, the air conditioning should only be used with the windows closed. If after a lengthy stop in bright sunlight the interior temperature is excessive, air the passenger compartment by opening the windows for a few moments, then close them again.
To keep the air conditioning compressor well sealed, it is essential to operate the air conditioning at least once in every month.
The air conditioning operates by using power from the engine. This results in a slight increase in fuel con-sumption.
Sensors
The automatic regulation of the air conditioning inside the cabin makes use of a number of sensors, relieving you of the need to make adjustments, other than the desired cabin temperature.
Take care not to obstruct sensor A.
Air inlet
Check that the exterior grille for the air inlet, at the bot-tom of the windscreen, is clean and free of dead leaves, snow, etc.
If washing the vehicle with a high pressure jet, avoid targeting the air inlet zone.
Air circulation
For your comfort we advise you to maintain a proper distribution of air within the cabin, both at the front and at the rear.
The air vents to the face have thumbwheels so that you can a d j u s t t h e fl o w o f a i r , a n d g r i l l e s t o o r i e n t t h e d i r e c t i o n .
T h e r e a r e a i r v e n t s o n t h e fl o o r u n d e r n e a t h t h e f r o n t seats and on the rear control panel, for enhanced heat-ing of the rear seat positions.
Do not obstruct the air outlets located in the boot area.
D u s t / p o l l e n fi l t e r
T h e r e i s a fi l t e r f o r e x c l u d i n g p o l l e n a n d d u s t .
T h i s fi l t e r h a s t o b e c h a n g e d a c c o r d i n g t o t h e v e h i c l e maintenance schedule. See "Maintenance Guide".
Page 155 of 216
158
VI
It is imperative not to exceed a speed of 80 km / h (50 mph) on the spare wheel.
T h e w h e e l b o l t s a r e s p e c i fi c t o t h e t y p e o f w h e e l .
If the type of wheel is changed, check with your CITROËN dealer that the wheel bolts are compatible with the new wheels.
Note: take care to note down the code number engrav ed on the head of the anti-theft bolt socket. This will enable you to obtain replacement anti-theft bolt sockets from a dealership.
WHEEL FOR TEMPORARY USE
I f y o u r v e h i c l e i s e q u i p p e d w i t h a s p a r e w h e e l f o r t e m p o r a r y u s e o n l y , w h e n fi t t i n g i t i t i s n o r m a l t o o b s e r v e t h a t t h e w h e e l b o l t s d o n o t c o m e t o b e a r o n t h e w h e e l r i m .
T h e s p a r e w h e e l i s s e c u r e d b y t h e c o n i c a l t a p e r i n g o f t h e w h e e l b o l t ’ s s h a f t . S e e i l l u s t r a t i o n .
W h e n r e fi t t i n g t h e o r i g i n a l w h e e l , e n s u r e t h a t t h e w h e e l b o l t c o n t a c t s u r f a c e s a r e c l e a n a n d i n g o o d c o n d i t i o n .
REFITTING A WHEEL1. F i t t h e w h e e l o n t h e h u b , u s i n g t h e c e n t r i n g g u i d e . M a k e s u r e t h a t t h e c o n t a c t s u r f a c e b e t w e e n t h e h u b a n d t h e w h e e l i s c l e a n .2. S c r e w i n t h e b o l t s b u t d o n o t f u l l y t i g h t e n t h e m .3. L o w e r t h e j a c k a n d r e m o v e i t .4. T i g h t e n t h e w h e e l b o l t s , u s i n g t h e w h e e l b r a c e .5. R e fi t t h e e m b e l l i s h e r .6. R e t u r n t h e g r o u n d c l e a r a n c e t o t h e n o r m a l p o s i t i o n . S e e " A d j u s t i n g g r o u n d c l e a r a n c e " .7. E n s u r e t h e t y r e p r e s s u r e i s c o r r e c t ( s e e " V e h i c l e i d e n t i fi c a t i o n " ) a n d h a v e t h e b a l a n c i n g c h e c k e d .
WHEEL EQUIPPED WITH DEFLATION DETECTION SENSOR
S u c h w h e e l s h a v e t y r e p r e s s u r e s e n s o r s . I t i s e s s e n t i a l t o h a v e r e p a i r s c a r r i e d o u t b y a C I T R O Ë N d e a l e r .
ANTI-THEFT BOLTS
E a c h w h e e l i s e q u i p p e d w i t h o n e a n t i - t h e f t b o l t .
T o r e m o v e i t1. R e m o v e t h e p r o t e c t o r t h a t i s c o v e r i n g i t b y m e a n s o f t h e t o o l 4 f o r " r e m o v i n g a n t i - t h e f t p r o t e c t o r s " .2. U s e t h e a n t i - t h e f t s o c k e t w i t h t h e h a n d l e .
