Page 121 of 189
138
V
C O L D W E A T H E R S H I E L D
A f t e r fi t t i n g B e f o r e fi t t i n g
FITTING/REMOVAL OF THE SNOW-GUARD
Fitting
C l i p t h e s n o w - g u a r d o n t o t h e r i b s o f t h e b u m p e r .
Removal
T o d e t a c h t h e s n o w - g u a r d , s l i d e t h e t o o l 4 i n t o t h e r e c e s s e s i n t h e s n o w - g u a r d a n d l i f t .Note: T h e t o o l 4 i s t o b e f o u n d 4 i n t h e p r o t e c t i o n b o x i n t h e s p a r e w h e e l . S e e " C h a n g i n g a w h e e l " .
The snow-guard delivered with the vehicle (according to d e s t i n a t i o n ) s h o u l d b e fi t t e d d u r i n g t h e w i n t e r p e r i o d , b u t removed for the remainder of the year.
It is essential to remove it whenever the temperature is above 10 °C.
Page 122 of 189
139
V
4
3
8
9
61
2
5
7

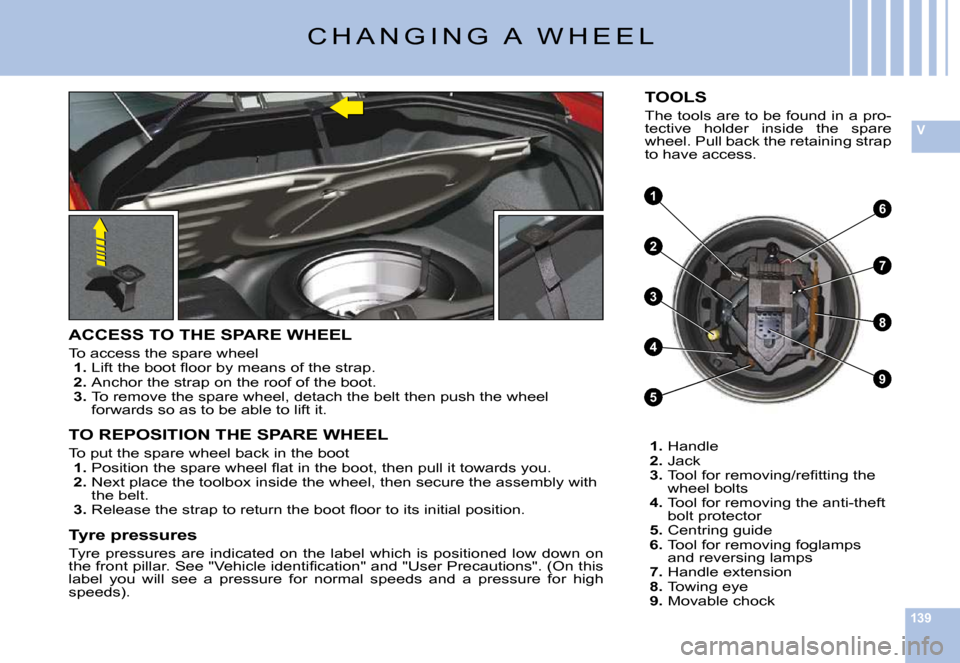

C H A N G I N G A W H E E L
ACCESS TO THE SPARE WHEEL
T o a c c e s s t h e s p a r e w h e e l1. L i f t t h e b o o t fl o o r b y m e a n s o f t h e s t r a p .2. A n c h o r t h e s t r a p o n t h e r o o f o f t h e b o o t .3. T o r e m o v e t h e s p a r e w h e e l , d e t a c h t h e b e l t t h e n p u s h t h e w h e e l f o r w a r d s s o a s t o b e a b l e t o l i f t i t .
TO REPOSITION THE SPARE WHEEL
T o p u t t h e s p a r e w h e e l b a c k i n t h e b o o t1. P o s i t i o n t h e s p a r e w h e e l fl a t i n t h e b o o t , t h e n p u l l i t t o w a r d s y o u .2. N e x t p l a c e t h e t o o l b o x i n s i d e t h e w h e e l , t h e n s e c u r e t h e a s s e m b l y w i t h t h e b e l t .3. R e l e a s e t h e s t r a p t o r e t u r n t h e b o o t fl o o r t o i t s i n i t i a l p o s i t i o n .
Tyre pressures
T y r e p r e s s u r e s a r e i n d i c a t e d o n t h e l a b e l w h i c h i s p o s i t i o n e d l o w d o w n o n t h e f r o n t p i l l a r . S e e " V e h i c l e i d e n t i fi c a t i o n " a n d " U s e r P r e c a u t i o n s " . ( O n t h i s l a b e l y o u w i l l s e e a p r e s s u r e f o r n o r m a l s p e e d s a n d a p r e s s u r e f o r h i g h s p e e d s ) .
1. H a n d l e2. J a c k3. T o o l f o r r e m o v i n g / r e fi t t i n g t h e w h e e l b o l t s4. T o o l f o r r e m o v i n g t h e a n t i - t h e f t b o l t p r o t e c t o r5. C e n t r i n g g u i d e6. T o o l f o r r e m o v i n g f o g l a m p s a n d r e v e r s i n g l a m p s7. H a n d l e e x t e n s i o n8. T o w i n g e y e9. M o v a b l e c h o c k
TOOLS
T h e t o o l s a r e t o b e f o u n d i n a p r o - t e c t i v e h o l d e r i n s i d e t h e s p a r e w h e e l . P u l l b a c k t h e r e t a i n i n g s t r a p t o h a v e a c c e s s .
Page 123 of 189
140
V
4
Before positioning the jack, always adjust the vehicle's ground clearance to the "maximum height" position and reta in this adjustment for as long as the jack is under the vehicle (do not use the hydraulic adjustments).
Never get underneath the vehicle if it is supported only by the jack.
T h e j a c k a n d a l l t h e t o o l s a r e d e s i g n e d s p e c i fi c a l l y f o r u s e o n y o u r particular vehicle. Do not use them for any other a pplications.
Have the original wheel repaired and refitted as so on as possible.
It is imperative not to exceed a speed of 50 mph (80 km/h) on the spare wheel.
REMOVAL1. P a r k t h e v e h i c l e o n s t a b l e , fi r m g r o u n d t h a t i s n o t s l i p p e r y . A p p l y t h e p a r k i n g b r a k e .2. I t i s e s s e n t i a l t o m a k e s u r e t h a t t h e o c c u p a n t s h a v e l e f t t h e v e h i c l e a n d a r e i n a p l a c e w h e r e t h e i r s a f e t y i s g u a r a n t e e d .3. W i t h t h e e n g i n e i d l i n g , a d j u s t t h e g r o u n d c l e a r a n c e t o m a x i m u m h e i g h t . S e e " C o m f o r t " a n d " G r o u n d c l e a r a n c e a d j u s t m e n t " . S w i t c h o f f t h e i g n i t i o n a n d e n g a g e fi r s t g e a r o r r e v e r s e g e a r d e p e n d i n g o n a n y s l o p e ( f o r a v e h i c l e w i t h a u t o m a t i c g e a r b o x , s e l e c t p o s i t i o n P ) .4. P o s i t i o n t h e c h o c k a t t h e w h e e l t h a t i s d i a m e t r i c a l l y o p p o s i t e t h e o n e t o b e r e p l a c e d .5. P o s i t i o n t h e j a c k a t o n e o f t h e f o u r j a c k i n g - p o i n t s p r o v i d e d o n t h e s u b f r a m e c l o s e t o t h e w h e e l s , t h e n u s e t h e h a n d l e t o u n w i n d t h e j a c k u n t i l i t r e a c h e s t h e g r o u n d .6. S l i d e t h e r e m o v a l t o o l 4 i n t o t h e n o t c h a n d l e v e r v i g o r o u s l y t o d e t a c h t h e a n t i - t h e f t b o l t p r o t e c t o r . S e e i l l u s t r a t i o n . Y o u c a n u s e t h e h a n d l e a t t h e e x t r e m i t y o f t h e t o o l 4 .7. S l a c k e n t h e w h e e l b o l t s .8. C o n t i n u e t o e x t e n d t h e j a c k u n t i l t h e w h e e l i s a f e w c e n t i m e t r e s o f f t h e g r o u n d .9. U n d o t h e b o l t s , r e m o v e t h e w h e e l .
C H A N G I N G A W H E E L
Page 124 of 189
141
V
It is imperative not to exceed a speed of 50 mph (80 km/h) on the spare wheel.
T h e w h e e l b o l t s a r e s p e c i fi c t o t h e t y p e o f w h e e l .
If the type of wheel is changed, check with your CITROËN dealer that the wheel bolts are compatible with the new wheels.
Note: take care to note down the code number engrav ed on the head of the anti-theft bolt socket. This will enable you to obtain replacement anti-theft bolt sockets from a dealership.
WHEEL FOR TEMPORARY USE
I f y o u r v e h i c l e i s e q u i p p e d w i t h a s p a r e w h e e l f o r t e m p o r a r y u s e o n l y , w h e n fi t t i n g i t i t i s n o r m a l t o o b s e r v e t h a t t h e w h e e l b o l t s d o n o t c o m e t o b e a r o n t h e w h e e l r i m .
T h e s p a r e w h e e l i s s e c u r e d b y t h e c o n i c a l t a p e r i n g o f t h e w h e e l b o l t ’ s s h a f t . S e e i l l u s t r a t i o n .
W h e n r e fi t t i n g t h e o r i g i n a l w h e e l , e n s u r e t h a t t h e w h e e l b o l t c o n t a c t s u r f a c e s a r e c l e a n a n d i n g o o d c o n d i t i o n .
REFITTING A WHEEL1. F i t t h e w h e e l o n t h e h u b , u s i n g t h e c e n t r i n g g u i d e . M a k e s u r e t h a t t h e c o n t a c t s u r f a c e b e t w e e n t h e h u b a n d t h e w h e e l i s c l e a n .2. S c r e w i n t h e b o l t s b u t d o n o t f u l l y t i g h t e n t h e m .3. L o w e r t h e j a c k a n d r e m o v e i t .4. T i g h t e n t h e w h e e l b o l t s , u s i n g t h e w h e e l b r a c e .5. R e fi t t h e e m b e l l i s h e r .6. R e t u r n t h e g r o u n d c l e a r a n c e t o t h e n o r m a l p o s i t i o n . S e e " G r o u n d c l e a r a n c e a d j u s t m e n t " .7. E n s u r e t h e t y r e p r e s s u r e i s c o r r e c t ( s e e " V e h i c l e i d e n t i fi c a t i o n " ) a n d h a v e t h e b a l a n c i n g c h e c k e d .
WHEEL EQUIPPED WITH DEFLATION DETECTION SENSOR
S u c h w h e e l s h a v e t y r e p r e s s u r e s e n s o r s . I t i s e s s e n t i a l t o h a v e r e p a i r s c a r r i e d o u t b y a C I T R O Ë N d e a l e r .
ANTI-THEFT BOLTS
E a c h w h e e l i s e q u i p p e d w i t h o n e a n t i - t h e f t b o l t .
T o r e m o v e i t1. R e m o v e t h e p r o t e c t o r t h a t i s c o v e r i n g i t b y m e a n s o f t h e t o o l 4 f o r " r e m o v i n g a n t i - t h e f t p r o t e c t o r s " .2. U s e t h e a n t i - t h e f t s o c k e t w i t h t h e h a n d l e .
C H A N G I N G A W H E E L
Page 125 of 189
142
V
T O W I N G – L I F T I N G
TOWING WITH WHEELS ON THE GROUND
T o w i n g e y e s c a n b e u s e d a t t h e f r o n t a n d a t t h e r e a r o f t h e v e h i c l e .
D e t a c h t h e c o v e r : F o r t h e f r o n t c o v e r , l e v e r w i t h a s c r e w d r i v e r a t t h e t o p o f t h e c o v e r .
F o r t h e r e a r c o v e r , p r e s s o n t h e r i g h t h a n d s i d e .
The ignition key must be in position M to retain steering.
U s e a b a r w i t h a t t a c h m e n t s t o t h e t o w i n g e y e s a s a b o v e .
T h e t o w i n g e y e i s r e m o v a b l e , t o b e s t o w e d i n t h e j a c k p r o t e c t i o n b o x i n s i d e t h e s p a r e w h e e l .
Page 126 of 189
143
VI
G E N E R A L
MTRA: Gross train weight.
Weights: Refer to the manufacturer's plate.
* For a vehicle that is towing, the speed must not exceed 62 mph (100 km/h).
Gross trailer weight (with brakes) can be increased up to:(1) 1 700 kg.
Provided you reduce the vehicle weight so as not to exceed gross train weight.
Observe your vehi-cle's towing limits. It is essential to comply with the max. Gross Trailer Weights and speed limits as spe- c i fi e d b y l e g i s l a t i o n i n each country.
Dimensions of chai-nable tyres:
All the tyres shown can b e fi t t e d w i t h c h a i n s .
Page 127 of 189
144
VI
F U E L C O N S U M P T I O N
( I N L I T R E S / 1 0 0 K M ( M I L E S P E R G A L L O N ) )
T h e s e c o n s u m p t i o n fi g u r e s a r e e s t a b l i s h e d a c c o r d i n g t o D i r e c t i v e 8 0 / 1 2 6 8 / C E E . F u e l c o n s u m p t i o n c a n v a r y d e p e n d i n g o n s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , v e h i c l e l o a d , h o w t h e v e h i c l e h a s b e e n m a i n t a i n e d a n d o n use of accessories.
ENGINE TYPEV62.2 HDi 16VV6 HDi
GearboxAutomaticAutomaticAutomatic
Urban16.310.610.2
Extra urban8.25.95.8
Combined11.27.67.4
CO2 emissions (1)266199195
(1) Units in g/km for combined driving.
Quality of the fuel used for petrol engines
The petrol engines are perfectly compatible E5 type petrol bio fuels (containing 5 % ethanol), conforming to European standard EN 228.
E85 type fuels (containing up to 85 % ethanol) are reserved excl usively for vehicles marketed for the use of this type of fuel (BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15376.
For Brazil only, special vehicles are marketed to run on fuels cont aining up to 100 % ethanol (type E100).
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel fuel which complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) which can be distributed at the pumps (possible incorporation of 0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel oil, etc.) is strictly prohibited (risk of damage to the engine and fuel circuit).
T h e f u e l c o n s u m p t i o n fi g u r e s q u o t e d a r e c o r r e c t a t t i m e o f g o i n g t o p r e s s .
Page 128 of 189
145
VI
H
E
F
A
D
BC
G
I
D I M E N S I O N S
( I N M E T R E S )
A2.900
B1.124
C0.884
D4.908
E1.586
F2.0802.115**
G1.558
H1.860
I*1.464
* Without roof bars.
** With new rear-view mirrors during the year.
Page 129 of 189
146
VI
F
C
B
A
ED
D I M E N S I O N S
( I N M E T R E S )
A1.115
B0.904/0.974
C1.150
DIf a benchseat1.663
E0.378
F0.449
Page 130 of 189
147
VI
BC
12345
A
AD
V E H I C L E I D E N T I F I C A T I O N
A Chassis number plateOn the left hand door centre pillar.
1. EU type approval number.2. V e h i c l e i d e n t i fi c a t i o n N o . (VIN).3. Gross vehicle weight.4. Gross train weight.5. Maximum weight on front axle.6. Maximum weight on rear axle.B Body serial numberC Serial number on dashboardD Paint colour code Tyre reference Tyre pressuresOn front pillar.
T h e v e h i c l e t y p e a n d t h e i d e n t i fi c a t i o n n u m b e r a r e a l s o i n d i c a t e d o n t h e r e g i s t r a t i o n d o c u m e n t .
All CITROËN original replacement parts are available exclusively w ithin the dealer network.
For your safety and in order to remain within the terms of the guarantee, you are advised to use only CITROËN replacement parts.
