headlamp Citroen C6 2011 1.G Owner's Manual

2
CONTENTS
DRIVING
I
FA M I L I A R I SAT I ON
4-22II23-81
Exterior.................................................r4
Opening.............................................5-6
Interior..................................................r7
Dashboard.........................................8-9
Getting started.............................10®12
Visibility..............................................13
Ventilation ........................................... 14
Monitoring.....................................15-16
Ensure the safety of passengers........17
Driving .........................................18®20
Eco-driving....................................21-22
Remote control..............................23-24
Keys....................................................25
Anti-intrusion alarm.......................26-27
Steering lock - Ignition - Starter.........r28
Driving - Starting the engine..............29
Instrument panel.........................30®36
Warning lamps ..............................31-32
Head-up display ............................37-38
Multifunction displays..................39®43
Tr i p c o m p u t e r..............................r44®49
Signalling .....................................50®52
Xenon dual-function directional
headlamps .......................................
53
Wipers...........................................54-55
Windows .............................................56
Steering column adjustment -
Seat belt height adjustment ...............57
Front seats....................................58-59
Memorisation......................................60
Seat belts warning lamp.....................61
Rear view mirrors........................62®64
Gearbox.......................................65®68
Cruise control................................69-70
Speed limiter.................................r71-72
Electronic stability programme ..........73
Brakes .................................................74
Electric parkin
g brake...................75 -76
Speed sensitive rear spoiler...............77
Parking assistance........................78-79
Lane departure warning system........80
Diesel particle fi lter............................r81

4
IN BRIE
F
EXTERIOR
118
77
78
475380
Glass sun roof
The sun roof provides you with improved ventilation and brightness in thepassenger compartment.
Piloted Defl ector
This defl ector enhances the aerodynamics and the braking of your vehicle.
Parking assistance(display and sound)
This function warns you, whilstmanoeuvring, by detectingobstacles located in front of andbehind the vehicle.
Lane Departure Warning System
This driving assistance device warns you when you unwittingly cross a lane marking.
The Xenon dual-function directional headlamps
This additional lighting automati-cally provides you with enhanced visibility on bends.
Tyre defl ation detection
This function monitors the pressure of each tyre and warns you of tyres thatare punctured or defl ated.

21
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off
gently, change up without waiting
and drive by changing up quite
soon. If your vehicle has the sys-
tem, the gear shift indicator invites
you to change up; it is displayed
in the instrument panel, follow its
instructions.
With an automatic or electronic
gearbox, stay in Drive "D" or
Auto "A", according to the type
of gear selector, without pressing
the accelerator pedal heavily or
suddenly.
Drive smoothly
Maintain a safe distance between
vehicles, use engine braking
rather than the brake pedal, and
press the accelerator progres-
sively. These attitudes contribute
towards a reduction in fuel con-
sumption and CO
2 emissions and
also helps reduce the background
traffi c noise.
When the traffi c is fl owing well,
and if you have cruise control,
make use of the system at speeds
above 25 mph (40 km/h).
Control the use of your
electrical equipment
Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down
(sun roof and window blinds...).
Switch off the air conditioning,
unless it has automatic digital
regulation, as soon as the desired
temperature is attained.
Switch off the demisting and defrost-
ing controls, if not automatic.
Switch off the heated seat as soon
as possible.
Switch off the headlamps and front
foglamps when the level of light
does not require their use. Avoid running the engine before
moving off, particularly in winter;
your vehicle will warm up much
faster while driving.
As a passenger, if you avoid con-
necting your multimedia devices
(fi lm, music, video game...), you
will contribute towards limiting the
consumption of electrical energy,
and so of fuel.
Disconnect your portable devices
before leaving the vehicle.

28
II
STEERING LOCK – IGNITION – STA R T ER
NEVER REMOVE THE IGNITION KEY BEFORE THE ENGINE HAS COME TO A COMPLETE STOP.
IT IS ESSENTIAL ALWAYS TO DRIVE WITH THE ENGINE RUNNING, SO AS TO RETAIN STEERING AND BRAKING ASSISTANCE (risk of the steering lock engaging and loss of safety features).
Do not hang a heavy object on the key; it could pull the key out of alignment in the switch and could cause a malfunction.
When stationary, having removed the key, carefully turn the steering wheel if you wish to lock the steering.
S: STEERING LOCK
To unlock the steering, gently move
the steering wheel while turning the
ke
y, without exerting undue force.
When you remove the key, turn
your steering wheel to lock the
steering. The key can only beremoved when in positionS.
M: DRIVE POSITION
The steering is unlocked (by turningthe key in positionM, if necessarymove the steering wheel).
STARTING AND STOPPINGTHE ENGINE
See "Driving".
ECONOMY MODE
In order not to discharge the bat-
tery while the engine is stopped,your vehicle goes automaticallyinto economy mode after a maxi-mum of 30 minutes. Economymode is indicated by a messageon the screen.
The electrical components relatin
gto comfort and also the headlamps(not sidelamps or hazard warninglamps) cut out automatically. Toreactivate them, it is necessary tostart the engine.
Depending on your vehicle ver-
sion, the following warning lamps are tested:
If one of these warning lamps does
not light up, this indicates a mal-
function.
D: STARTING
Release the key as soon as the engine starts. Never turn it while
the engine is running.

32
II
INSTRUMENT PANEL
WARNING LAMPS
Front passenger'sairbag deactivation
See "Airbags".
Left hand direction
indicator
See "Signalling".
Right hand directionindicator
See "Signalling".
If the hazard lam
ps are activated, this means that the direction indicatorsfl ash on both sides at the same time.
Sidelamps
See "Signalling".
Front foglamps
See "Signalling".
Dipped beams
If this warning lamp fl ashes, it indicates that the direc-
tional headlamps are mal-functioning.
Contact a CITROËN dealer
or a qualifi ed workshop.
Foglamps (rear)
See "Signalling".
Main beams
See "Signalling".
Driver's seat belt not fastened
If this warning lamp comes
on, it is reminding the driver to fasten his seat belt. While
the vehicle is stationary it remains on until the belt is fastened.
See "Seat belts warning lamp".
Depollution
system
If this warning lamp fl ashes
or lights up while you aredriving, this indicates a problem
with the depollution system.
Contact a CITROËN dealer or a
qualifi ed workshop as soon as
possible.
Diesel engine preheater
See method for starting
the engine.
See "Driving".
Fuel low
When it comes on perma-nently on level ground, you have about8 l of fuel left.
Dependin
g on your driving style and your engine, you have enough
fuel left to drive approximately
30 miles (50 km). You must fi ll up as soon as possible.
The fuel tank has a capacit
y of about 72 litres.
Be careful to never drive until you run
out of fuel; it could damage the emis-sion control and injection systems.

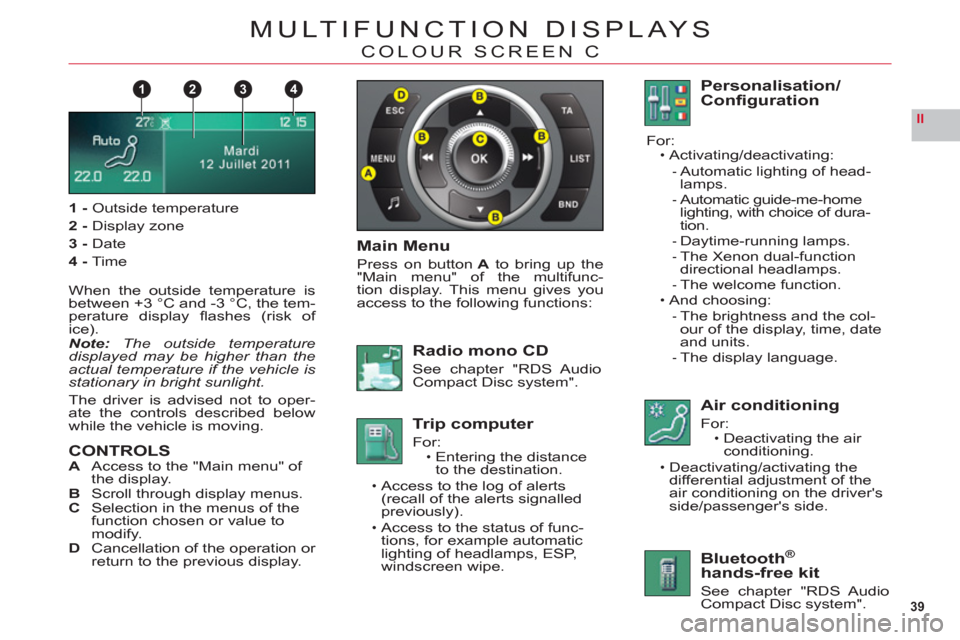

39
II
1432
MULTIFUNCTION DISPLAYS
COLOUR SCREEN C
1-Outside temperature
2 -Display zone
3 -Date
4-Time
When the outside temperature is
between +3 °C and -3 °C, the tem-perature display fl ashes (risk of
ice).Note:The outside temperature
displayed may be higher than the
actual temperature i
f the vehicle is stationary in bright sunlight.
The driver is advised not to oper-
ate the controls described below
while the vehicle is moving.
CONTROLSA Access to the "Main menu" of
the display.B Scroll through display menus.C Selection in the menus of the
function chosen or value tomodify.DCancellation of the operation or
return to the previous display.
Main Menu
Press on buttonAto bring up the "Main menu" of the multifunc-
tion display. This menu gives you
access to the following functions:
Radio mono CD
See chapter "RDS AudioCompact Disc system".
Trip computer
For:Entering the distance
to the destination.
Access to the log of alerts(recall of the alerts signalled
previously).
Access to the status of func-
tions, for example automaticlighting of headlamps, ESP,
windscreen wipe.
•
•
•
Personalisation/Confi guration
For:Activating/deactivating:
Automatic lighting of head-lamps.Automatic guide-me-home
lighting, with choice of dura-
tion.Daytime-running lamps.
The Xenon dual-function
directional headlamps.The welcome function.And choosing:
The brightness and the col-
our of the display, time, dateand units.The display language.
•
-
-
--
-•
-
-
Air conditioning
For:Deactivating the air conditioning.
Deactivating/activating the
differential adjustment of the
air conditioning on the driver's side/passenger's side.
•
•
Bluetooth®
hands-free kit
See chapter "RDS Audio Compact Disc system".

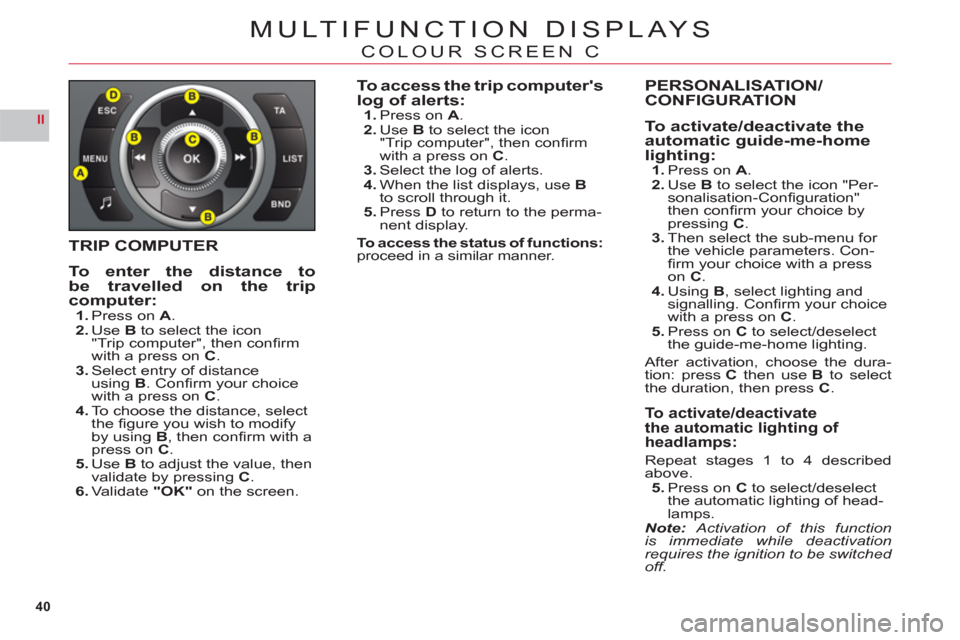

40
II
MULTIFUNCTION DISPLAYS
COLOUR SCREEN C
TRIP COMPUTER
To enter the distance tobe travelled on the tripcomputer:1.Press on A.2.UseB to select the icon
"Trip computer", then confi rm
with a press onC.3.Select entry of distance
usingB. Confi rm your choice
with a press onC.4.To choose the distance, select
the fi gure you wish to modifyby using B, then confi rm with apress on C.5.UseB to adjust the value, then
validate by pressing C.6.Validate"OK" on the screen.
To access the trip computer's log of alerts:1. Press onA.2. Use Bto select the icon "Trip computer", then confi rm
with a press on C.3. Select the log of alerts.4. When the list displays, useBto scroll through it.5. Press D to return to the perma-
nent display.
To access the status of functions:proceed in a similar manner.
PERSONALISATION/
CONFIGURATION
To activate/deactivate the
automatic guide-me-home
lighting:1. Press on A.2. UseB to select the icon "Per-sonalisation-Confi guration"
then confi rm your choice bypressing C.3. Then select the sub-menu for
the vehicle parameters. Con-
fi rm your choice with a press onC.4. Using B, select lighting andsignalling. Confi rm your choice
with a press onC.5. Press on C to select/deselect
the guide-me-home lighting.
After activation, choose the dura-
tion: press Cthen use B to select
the duration, then press C.
To activate/deactivate the automatic lighting of
headlamps:
Repeat stages 1 to 4 describedabove.
5. Press on C to select/deselect
the automatic lighting of head-
lamps.Note: Activation of this functionis immediate while deactivationrequires the ignition to be switched off.

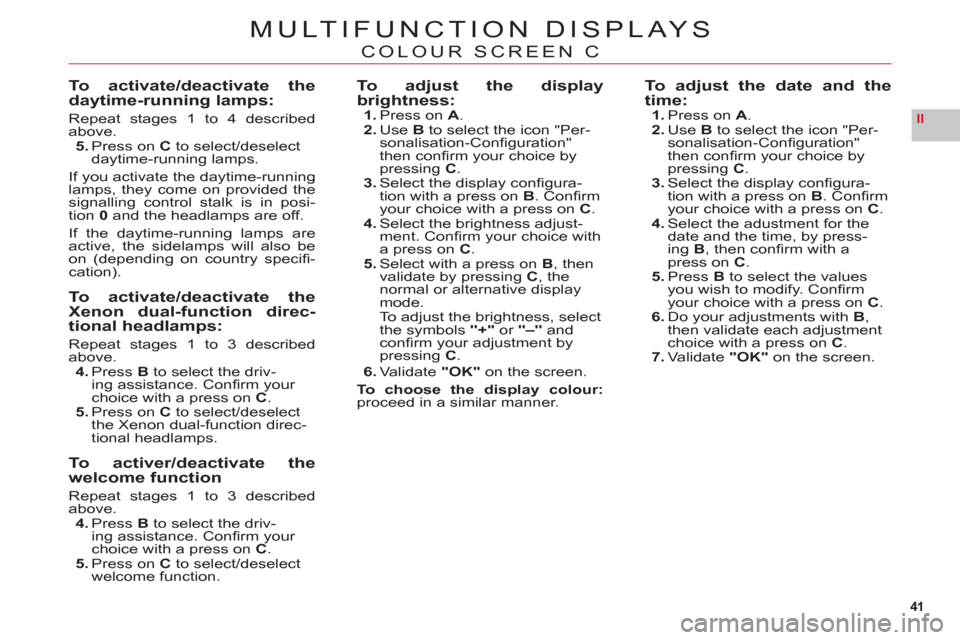

41
II
MULTIFUNCTION DISPLAYS
COLOUR SCREEN C
To activate/deactivate thedaytime-running lamps:
Repeat stages 1 to 4 describedabove.
5. Press on C to select/deselect
daytime-running lamps.
If you activate the daytime-runninglamps, they come on provided thesignalling control stalk is in posi-
tion 0and the headlamps are off.
I
f the daytime-running lamps are
active, the sidelamps will also be
on
(depending on country specifi -cation).
To activate/deactivate theXenon dual-function direc-
tional headlamps:
Repeat stages 1 to 3 describedabove.4.PressB to select the driv-ing assistance. Confi rm your choice with a press on C.5. Press on C to select/deselect
the Xenon dual-function direc-
tional headlamps.
To activer/deactivate the
welcome function
Repeat stages 1 to 3 describedabove.4. PressB to select the driv-ing assistance. Confi rm your choice with a press on C.5. Press on C to select/deselect
welcome function.
To adjust the display brightness:1. Press on A.2. Use Bto select the icon "Per-sonalisation-Confi guration"
then confi rm your choice bypressingC.3. Select the display confi gura-
tion with a press on B. Confi rm your choice with a press onC.4. Select the brightness adjust-
ment. Confi rm your choice with a press onC.5. Select with a press onB, then
validate by pressingC, the
normal or alternative displaymode.To adjust the brightness, select
the symbols"+" or "–" and confi rm your adjustment by
pressingC.
6. Validate "OK"on the screen.
To choose the display colour:proceed in a similar manner.
To adjust the date and the
time:1. Press on A.2. UseB to select the icon "Per-sonalisation-Confi guration"
then confi rm your choice bypressing C.3. Select the display confi gura-
tion with a press onB. Confi rmyour choice with a press on C.4. Select the adustment for the
date and the time, by press-
ing B, then confi rm with a press on C.5. PressBto select the values you wish to modify. Confi rmyour choice with a press on C.6. Do your adjustments with B,
then validate each adjustmentchoice with a press on C.7. Validate"OK" on the screen.

43
II
124 35

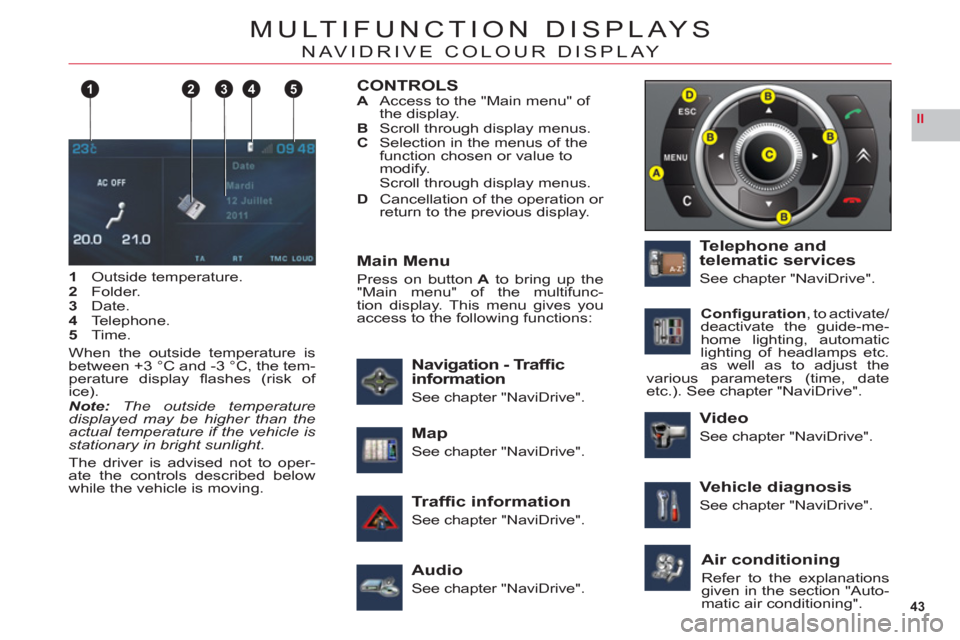

MULTIFUNCTION DISPLAYS
NAVIDRIVE COLOUR DISPLAY
1Outside temperature.2Folder.3Date.4Telephone.5Time.
When the outside temperature is
between +3 °C and -3 °C, the tem-perature display fl ashes (risk of
ice).
Note:The outside temperature
displayed may be higher than the
actual temperature if the vehicle is stationary in bright sunlight.
The driver is advised not to oper-
ate the controls described below
while the vehicle is moving.
CONTROLSA Access to the "Main menu" of
the display.BScroll through display menus.CSelection in the menus of the function chosen or value to
modify.Scroll through display menus.
DCancellation of the operation or return to the previous display.
Air conditioning
Refer to the explanations given in the section "Auto-
matic air conditioning".
Traffi c information
See chapter "NaviDrive".
Navigation - Traffi c
information
See chapter "NaviDrive".
Audio
See chapter "NaviDrive".
Main Menu
Press on buttonAto bring up the "Main menu" of the multifunc-
tion display. This menu gives you
access to the following functions:
Telephone andtelematic services
See chapter "NaviDrive".
Confi guration, to activate/deactivate the guide-me-home lighting, automatic lighting of headlamps etc. as well as to adjust the
various parameters (time, date etc.). See chapter "NaviDrive".
Map
See chapter "NaviDrive".
Video
See chapter "NaviDrive".
Vehicle diagnosis
See chapter "NaviDrive".

50
II

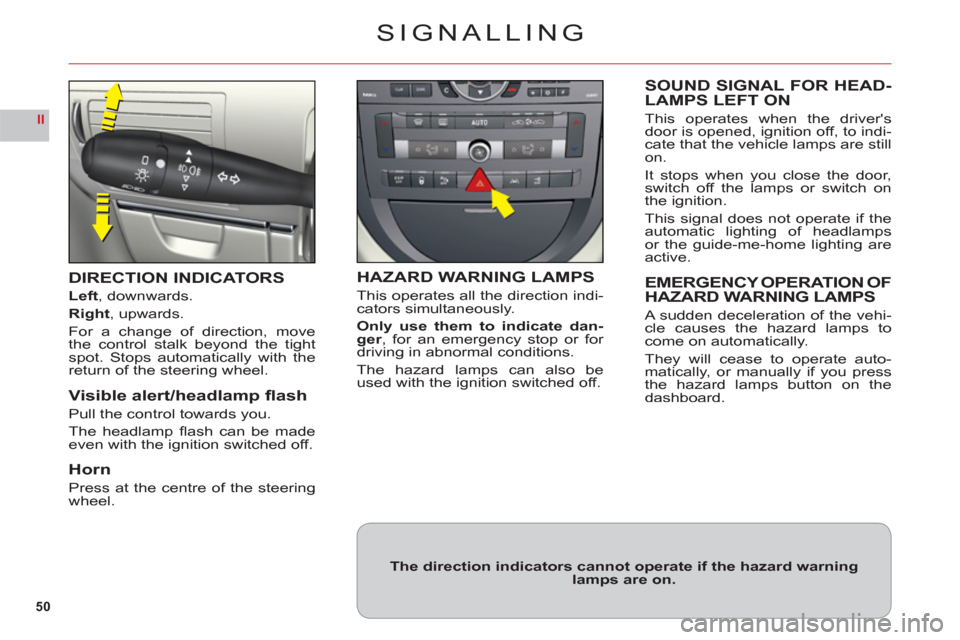

SIGNALLING
DIRECTION INDICATORS
Left, downwards.
Right, upwards.
For a change of direction, move
the control stalk beyond the tightspot. Stops automatically with thereturn of the steering wheel.
Visible alert/headlamp fl ash
Pull the control towards you.
The headlam
p fl ash can be madeeven with the ignition switched off.
Horn
Press at the centre of the steeringwheel.
HAZARD WARNING LAMPS
This operates all the direction indi-cators simultaneously.
Only use them to indicate dan-ger, for an emergency stop or for
driving in abnormal conditions.
The hazard lamps can also be
used with the ignition switched off.
SOUND SIGNAL FOR HEAD-LAMPS LEFT ON
This operates when the driver's
door is opened, ignition off, to indi-cate that the vehicle lamps are stillon.
It stops when you close the door,
switch off the lamps or switch on
the ignition.
This signal does not operate i
f the
automatic lighting of headlamps
or the guide-me-home lighting areactive.
EMERGENCY OPERATION OFHAZARD WARNING LAMPS
A sudden deceleration of the vehi-cle causes the hazard lamps tocome on automatically.
The
y will cease to operate auto-matically, or manually if you press
the hazard lamps button on the
dashboard.
The direction indicators cannot operate if the hazard warninglamps are on.
