Page 5 of 216
I
8
IN BRIEF
68
114
36-38
72
8555
INTERIOR
Head-up display
This device projects a range of impor- t a n t i n f o r m a t i o n i n t o t h e d r i v e r ' s fi e l d o f vision. In this way, the driver does not need to take his eyes off the road.
Speed limiter
This driving assistance device allows you to select a maximum speed that you do not wish to exceed.
Cruise control
This system allows you to automati-cally maintain the vehicle speed at the value programmed by the driver, with-out the need to press the accelerator.
The automatic gearbox
This device provides you with optimum driving conditions by combining a fully automatic mode, along with two spe- c i fi c p r o g r a m m e s , a s w e l l a s a m a n u a l mode.
Audio and communication systems
This equipment utilises the latest tech-nology: MP3 compatible RD4 radio, Bluetooth®nology: MP3 compatible nology: MP3 compatible radio with navigation, JBL au-®
dio system.
Electric parking brake
The electric parking brake combines automatic locking when the engine is stopped, and automatic unlocking when accelerating (devices a cti- v a t e d b y d e f a u l t ) .Note: Manual locking/unlocking is possible.
Automatic air conditioning
This air conditioning system e n s u r e s c o m f o r t a n d a s u f fi -cient circulation of air in the cabin.
Page 6 of 216
II
99
1
12
6
8
14
13
2
3
5
7910
15
16
1718
4
11
IN BRIEF
1. Controls - Windows / Rear view mirrors / Child
safety
2. Driver's seat adjustment controls and memories
3. Controls - Lighting / Direction indicators / Rear
foglamps / Voice recognition
4. Horn
5. Instrument panel
6. Head-up display cavity
7. Ignition switch
8. Controls - Wipers
9. Controls - Radio controls under the steering wheel
10. Controls at the steering wheel - Speed limiter and
Cruise control
11. Driver's airbag
12. Gear lever
13. Electric parking brake
14. Automatic gearbox SPORT/SNOW mode controls
15. Steering column adjustment
16. Head-up display controls
17. F u e l fl a p c o n t r o l
18. O d d m e n t s t r a y / F u s e b o x a c c e s s fl a p
D A S H B O A R D
Page 12 of 216
II
1515
1
2
3
4
1
2
3
4
A
IN BRIEF
This system allows you to main-tain a constant vehicle speed pro-grammed by the driver.1. “CRUISE” button: Activation/deactivation of cruise control mode.2. Suspension or reactivation of cruise control.3. “SET +” button: Increase of the memorised speed.4. “SET -” button: Reduction of the memorised speed.
CRUISE CONTROLSPEED LIMITER
This system allows you to choose a maximum speed that you do not wish to exceed.1. “LIMIT” button: Activation of speed limiter mode.2. Disengagement of the maxi-mum speed.3. “SET +” button: Activation of the maximum speed.4.“SET -” button: Reduction of the maximum speed.
To quit a parking space
With the engine running, release the electric parking brake, by pressing the brake pedal or the accelerator pedal and pulling then releasing the control A.
To park
With the vehicle stationary, operate the parking brake by pulling then releasing the control A.
ELECTRIC PARKING BRAKE
383672
Note: It is not possible to release the electric parking brake if the key is removed or in position S.
Note: Function may be activated at speeds over 30 km/h (18 mph).Cruise control is available in the higher gears only, for speeds greater than 40 km/h (24 mph).
D R I V I N G

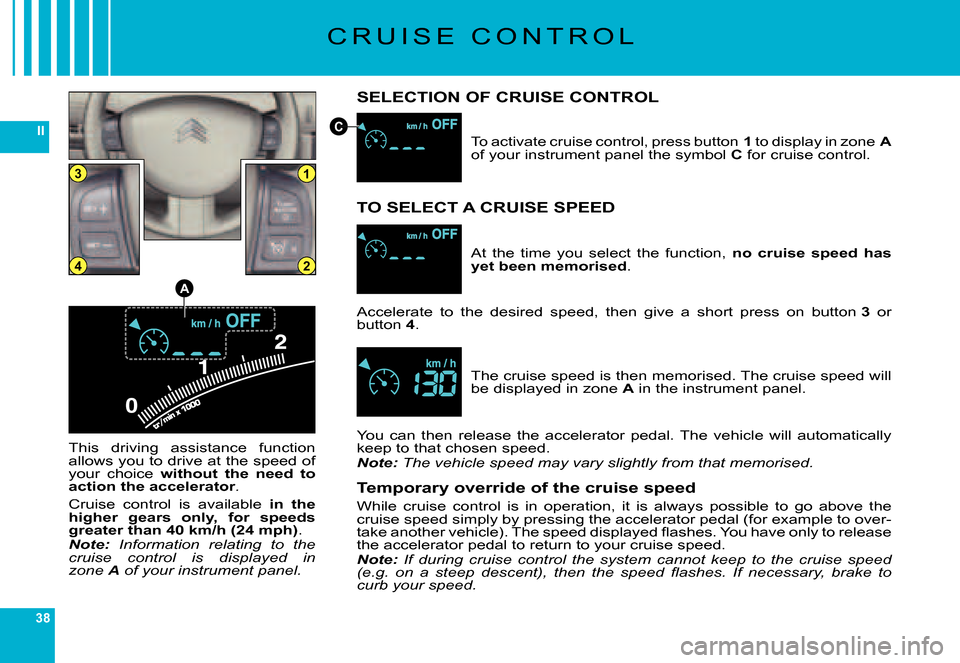

Page 35 of 216
38
II
0
13
24
A
C
C R U I S E C O N T R O L
SELECTION OF CRUISE CONTROL
This driving assistance function allows you to drive at the speed of your choice without the need to action the accelerator.
Cruise control is available in the higher gears only, for speeds greater than 40 km/h (24 mph).Note: Information relating to the cruise control is displayed in zone A of your instrument panel.
To activate cruise control, press button 1 to display in zone Aof your instrument panel the symbol C for cruise control.
The cruise speed is then memorised. The cruise speed will be displayed in zone A in the instrument panel.
At the time you select the function, no cruise speed has yet been memorised.
TO SELECT A CRUISE SPEED
Accelerate to the desired speed, then give a short press on button 3 or button 4.
You can then release the accelerator pedal. The vehicle will automatically keep to that chosen speed.Note: The vehicle speed may vary slightly from that memorised.
Temporary override of the cruise speed
While cruise control is in operation, it is always possible to go above the cruise speed simply by pressing the accelerator pedal (for example to over- t a k e a n o t h e r v e h i c l e ) . T h e s p e e d d i s p l a y e d fl a s h e s . Y o u h a v e o n l y t o r e l e a s e the accelerator pedal to return to your cruise speed.Note: If during cruise control the system cannot keep to the cruise speed ( e . g . o n a s t e e p d e s c e n t ) , t h e n t h e s p e e d fl a s h e s . I f n e c e s s a r y , b r a k e t o curb your speed.

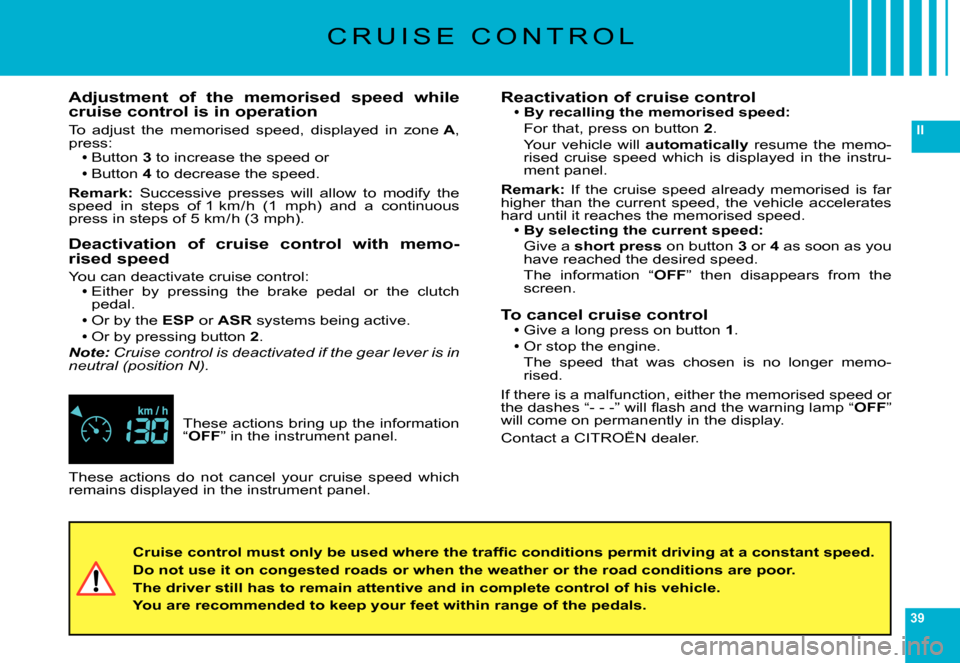

Page 36 of 216
39
II
C R U I S E C O N T R O L
These actions bring up the information “OFF” in the instrument panel.
Adjustment of the memorised speed while cruise control is in operation
To adjust the memorised speed, displayed in zone A, press:Button 3 to increase the speed or
Button 4 to decrease the speed.
Remark: Successive presses will allow to modify the s p e e d i n s t e p s o f 1 k m / h ( 1 m p h ) a n d a c o n t i n u o u s p r e s s i n s t e p s o f 5 k m / h ( 3 m p h ) .
Deactivation of cruise control with memo-rised speed
You can deactivate cruise control:Either by pressing the brake pedal or the clutch Eitherpedal.
Or by the OrESP or ASR systems being active.Or by pressing button Or2.Note: Cruise control is deactivated if the gear lever is in neutral (position N).
Page 45 of 216
48
IISTOP
STOP
0
STOP
STOP
49/54
ADBCA
STST
B
KJIHGFEB
KJIHGFEB
CAB
STST
DA
B
I N S T R U M E N T P A N E L
Remark: Certain types of screen may adversely affect the readability of t he instrument panel.
A Signalling warning lampsB Operational warning lampsC Cruise control/speed limiter informationD Fuel gaugeE Trip mileage recorderF Total mileage recorder, maintenance indicator
G Speed indicatorH Display of automatic gearbox informationI Display of suspension sport modeJ Rev counterK Reset button for trip mileage recorder and mainte-nance indicator
INSTRUMENT PANEL - PETROL VERSION
INSTRUMENT PANEL - DIESEL VERSION
Page 47 of 216
54
II
B
AC
D
NIGHT DRIVINGA fi r s t p r e s sA on the DARK button puts the display on standby. Only the time and the temperature remain displayed.
A second pressA switches off the display and the instrument panel, except for information concerning:
The speed indicator.The automatic gearbox.Cruise control / Speed limiter if this has been activated.Note:
Temporary l i g h t i n g o f t h e d i s p l a y f o r m o d i fi c a t i o n o f a u d i o - C D a d j u s t -emporaryments and air conditioning.The display lights up if any of the other buttons on the display is pressed. To revert to night driving, press just once on button DARK.DARKDARKAll the displays come on if there is an alert.AllA third pressA returns you to normal lighting.
