Page 91 of 216
94
III

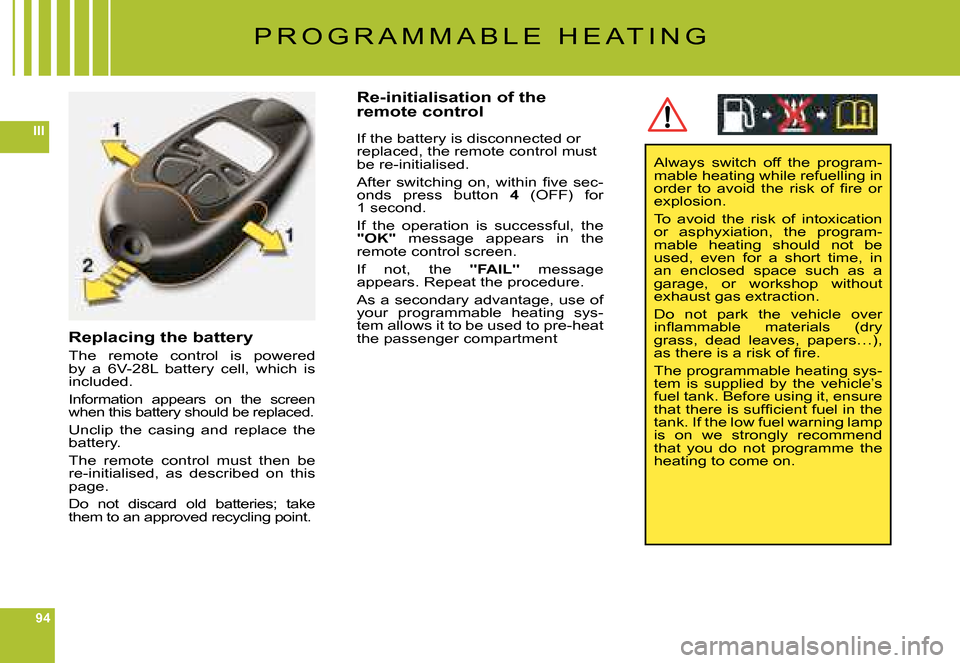

Replacing the battery
The remote control is powered by a 6V-28L battery cell, which is included.
Information appears on the screen when this battery should be replaced.
Unclip the casing and replace the battery.
The remote control must then be re-initialised, as described on this page.
Do not discard old batteries; take them to an approved recycling point.
Re-initialisation of the remote control
Always switch off the program-mable heating while refuelling in o r d e r t o a v o i d t h e r i s k o f fi r e o r explosion.
To avoid the risk of intoxication or asphyxiation, the program-mable heating should not be used, even for a short time, in an enclosed space such as a garage, or workshop without exhaust gas extraction.
Do not park the vehicle over i n fl a m m a b l e m a t e r i a l s ( d r y grass, dead leaves, papers…), a s t h e r e i s a r i s k o f fi r e .
The programmable heating sys-tem is supplied by the vehicle’s fuel tank. Before using it, ensure t h a t t h e r e i s s u f fi c i e n t f u e l i n t h e tank. If the low fuel warning lamp is on we strongly recommend that you do not programme the heating to come on.
P R O G R A M M A B L E H E A T I N G
If the battery is disconnected or replaced, the remote control must be re-initialised.
A f t e r s w i t c h i n g o n , w i t h i n fi v e s e c -onds press button 4 (OFF) for 1 second.
If the operation is successful, the "OK" message appears in the remote control screen.
If not, the "FAIL" message appears. Repeat the procedure.
As a secondary advantage, use of your programmable heating sys-tem allows it to be used to pre-heat the passenger compartment
Page 92 of 216
95
IIIC
D
R E A R S E A T S

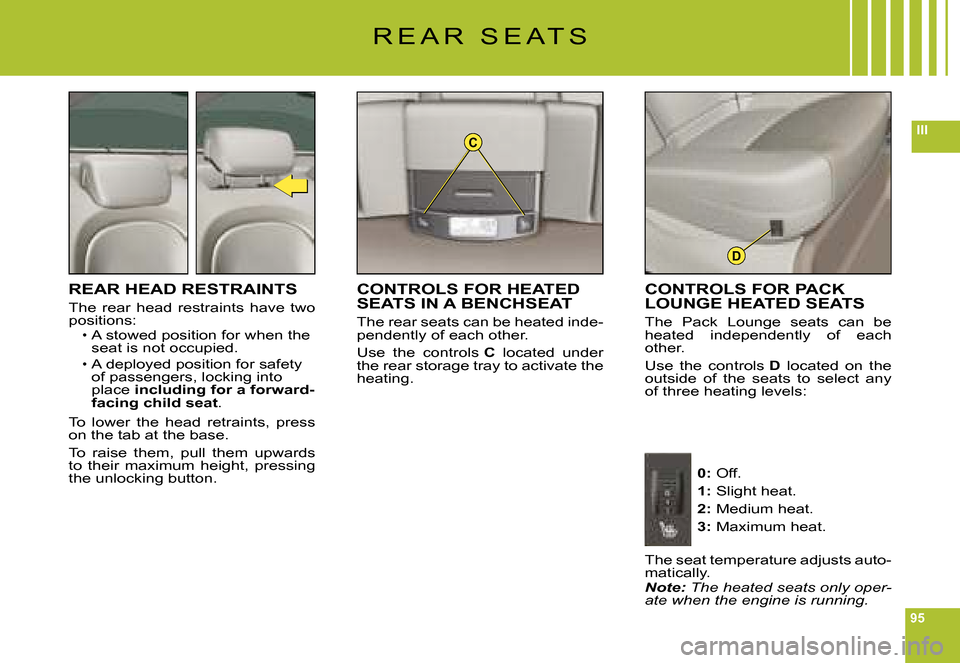

REAR HEAD RESTRAINTS
The rear head restraints have two positions:A stowed position for when the seat is not occupied.
A deployed position for safety of passengers, locking into place including for a forward-facing child seat.
To lower the head retraints, press on the tab at the base.
To raise them, pull them upwards to their maximum height, pressing the unlocking button.
Page 93 of 216
96
III
1
2
R E A R S E A T S

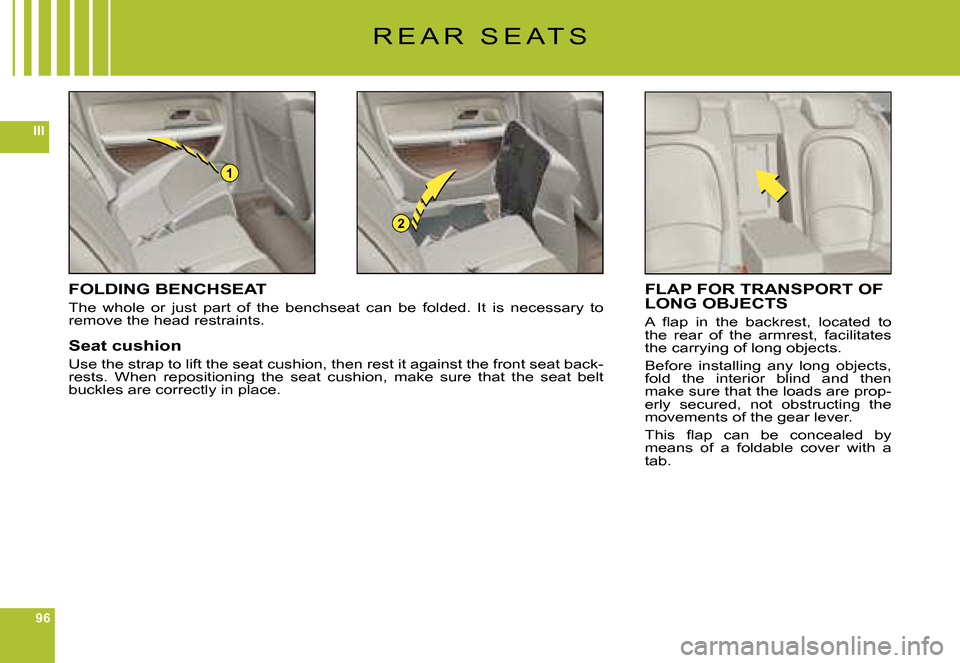

FOLDING BENCHSEAT
The whole or just part of the benchseat can be folded. It is necessary to remove the head restraints.
Seat cushion
Use the strap to lift the seat cushion, then rest it against the front seat back-rests. When repositioning the seat cushion, make sure that the seat belt buckles are correctly in place.
FLAP FOR TRANSPORT OF LONG OBJECTS
A fl a p i n t h e b a c k r e s t , l o c a t e d t o the rear of the armrest, facilitates the carrying of long objects.
Before installing any long objects, fold the interior blind and then make sure that the loads are prop-erly secured, not obstructing the movements of the gear lever.
T h i s fl a p c a n b e c o n c e a l e d b y means of a foldable cover with a tab.
Page 94 of 216
97
III
A
BC
D
R E A R S E A T S

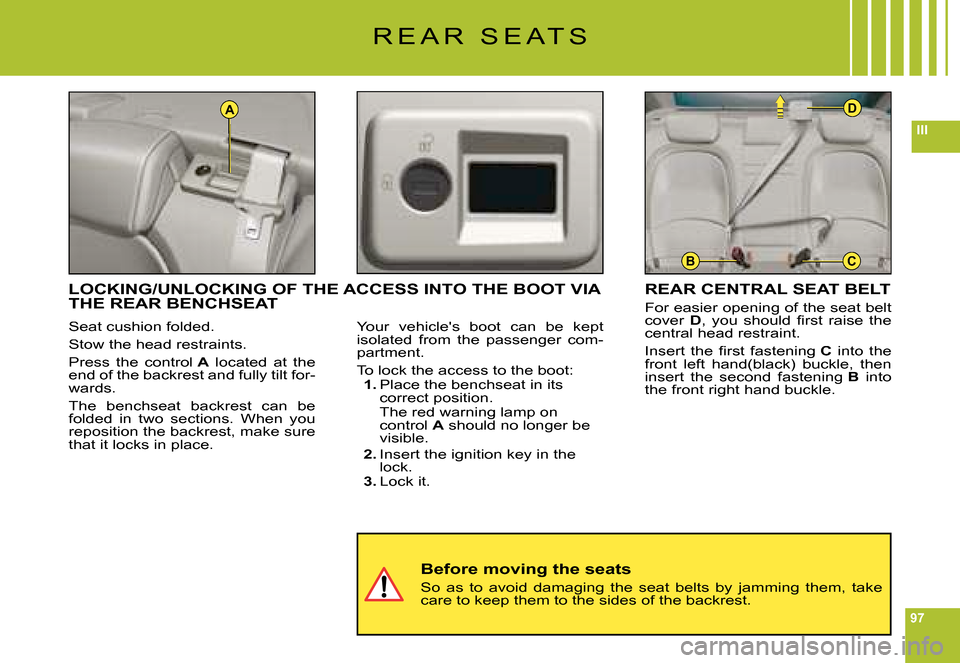

Seat cushion folded.
Stow the head restraints.
Press the control A located at the end of the backrest and fully tilt for-wards.
The benchseat backrest can be folded in two sections. When you reposition the backrest, make sure that it locks in place.
Your vehicle's boot can be kept isolated from the passenger com-partment.
To lock the access to the boot:1. Place the benchseat in its correct position.The red warning lamp on control A should no longer be visible.
2. Insert the ignition key in the lock.3. Lock it.
Before moving the seats
So as to avoid damaging the seat belts by jamming them, take care to keep them to the sides of the backrest.
LOCKING/UNLOCKING OF THE ACCESS INTO THE BOOT VIA THE REAR BENCHSEATREAR CENTRAL SEAT BELT
For easier opening of the seat belt cover D , y o u s h o u l d fi r s t r a i s e t h e central head restraint.
I n s e r t t h e fi r s t f a s t e n i n g C into the front left hand(black) buckle, then insert the second fastening B into the front right hand buckle.
Page 95 of 216
98
III
B
A
P A C K L O U N G E S E A T S

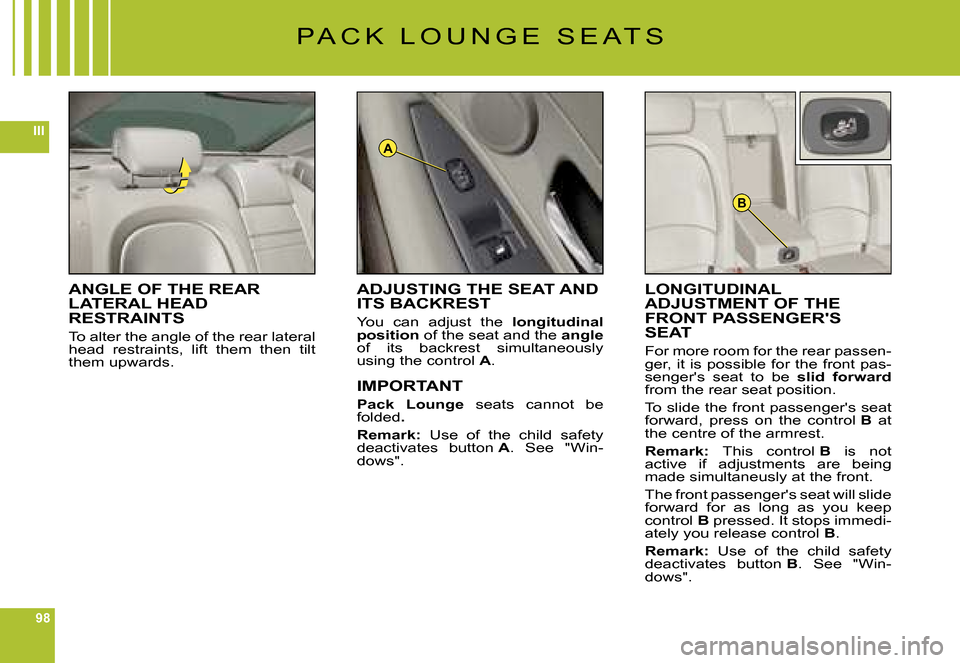

ANGLE OF THE REAR LATERAL HEAD RESTRAINTS
To alter the angle of the rear lateral head restraints, lift them then tilt them upwards.
LONGITUDINAL ADJUSTMENT OF THE FRONT PASSENGER'S SEAT
For more room for the rear passen-ger, it is possible for the front pas-senger's seat to be slid forwardfrom the rear seat position.
To slide the front passenger's seat forward, press on the control B at the centre of the armrest.
Remark: This control B is not active if adjustments are being made simultaneusly at the front.
The front passenger's seat will slide forward for as long as you keep control B pressed. It stops immedi-ately you release control B.
Remark: Use of the child safety deactivates button B. See "Win-dows".
ADJUSTING THE SEAT AND ITS BACKREST
You can adjust the longitudinal position of the seat and the angleof its backrest simultaneously using the control A.
IMPORTANT
Pack Lounge seats cannot be folded.
Remark: Use of the child safety deactivates button A. See "Win-dows".
Page 96 of 216
99
IIIA
A I R B A G S

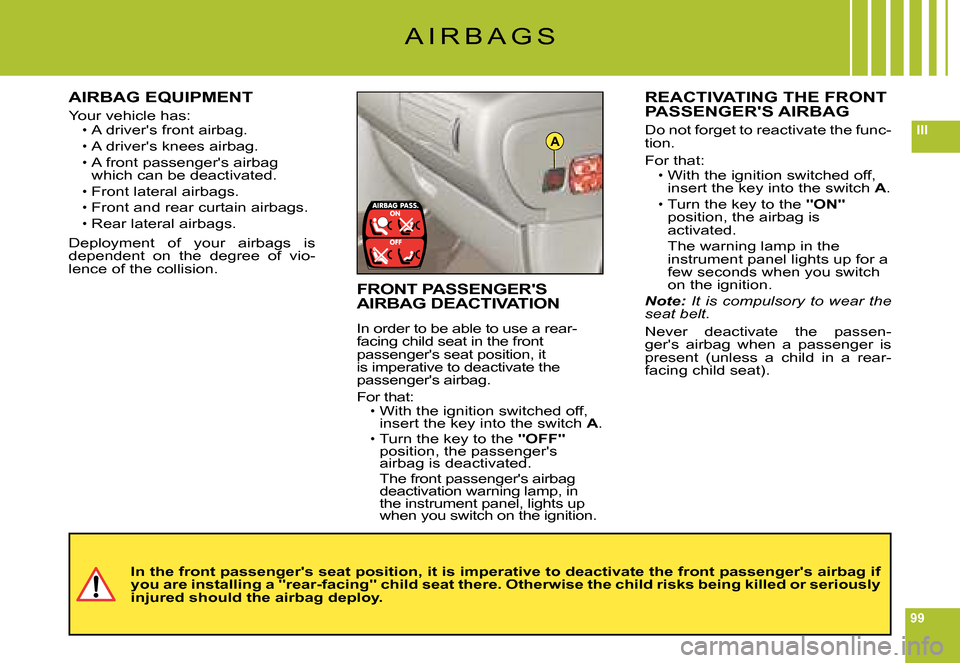

AIRBAG EQUIPMENT
Your vehicle has:A driver's front airbag.
A driver's knees airbag.A front passenger's airbag which can be deactivated.
Front lateral airbags.
Front and rear curtain airbags.Rear lateral airbags.
Deployment of your airbags is dependent on the degree of vio-lence of the collision.
Page 97 of 216
100
III
C H I L D R E S T R A I N T S

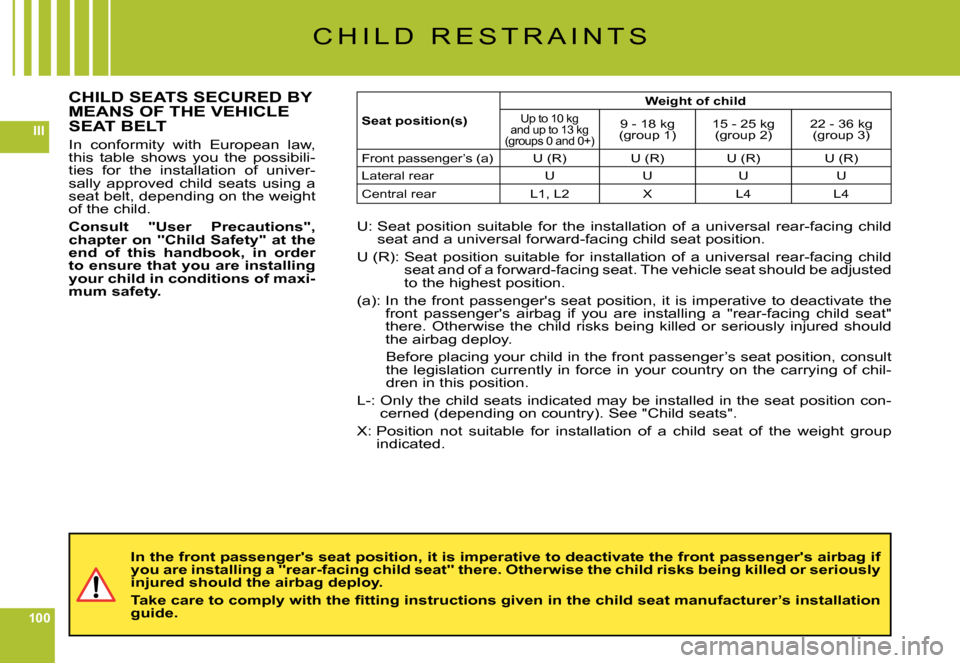

CHILD SEATS SECURED BY MEANS OF THE VEHICLE SEAT BELT
In conformity with European law, this table shows you the possibili-ties for the installation of univer-sally approved child seats using a seat belt, depending on the weight of the child.
Consult "User Precautions", chapter on "Child Safety" at the end of this handbook, in order to ensure that you are installing your child in conditions of maxi-mum safety.
Seat position(s)
Weight of child
Up to 10 kg and up to 13 kg (groups 0 and 0+)
9 - 18 kg (group 1)15 - 25 kg (group 2)22 - 36 kg (group 3)
Front passenger’s (a)U (R)U (R)U (R)U (R)
Lateral rearUUUU
Central rearL1, L2XL4L4
U: Seat position suitable for the installation of a universal rear-facing child seat and a universal forward-facing child seat position.
U (R): Seat position suitable for installation of a universa l rear-facing child seat and of a forward-facing seat. The vehicle seat should be adjusted to the highest position.
(a): In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a "rear-facing chil d seat" there. Otherwise the child risks being killed or seriously injured should the airbag deploy.
Before placing your child in the front passenger’s seat position, consult the legislation currently in force in your country on the carrying of chil-dren in this position.
L-: Only the child seats indicated may be installed in the seat position con-cerned (depending on country). See "Child seats".
X: Position not suitable for installation of a child seat of the weight group indicated.
In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a "rear-facing child seat" there. Otherwise the child risks being killed or seriously injured should the airbag deploy.
T a k e c a r e t o c o m p l y w i t h t h e fi t t i n g i n s t r u c t i o n s g i v e n i n t h e c h i l d s e a t m a n u f a c t u r e r ’ s i n s t a l l a t i o n guide.
Page 98 of 216
101
III
ab
ab
C H I L D R E S T R A I N T S
Pack Lounge seats

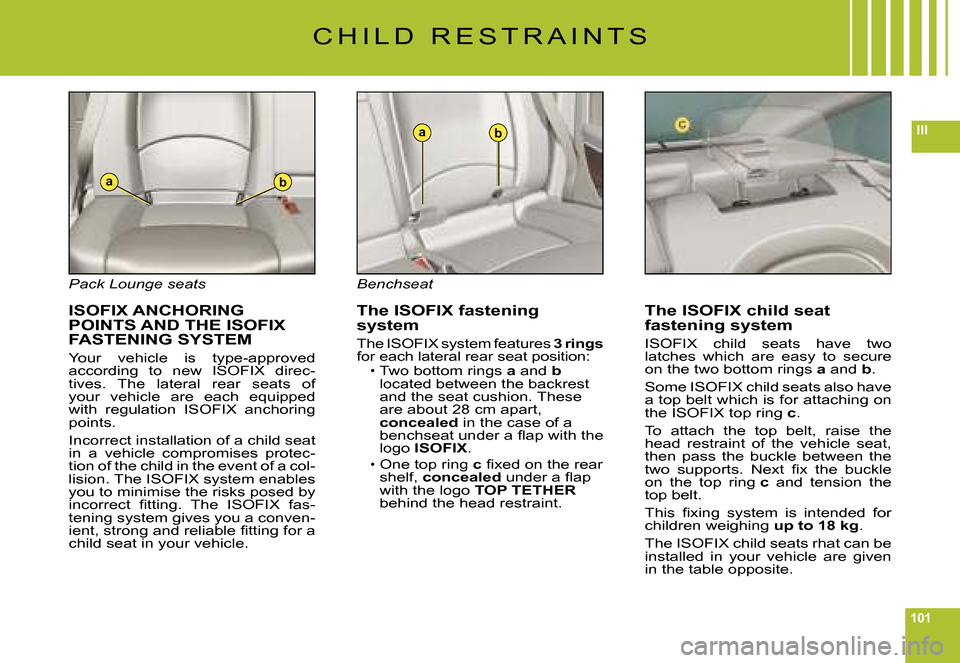

ISOFIX ANCHORING POINTS AND THE ISOFIX FASTENING SYSTEM
Your vehicle is type-approved according to new ISOFIX direc-tives. The lateral rear seats of your vehicle are each equipped with regulation ISOFIX anchoring points.
Incorrect installation of a child seat in a vehicle compromises protec-tion of the child in the event of a col-lision. The ISOFIX system enables you to minimise the risks posed by i n c o r r e c t fi t t i n g . T h e I S O F I X f a s -tening system gives you a conven- i e n t , s t r o n g a n d r e l i a b l e fi t t i n g f o r a child seat in your vehicle.
Benchseat
The ISOFIX fastening system
The ISOFIX system features 3ringsfor each lateral rear seat position:Two bottom rings a and blocated between the backrest and the seat cushion. These are about 28 cm apart, concealed in the case of a b e n c h s e a t u n d e r a fl a p w i t h t h e logo ISOFIX.
One top ring c fi x e d o n t h e r e a r shelf, concealed u n d e r a fl a p with the logo TOP TETHERbehind the head restraint.

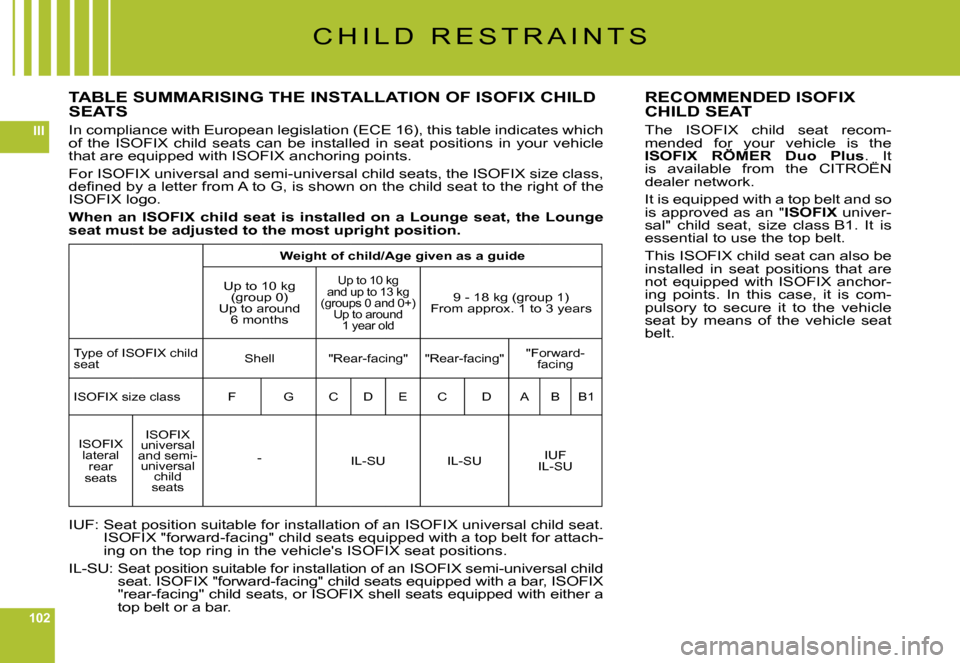

Page 99 of 216
102
III
C H I L D R E S T R A I N T S
TABLE SUMMARISING THE INSTALLATION OF ISOFIX CHILD SEATS
In compliance with European legislation (ECE 16), this table indicates which of the ISOFIX child seats can be installed in seat positions in your vehicle that are equipped with ISOFIX anchoring points.
For ISOFIX universal and semi-universal child seats, the ISOFIX size class, d e fi n e d b y a l e t t e r f r o m A t o G , i s s h o w n o n t h e c h i l d s e a t t o t h e r i g h t o f t h e ISOFIX logo.
When an ISOFIX child seat is installed on a Lounge seat, the Lounge seat must be adjusted to the most upright position.
Weight of child/Age given as a guide
Up to 10 kg (group 0)Up to around 6 months
Up to 10 kg and up to 13 kg (groups 0 and 0+)Up to around 1 year old
9 - 18 kg (group 1)From approx. 1 to 3 years
Type of ISOFIX child seatShell"Rear-facing""Rear-facing""Forward-facing
ISOFIX size classFGCDECDABB1
ISOFIX lateral rear seats
ISOFIX universal and semi-universal child seats
-IL-SUIL-SUIUFIL-SU
IUF: Seat position suitable for installation of an ISOFIX universal child seat. ISOFIX "forward-facing" child seats equipped with a top belt for attach-ing on the top ring in the vehicle's ISOFIX seat positions.
IL-SU: Seat position suitable for installation of an ISOFIX semi-universal child seat. ISOFIX "forward-facing" child seats equipped with a bar, ISOFIX "rear-facing" child seats, or ISOFIX shell seats equipped with either a top belt or a bar.
RECOMMENDED ISOFIX CHILD SEAT
The ISOFIX child seat recom-mended for your vehicle is the ISOFIX RÖMER Duo Plusmended for your vehicle is the mended for . It is available from the CITROËN dealer network.
It is equipped with a top belt and so is approved as an " ISOFIX univer-sal" child seat, size class B1. It is essential to use the top belt.
This ISOFIX child seat can also be installed in seat positions that are not equipped with ISOFIX anchor-ing points. In this case, it is com-pulsory to secure it to the vehicle seat by means of the vehicle seat belt.

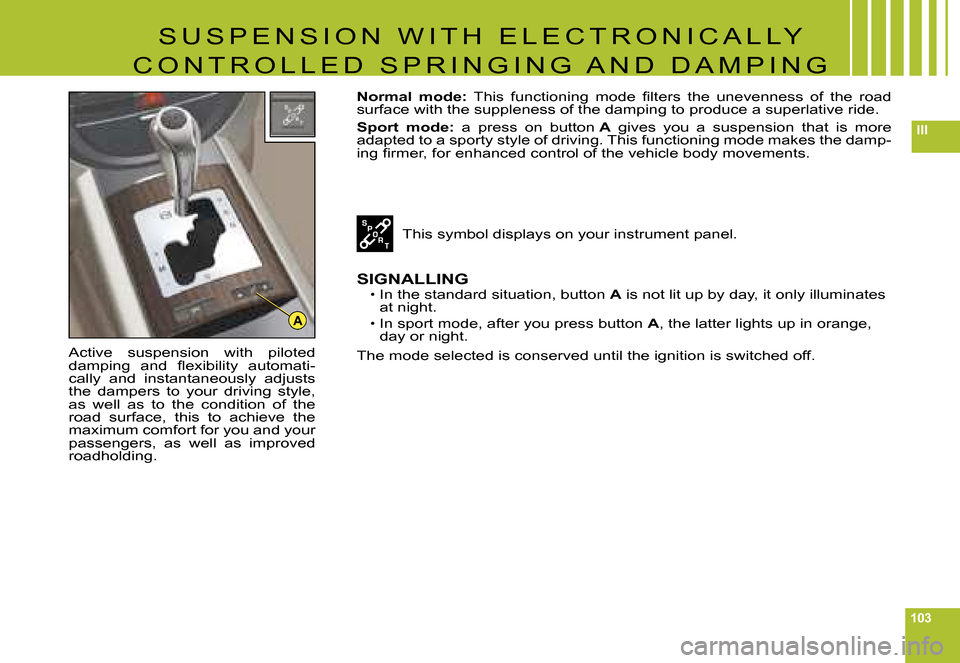

Page 100 of 216
103
III
A
S U S P E N S I O N W I T H E L E C T R O N I C A L L Y
C O N T R O L L E D S P R I N G I N G A N D D A M P I N G
Active suspension with piloted d a m p i n g a n d fl e x i b i l i t y a u t o m a t i -cally and instantaneously adjusts the dampers to your driving style, as well as to the condition of the road surface, this to achieve the maximum comfort for you and your passengers, as well as improved roadholding.
Normal mode: T h i s f u n c t i o n i n g m o d e fi l t e r s t h e u n e v e n n e s s o f t h e r o a d surface with the suppleness of the damping to produce a superlative ride.
Sport mode: a press on button A gives you a suspension that is more adapted to a sporty style of driving. This functioning mode makes the damp- i n g fi r m e r , f o r e n h a n c e d c o n t r o l o f t h e v e h i c l e b o d y m o v e m e n t s .
This symbol displays on your instrument panel.
SIGNALLINGIn the standard situation, button A is not lit up by day, it only illuminates at night.
In sport mode, after you press button A, the latter lights up in orange, day or night.
The mode selected is conserved until the ignition is switched off.
