Page 151 of 189

Citroen C6 DAG 2009 1.G Owners Manual 7.21
�8�8
�2
�3�3
11
OK
DELETE
JUKEBOX
� �P�r�e�s�s� �t�h�e� �S�O�U�R�C�E� �b�u�t�t�o�n� �s�e�v�e�r�a�l� �t�i�m�e�s� �i�n� �s�u�c�c�e�s�s�i�o�n� �a�n�d� �s�e�l�e�c�t� �t�h�e� �J�U�K�E�B�O�X� �f�u�n�c�

7.21
88
2
33
11
OK
DELETE
JUKEBOX
Press the SOURCE button several times in succession and select the JUKEBOX function.
Press the LIST button.
Turn the dial to select the ﬁ les.
Press the ESC button to return to the ﬁ rst ﬁ le level.
Select OK and press the dial to conﬁ rm.
To rename the tracks of an album, follow the same procedure, selecting the tracks to be renamed. Use the ESC button to exit from the list of tracks.
Select the DELETE function to delete an album or a track from the Jukebox.

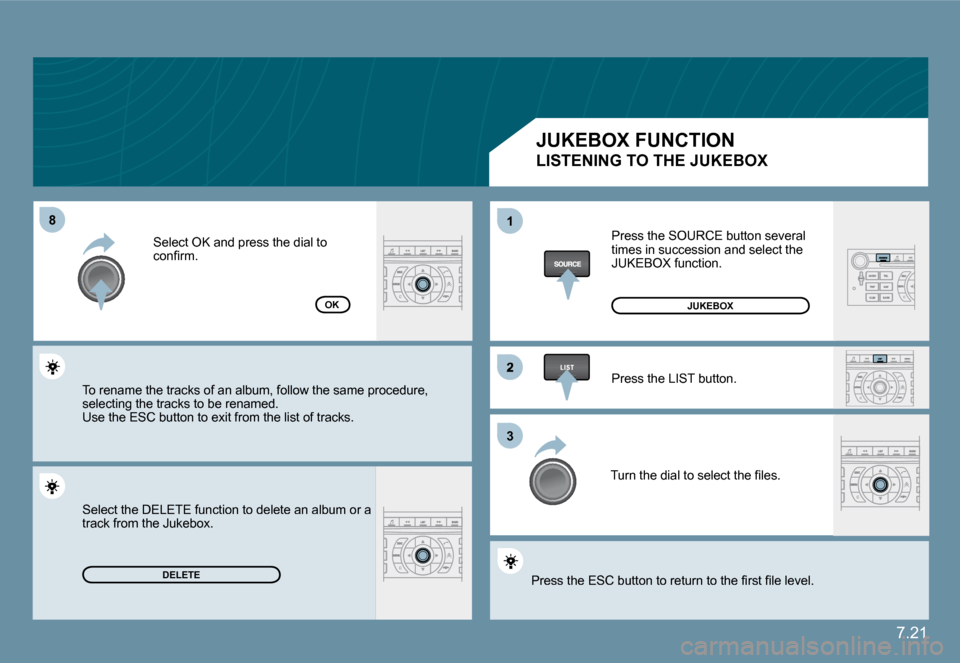

JUKEBOX FUNCTION
LISTENING TO THE JUKEBOX

Page 152 of 189

Citroen C6 DAG 2009 1.G Owners Manual 7.22
11
�2�2
11
�3�3
�2�2
� �P�r�e�s�s� �t�h�e� �M�E�N�U� �b�u�t�t�o�n� �t�h�e�n� �s�e�l�e�c�t� �t�h�e� �C�O�N�F�I�G�U�R�A�T�I�O�N� �f�u�n�c�t�i�o�n�,� �t�h�e�n� �S�O�U�N�D�S�,� �t�h�e�n� �A�C�T�I�V�A

7.22
11
22
11
33
22
Press the MENU button then select the CONFIGURATION function, then SOUNDS, then ACTIVATE AUXILIARY SOURCE to acti vate the audio equipment auxiliary input.
Connect the portable equipment (MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) located in the glove box using a suitable cable.
Press the SOURCE button several times in succession and select AUX.
The displaying and management of the commands takes place via the portable equipment.
It is not possible to copy the ﬁ les onto the hard disc from the auxiliary input.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED

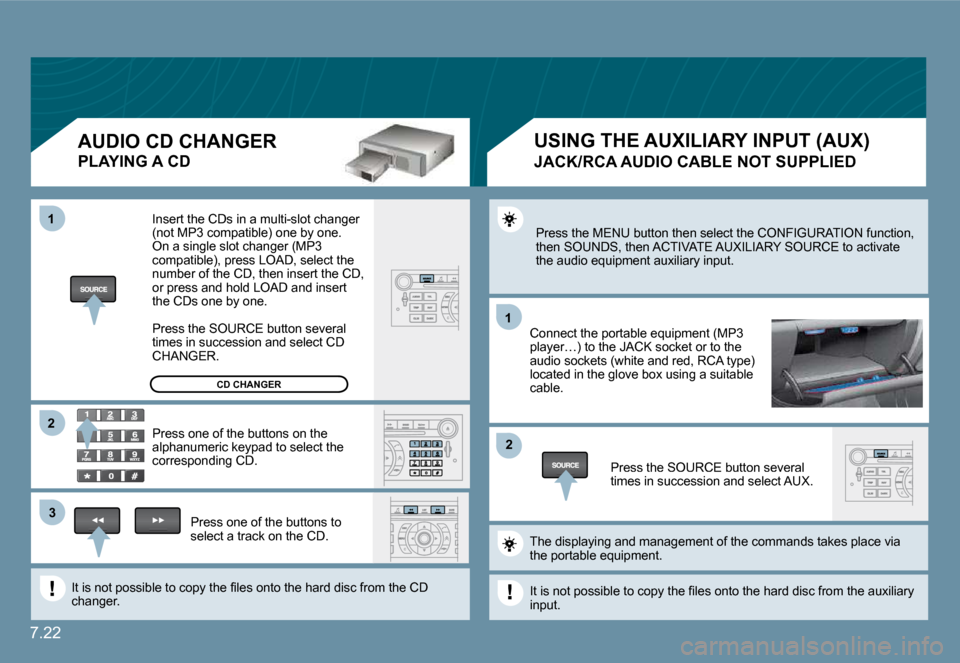

AUDIO CD CHANGER
PLAYING A CD
Insert the CDs in a multi-slot changer (not MP3 compatible) one by one. On a single slot changer (MP3 compatible), press LOAD, select the number of the CD, then insert the CD, or press and hold LOAD and insert the CDs one by one.
Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the alphanumeric keypad to select the corresponding CD.
Press one of the buttons to select a track on the CD.
It is not possible to copy the ﬁ les onto the hard disc from the CD changer.
CD CHANGER

Page 153 of 189

Citroen C6 DAG 2009 1.G Owners Manual 7.23
11
�2�2
�3�3
�4�4
�5�5
�6�6
�7�7
�A�C�T�I�V�A�T�E� �V�I�D�E�O� �M�O�D�E
�V�I�D�E�O� �P�A�R�A�M�E�T�E�R�S
� �Y�o�u� �c�a�n� �c�o�n�n�e�c�t� �v�i�d�e�o� �e�q�u�i�p�m�e�n�t� �(�c�a�m�c�o�r�d�e�r�,�

7.23
11
22
33
44
55
66
77
ACTIVATE VIDEO MODE
VIDEO PARAMETERS
You can connect video equipment (camcorder, digital camera, DVD player...) to the three audio/video sockets, located in the glove box.
Turn the dial and select the VIDEO function.
After connecting the video equipment, press the MENU button.
Turn the dial and select the ACTIVATE VIDEO MODE function to activate/deactivate the video.
Press the dial to conﬁ rm the selection.
Press the dial to conﬁ rm the selection.
Pressing the "SOURCE" button several times in succ ession permits the selection of an audio source other than that of the video.
Pressing the "DARK" button disconnects display of the video.
Turn the dial and select the VIDEO PARAMETERS function to set the display format, the brightness, the contrast and the colours.
Press the dial to conﬁ rm the selection.

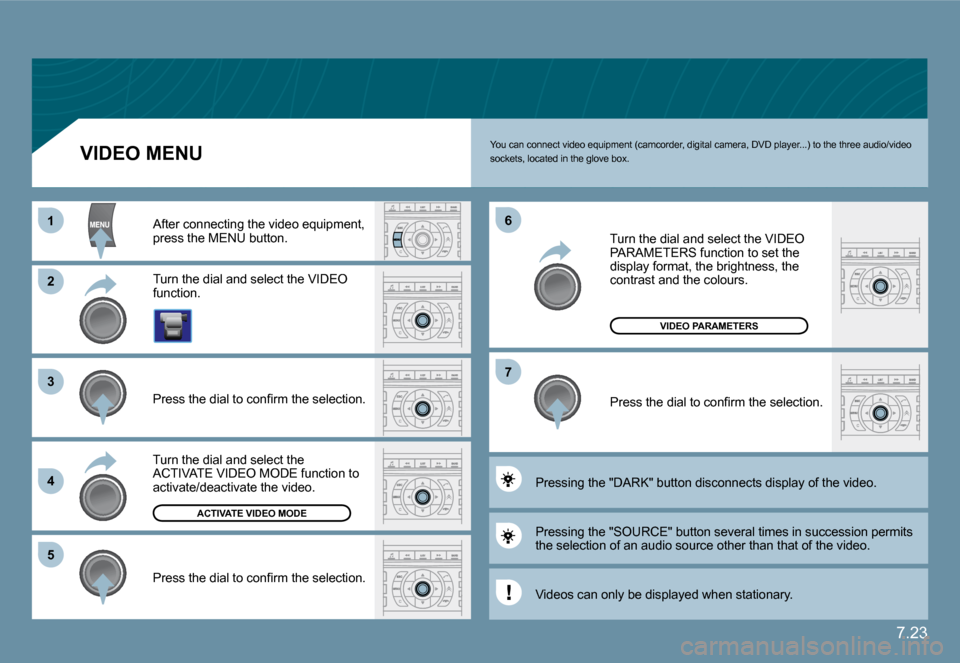

VIDEO MENU
Videos can only be displayed when stationary.

Page 154 of 189

Citroen C6 DAG 2009 1.G Owners Manual 7.24
11
�2�2
�3�3
11
�2�2
�0�6INTERNAL TELEPHONE
ENTERING THE PIN CODE
� �O�p�e�n� �t�h�e� �s�l�o�t� �b�y� �p�r�e�s�s�i�n�g� �t�h�e� �b�u�t�t�o�n� �u�s�i�n�g� �t�h�e� �t�i�p� �o�f� �a� �p�e�n�.�

7.24
11
22
33
11
22
06INTERNAL TELEPHONE
ENTERING THE PIN CODE
Open the slot by pressing the button using the tip of a pen.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
Your SIM card must be installed and removed with the NaviDrive audio and telematics system switched off and the ig nition off.
Enter the PIN code on the keypad.
Conﬁ rm the PIN code by pressing button #.
PIN CODE
When entering your PIN code, tick the STORE PIN ta b for access to the telephone without having to enter this code when it is used subsequently.
INSTALLING YOUR SIM CARD
(NOT SUPPLIED)

Page 155 of 189

Citroen C6 DAG 2009 1.G Owners Manual 7.25
�3�3
�2�2
11
�4�4
�0�6
� �T�h�e� �s�e�r�v�i�c�e�s� �o�f�f�e�r�e�d� �b�y� �t�h�e� �t�e�l�e�p�h�o�n�e� �d�e�p�e�n�d� �o�n� �t�h�e� �n�e�t�w�o�r�k�,� �t�h�e� �S�I�M� �c�a�r�d� �a�n�d� �t�h�e� �c�o�m

7.25
33
22
11
44
06
The services offered by the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telepho ne's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
For reasons of safety, the driver should only carr y out operations which require prolonged attention when the vehicle is stationary (pairing the Bluetooth mobile telephone to the hands-free kit).
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
Select BLUETOOTH ACTIVATION MODE, then ACTIVATED AND VISIBLE. Press the dial to conﬁ rm each operation.
Press the MENU button, select TELEMATICS, then BLUETOOTH FUNCTIONS. Press the dial to conﬁ rm each operation.
On your telephone, select the name of the CITROËN audio/telephone. On your telephone, select the name On your telephone, select the name
Enter the authentication code (0000 by default).
To ﬁ nd and change the name of the CITROËN audio/t elephone, To ﬁ nd and change the name of the CITROËN audio/telephone, repeat step 2 then select CHANGE AUDIO/TELEPHONE NA ME. repeat step 2 then select CHANGE AUDIO/TELEPHONE NAME.

Page 156 of 189

Citroen C6 DAG 2009 1.G Owners Manual 7.26
�0�6
� �T�h�e� �c�a�l�l� �l�i�s�t� �c�o�n�s�i�s�t�s� �o�f� �c�a�l�l�s� �m�a�d�e� �f�r�o�m� �t�h�e� �v�e�h�i�c�l�e��s� �a�u�d�i�o�t�e�l�e�p�h�o�n�e� only.
� �O�n�c�e� �t�h�e� �t�e�l�e�p�h�o�n�e

7.26
06
The call list consists of calls made from the vehicle's audiotelephone only.
Once the telephone has been connected, the system can synchronise the address book and the call list. Repeat step 2 then select PHONE BOOK SYNCHRONISATION MODE. Select the synchronisation of your choice and press the dial to conﬁ rm.
The synchronisation may take a few minutes.
To change the telephone connected, repeat step 2 t hen select LIST OF MATCHED TELEPHONES and press OK to conﬁ rm. The list of previously connected telephones (10 maximum) appears. Select the telephone of your choice, conﬁ rm, then select CONNECT and press the dial to conﬁ rm.
To change the authentication code, repeat step 2 then select AUTHENTICATION CODE and save the code of your choic e.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE

Page 157 of 189

Citroen C6 DAG 2009 1.G Owners Manual 7.27
11
�2�2
�3�3
�5�5
�6�6
�4�4
�0�6 TELEPHONE
CALLING A CONTACT
� �T�u�r�n� �t�h�e� �d�i�a�l� �a�n�d� �s�e�l�e�c�t� �t�h�e� �D�I�A�L� function.
� �P�r�e�s�s� �t�h�e� �P�I�C�K� �U�P� �b�u�t�t�o�

7.27
11
22
33
55
66
44
06 TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the telephone short-cut menu.
Press the dial to conﬁ rm the selection.
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
Press the end of the steering wheel stalk for more than 2 seconds to access the telephone menu: calls log, directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then sel ect: - DEACTIVATED: to use the internal telephone, - ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones, - ACTIVATED AND NOT VISIBLE: to use the bluetoo th telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Selec t the number required and conﬁ rm to make the call.
DIAL

Page 158 of 189

Citroen C6 DAG 2009 1.G Owners Manual 7.28
11
�2�2
�3�3
CITROËN ASSISTANCE
CUSTOMER CALL
� � �*� � � �T�h�e�s�e� �s�e�r�v�i�c�e�s� �a�n�d� �o�p�t�i�o�n�s� �a�r�e� �s�u�b�j�e�c�t� �t�o� �c�o�n�d�i�t�i�o�n�s� �a�n�d� �a�v�a�i�l�a�b�i�l

7.28
11
22
33
CITROËN ASSISTANCE
CUSTOMER CALL
* These services and options are subject to conditions and availability.
CONSULTING THE SERVICES
Press this button to gain access to the CITROËN services * . Press this button to gain access to the Press this button to gain access to the
Select "Customer call" to request any information about the CITROËN marque.
Select "CITROËN Assistance" to make a breakdown assistance call.
* On condition that the CITROËN Emergency cont ract has been signed. This is free and of unlimited duration. Consult a CITROËN dealer. * On condition that the CITROËN Emergency cont ract has been signed. * On condition that the CITROËN Emergency contract has been signed.

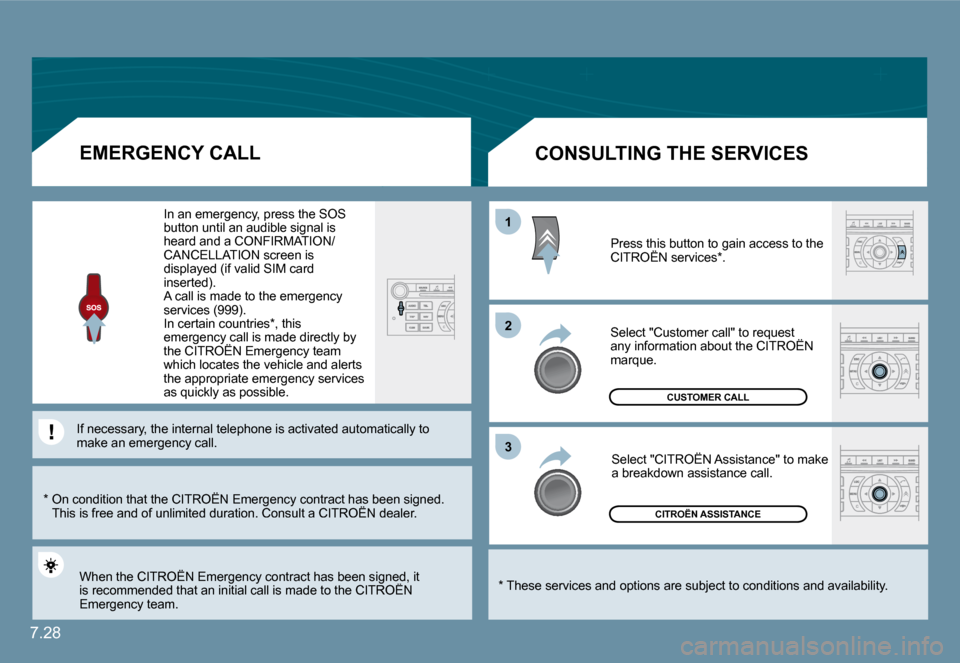

EMERGENCY CALL
When the CITROËN Emergency contract has been signe d, it is recommended that an initial call is made to the CITROËN When the CITROËN Emergency contract has been signe d, it When the CITROËN Emergency contract has been signed, it
Emergency team.
In an emergency, press the SOS button until an audible signal is heard and a CONFIRMATION/CANCELLATION screen is displayed (if valid SIM card inserted). A call is made to the emergency services (999). In certain countries * , this emergency call is made directly by the CITROËN Emergency team emergency call is made directly by emergency call is made directly by
which locates the vehicle and alerts the appropriate emergency services as quickly as possible.
If necessary, the internal telephone is activated automatically to If necessary, the internal telephone is activated automatically to make an emergency call.

Page 159 of 189

Citroen C6 DAG 2009 1.G Owners Manual 7.29
1
2
2
2
�0�7
126 3
9
� �E�a�c�h� �p�r�e�s�s� �o�f� �t�h�e� �b�u�t�t�o�n�,� �l�o�c�a�t�e�d� �a�t� �t�h�e� �e�n�d� �o�f� �t�h �e� � �w�i�p�e�r� �s�t�a�l�k� �,� �d�i�s�p�l�a�y�s� �t�h�e� �d�i�f�f�e�

7.29
1
2
2
2
07
126 3
9

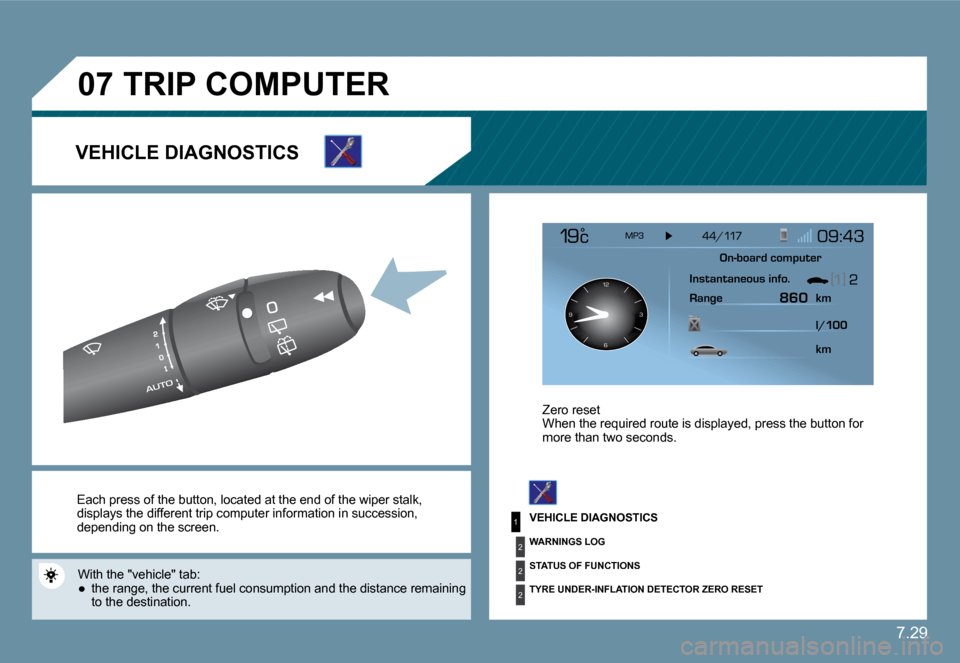

Each press of the button, located at the end of th e wiper stalk , displays the different trip computer information in succession, depending on the screen.
With the "vehicle" tab:

Page 160 of 189

Citroen C6 DAG 2009 1.G Owners Manual 7.30
�0�7
126 3
9
� � �A� �f�e�w� �d�e�ﬁ� �n�i�t�i�o�n�s�
� � �R�a�n�g�e�:� � �d�i�s�p�l�a�y�s� �t�h�e� �d�i�s�t�a�n�c�e� �w�h�i�c�h� �c�a�n� �b�e� �t�r�a�v�e�l�l�e�d� �w�i�t�h� �t �h�e� �r�e�m�a�i

7.30
07
126 3
9

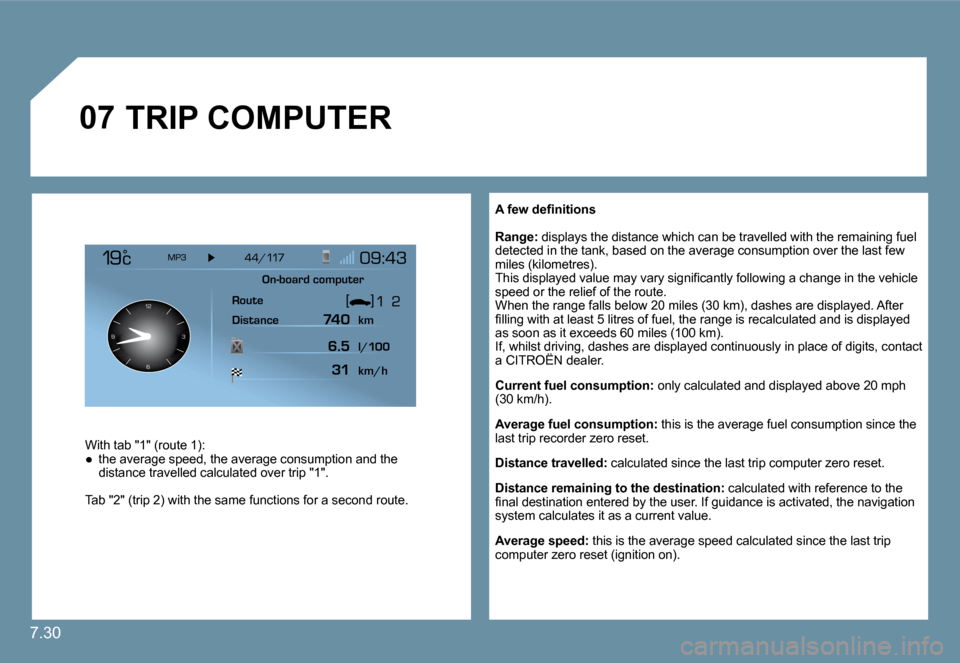

A few deﬁ nitions
Range: displays the distance which can be travelled with t he remaining fuel detected in the tank, based on the average consumpt ion over the last few miles (kilometres). This displayed value may vary signiﬁ cantly following a change in the vehicle speed or the relief of the route. When the range falls below 20 miles (30 km), dashe s are displayed. After ﬁ lling with at least 5 litres of fuel, the range is recalculated and is displayed as soon as it exceeds 60 miles (100 km). If, whilst driving, dashes are displayed continuou sly in place of digits, contact a CITROËN dealer. If, whilst driving, dashes are displayed continuously in place of digits, contact If, whilst driving, dashes are displayed continuously in place of digits, contact
Current fuel consumption: only calculated and displayed above 20 mph (30 km/h).
Average fuel consumption: this is the average fuel consumption since the last trip recorder zero reset.
Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference to the ﬁ nal destination entered by the user. If guidance is activated, the navigation system calculates it as a current value.
Average speed: this is the average speed calculated since the last trip computer zero reset (ignition on).
TRIP COMPUTER
With tab "1" (route 1):
