21
II
ABDC
R E M O T E C O N T R O L
Note:The simultaneous use of other high frequency equipment (mobile telephones, domestic alarms, etc.) may momentarily hinder the operation of the remote control.
If there is a permanent fault, the remote control has to be reinitialised. See "Changing the remote control battery".
Page 2 of 189
22
II
FOLDING AND EJECTING THE KEY
Button D i s f o r f o l d i n g a n d e j e c t i n g t h e k e y f r o m i t s h o u s i n g i n t h e r e m o t e control.
I f y o u d o n o t p r e s s o n b u t t o n D , y o u c o u l d d a m a g e t h e k e y m e c h a n i s m .
Changing the remote control battery
U n c l i p t h e c o v e r t o g a i n a c c e s s t o t h e b a t t e r y .
Battery: CR0523 - 3 V.
A f t e r a c h a n g e o f b a t t e r y , i t m a y b e n e c e s s a r y t o r e - i n i t i a l i s e t h e r e m o t e c o n t r o l . T o d o t h a t , s w i t c h o n t h e i g n i t i o n a n d i m m e d i a t e l y p r e s s b u t t o n B o n y o u r r e m o t e c o n t r o l t o t r i g g e r t h e a c t i o n d e s i r e d . T h i s m a y t a k e s o m e t e n s e c o n d s .Note: Make a careful note of the numbers for the keys and for the remot e control on the ASSISTANCE card. Keep this in a safe place.
Do not throw away the old batteries. They should be returned to a CITROËN dealerDo not throw away Do not throw o r d e p o s i t e d a t a r e c o g n i s e d c o l l e c t i o n p o i n t ( a c a m e r a dealer s h o p , f o r e x a m p l e ) .
Except when reinitialising, the remote control cannot function while the key is in the ignition, even when switched off.
Warning: by inadvertently actioning the remote control, when for example it is in your pocket, you can unlock the vehicle without your realising it.
However, if none of the doors is opened within thirty seconds following an unlocking, the doors will automatically relock.
Warning: there is a risk of damage if the replacement batte ry is not the correct one.
Only use batteries that are identical or equivalent to those approved by CITROËN.
GUIDE-ME-HOME LIGHTING
A press on button C operates the g u i d e - m e - h o m e l i g h t i n g ( i l l u m i n a - t i o n o f t h e s i d e l a m p s a n d d i p p e d b e a m s f o r a p p r o x . o n e m i n u t e ) .
A s e c o n d p r e s s p r i o r t o t h e e n d o f t h i s p e r i o d c a n c e l s t h e g u i d e - m e - h o m e l i g h t i n g .
LOCATING OF THE VEHICLE
T o l o c a t e t h e v e h i c l e i n a c a r p a r k , press button B , t h e i n t e r i o r l a m p s c o m e o n a n d t h e d i r e c t i o n i n d i c a - t o r s fl a s h f o r a f e w s e c o n d s . T h e v e h i c l e r e m a i n s l o c k e d .
Page 3 of 189
23
II
K E Y S
It is dangerous to operate the deadlocking when a person is in the vehicle as unlocking is impossible from the inside (without the remote control).
The key number is on the label attached to the key.
Should you lose your key or remote control, a CITROËN d ealer can supply replacements.
If you unlock your vehicle using the key because of a problem with the battery, be aware that opening/closing a door with the window closed can ser iously damage the glass, even to the point of breaking it. See "Access".
ELECTRONIC IMMOBILISER KEY
The key operates all the vehicle’s l o c k s a s w e l l a s t h e i g n i t i o n .Note: For safety reasons, a buzzer will sound if you have switched off the ignition and opened the driver’s door without having removed the ignition key.
T h e k e y c a n b e u s e d t o d e a c t i v a t e t h e f r o n t p a s s e n g e r ’ s a i r b a g . S e e " A i r b a g s " .
CENTRAL LOCKING USING THE KEY
A b r i e f a c t i o n w i t h t h e k e y l o c k s t h e v e h i c l e .
Deadlocking: Central locking using the key
A s e c o n d a c t i o n s t r a i g h t a w a y w i t h t h e k e y d e a d l o c k s t h e v e h i c l e . I t i s t h e n i m p o s s i b l e t o o p e n t h e d o o r s f r o m e i t h e r i n s i d e o r o u t s i d e t h e v e h i c l e .Note:With the vehicle stationary and the engine switched off, locking is s i g n a l l e d b y t h e fl a s h i n g o f t h e i n t e r i o r l o c k i n g c o n t r o l w a r n i n g l a m p .If any of the doors, or the boot, is open or not properly clo sed, the central locking does not operate.
ELECTRONIC IMMOBILISER
T h e E L E C T R O N I C I M M O B I L I S E R d e v i c e l o c k s t h e e n g i n e s u p p l y s y s t e m .
T h e s y s t e m a c t i v a t e s a u t o m a t i c a l l y a s t h e k e y i s r e m o v e d f r o m t h e i g n i t i o n .
A l l t h e v e h i c l e ’ s k e y s c o n t a i n a n e l e c t r o n i c i m m o b i l i s e r d e v i c e .
A f t e r y o u s w i t c h o n t h e i g n i t i o n , a d i a l o g u e s t a r t s b e t w e e n t h e k e y a n d t h e e l e c t r o n i c i m m o b i l i s e r d e v i c e .
If the key is not recognised, you cannot start the vehicle .
I f t h i s o c c u r s , l e a v e y o u r v e h i c l e i m m o b i l i s e d a n d c o n t a c t a C I T R O Ë N d e a l e r .
Page 4 of 189
24
II
A
A N T I - I N T R U S I O N A L A R M
Y o u r v e h i c l e m a y b e e q u i p p e d w i t h a n A N T I - I N T R U S I O N A L A R M . T h i s p r o v i d e s : E x t e r i o r p e r i m e t e r p r o t e c t i o n b y m e a n s o f d e t e c t o r s o n t h e v e h i c l e a c c e s s p o i n t s ( d o o r s , b o o t , b o n n e t ) a s w e l l a s o n t h e electrical supply.
I n t e r i o r v o l u m e t r i c p r o t e c t i o n b y m e a n s o f u l t r a s o n i c s e n s o r s ( d e t e c t i n g m o v e m e n t i n s i d e t h e p a s s e n g e r c o m p a r t m e n t ) . T h i s c a n b e d e a c t i v a t e d u s i n g t h e control 1.
Page 5 of 189
25
II
AB
A N T I - I N T R U S I O N A L A R M
OPERATING THE ALARM
First make sure all the doors are closed.
T h e a l a r m i s a r m e d b y p r e s s i n g b u t t o n B o n t h e r e m o t e control.
W i t h t h e a l a r m a r m e d , t h e p r o t e c t i o n s a r e a c t i v e a f t e r 5 s e c o n d s ( p e r i m e t e r ) a n d 4 5 s e c o n d s ( v o l u m e t r i c ) .
W h e n t h e a l a r m i s a r m e d ( o n s t a n d b y ) , a n y i n t r u s i o n w i l l t r i g g e r t h e s i r e n f o r 3 0 s e c o n d s , a c c o m p a n i e d b y t h e d i r e c t i o n i n d i c a t o r s l i g h t i n g u p .
T h e a l a r m t h e n g o e s b a c k o n s t a n d b y , b u t t h e t r i g g e r - i n g r e m a i n s m e m o r i s e d a n d i s s i g n a l l e d b y t h e r a p i d fl a s h i n g o f t h e w a r n i n g l a m p o n c o n t r o l 1 a f t e r y o u h a v e d e a c t i v a t e d t h e a l a r m w i t h a p r e s s o n t h e u n l o c k i n g button A . T h e fl a s h i n g s t o p s w h e n y o u s w i t c h o n t h e i g n i t i o n .
T h e s i r e n i s a l s o t r i g g e r e d i f t h e r e i s a c u t t i n g o f t h e e l e c t r i c a l s u p p l y . T o s t o p i t , r e s t o r e t h e e l e c t r i c a l s u p p l y t h e n p r e s s o n t h e u n l o c k i n g b u t t o n A.Note:If you want to lock your vehicle without arming the alarm, just lock with the key only.
If you lock your vehicle and a door, or the boot, is still open, the central locking does not operate but the alarm will arm itself after approx. 45 seconds.Note: The siren is automatically deactivated (for example for disconnecting the battery) as soon as the vehic le is unlocked using the remote control.
Page 6 of 189
26
II
S T E E R I N G L O C K – I G N I T I O N – S T A R T E R
S: STEERING LOCK
T o u n l o c k t h e s t e e r i n g , g e n t l y m o v e t h e s t e e r i n g w h e e l w h i l e t u r n i n g t h e k e y , w i t h o u t e x e r t i n g u n d u e f o r c e .
W h e n y o u r e m o v e t h e k e y , t u r n y o u r s t e e r i n g w h e e l t o l o c k t h e s t e e r i n g . T h e k e y c a n o n l y b e r e m o v e d w h e n i n p o s i t i o n S.
M: DRIVE POSITION
T h e s t e e r i n g i s u n l o c k e d ( b y t u r n i n g the key in position M , i f n e c e s s a r y m o v e t h e s t e e r i n g w h e e l ) .
STARTING AND STOPPING THE ENGINE
S e e " D r i v i n g " .
ECONOMY MODE
I n o r d e r n o t t o d i s c h a r g e t h e b a t - t e r y w h i l e t h e e n g i n e i s s t o p p e d , your vehicle goes automatically into economy mode after a maxi-mum of 3 0 m i n u t e s . E c o n o m y m o d e i s i n d i c a t e d b y a m e s s a g e on the screen.
T h e e l e c t r i c a l c o m p o n e n t s r e l a t i n g t o c o m f o r t a n d a l s o t h e h e a d l a m p s ( n o t s i d e l a m p s o r h a z a r d w a r n i n g l a m p s ) c u t o u t a u t o m a t i c a l l y . T o r e a c t i v a t e t h e m , i t i s n e c e s s a r y t o s t a r t t h e e n g i n e .
D e p e n d i n g o n y o u r v e h i c l e v e r - s i o n , t h e f o l l o w i n g w a r n i n g l a m p s a r e t e s t e d :
I f o n e o f t h e s e w a r n i n g l a m p s d o e s n o t l i g h t u p , t h i s i n d i c a t e s a m a l - f u n c t i o n .
D: STARTING
Release the key as soon as the e n g i n e s t a r t s . N e v e r t u r n i t w h i l e t h e e n g i n e i s r u n n i n g .
NEVER REMOVE THE IGNITION KEY BEFORE THE ENGINE HAS COME TO A COMPLETE STOP.
IT IS ESSENTIAL ALWAYS TO DRIVE WITH THE ENGINE RUNNING, SO AS TO RETAIN STEERING AND BRAKING ASSISTANCE (risk of the steering lock engaging and loss of safety features).
Do not hang a heavy object on the key; it could pull the key out of alignment in the switch and could cause a malfun ction.
When stationary, having removed the key, carefully turn the steering wheel if you wish to lock the steering.
Page 7 of 189
27
II
i
DO NOT RUN THE ENGINE IN A CLOSED SPACE OR IN ONE THAT IS INSUFFICIENTLY VENTILATED.
PETROL
Starting the engine
Do not touch the accelerator.
T u r n t h e k e y t o t h e d r i v e p o s i t i o n .
Action the starter until the e n g i n e s t a r t s u p ( n o t m o r e t h a n 1 0 s e c o n d s ) .
I f t h e e n g i n e d o e s n o t s t a r t a t t h e fi r s t a t t e m p t , s w i t c h o f f t h e i g n i t i o n . W a i t 1 0 s e c o n d s , t h e n a c t i o n t h e s t a r t e r a g a i n a s a b o v e .
DIESEL
Starting the engine
T u r n t h e k e y t o t h e d r i v e p o s i t i o n .
W a i t f o r t h e p r e h e a t e r w a r n i n g l a m p t o g o o u t , i f i t i s o n , t h e n a c t i o n t h e s t a r t e r u n t i l t h e e n g i n e s t a r t s ( n o t m o r e t h a n 1 0 s e c o n d s ) .
I f t h e e n g i n e d o e s n o t s t a r t , s w i t c h o f f t h e i g n i t i o n .
R e c o m m e n c e t h e o p e r a t i o n .Note: During starting, do not touch the accelerator.
ADVICE
Diesel vehicle with turbochargers
N e v e r s t o p t h e e n g i n e w i t h o u t fi r s t h a v i n g a l l o w e d i t t o i d l e f o r a f e w s e c o n d s , t h i s b e i n g t h e t i m e r e q u i r e d f o r t h e t u r b o c h a r g e r s t o r e t u r n t o a n o r m a l s p e e d .
D o n o t " fl i c k " t h e a c c e l e r a t o r a t t h e m o m e n t y o u s w i t c h o f f t h e i g n i t i o n a s t h i s c o u l d s e r i o u s l y d a m a g e t h e t u r b o c h a r g e r s .
Check that the automatic gear selector is in position P or N.
D R I V I N G – S T A R T I N G T H E E N G I N E
Page 8 of 189
28
IISTOP
STOP
ADBCA
STST
B
KJIHGFEB
KJIHGFEB
CABDA
B
I N S T R U M E N T P A N E L
Note: C e r t a i n t y p e s o f s p e c t a c l e s m a y a d v e r s e l y a f f e c t t h e r e a d a b i l i t y o f t h e i n s t r u m e n t p a n e l .

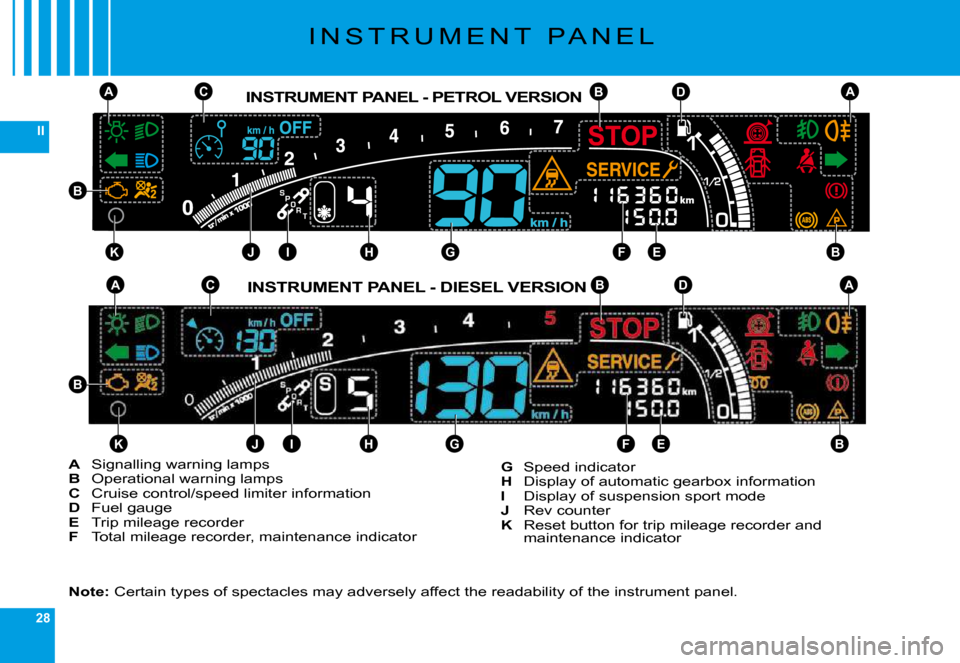

A S i g n a l l i n g w a r n i n g l a m p sB O p e r a t i o n a l w a r n i n g l a m p sC C r u i s e c o n t r o l / s p e e d l i m i t e r i n f o r m a t i o nD F u e l g a u g eE T r i p m i l e a g e r e c o r d e rF T o t a l m i l e a g e r e c o r d e r , m a i n t e n a n c e i n d i c a t o r
G S p e e d i n d i c a t o rH D i s p l a y o f a u t o m a t i c g e a r b o x i n f o r m a t i o nI D i s p l a y o f s u s p e n s i o n s p o r t m o d eJ Rev counterK R e s e t b u t t o n f o r t r i p m i l e a g e r e c o r d e r a n d m a i n t e n a n c e i n d i c a t o r
INSTRUMENT PANEL - PETROL VERSION
INSTRUMENT PANEL - DIESEL VERSION
Page 9 of 189
34
II
B
AC
D

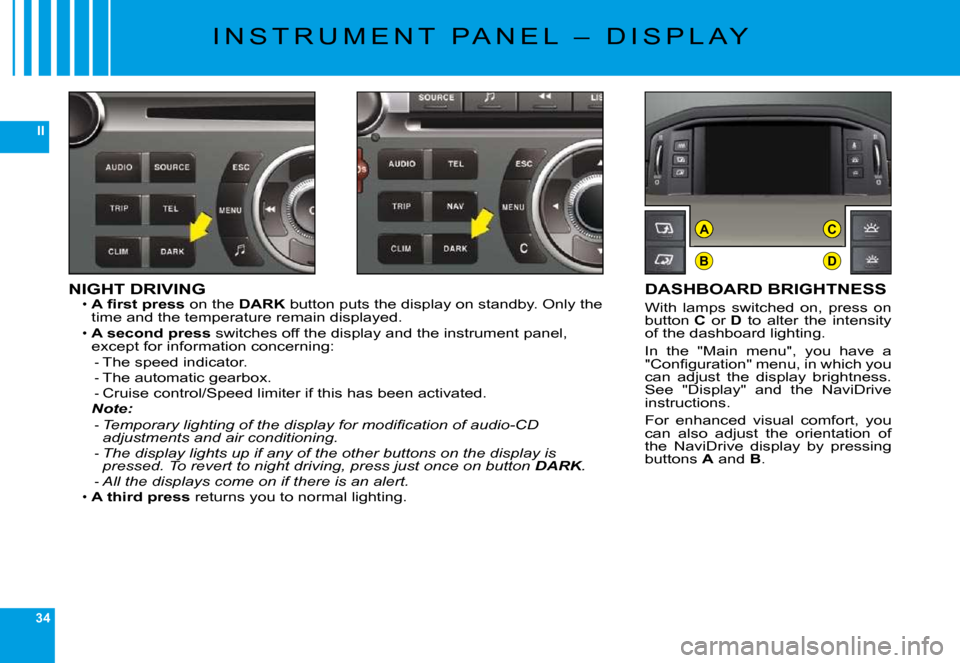

NIGHT DRIVING A fi r s t p r e s s on the DARK b u t t o n p u t s t h e d i s p l a y o n s t a n d b y . O n l y t h e t i m e a n d t h e t e m p e r a t u r e r e m a i n d i s p l a y e d .
A second press s w i t c h e s o f f t h e d i s p l a y a n d t h e i n s t r u m e n t p a n e l , e x c e p t f o r i n f o r m a t i o n c o n c e r n i n g :
T h e s p e e d i n d i c a t o r . T h e a u t o m a t i c g e a r b o x . C r u i s e c o n t r o l / S p e e d l i m i t e r i f t h i s h a s b e e n a c t i v a t e d .Note:
T e m p o r a r y l i g h t i n g o f t h e d i s p l a y f o r m o d i fi c a t i o n o f a u d i o - C D adjustments and air conditioning.The display lights up if any of the other buttons on the display is pressed. To revert to night driving, press just once on button DARK.DARKDARKAll the displays come on if there is an alert.A third press r e t u r n s y o u t o n o r m a l l i g h t i n g .
Page 10 of 189
29
II
I N S T R U M E N T P A N E L
W A R N I N G L A M P S
These warning lamps may be accompanied by a message and/or a sound signal
ESP/ASR
Operating
I f e i t h e r o f t h e E S P o r A S R s y s t e m s i s a c t i v e , t h e w a r n i n g l a m p fl a s h e s .
For a malfunction
W h e n t h e v e h i c l e i s m o v i n g , t h e l i g h t i n g o f t h i s w a r n i n g l a m p i n d i - c a t e s a s y s t e m m a l f u n c t i o n .
C o n t a c t a C I T R O Ë N d e a l e r .
Deactivation
T h e l i g h t i n g o f t h e w a r n i n g l a m p a n d o f t h e b u t t o n E S P i n d i c a t e s t h a t t h e s y s t e m i s d e a c t i v a t e d .
Electric parking brake
W h e n t h e e n g i n e i s r u n - n i n g , t h i s w a r n i n g l a m p l i g h t s u p t o i n d i c a t e a m a l f u n c t i o n - i n g o f t h e e l e c t r i c p a r k i n g b r a k e . T h e b r a k e i s n o t w o r k i n g p r o p - e r l y . P l a c e t h e g e a r b o x i n t h e P a r k p o s i t i o n ( P ) .
C o n s u l t a C I T R O Ë N d e a l e r a s soon as possible.
ABS
T h e A B S w a r n i n g l a m p l i g h t s u p w h e n y o u s w i t c h o n t h e i g n i t i o n : i t s h o u l d g o o u t a f t e r a f e w s e c o n d s . I f i t d o e s n o t g o o u t , t h e r e c o u l d b e a s y s - t e m m a l f u n c t i o n . S e e " B r a k e s " .
Puncture(s)
I f t h i s w a r n i n g l a m p c o m e s o n , i t i n d i c a t e s a p u n c t u r e o n o n e o r m o r e w h e e l s .
T h e s c r e e n d i s p l a y s a n i m a g e w h i c h s h o w s y o u w h i c h w h e e l i s a f f e c t e d . C o n t a c t a C I T R O Ë N w h i c h s h o w s y o u w h i c h w h e e l w h i c h s h o w s y o u w h i c h w h e e l
d e a l e r .
Door open
I f t h i s w a r n i n g l a m p c o m e s o n w h i l e t h e e n g i n e i s r u n - n i n g , i t t e l l s y o u t h a t o n e o f t h e d o o r s a n d / o r t h e b o o t i s o p e n .
Electric parking brake, b r a k e fl u i d l e v e l , braking distribution malfunction
W i t h t h e e n g i n e r u n n i n g , t h e l i g h t - i n g o f t h i s w a r n i n g l a m p i n d i c a t e s t h a t t h e p a r k i n g b r a k e i s o n o r n o t p r o p e r l y r e l e a s e d , t h a t t h e b r a k e fl u i d l e v e l i s l o w o r t h a t t h e b r a k i n g s y s t e m i s m a l f u n c t i o n i n g .
I f t h e w a r n i n g l a m p r e m a i n s o n e v e n a f t e r y o u h a v e r e l e a s e d t h e p a r k i n g b r a k e , s t o p i m m e d i a t e l y a n d c o n t a c t a C I T R O Ë N d e a l e r . p a r k i n g b r a k e , s t o p i m m e d i a t e l y p a r k i n g b r a k e , s t o p i m m e d i a t e l y
See "Brakes".
SERVICE
T h i s w a r n i n g l a m p r e m a i n s o n f o r a s e r i o u s f a u l t . C o n - s u l t a C I T R O Ë N d e a l e r a s s o o n as possible.
T h i s w a r n i n g l a m p r e m a i n s o n o n l y f o r a s h o r t t i m e f o r f a u l t s t h a t a r e m i n o r . C o n t a c t a C I T R O Ë N d e a l e r i f n e c e s s a r y .
T o l e a r n t h e o r i g i n o f t h e c o r r e - s p o n d i n g a l e r t , r e f e r t o t h e l o g o f a l e r t s ( S e e c h a p t e r " M u l t i f u n c - t i o n d i s p l a y s " o r y o u r N a v i D r i v e i n s t r u c t i o n s ) .
STOP warning lamp
I f t h i s w a r n i n g l a m p c o m e s o n , i t i s i m p e r a t i v e t o s t o p t h e v e h i c l e a n d t o s w i t c h t h e e n g i n e o f f . T h e w a r n - i n g l a m p i s a c c o m p a n i e d b y t h e S T O P s y m b o l o n t h e s c r e e n a s w e l l a s o n t h e H e a d - u p d i s p l a y .
C o n t a c t a C I T R O Ë N d e a l e r a s soon as possible.
