Page 221 of 250
221
Petrol and Diesel technical data
TECHNICAL DATA
9
DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)
Model codes EARHKH EBRHKH EARHRH EBRHRH
EA4HTH
EA4HPH
EA4HRJ
EA4HSJ
EB4HTH
EB4HPH
EB4HRJ
EB4HSJ
7 seats 8 seats 7 seats 8 seats 7 seats 8 seats
Engines 2.0 HDi 2.0 HDi PEF 2.2 HDi PEF
Wheelbase(s)
(at full load) 2 823
on Axle 1 1 570
on Axle 2 1 548
Length 4 727
Width 1 850
Height at kerb weight
without roof bars 1 745 to 1 759
w i t h fi x e d r o o f b a r s 1 854 to 1 863
Kerb weight
1 846 to 1 949 1 811 to 1 976 1 854 to 1 957 1 818 to 1 983 1 902 to 1 988 1 875 to 2 017
on Axle 1 1 117 to 1 153 1 114 to 1 158 1 121 to 1 157 1 117 to 1 161 1 170 to 1 204 1 169 to 1 217
on Axle 2 729 to 796 697 to 818 733 to 800 701 to 822 732 to 784 696 to 800
Page 222 of 250
Petrol and Diesel technical data
222
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load ment ioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is above 45 °C, restrict the towed wei ght.
Model codes EARHKH EBRHKH EARHRH EBRHRH
EA4HTH
EA4HPH
EA4HRJ EA4HSJ
EB4HTH
EB4H PH
EB4HRJ EB4HSJ
7 seats 8 seats 7 seats 8 seats 7 seats 8 seats
Engines 2.0 HDi 2.0 HDi PEF 2.2 HDi PEF
Gross train weight (GTW) 3 875 3 945 3 945
Gross vehicle weight (GVW) 2 530 2 530 2 570 on Axle 1 1 253 1 259 1 256 1 263 1 304 1 318
on Axle 2 1 277 1 271 1 274 1 267 1 266 1 252
Gross weight
on Axle 1 1 270 1 270 1 270 1 270 1 370 1 370
on Axle 2 1 300 1 300 1 300 1 300 1 300 1 300
Gross towed weight 1 820 1 800 1 850
Gross weight of unbraked trailer 750 750 750 750 750 750
Gross weight on towing
attachment 73 72 76 76 75 75
Page 223 of 250
223
9
Dimensions
TECHNICAL DATA
DIMENSIONS (IN MM)
T o fi n d o u t m o r e a b o u t d i m e n s i o n s : r e f e r t o t h e " D i m e n s i o n s , w e i g h t s a n d t o w i n g
l o a d s " s e c t i o n f o r b o t h p e t r o l a n d d i e s e l e n g i n e s i n c h a p t e r 9 .
Page 224 of 250
Page 225 of 250
225
9
Dimensions
TECHNICAL DATA
Page 226 of 250
Page 227 of 250
ROOF CONSOLE DISPLAY
The roof console display is installed in such a way that it
will only operate in your vehicle. If it is to be i nstalled in
a n o t h e r v e h i c l e , c o n s u l t y o u r D e a l e r f o r c o n i g u r a t i o n o f
the system.
For safety reasons, it is imperative that the drive r carries
o u t o p e r a t i o n s w h i c h r e q u i r e p r o l o n g e d a t t e n t i o n w h i l e
the vehicle is stationary.
W h e n t h e e n g i n e i s o f f a n d t o p r e v e n t d i s c h a r g i n g o f t h e
battery, the roof console display may switch off af ter a
few minutes. CONTENTS
Page 228 of 250
2
POWERSTOP
AUTOON
OFF
MODE
PLAYDOWN UPEJECT
DVD
SMART
MODE DISC IN
AV1 AV2
0 1
A d d i t i o n a l l i g h t i n g s w i t c h . RESET button.
P a s s e n g e r c o m p a r t m e n t
l i g h t i n g .
A/V source selection
(DVD/DIVX, AV1, AV2).
A disc is
inserted.
SMART mode
activation.
Av1: AV1 input selected.
Av2: AV2 input selected.
D V D p l a y e r v i d e o s i g n a l .
CONTROLS
FIRST STEPS
On/Off.
Stop play.
A/V source selection (DVD/DIVX, AV1, AV2).
VCD/CD/MP3: next title.
Cursor up.
DVD/DIVX: previous chapter.
VCD/CD/MP3: previous title.
Cursor down.
Disc eject.
Play/pause.
DVD/DIVX: next chapter.

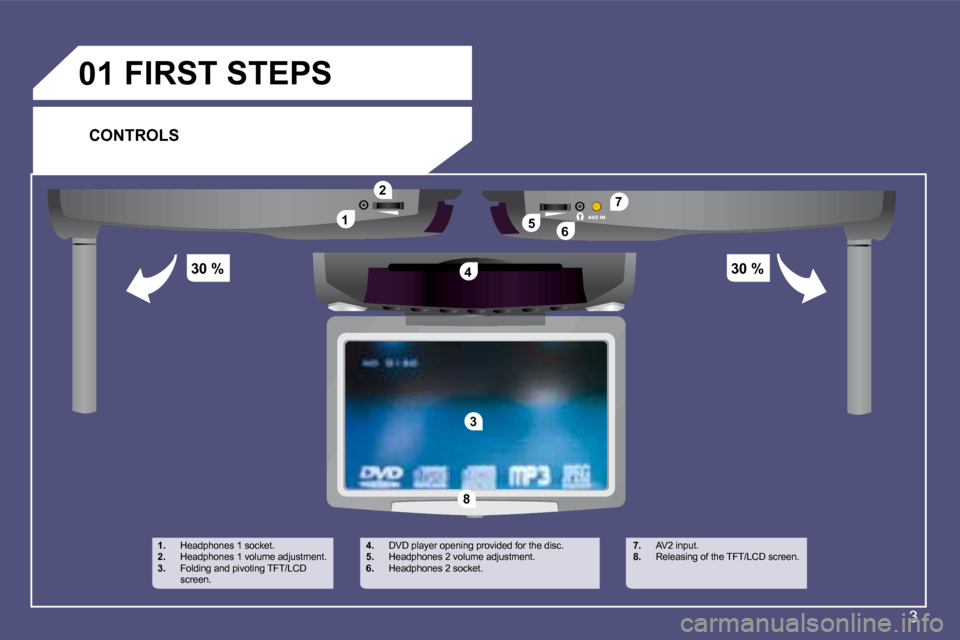

Page 229 of 250
3
AV2 IN 1 2
3
7
5
4
6
0 1
8
3 0 % 3 0 %
1 .
Headphones 1 socket.
2 . Headphones 1 volume adjustment.
3 . F o l d i n g a n d p i v o t i n g T F T / L C D
screen. 4 .
D V D p l a y e r o p e n i n g p r o v i d e d f o r t h e d i s c .
5 . Headphones 2 volume adjustment.
6 . Headphones 2 socket. 7 .
AV2 input.
8 . R e l e a s i n g o f t h e T F T / L C D s c r e e n .
CONTROLS
FIRST STEPS
Page 230 of 250
4
SUB-T
SMARTPOWER
DISP
REPEAT
ANGLE
SETUP
MODE
VOL+
SEL
VOL-
AUDIOENTER
TITLE
MENU
123
456
789
0
ZOOM
0 1
SUB-T
SMART
DISP
REPEATSETUP
MODE
VOL+
SEL
VOL-
AUDIO
ENTER
TITLE
MENU
ZOOM
On/Off.
SMART mode on/off.
Play/Pause.
Stop play.
DVD: next chapter/previous chapter.
VCD/CD/MP3: next/previous title.
On the menus: cursor up/down.
S u b t i t l e l a n g u a g e s e l e c t i o n .
A u d i o l a n g u a g e s e l e c t i o n .
D i s p l a y i n g o f p l a y e r s e t u p m e n u .
Selection of TFT screen AV source (DVD, AV1 or AV2)
or of AV output AV1/AV2 in SMART mode. D i s p l a y i n g o f D V D / D I V X m a i n m e n u .
Volume decrease.
D i s p l a y i n g o f D V D / D I V X t i t l e m e n u .
D V D s c r e e n s e t t i n g s ( b r i g h t n e s s , c o n t r a s t , … ) .
Volume increase.
S e l e c t i o n c o n i r m a t i o n .
Fast forward/backward play. On the menus:
c u r s o r l e f t / r i g h t .
Z O O M : Z o o m m o d e s e t t i n g .
A N G L E : V i e w i n g a n g l e s e l e c t i o n .
REPEAT mode activation and selection.
D i s p l a y i n g o f t h e d u r a t i o n ( d u r i n g p l a y ) .
Numeric Block
CONTROLS FIRST STEPS
