SAFETY
95
Seat belts
4
FRONT AND REAR SIDE
SEAT BELTS
The front seats and the rear side seats
o f r o w 2 a r e fi t t e d w i t h p r e - t e n s i o n e r s
a n d f o r c e l i m i t e r s . The lap strap must be positioned as
l o w a s p o s s i b l e o n t h e p e l v i s . T h e
chest strap must pass over the hollow
o f t h e s h o u l d e r .
Check that the seat belt is fastened
c o r r e c t l y b y p u l l i n g t h e s t r a p . The force-limiting device reduces the
pressure of the seat belt against the
chest of the occupant, so increasing
h i s p r o t e c t i o n .
A bag placed on the front
passenger seat or a pet sitting on
this seat may trigger the lighting of
t h i s w a r n i n g l i g h t .
SEAT BELTS
Front seat belt warning light
If the driver and/or front
passenger has/have not
fastened his/their seat belt,
t h i s w a r n i n g l i g h t c o m e s o n .
Then, at a speed in excess of
a p p r o x i m a t e l y 1 5 m p h ( 2 5 k m / h ) , i t fl a s h e s
accompanied by an audible signal of
increasing volume (for approximately
9 0 s e c o n d s ) a n d a m e s s a g e o n t h e d i s p l a y .
Row 2 rear side seat belts
For your comfort, if you are not using
the seat belt, slide the seat belt loop to
the upper stop to prevent the tongue
f r o m v i b r a t i n g .
To adjust the height
- To lower the attachment point, squeeze control and slide it
d o w n w a r d s .
- To raise the attachment point, slide c o n t r o l u p w a r d s .
To fasten
- Pull the strap, then insert the b u c k l e i n t o t h e s t a l k .
- Check that the seat belt is secured c o r r e c t l y b y p u l l i n g t h e s t r a p .
Inertia reel seat belts
T h e s e a r e fi t t e d w i t h a d e v i c e w h i c h
locks the seat belt automatically in
the event of an impact or emergency
b r a k i n g .
Safety in the event of a frontal impact
has been improved by the introduction
of pre-tensioning and force-limiting
s e a t b e l t s . D e p e n d i n g o n t h e
seriousness of the impact, the
pre-tensioning system instantly
t i g h t e n s t h e s e a t b e l t s fi r m l y a g a i n s t
t h e b o d y o f t h e o c c u p a n t .
The pre-tensioning seat belts are
a r m e d w h e n t h e i g n i t i o n i s o n .
Row 3 rear side seat belts
T h e r o w 3 r e a r s i d e s e a t s a r e fi t t e d
with two seat belts which are both
three-point inertia reel belts with force
l i m i t e r .
Page 92 of 268
96
Seat belts Depending on the nature and
seriousness of any impact, the
pretensioning device may be triggered
b e f o r e a n d i n d e p e n d e n t l y o f i n fl a t i o n
o f t h e a i r b a g s . I t i n s t a n t l y t i g h t e n s
the seat belts against the body of the
o c c u p a n t s .
Triggering of the pretensioners is
accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
c a r t r i d g e i n c o r p o r a t e d i n t h e s y s t e m .
The force limiter reduces the pressure
of the seat belt against the body of the
o c c u p a n t s .
The pretensioning seat belts are active
w h e n t h e i g n i t i o n i s s w i t c h e d o n .
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a d e v i c e
which automatically locks the strap in
the event of a collision or emergency
b r a k i n g o r i f t h e v e h i c l e r o l l s o v e r .
You can unfasten the seat belt by
p r e s s i n g t h e r e d b u t t o n o n t h e b u c k l e .
G u i d e t h e s e a t b e l t a f t e r u n f a s t e n i n g . The upper part of the seat belt should
be positioned in the hollow of the
s h o u l d e r .
The lap part should be placed as low
a s p o s s i b l e o n t h e p e l v i s .
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e c o m p l e t e l y .
I f t h e s e a t s a r e fi t t e d w i t h a r m r e s t s , t h e
lap part of the seat belt should always
p a s s u n d e r t h e a r m r e s t .
Check that the seat belt is fastened
c o r r e c t l y b y p u l l i n g t h e s t r a p fi r m l y .
Good practice
The driver must ensure that
passengers use the seat belts correctly
and that they are all strapped in
s e c u r e l y b e f o r e m o v i n g o f f .
Wherever you are seated in the
vehicle, always fasten your seat belt,
e v e n f o r s h o r t j o u r n e y s .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
reel which automatically adjusts the
l e n g t h o f t h e s t r a p t o y o u r s i z e .
Do not use accessories (clothes pegs,
c l i p s , s a f e t y p i n s , e t c . ) w h i c h p e r m i t a
c l e a r a n c e w i t h t h e s e a t b e l t s t r a p s .
Ensure that the seat belt is rolled up
c o r r e c t l y a f t e r u s e .
After folding or moving a seat or a rear
bench seat, ensure that the seat belt is
rolled up correctly and that the buckle
i s r e a d y t o a c c o m m o d a t e t h e t o n g u e .
To install the seat belt, move the
tongue into position to insert it into the
b u c k l e .
Row 2 and 3 rear centre seat
belts
The row 2 rear centre seat and the
rear bench seat centre seat have an
integrated three-point inertia reel seat
b e l t .
The air bag warning light comes on
i f t h e p r e t e n s i o n e r s a r e t r i g g e r e d .
C o n s u l t a C I T R O Ë N d e a l e r .
In order to be effective, a seat belt
must:
- restrain one person only,
- must not be twisted, check by pulling in front of you with an even
movement,
- be tightened as close to the body a s p o s s i b l e . Recommendations for children:
- use a suitable child seat if the
passenger is less than 12 years old
o r s h o r t e r t h a n o n e m e t r e fi f t y ,
- never allow a child to travel on your lap, even with the seat belt
f a s t e n e d .
For further information regarding child
seats, refer to the "Children on board"
s e c t i o n o f c h a p t e r 4 .
In accordance with current safety
regulations, your CITROËN dealer
guarantees all work or any checks,
from testing to maintenance, on your
s e a t b e l t e q u i p m e n t .
Have the seat belts checked regularly
(even after a minor impact) by a
CITROËN dealer: they must not show
any signs of wear, cutting or fraying
and they must not be transformed or
m o d i fi e d .
Clean the seat belt straps with soapy
water or a textile cleaning product, sold
b y C I T R O Ë N d e a l e r s .
Page 93 of 268
SAFETY
97
Air bags
4
The air bags have been designed to
maximise the safety of the occupants
(with the exception of the centre
seats of rows 2 and 3) in the event
of a serious collision; they work in
conjunction with the force limiting seat
b e l t s .
In the event of a serious collision, the
electronic detectors record and analyse
the front and side impacts suffered in
the impact detection zones:
- in the event of a serious impact, the a i r b a g s i n fl a t e i n s t a n t l y a n d p r o t e c t
t h e o c c u p a n t s o f t h e v e h i c l e . Immediately after the impact, the air
b a g s d e fl a t e r a p i d l y , s o t h a t t h e y d o n o t
hinder the visibility of the occupants
nor their possible exit from the vehicle:
- in the event of a minor or rear
impact and in certain roll-over
conditions, the air bags will not
be deployed; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e m a x i m u m
p r o t e c t i o n i n t h e s e s i t u a t i o n s .
The seriousness of the collision
depends on the nature of the obstacle
and the speed of the vehicle at the
m o m e n t o f i m p a c t . Air bags only operate when the
ignition is switched on.
T h i s e q u i p m e n t o n l y o p e r a t e s o n c e .
If a second impact occurs (during the
same or a subsequent accident), the
a i r b a g w i l l n o t o p e r a t e .
The triggering of an air bag or air bags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
c a r t r i d g e i n c o r p o r a t e d i n t h e s y s t e m .
This smoke is not harmful, but
sensitive individuals may experience
s o m e i r r i t a t i o n .
The noise of the detonation may result
in a slight loss of hearing for a short
t i m e .
AIR BAGS
It is imperative that the passenger
air bag is disarmed if a child seat
i s i n s t a l l e d f a c i n g r e a r w a r d s . R e f e r
to the "Children on board" section of
c h a p t e r 4 .
Page 94 of 268
98
Air bags
Good practice
I f y o u r v e h i c l e i s fi t t e d w i t h a f r o n t
passenger air bag, side air bags or
curtain air bags, observe this good
p r a c t i c e .
S i t i n a n o r m a l u p r i g h t p o s i t i o n .
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the air bags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
operation of the air bags or injure the
o c c u p a n t s .
After an accident or if the vehicle has
been stolen or broken into, have the air
b a g s y s t e m s c h e c k e d .
All work on the air bag system is
strictly forbidden unless it is carried out
b y q u a l i fi e d p e r s o n n e l o f t h e C I T R O Ë N
n e t w o r k . Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on
t h e c e n t r e p a r t o f t h e w h e e l .
Passengers must not place their feet
o n t h e f a s c i a .
Smoke as little as possible as
deployment of the air bags can cause
burns or the risk of injury from a
c i g a r e t t e o r p i p e .
Never remove or pierce the steering
w h e e l o r h i t i t v i o l e n t l y .
Side air bags
O n l y p u t a p p r o v e d c o v e r s o n t h e s e a t s .
T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e
s i d e a i r b a g s .
Consult a
CITROËN
d e a l e r .
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e chest or arms when the side air bag i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
n e c e s s a r y .
Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e r o o f .
This could cause injury to the head
w h e n t h e c u r t a i n a i r b a g i n fl a t e s .
Do not remove the grab handles
installed on the roof, they play a part
i n s e c u r i n g t h e c u r t a i n a i r b a g s .
Even if all of the precautions
mentioned are observed, a risk of
injury or of minor burns to the head,
chest or arms when an air bag is
t r i g g e r e d c a n n o t b e r u l e d o u t . I n f a c t ,
t h e b a g i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n
a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging the hot gas
v i a o p e n i n g s p r o v i d e d f o r t h i s p u r p o s e .
Page 95 of 268
100
Air bags Disarming
The passenger's front air bag alone
can be disarmed:
- With the ignition switched off ,
insert the key into the passenger air
bag disarming switch,
turn it to the "OFF" position,
- then remove the key keeping the s l o t i n t h i s p o s i t i o n .
Front air bags
The front air bags are incorporated in
the centre of the steering wheel for the
driver and in the fascia for the front
p a s s e n g e r .
Front air bag fault
Reactivation
In the
"OFF" position, the passenger
air bag will not be triggered in the
e v e n t o f a n i m p a c t .
As soon as the child seat is removed,
turn the air bag slot to the "ON"
position to re-activate the air bag
and thus ensure the safety of your
p a s s e n g e r i n t h e e v e n t o f a n i m p a c t . To ensure the safety of your
child, it is essential to disarm the
passenger air bag when you install
a rear-facing child seat on the front
p a s s e n g e r s e a t . O t h e r w i s e , t h e c h i l d
would risk being killed or seriously
i n j u r e d i f t h e a i r b a g w e r e t o i n fl a t e .
The air bag warning light on the
instrument panel is lit throughout
t h e p e r i o d o f d i s a r m i n g .
If the two air bag warning lights
are lit continuously, do not install
a r e a r - f a c i n g c h i l d s e a t . C o n s u l t a
C I T R O Ë N d e a l e r .
Activation
They are deployed simultaneously,
unless the passenger's front air bag
has been disarmed, in the event of a
serious front impact applied to all or
part of the front impact zone
A in the
longitudinal centreline of the vehicle
on a horizontal plane directed from the
f r o n t t o w a r d s t h e r e a r o f t h e v e h i c l e .
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the fascia to cushion his forward
m o v e m e n t . If this warning light comes on,
accompanied by an audible
signal and a message on the
display, consult a CITROËN
dealer to have the system
c h e c k e d .
Page 96 of 268
SAFETY
97
Air bags
4
The air bags have been designed to
maximise the safety of the occupants
(with the exception of the centre
seats of rows 2 and 3) in the event
of a serious collision; they work in
conjunction with the force limiting seat
b e l t s .
In the event of a serious collision, the
electronic detectors record and analyse
the front and side impacts suffered in
the impact detection zones:
- in the event of a serious impact, the a i r b a g s i n fl a t e i n s t a n t l y a n d p r o t e c t
t h e o c c u p a n t s o f t h e v e h i c l e . Immediately after the impact, the air
b a g s d e fl a t e r a p i d l y , s o t h a t t h e y d o n o t
hinder the visibility of the occupants
nor their possible exit from the vehicle:
- in the event of a minor or rear
impact and in certain roll-over
conditions, the air bags will not
be deployed; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e m a x i m u m
p r o t e c t i o n i n t h e s e s i t u a t i o n s .
The seriousness of the collision
depends on the nature of the obstacle
and the speed of the vehicle at the
m o m e n t o f i m p a c t . Air bags only operate when the
ignition is switched on.
T h i s e q u i p m e n t o n l y o p e r a t e s o n c e .
If a second impact occurs (during the
same or a subsequent accident), the
a i r b a g w i l l n o t o p e r a t e .
The triggering of an air bag or air bags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
c a r t r i d g e i n c o r p o r a t e d i n t h e s y s t e m .
This smoke is not harmful, but
sensitive individuals may experience
s o m e i r r i t a t i o n .
The noise of the detonation may result
in a slight loss of hearing for a short
t i m e .
AIR BAGS
It is imperative that the passenger
air bag is disarmed if a child seat
i s i n s t a l l e d f a c i n g r e a r w a r d s . R e f e r
to the "Children on board" section of
c h a p t e r 4 .
Page 97 of 268
98
Air bags
Good practice
I f y o u r v e h i c l e i s fi t t e d w i t h a f r o n t
passenger air bag, side air bags or
curtain air bags, observe this good
p r a c t i c e .
S i t i n a n o r m a l u p r i g h t p o s i t i o n .
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the air bags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
operation of the air bags or injure the
o c c u p a n t s .
After an accident or if the vehicle has
been stolen or broken into, have the air
b a g s y s t e m s c h e c k e d .
All work on the air bag system is
strictly forbidden unless it is carried out
b y q u a l i fi e d p e r s o n n e l o f t h e C I T R O Ë N
n e t w o r k . Front air bags
Do not drive holding the steering wheel
by its spokes or resting your hands on
t h e c e n t r e p a r t o f t h e w h e e l .
Passengers must not place their feet
o n t h e f a s c i a .
Smoke as little as possible as
deployment of the air bags can cause
burns or the risk of injury from a
c i g a r e t t e o r p i p e .
Never remove or pierce the steering
w h e e l o r h i t i t v i o l e n t l y .
Side air bags
O n l y p u t a p p r o v e d c o v e r s o n t h e s e a t s .
T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e
s i d e a i r b a g s .
Consult a
CITROËN
d e a l e r .
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e chest or arms when the side air bag i n fl a t e s .
Do not sit with the upper part of the
body any nearer to the door than
n e c e s s a r y .
Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e r o o f .
This could cause injury to the head
w h e n t h e c u r t a i n a i r b a g i n fl a t e s .
Do not remove the grab handles
installed on the roof, they play a part
i n s e c u r i n g t h e c u r t a i n a i r b a g s .
Even if all of the precautions
mentioned are observed, a risk of
injury or of minor burns to the head,
chest or arms when an air bag is
t r i g g e r e d c a n n o t b e r u l e d o u t . I n f a c t ,
t h e b a g i n fl a t e s a l m o s t i n s t a n t l y ( w i t h i n
a f e w m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n
the same time discharging the hot gas
v i a o p e n i n g s p r o v i d e d f o r t h i s p u r p o s e .
Page 98 of 268
SAFETY
99
Air bags
4
Side air bags
I f fi t t e d o n y o u r v e h i c l e , t h i s i s a s y s t e m
which protects the driver and front
passenger in the event of a serious
side impact in order to limit the risk of
i n j u r y t o t h e c h e s t .
Each side air bag is incorporated in the
f r o n t s e a t b a c k f r a m e , o n t h e d o o r s i d e . T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the vehicle
a n d t h e w i n d o w s .
Impact detection zones
A. F r o n t i m p a c t z o n e .
B. S i d e i m p a c t z o n e . In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
m a y n o t b e t r i g g e r e d .
The air bag is not triggered in the event
o f a r e a r o r f r o n t c o l l i s i o n .
Operating fault
Curtain air bags
I f fi t t e d o n y o u r v e h i c l e , t h i s i s a
system which protects the driver and
passengers (with the exception of the
centre seats of rows 2 and 3) in the
event of a serious side impact in order
t o l i m i t t h e r i s k o f h e a d i n j u r i e s .
Each curtain air bag is incorporated
in the pillars and the upper part of the
p a s s e n g e r c o m p a r t m e n t .
Activation
It is triggered unilaterally in the event
of a serious side impact applied to
all or part of the side impact zone
B ,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
t o w a r d s t h e i n s i d e o f t h e v e h i c l e .
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
c o r r e s p o n d i n g d o o r t r i m p a d . Activation
It is triggered at the same time as the
corresponding side air bag in the event
of a serious side impact applied to
all or part of the side impact zone
B ,
perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside
t o w a r d s t h e i n s i d e o f t h e v e h i c l e . If this warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on the
display, consult a CITROËN
dealer to have the system
c h e c k e d . T h e a i r b a g s m a y n o l o n g e r
be triggered in the event of a serious
i m p a c t .
Page 99 of 268
SAFETY
101
Child safety
4
CHILD SAFETY
GENERAL POINTS RELATING
TO CHILD SEATS
"Rearwards-facing"
Recommended on the rear seats up to
t h e a g e o f 2 .
When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger air bag
i s d i s a r m e d . O t h e r w i s e , t h e c h i l d w o u l d
risk being seriously injured or killed if
t h e a i r b a g w e r e t o i n fl a t e . "Forwards-facing"
Recommended on the rear seats over
t h e a g e o f 2 .
When a "forwards-facing" child seat is
installed on the front passenger seat,
l e a v e t h e p a s s e n g e r a i r b a g a r m e d .
INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
The rules for transporting children are
s p e c i fi c t o e a c h c o u n t r y . C o n s u l t t h e
c u r r e n t l e g i s l a t i o n i n y o u r c o u n t r y .
Please consult the list of seats
a p p r o v e d i n y o u r c o u n t r y . T h e i s o fi x
mountings, the rear seats, the
passenger air bag and the disarming
of this air bag depend on the version
s o l d .
The child seats function and the
passenger air bag disarming function
are common to the entire CITROËN
r a n g e .
Although one of CITROËN's main
criteria when designing your vehicle,
the safety of your children also
d e p e n d s o n y o u .
For maximum safety, please follow
these precautions:
- all children under the age of 12 or
l e s s t h a n o n e m e t r e fi f t y t a l l m u s t
travel in approved child seats suited
t o t h e i r w e i g h t , o n s e a t s fi t t e d w i t h
a seat belt or ISOFIX mountings,
- statistically, the safest seats in your vehicle for the transportation of
children are the rear seats,
- a child weighing less than 9 kg must travel in the "rearwards-
facing" position both in the front
and in the rear,
- the passenger must not travel with a c h i l d o n h i s l a p .
Refer to chapter 4, "Air bags"
s e c t i o n .
If the passenger air bag is not
disarmed, the installation of a
"rearwards-facing" child seat in the
f r o n t i s s t r i c t l y p r o h i b i t e d .
Page 100 of 268
104
Child safety

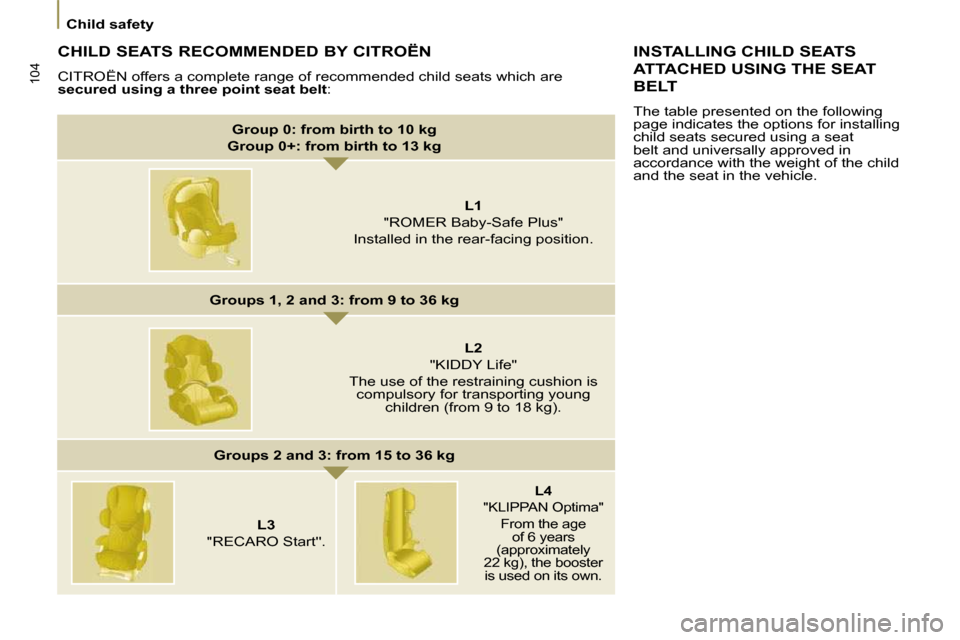

CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are
secured using a three point seat belt :
INSTALLING CHILD SEATS
ATTACHED USING THE SEAT
BELT
The table presented on the following
page indicates the options for installing
child seats secured using a seat
belt and universally approved in
accordance with the weight of the child
a n d t h e s e a t i n t h e v e h i c l e .
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
I n s t a l l e d i n t h e r e a r - f a c i n g p o s i t i o n .
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
The use of the restraining cushion is compulsory for transporting young c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' ' .
L4
"KLIPPAN Optima" From the age of 6 years
(approximately
22 kg), the booster i s u s e d o n i t s o w n .
