CD changer

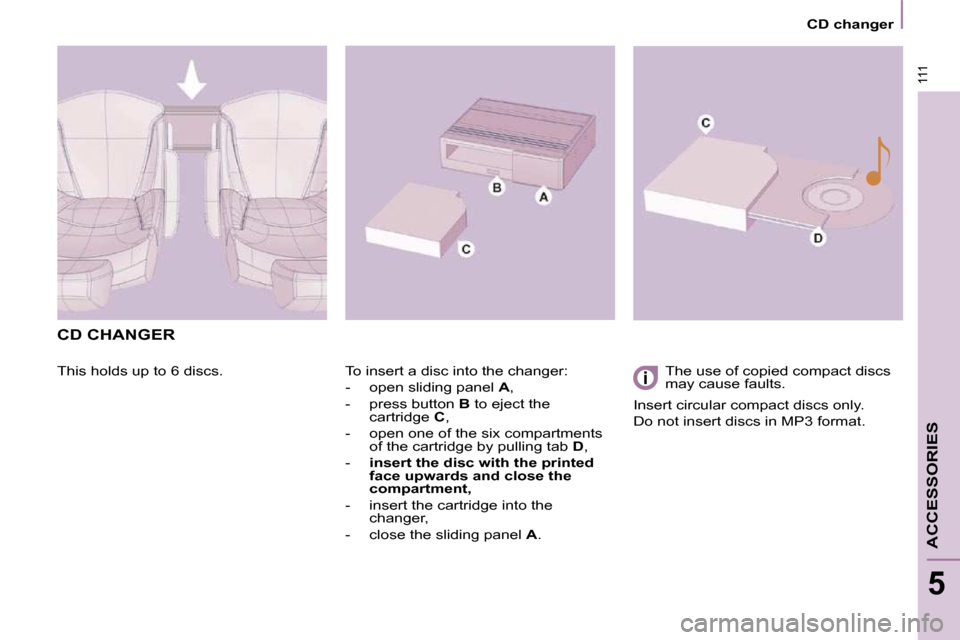

This holds up to 6 discs. To insert a disc into the changer:
- open sliding panel A ,
- press button B to eject the
cartridge C ,
- open one of the six compartments
of the cartridge by pulling tab D ,
- insert the disc with the printed
face upwards and close the
compartment,
- insert the cartridge into the changer,
- close the sliding panel A . The use of copied compact discs
may cause faults.
Insert circular compact discs only.
Do not insert discs in MP3 format.
CD CHANGER
Page 112 of 268
112
Other accessories
OTHER ACCESSORIES
These accessories and parts, after
being tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide choice of recommended
accessories and original parts is offered
by the CITROËN Marque.
To avoid any jamming under the
pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s are positioned correctly,
- never place one mat on top of another.
Compatible portable equipment
For the hands-free kit audio
e q u i p m e n t , t h e fi t t i n g o f a n R C A
a u x i l i a r y s o c k e t i s o f f e r e d s p e c i fi c a l l y
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also offered
by the network.
Following connection of the cable and
selection of the AUX mode, via the
source button, your portable equipment
is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button.
Audio systems, telephone, hands-free
kit, speakers, CD changer, navigation
system, DVD player, ... Alloy wheels, trims, aluminium interior
t r i m k i t , m u d fl a p s , . . .
Seat covers compatible with side
air bags, mats, boot tray, sunroof,
l u g g a g e n e t , d o o r d e fl e c t o r s , c o o l b o x
secured on the slides, clip armrest,
load carrying roof bars, roof box, snow
chains, ski carrier, tailgate bicycle
carrier, interior bicycle carrier, booster
s e a t s a n d c h i l d s e a t s , I s o fi x s e a t s , s i d e
sun blinds and rear blind, ...
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y a
CITROËN dealer. T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by CITROËN may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Screenwash, interior and exterior
maintenance and cleaning products,
replacement bulbs, ...
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle.
A further range is also available,
structured around comfort, leisure and
maintenance:
Anti-theft alarm, window engraving,
fi r s t a i d k i t , s a f e t y j a c k e t , r e a r p a r k i n g
assistance, warning triangle, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
c o n fi g u r a t i o n m e n u .
Before installing a radiocommunication
transmitter with aerial, contact a
CITROËN dealer who will inform you
o f t h e s p e c i fi c a t i o n s o f t h e t r a n s m i t t e r s
w h i c h c a n b e fi t t e d , i n a c c o r d a n c e w i t h
the Motor Vehicle Electromagnetic
Compatibility Directive (2004/104/EC).
Page 113 of 268
114
Fuel
LOW FUEL LEVEL
Filling with fuel
T h e t a n k m u s t b e fi l l e d w i t h f u e l w i t h
the engine off .
- O p e n t h e f u e l fi l l e r fl a p .
- Insert the key then turn it to the left.
- Remove the cap and attach it to the clip located on the inside of the
fl a p .
It is usual to hear an air intake noise
when opening the cap as there is a
vacuum linked with the sealing of the
fuel circuit.
A l a b e l o n t h e i n s i d e o f t h e fl a p
indicates which type of fuel to use.
More than 5 litres of fuel must be
added in order to be registered by the
fuel gauge.
I f y o u fi l l y o u r t a n k , d o n o t c o n t i n u e
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
FILLING THE FUEL TANK
I f t h e w a r n i n g l i g h t fl a s h e s , t h i s
indicates a fuel gauge malfunction.
Consult a CITROËN dealer.
When the tank's minimum
level is reached, this warning
light comes on, accompanied
by the message "Fuel level
low" on the display. When
t h i s w a r n i n g l i g h t fi r s t c o m e s o n , y o u
have approximately 8 litres left,
depending on driving conditions and
the engine.
Fill up with fuel as soon as possible to
avoid running out.
Never continue to drive until you run
out of fuel as this could damage the
emission control and injection systems. The capacity of the tank is
approximately 18 gallons (
80 litres).
- A f t e r fi l l i n g t h e t a n k , l o c k t h e c a p a n d c l o s e t h e fl a p . Quality of the fuel used for petrol
engines
The petrol engines are perfectly
compatible with E10 type petrol
biofuels (containing 10 % ethanol),
conforming to European standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type of fuel (BioFlex vehicles). The
quality of the ethanol must comply with
European standard EN 15376.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (type E100). W h e n t h e f u e l fi l l e r fl a p i s o p e n , a
system limits the opening of the
rear left sliding side door.
The key cannot be removed from the
c a p ' s l o c k u n t i l t h e c a p i s r e fi t t e d o n t h e
tank.
Page 114 of 268
115
Fuel
CHECKS
6
FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine. T h e fl a s h i n g o f t h i s w a r n i n g
light is accompanied by a
message on the display.
DIESEL REPRIMING
PUMP
If you should run out of fuel, it is
necessary to re-prime the circuit:
- fi l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i t r e s o f d i e s e l ,
- squeeze and release the manual re-priming pump, under the bonnet
under the protective cover, until fuel
appears in the transparent pipe,
- operate the starter until the engine starts.
Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
- switch off the ignition
(STOP position).
- remove the key.
- put the key back in the ignition.
- switch on the ignition and start.
Quality of the fuel used for Diesel
engines
The Diesel engines are perfectly
compatible with biofuels which conform
to current and future European
standards (diesel fuel which complies
with standard EN 590 mixed with a
biofuel which complies with standard
EN 14214) available at the pumps
(containing up to 7 % Fatty Acid
Methyl Ester).
The B30 biofuel can be used in certain
Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
CITROËN dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or
diluted, domestic fuel...) is strictly
prohibited (risk of damage to the
engine and fuel circuit).
Page 115 of 268
115
Fuel
CHECKS
6
FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine. T h e fl a s h i n g o f t h i s w a r n i n g
light is accompanied by a
message on the display.
DIESEL REPRIMING
PUMP
If you should run out of fuel, it is
necessary to re-prime the circuit:
- fi l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i t r e s o f d i e s e l ,
- squeeze and release the manual re-priming pump, under the bonnet
under the protective cover, until fuel
appears in the transparent pipe,
- operate the starter until the engine starts.
Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
- switch off the ignition
(STOP position).
- remove the key.
- put the key back in the ignition.
- switch on the ignition and start.
Quality of the fuel used for Diesel
engines
The Diesel engines are perfectly
compatible with biofuels which conform
to current and future European
standards (diesel fuel which complies
with standard EN 590 mixed with a
biofuel which complies with standard
EN 14214) available at the pumps
(containing up to 7 % Fatty Acid
Methyl Ester).
The B30 biofuel can be used in certain
Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
CITROËN dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or
diluted, domestic fuel...) is strictly
prohibited (risk of damage to the
engine and fuel circuit).
Page 116 of 268
116
Opening the bonnet
OPENING THE BONNET
From inside:
- lift the cover located at the left foot of the passenger seat.
- pull the control upwards. "Bonnet open" warning
This warning is linked to the
alarm
option only.
With the engine running or the vehicle
moving, a graphic on the display,
accompanied by an audible signal,
warns you that the bonnet is not
properly closed.
From outside:
- lift the catch and raise the bonnet.
Bonnet strut
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace the
strut in its housing.
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet
is properly locked.
Page 117 of 268
117
Under the bonnet
CHECKS
6
PETROL ENGINES
5. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
6. Jack housing.
7. A i r fi l t e r .
8. Removable towing eye.
9. Dipstick.
10. E n g i n e o i l fi l l e r c a p .
11. Power steering reservoir.
UNDER THE BONNET
1. Windscreen/headlamp wash
reservoir.
2. Fuse box.
3. Coolant reservoir.
4. Wheelbrace.
Page 118 of 268
118
Under the bonnet
DIESEL ENGINES
5. B r a k e a n d c l u t c h fl u i d r e s e r v o i r .
6. Jack housing.
7. A i r fi l t e r .
8. Removable towing eye.
9. E n g i n e o i l fi l l e r c a p .
10. Dipstick
( a: 2.2 HDi; b: 2.0 HDi).
11. Power steering reservoir.
12. Repriming pump (2.0 HDi).
1. Windscreen/headlamp wash
reservoir.
2. Fuse box.
3. Coolant reservoir.
4. Wheelbrace.
Page 119 of 268
119
Levels
CHECKS
6
These regular maintenance
operations will keep your vehicle
in good running order. Consult the
instructions at CITROËN dealerships
or in the servicing booklet enclosed in
the handbook pack. To maintain the reliability of engines
and emission control systems, the use
of additives in engine oil is prohibited.
Oil change
It is imperative that this is carried out at
t h e i n t e r v a l s s p e c i fi e d a n d t h e v i s c o s i t y
g r a d e o f t h e o i l s e l e c t e d m u s t f u l fi l t h e
requirements in accordance with the
manufacturer's servicing schedule.
Consult the instructions at CITROËN
dealerships.
R e m o v e t h e d i p s t i c k b e f o r e fi l l i n g .
C h e c k t h e l e v e l a f t e r fi l l i n g ( n e v e r
exceed the max mark).
Screw the cap back onto the sump
before closing the bonnet.
LEVELS
I f y o u h a v e t o r e m o v e / r e fi t t h e
engine style cover, handle it with
c a r e t o a v o i d d a m a g i n g t h e fi x i n g
clips.
Dipstick
Warning lights
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 litre per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.
Viscosity selection
In all cases, the oil selected must meet
the manufacturer's requirements. Checking by means of the
warning lights on the instrument
panel is described in chapter 2,
"Instruments and controls" section.
Changing the brake fluid
T h e b r a k e fl u i d m u s t b e c h a n g e d a t
the intervals stated, according to the
manufacturer's servicing schedule.
U s e fl u i d s r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l fi l D O T 4
standards.
The level must be between the MIN
and MAX marks on the reservoir.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a CITROËN dealer as
soon as possible.
There are two marks
on the dipstick:
A = maximum
I f y o u fi l l p a s t t h i s
mark, contact a
CITROËN dealer.
B = minimum
Never allow the level
to fall below this
mark.
Page 120 of 268
120
Levels
Cooling system
O n l y u s e t h e fl u i d r e c o m m e n d e d b y
the manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a CITROËN dealer as
soon as possible.
Power steering fluid level
The vehicle must be parked on level
ground with the engine cold. Unscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks. During regeneration of the particle
e m i s s i o n fi l t e r , r e l a y n o i s e m a y b e
heard under the fascia.
If the message is still displayed and
the service warning light remains on,
contact a CITROËN dealer.
Diesel additive level (Diesel with
particle emission filter)
When this occurs with the engine running,
this is due to the start of saturation of
t h e p a r t i c l e e m i s s i o n fi l t e r ( e x c e p t i o n a l l y
prolonged urban driving conditions: low
s p e e d , l o n g t r a f fi c j a m s , . . . ) .
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u
are advised to drive at a speed of
more than 40 mph (60 km/h) as soon
a s p o s s i b l e , w h e n t r a f fi c c o n d i t i o n s
p e r m i t , f o r a t l e a s t fi v e m i n u t e s ( u n t i l
the message disappears and the
service warning light is switched off).
Topping up
The level must be between the MIN
and MAX marks on the expansion
b o t t l e . I f m o r e t h a n 1 l i t r e o f fl u i d i s
required to top up the level, have the
system checked by a CITROËN dealer.
Windscreen wash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the CITROËN range.
To avoid ice forming, do not use water.
Topping up
It is imperative that this additive is
topped up by a CITROËN dealer
without delay.
Used oil
Avoid prolonged contact of used oil
with the skin.
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
Do not dispose of used oil, brake
fl u i d o r c o o l a n t i n t o d r a i n s o r o n t o
the ground but into the containers
dedicated to this use at CITROËN
dealerships.
The minimum level of this
additive is indicated by
lighting of the service warning
light, accompanied by an
audible signal and a message
on the display.
