9
1
FAMILIARISATION
Interior
13. Battery/Fuse box.
14. Passenger air bag.
15. Passenger’s lower glove box.
16. Air conditioning controls.
17. Lighter/12 V accessories socket.
18. Hazard warning lights switch.
19. Storage compartment or additional
telematics control.
20. Cooled compartment.
21. Ashtray/Can holder.
22. Seat adjustment control.
23. Storage compartment.
24. Fuse box.
25. Handbrake - on the right.
1. Electric mirror controls.
- Electric window controls.
- Deactivation of the rear electric controls.
2. Driver’s upper glove box.
3. Central adjustable vents.
4. Audio equipment or GPS
multimedia audio equipment with
fl a p .
5. I n s t r u m e n t p a n e l / L a r g e c o l o u r
display.
6. Sunshine and passenger
compartment temperature sensor.
7. Passenger’s upper glove box.
26. Bonnet release under cover - on
the left.
27. Acoustic windscreen.
INTERIOR OVERVIEW
SETTING THE DATE
AND TIME
For more information about
this adjustment, refer to the
"Setting the date and time" section of
t h e " I n - c a r t e c h n o l o g y " c h a p t e r .
ADDITIONAL HEATER
With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
USB reader.
8. Windscreen demisting vents.
9. Speaker (tweeter).
10. Front window demisting vents.
11. Passenger air bag disarming
s w i t c h , i f fi t t e d o n y o u r v e h i c l e .
12. Side adjustable vent.
Page 10 of 268
4
2 4
4
7
6
4
3
3
415
1
FAMILIARISATION
Interior

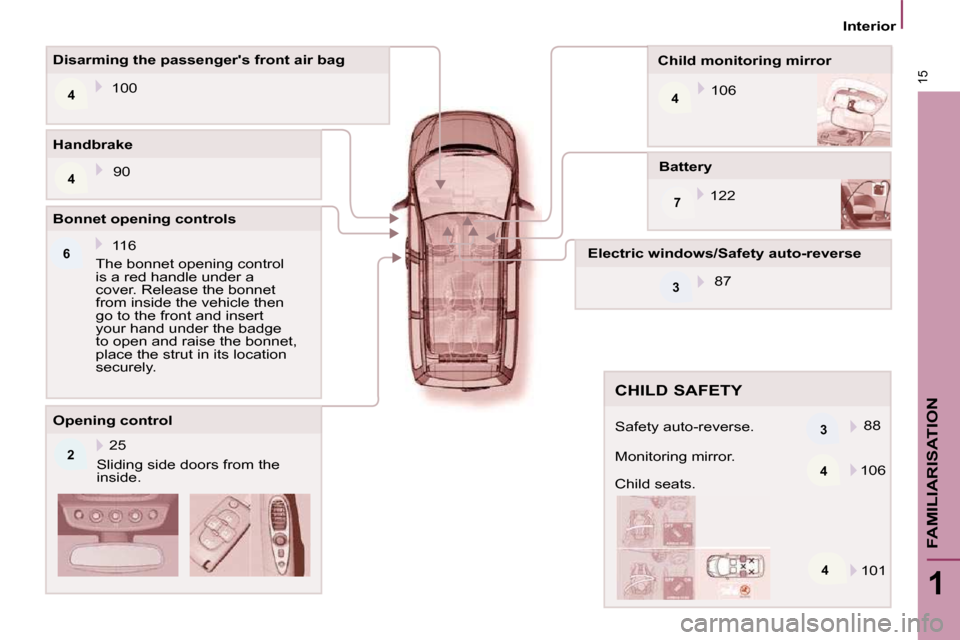

Battery 122
Child monitoring mirror
106
Disarming the passenger's front air bag
100
Opening control Sliding side doors from the
inside. 25
Handbrake
90
Bonnet opening controls The bonnet opening control
is a red handle under a
cover. Release the bonnet
from inside the vehicle then
go to the front and insert
your hand under the badge
to open and raise the bonnet,
place the strut in its location
securely. 116
Safety auto-reverse. 101
106
88
87
Electric windows/Safety auto-reverse
CHILD SAFETY
Monitoring mirror.
Child seats.
Page 17 of 268
Accesses
READY TO SET OFF
2
21
Changing the remote control
battery
Battery ref.: CR1620/3 volts.
T h e i n f o r m a t i o n " b a t t e r y fl a t " i s g i v e n
b y a n a u d i b l e s i g n a l , a c c o m p a n i e d b y
a message on the multifunction display.
T o r e p l a c e t h e b a t t e r y , u n c l i p t h e
casing using a coin at the ring.
If the remote control does not work
a f t e r t h e b a t t e r y h a s b e e n c h a n g e d ,
re-programme the remote control.
Programming the remote
control
Following changing of the
r e m o t e c o n t r o l b a t t e r y o r
disconnection of the vehicle
b a t t e r y , t h e r e m o t e c o n t r o l m a y
h a v e t o b e r e p r o g r a m m e d .
Do not discard the remote control
b a t t e r i e s , t h e y c o n t a i n m e t a l s w h i c h
are harmful to the environment.
Take them to a CITROËN dealer , or to
any other approved collection point. Wait at least one minute
b e f o r e u s i n g t h e r e m o t e
control.
Insert the key in the ignition
s w i t c h w i t h t h e b u t t o n s
(padlocks) of the remote control
facing you.
Switch on the ignition.
Press the locking padlock for at
l e a s t fi v e s e c o n d s w i t h i n t h e n e x t
ten seconds.
Switch off the ignition.
W a i t a t l e a s t o n e m i n u t e b e f o r e u s i n g
the remote control.
The remote control is now working
again.
Page 28 of 268
Instruments and controls
32
Warning light is indicates Solution - action
Low fuel level lit.
t h a t t h e f u e l r e s e r v e i s b e i n g
used (approximately 5 litres
remain).
Capacity approximately
80 litres.
You have enough fuel left to drive approximately
30 miles (50 km).
Fill up with fuel without delay. The evaluation of
the fuel
reserve is a parameter which is sensitive to the st yle
o f d r i v i n g , t h e p r o fi l e o f t h e r o a d , t h e t i m e e l a p s e d a n d
the distance travelled since the warning light came on.
Never continue to drive until you run out of fuel, this
c o u l d d a m a g e t h e e m i s s i o n c o n t r o l a n d i n j e c t i o n
systems.
fl a s h i n g . a malfunction of the gauge
or cutting off of the supply
following a serious impact. Restore the supply. Chapter 6, "Fuel" section.
EOBD
emission
control
system fl a s h i n g o r
remaining on. f a i l u r e o f t h e i n j e c t i o n ,
ignition (risk of destruction
of the catalytic converter in
the case of a petrol engine)
or emission control system. H a v e t h e s y s t e m c h e c k e d b y a C I T R O Ë N d e a l e r
a s s o o n a s p o s s i b l e .
Battery
charge lit. fault in the charging circuit.
C h e c k t h e b a t t e r y t e r m i n a l s , … C h a p t e r 7 ,
"Battery" section.
fl a s h i n g . placing of the active
f u n c t i o n s o n s t a n d b y
(economy mode). Chapter 7, "Battery" section.
remaining on,
in spite of the
checks. f a u l t y c i r c u i t , i n j e c t i o n o r
ignition malfunction.
Call a CITROËN dealer.
ABS remaining on
or coming on
a b o v e 7 m p h
(12 km/h). failure of the anti-lock
b r a k i n g s y s t e m .
T h e v e h i c l e r e t a i n s c o n v e n t i o n a l b r a k i n g w i t h o u t
a s s i s t a n c e b u t y o u a r e a d v i s e d t o s t o p . C a l l a
CITROËN dealer.
Page 121 of 268
121
Checks
CHECKS
6
CHECKS
To check the main levels
and certain components,
in accordance with the
manufacturer's servicing schedule,
refer to the pages of the Maintenance
and Warranty Guide which correspond
to your vehicle's engine.
Only use products recommended
by CITROËN or products
of equivalent quality and
s p e c i fi c a t i o n .
In order to optimise the operation
of units as important as the braking
system, CITROËN selects and offers
s p e c i fi c p r o d u c t s .
In order to avoid damaging the
electrical units, high pressure washing
to clean the engine compartment is
strictly prohibited.
Oil filter
C h a n g e t h e fi l t e r r e g u l a r l y , i n
accordance with the servicing
schedule. Refer to the servicing booklet to
fi n d o u t t h e r e p l a c e m e n t i n t e r v a l
for these components.
Depending on the environment
(dusty atmosphere...) and the use of
the vehicle (urban driving...), change
them twice as often if necessary.
Refer to the "Under the bonnet" section
of chapter 6.
Particle emission filter (Diesel)
It is imperative that particle emission
fi l t e r m a i n t e n a n c e i s c a r r i e d o u t b y a
CITROËN dealer.
On acceleration after the vehicle has
been running for a prolonged period
at very low speed or at idle, you may,
in exceptional circumstances, notice
the emission of water vapour at the
exhaust. This water vapour does not
have any adverse effect on vehicle
handling or the environment. Battery
At the start of winter, have your battery
checked by a CITROËN dealer.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances. It may be necessary to
check the thickness of the pads, even
between services.
Unless there is a leak on the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Brake disc/drum wear status
For any information relating to
checking the brake disc/drum wear
status, contact a CITROËN dealer.
Handbrake
Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
CITROËN dealer.
Carbon filter and passenger
compartment filter
T h e c a r b o n fi l t e r p e r m i t s c o n t i n u o u s
a n d e f f e c t i v e fi l t e r i n g o f d u s t .
I f t h e p a s s e n g e r c o m p a r t m e n t fi l t e r
becomes clogged, this may reduce
the performance of the air conditioning
system and generate unpleasant
odours.
We recommend the use of a combined
p a s s e n g e r c o m p a r t m e n t fi l t e r . B y
means of its second special active
fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n
of the air breathed by the occupants
and to the cleanness of the passenger
compartment (reduction of allergic
symptoms, unpleasant odours and
greasy deposits).
Manual gearbox
Have the level checked in accordance
with the manufacturer's servicing
schedule.
Page 122 of 268
122
Battery
ECONOMY MODE FUNCTION
After the engine has stopped, with
the key in the ignition position, certain
functions (windscreen wiper, electric
windows, courtesy lights, audio
equipment, etc.) can only be used for a
cumulative duration of thirty minutes, to
prevent discharging the battery.
Once the thirty minutes are over, the
message "Economy mode active"
appears on the display and the active
functions are put on standby.
To resume the use of these functions
immediately, start the engine and let it
run for a few seconds.
A fl a t b a t t e r y w i l l p r e v e n t t h e e n g i n e
from starting.
To charge the battery using a
battery charger
- disconnect the battery,
- follow the instructions for use given by the battery charger
manufacturer,
- reconnect starting with the negative (-) terminal,
- check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect them
and clean them.
BATTERY
This is housed in a compartment
l o c a t e d u n d e r n e a t h t h e fl o o r , i n f r o n t o f
the driver's seat.
Before disconnecting the battery, you
must wait for 2 minutes after switching
off the ignition.
Never disconnect a terminal when the
engine is running.
N e v e r c h a r g e a b a t t e r y w i t h o u t fi r s t
disconnecting the terminals.
Close the sunroof and the windows
before disconnecting the battery. If
they do not operate normally following
reconnection of the battery, they must
be reinitialised.
It is advisable to disconnect the
battery if the vehicle is not to be used
for a period of more than one month.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight
d i f fi c u l t i e s a r e e x p e r i e n c e d a f t e r t h i s ,
please contact a CITROËN dealer.
The door open monitoring electrical
system consumes power, remember
to close the sliding doors when your
vehicle is parked for long periods.
To start the vehicle from
another battery
- connect the red cable to the positive (+) terminals of the two
batteries,
- connect one end of the green or black cable to the negative (-)
terminal of the slave battery,
- connect the other end of the green or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- operate the starter, let the engine run,
- wait for the engine to return to idle, then disconnect the cables. For the sunroofs safety auto-
reverse, refer to the "Accesses"
section of chapter 2. For the electric windows safety
auto-reverse, refer to the "Mirrors
and windows" section of chapter 3.
Page 131 of 268
130
Changing a fuse
CHANGING A FUSE
T h e f u s e b o x e s a r e l o c a t e d i n :
- the instrument panel lower glove b o x ( r i g h t - h a n d s i d e ) ,
- the battery compartment ( r i g h t - h a n d s i d e fl o o r ) ,
- the engine compartment.
The spare fuses and special pliers A
a r e fi x e d t o t h e i n s i d e o f t h e l i d o f t h e
i n s t r u m e n t p a n e l f u s e b o x . Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
a r e i n d i c a t e d o n t h e f u s e b o x .
- Use the special pliers
A .
Always change a faulty fuse for one
of the same rating. Removing and changing a fuse
CITROËN will not accept responsibility
for the cost incurred in repairing
your vehicle or for rectifying the
malfunctions resulting from the
installation of accessories not supplied
and not recommended by CITROËN
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
e x c e e d s 1 0 m i l l i a m p e r e s .
Page 133 of 268
132
Changing a fuse
BATTERY COMPARTMENT
FUSES
Fuse box
The fuses are located in the battery
compartment, housed underneath the
fl o o r i n f r o n t o f t h e s e a t o n t h e r i g h t -
hand side:
- unclip the cover.
Carefully close the cover when you
h a v e fi n i s h e d .
Page 245 of 268
ROOF CONSOLE DISPLAY
The roof console display is installed in such a way that it
will only operate in your vehicle. If it is to be i nstalled in
a n o t h e r v e h i c l e , c o n s u l t y o u r D e a l e r f o r c o n i g u r a t i o n o f
the system.
For safety reasons, it is imperative that the drive r carries
o u t o p e r a t i o n s w h i c h r e q u i r e p r o l o n g e d a t t e n t i o n w h i l e
the vehicle is stationary.
W h e n t h e e n g i n e i s o f f a n d t o p r e v e n t d i s c h a r g i n g o f t h e
battery, the roof console display may switch off af ter a
few minutes. CONTENTS
Page 263 of 268
19
0 7
1
2
3
2
3
1
4
2Do not the discard the batteries or
the bulbs, take them to a collection
point.
C H A N G I N G A B A T T E R Y
M A I N T E N A N C E A N D C A R E
R E P L A C I N G A B U L B
Open the battery compartment on
the back of the remote control. Replace the remote control batteries when
t h e D V D / D I V X p l a y e r n o l o n g e r r e a c t s t o t h e
p r e s s i n g o f a b u t t o n .
R e m o v e t h e l a t b a t t e r i e s .
Fit the 2 new AAA type (micro)
batteries. Observe the polarity
indicated.
Close the battery compartment. Replace the faulty bulb with a bulb of
the same type (12 V/2 - 3 W).
Close the cover.
U s i n g a s c r e w d r i v e r , g e n t l y l i f t t h e
t r a n s p a r e n t c o v e r o f t h e i n t e r i o r l i g h t
located on the equipment in order to
remove it carefully.
