Page 4 of 268
9
1
FAMILIARISATION
Interior
13. Battery/Fuse box.
14. Passenger air bag.
15. Passenger’s lower glove box.
16. Air conditioning controls.
17. Lighter/12 V accessories socket.
18. Hazard warning lights switch.
19. Storage compartment or additional
telematics control.
20. Cooled compartment.
21. Ashtray/Can holder.
22. Seat adjustment control.
23. Storage compartment.
24. Fuse box.
25. Handbrake - on the right.
1. Electric mirror controls.
- Electric window controls.
- Deactivation of the rear electric controls.
2. Driver’s upper glove box.
3. Central adjustable vents.
4. Audio equipment or GPS
multimedia audio equipment with
fl a p .
5. I n s t r u m e n t p a n e l / L a r g e c o l o u r
display.
6. Sunshine and passenger
compartment temperature sensor.
7. Passenger’s upper glove box.
26. Bonnet release under cover - on
the left.
27. Acoustic windscreen.
INTERIOR OVERVIEW
SETTING THE DATE
AND TIME
For more information about
this adjustment, refer to the
"Setting the date and time" section of
t h e " I n - c a r t e c h n o l o g y " c h a p t e r .
ADDITIONAL HEATER
With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
USB reader.
8. Windscreen demisting vents.
9. Speaker (tweeter).
10. Front window demisting vents.
11. Passenger air bag disarming
s w i t c h , i f fi t t e d o n y o u r v e h i c l e .
12. Side adjustable vent.
Page 5 of 268
Interior
10
5. Control block.
6. Steering wheel audio equipment
controls.
7. Wipers/wash-wipe/trip computer
controls.
8. Gear lever.
9. I g n i t i o n .
1. I n t e r i o r p r o t e c t i o n a l a r m
deactivation button.
2. Speed limiter/cruise control
switches.
3. Lights and direction indicators
controls.
4. Driver's air bag.
Horn.
10. Headlamp height adjustment.
11. a- Dynamic stability control button
(ESP/ASR).
b- Parking assistance button.
12. Steering wheel adjustment control.
INSTRUMENTS AND CONTROLS
Page 9 of 268
43
3
3
Interior
14
95
Repositioning
SIT COMFORTABLY SEE CLEARLY
Adjust the height
and depth of the
steering wheel.
Electric exterior mirrors.
Selection
Seat belts
Height adjustment.
Fastening. Lights off
Side lights
Main beam headlamps (blue)
Dipped headlamps (green)
Wipers stalk
2 fast.
1 normal.
I i n t e r m i t t e n t .
0 off.
single wipe.
A U T O , p r e s s t h e s t a l k d o w n . A U T O , a u t o m a t i c s w i t c h i n g
on of the lights
Adjustment
86 45
48
Page 19 of 268
Accesses
READY TO SET OFF
2
23
ALARM
I f fi t t e d o n y o u r v e h i c l e , t h i s p r o v i d e s
two types of protection:
- exterior protection: it sounds if a d o o r , t h e t a i l g a t e o r t h e b o n n e t i s
opened.
- interior protection: it sounds if the volume inside the passenger
c o m p a r t m e n t c h a n g e s ( b r e a k i n g o f
a window or a movement inside the
vehicle).
A red indicator light, located in the
centre of the fascia, indicates the
i n f o r m a t i o n d e t a i l e d b e l o w .
To lock your vehicle without setting the
alarm, insert the key in the lock then
lock the vehicle (e.g. for washing).
When the alarm is triggered, the siren
sounds and the direction indicator lights
fl a s h f o r t h i r t y s e c o n d s .
Warning - alarm triggered: the red indicator
l i g h t fl a s h e s r a p i d l y , i n s e r t t h e k e y a n d
switch on the ignition to switch it off.
W h e n t h e a l a r m h a s b e e n t r i g g e r e d t e n
times in succession (on the eleventh time)
the alarm is deactivated. Repeat the rules
for setting the alarm.
- Close the sunroofs,
- Switch off the ignition,
- In the next ten seconds, press b u t t o n A , located on the left-hand
side of the fascia, until the red
indicator light is on continuously,
- Get out of the vehicle,
- W i t h i n t h e n e x t fi v e m i n u t e s , s e t t h e a l a r m b y l o c k i n g o r d e a d l o c k i n g u s i n g
the remote control (the red indicator
l i g h t fl a s h e s o n c e a s e c o n d ) .
D o n o t m a k e a n y m o d i fi c a t i o n s
to the alarm system as this could
cause faults.
Setting the alarm
- Switch off the ignition and get out of the vehicle.
- S e t t h e a l a r m w i t h i n fi v e m i n u t e s o f
g e t t i n g o u t o f t h e v e h i c l e , b y l o c k i n g
or deadlocking using the remote
control (the red indicator light
fl a s h e s o n c e p e r s e c o n d ) .
Disarming
Unlock the vehicle with the remote
control (the red indicator light goes out).
To set the alarm with exterior
protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
should choose exterior protection only.
Incorrect operation
When the ignition is switched on, if the red
indicator light remains on for ten seconds,
there is a fault in the siren connection.
Consult a CITROËN dealer to have the
system checked.
Automatic setting of the alarm
I f fi t t e d o n y o u r v e h i c l e , t h e a l a r m i s s e t
automatically 2 minutes after the last
door or the tailgate is closed.
To prevent triggering of the alarm when
a door or the tailgate is opened, it is
imperative to press the remote control
u n l o c k i n g b u t t o n a g a i n . W h e n t h e a l a r m i s s e t b u t t h e
remote control does not operate:
- Unlock the doors with the key and open the door. The alarm is
triggered.
- Switch on the ignition in the next ten seconds. The alarm is
disarmed.
Page 130 of 268
129
TROUBLESHOOTING
7

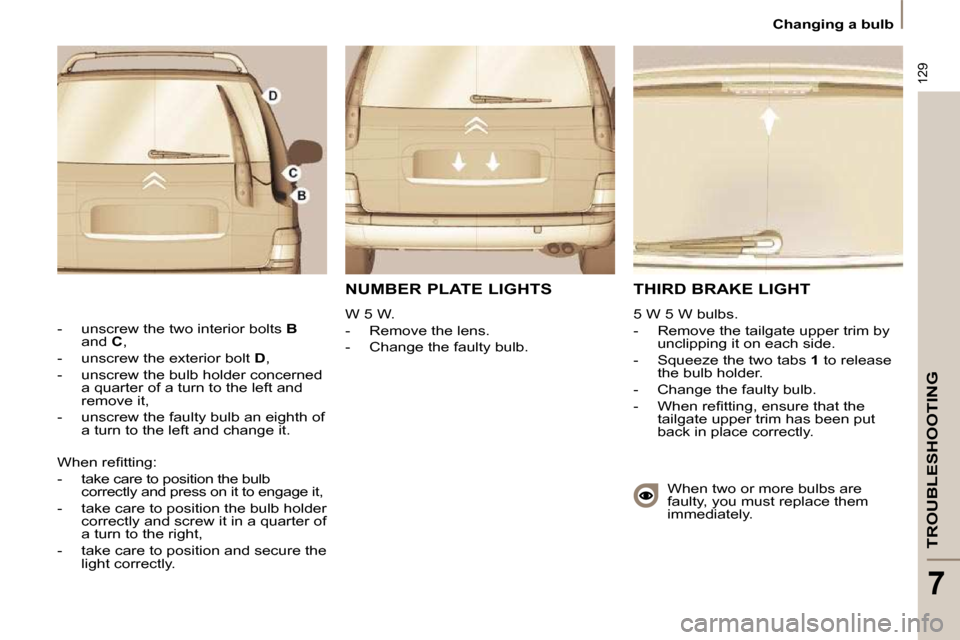

Changing a bulb
THIRD BRAKE LIGHT
5 W 5 W bulbs.
- Remove the tailgate upper trim by unclipping it on each side.
- Squeeze the two tabs 1 to release
the bulb holder.
- Change the faulty bulb.
- W h e n r e fi t t i n g , e n s u r e t h a t t h e
tailgate upper trim has been put
back in place correctly.
- unscrew the two interior bolts
B
and C ,
- u n s c r e w t h e e x t e r i o r b o l t D ,
- unscrew the bulb holder concerned a quarter of a turn to the left and
remove it,
- unscrew the faulty bulb an eighth of a turn to the left and change it.
When two or more bulbs are
faulty, you must replace them
immediately.
W h e n r e fi t t i n g :
- take care to position the bulb
correctly and press on it to engage it,
- take care to position the bulb holder correctly and screw it in a quarter of
a turn to the right,
- take care to position and secure the light correctly.
NUMBER PLATE LIGHTS
W 5 W.
- Remove the lens.
- Change the faulty bulb.
Page 132 of 268
131
TROUBLESHOOTING
7
Changing a fuse
INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning,
C l u t c h s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p ,
Electrochromatic interior mirror.
5 30 Electric mirrors, Electric window motor.
6 30 Front electric windows supply, Sunroof row 1.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer,
A u d i o / t e l e p h o n e , T r a i l e r f u s e b o x , D i e s e l a d d i t i v e c o n t r o l u n i t ,
T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t , S l i d i n g d o o r s m o d u l e c o n t r o l u n i t .
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x .
12 15 Driver's seat memory unit, Passenger's electric seat, Air bag control un
it,
Parking assistance control unit, Sliding side door buttons, Hand s-free kit.
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs,
Odometer warning lights unit, Audio-telematics control.
15 30 Locking/unlocking/deadlocking of the accesses.
16 - Not used.
17 40 Heated rear screen.
