Page 10 of 236
4
2 4
4
7
6
4
3
3
415
1

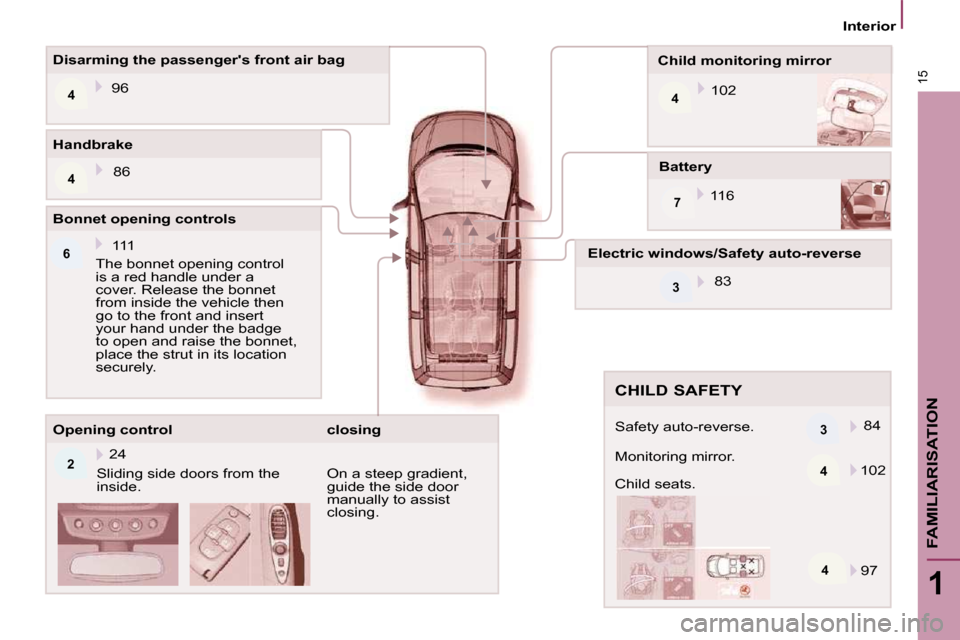

FAMILIARISATION
Interior
Battery 116
Child monitoring mirror
102
Disarming the passenger's front air bag
96
Opening control Sliding side doors from the
inside. 24
Handbrake
86
Bonnet opening controls The bonnet opening control
is a red handle under a
cover. Release the bonnet
from inside the vehicle then
go to the front and insert
your hand under the badge
to open and raise the bonnet,
place the strut in its location
securely. 111
Safety auto-reverse. 97
102
84
83
Electric windows/Safety auto-reverse
CHILD SAFETY
Monitoring mirror.
Child seats.
closing
O n a s t e e p g r a d i e n t ,
guide the side door
manually to assist
closing.
Page 27 of 236
Instruments and controls
30
Warning light is indicates Solution - action
Coolant
temperature
and level lit.
a n a b n o r m a l i n c r e a s e i n t h e
temperature. Park and switch off the ignition then allow to cool.
Visually check the level. Chapter 2, "Instruments
and controls" section.
fl a s h i n g . a drop in the coolant level. Chapter 6, "Levels" section. Contact a CITROËN
dealer.
Service lit temporarily. minor faults or warnings.
Consult the warnings log on the display or on the
screen. See chapter 9 In-car Technology, "Audio
equipment - Trip computer" section, depending on
the seriousness of the fault, contact a CITROËN
dealer.
In the case of a low diesel additive level, see
chapter 6 "Levels" section.
remaining on.
m a j o r f a u l t s .
Row 1 seat
belt not
fastened lit.
the driver or a front
passenger has not fastened
h i s s e a t b e l t . P u l l t h e s t r a p t h e n i n s e r t t h e t o n g u e i n t h e b u c k l e .
fl a s h i n g ,
accompanied
b y a n a u d i b l e
signal of
increasing
volume. the vehicle is moving with
the driver or front passenger
s e a t b e l t n o t f a s t e n e d .
C h e c k t h a t t h e s e a t b e l t i s f a s t e n e d b y p u l l i n g t h e
s t r a p . C h a p t e r 4 , " S e a t b e l t s " s e c t i o n .
The driver must ensure that all passengers fasten
a n d u s e t h e s e a t b e l t s c o r r e c t l y .
Front/side/
curtain air
bag fl a s h i n g o r
remaining on.
f a i l u r e o f a n a i r b a g . H a v e t h e s y s t e m c h e c k e d b y a C I T R O Ë N d e a l e r
w i t h o u t d e l a y . C h a p t e r 4 " A i r b a g s " s e c t i o n .
Front
passenger air
bag disarmed lit. intentional disarming of this
a i r b a g i n t h e p r e s e n c e o f a
rear facing child seat. C h a p t e r 4 , " A i r b a g s - c h i l d r e n o n b o a r d " s e c t i o n .
Page 91 of 236
9 2
Seat belts Depending on the nature and
seriousness of any impact, the
pretensioning device may be triggered
b e f o r e a n d i n d e p e n d e n t l y o f i n fl a t i o n
o f t h e a i r b a g s . I t i n s t a n t l y t i g h t e n s
the seat belts against the body of the
o c c u p a n t s .
Triggering of the pretensioners is
accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
c a r t r i d g e i n c o r p o r a t e d i n t h e s y s t e m .
The force limiter reduces the pressure
of the seat belt against the body of the
o c c u p a n t s .
The pretensioning seat belts are active
w h e n t h e i g n i t i o n i s s w i t c h e d o n .
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a d e v i c e
which automatically locks the strap in
the event of a collision or emergency
b r a k i n g o r i f t h e v e h i c l e r o l l s o v e r .
You can unfasten the seat belt by
p r e s s i n g t h e r e d b u t t o n o n t h e b u c k l e .
G u i d e t h e s e a t b e l t a f t e r u n f a s t e n i n g . The upper part of the seat belt should
be positioned in the hollow of the
s h o u l d e r .
The lap part should be placed as low
a s p o s s i b l e o n t h e p e l v i s .
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e c o m p l e t e l y .
I f t h e s e a t s a r e fi t t e d w i t h a r m r e s t s , t h e
lap part of the seat belt should always
p a s s u n d e r t h e a r m r e s t .
Check that the seat belt is fastened
c o r r e c t l y b y p u l l i n g t h e s t r a p fi r m l y .
Good practice
The driver must ensure that
passengers use the seat belts correctly
and that they are all strapped in
s e c u r e l y b e f o r e m o v i n g o f f .
Wherever you are seated in the
vehicle, always fasten your seat belt,
e v e n f o r s h o r t j o u r n e y s .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
reel which automatically adjusts the
l e n g t h o f t h e s t r a p t o y o u r s i z e .
Do not use accessories (clothes pegs,
c l i p s , s a f e t y p i n s , e t c . ) w h i c h p e r m i t a
c l e a r a n c e w i t h t h e s e a t b e l t s t r a p s .
Ensure that the seat belt is rolled up
c o r r e c t l y a f t e r u s e .
After folding or moving a seat or a rear
bench seat, ensure that the seat belt is
rolled up correctly and that the buckle
i s r e a d y t o a c c o m m o d a t e t h e t o n g u e .
To install the seat belt, move the
tongue into position to insert it into the
b u c k l e .
Row 2 and 3 rear centre seat
belts
T h e r o w 2 r e a r c e n t r e s e a t a n d t h e
rear bench seat centre seat have an
integrated three-point inertia reel seat
b e l t .
The air bag warning light comes on
i f t h e p r e t e n s i o n e r s a r e t r i g g e r e d .
C o n s u l t a C I T R O Ë N d e a l e r .
In order to be effective, a seat belt
must:
- restrain one person only,
- must not be twisted, check by pulling in front of you with an even
movement,
- be tightened as close to the body a s p o s s i b l e . Recommendations for children:
- use a suitable child seat if the
p a s s e n g e r i s l e s s t h a n 1 2 y e a r s o l d
o r s h o r t e r t h a n o n e m e t r e fi f t y ,
- never allow a child to travel on your lap, even with the seat belt
f a s t e n e d .
For further information regarding child
seats, refer to the "Children on board"
s e c t i o n o f c h a p t e r 4 .
In accordance with current safety
regulations, your CITROËN dealer
guarantees all work or any checks,
from testing to maintenance, on your
s e a t b e l t e q u i p m e n t .
Have the seat belts checked regularly
(even after a minor impact) by a
CITROËN dealer: they must not show
any signs of wear, cutting or fraying
and they must not be transformed or
m o d i fi e d .
Clean the seat belt straps with soapy
water or a textile cleaning product, sold
b y C I T R O Ë N d e a l e r s .
Page 92 of 236
SAFETY
93
Air bags
4
The air bags have been designed to
maximise the safety of the occupants
(with the exception of the centre
s e a t s o f r o w s 2 a n d 3 ) i n t h e e v e n t
of a serious collision; they work in
conjunction with the force limiting seat
b e l t s .
In the event of a serious collision, the
electronic detectors record and analyse
the front and side impacts suffered in
the impact detection zones:
- in the event of a serious impact, the a i r b a g s i n fl a t e i n s t a n t l y a n d p r o t e c t
t h e o c c u p a n t s o f t h e v e h i c l e . Immediately after the impact, the air
b a g s d e fl a t e r a p i d l y , s o t h a t t h e y d o n o t
hinder the visibility of the occupants
nor their possible exit from the vehicle:
- in the event of a minor or rear
impact and in certain roll-over
conditions, the air bags will not
be deployed; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e m a x i m u m
p r o t e c t i o n i n t h e s e s i t u a t i o n s .
The seriousness of the collision
depends on the nature of the obstacle
and the speed of the vehicle at the
m o m e n t o f i m p a c t . Air bags only operate when the
ignition is switched on.
T h i s e q u i p m e n t o n l y o p e r a t e s o n c e .
If a second impact occurs (during the
same or a subsequent accident), the
a i r b a g w i l l n o t o p e r a t e .
The triggering of an air bag or air bags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
c a r t r i d g e i n c o r p o r a t e d i n t h e s y s t e m .
This smoke is not harmful, but
sensitive individuals may experience
s o m e i r r i t a t i o n .
The noise of the detonation may result
in a slight loss of hearing for a short
t i m e .
AIR BAGS
It is imperative that the passenger
air bag is disarmed if a child seat
i s i n s t a l l e d f a c i n g r e a r w a r d s . R e f e r
to the "Children on board" section of
c h a p t e r 4 .
Page 94 of 236
96
Air bags Disarming
The passenger's front air bag alone
can be disarmed:
- With the ignition switched off ,
insert the key into the passenger air
bag disarming switch,
turn it to the "OFF" position,
- then remove the key keeping the s l o t i n t h i s p o s i t i o n .
Front air bags
The front air bags are incorporated in
the centre of the steering wheel for the
driver and in the fascia for the front
p a s s e n g e r .
Front air bag fault
Reactivation
In the
"OFF" position, the passenger
air bag will not be triggered in the
e v e n t o f a n i m p a c t .
As soon as the child seat is removed,
turn the air bag slot to the "ON"
position to re-activate the air bag
and thus ensure the safety of your
p a s s e n g e r i n t h e e v e n t o f a n i m p a c t . To ensure the safety of your
child, it is essential to disarm the
passenger air bag when you install
a rear-facing child seat on the front
p a s s e n g e r s e a t . O t h e r w i s e , t h e c h i l d
would risk being killed or seriously
i n j u r e d i f t h e a i r b a g w e r e t o i n fl a t e .
The air bag warning light on the
instrument panel is lit throughout
t h e p e r i o d o f d i s a r m i n g .
If the two air bag warning lights
are lit continuously, do not install
a r e a r - f a c i n g c h i l d s e a t . C o n s u l t a
C I T R O Ë N d e a l e r .
Activation
They are deployed simultaneously,
unless the passenger's front air bag
has been disarmed, in the event of a
serious front impact applied to all or
part of the front impact zone
A in the
longitudinal centreline of the vehicle
on a horizontal plane directed from the
f r o n t t o w a r d s t h e r e a r o f t h e v e h i c l e .
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the fascia to cushion his forward
m o v e m e n t . If this warning light comes on,
accompanied by an audible
signal and a message on the
display, consult a CITROËN
dealer to have the system
c h e c k e d .
Page 95 of 236
SAFETY
93
Air bags
4
The air bags have been designed to
maximise the safety of the occupants
(with the exception of the centre
s e a t s o f r o w s 2 a n d 3 ) i n t h e e v e n t
of a serious collision; they work in
conjunction with the force limiting seat
b e l t s .
In the event of a serious collision, the
electronic detectors record and analyse
the front and side impacts suffered in
the impact detection zones:
- in the event of a serious impact, the a i r b a g s i n fl a t e i n s t a n t l y a n d p r o t e c t
t h e o c c u p a n t s o f t h e v e h i c l e . Immediately after the impact, the air
b a g s d e fl a t e r a p i d l y , s o t h a t t h e y d o n o t
hinder the visibility of the occupants
nor their possible exit from the vehicle:
- in the event of a minor or rear
impact and in certain roll-over
conditions, the air bags will not
be deployed; the seat belt alone
i s s u f fi c i e n t t o p r o v i d e m a x i m u m
p r o t e c t i o n i n t h e s e s i t u a t i o n s .
The seriousness of the collision
depends on the nature of the obstacle
and the speed of the vehicle at the
m o m e n t o f i m p a c t . Air bags only operate when the
ignition is switched on.
T h i s e q u i p m e n t o n l y o p e r a t e s o n c e .
If a second impact occurs (during the
same or a subsequent accident), the
a i r b a g w i l l n o t o p e r a t e .
The triggering of an air bag or air bags
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
c a r t r i d g e i n c o r p o r a t e d i n t h e s y s t e m .
This smoke is not harmful, but
sensitive individuals may experience
s o m e i r r i t a t i o n .
The noise of the detonation may result
in a slight loss of hearing for a short
t i m e .
AIR BAGS
It is imperative that the passenger
air bag is disarmed if a child seat
i s i n s t a l l e d f a c i n g r e a r w a r d s . R e f e r
to the "Children on board" section of
c h a p t e r 4 .
Page 98 of 236
SAFETY
97
Child safety
4
CHILD SAFETY
GENERAL POINTS RELATING
TO CHILD SEATS
"Rearwards-facing"
Recommended on the rear seats up to
t h e a g e o f 2 .
When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger air bag
i s d i s a r m e d . O t h e r w i s e , t h e c h i l d w o u l d
risk being seriously injured or killed if
t h e a i r b a g w e r e t o i n fl a t e . "Forwards-facing"
Recommended on the rear seats over
t h e a g e o f 2 .
When a "forwards-facing" child seat is
installed on the front passenger seat,
l e a v e t h e p a s s e n g e r a i r b a g a r m e d .
CHILD SEAT IN THE FRONT
The rules for transporting children are
s p e c i fi c t o e a c h c o u n t r y . C o n s u l t t h e
c u r r e n t l e g i s l a t i o n i n y o u r c o u n t r y .
Please consult the list of seats
a p p r o v e d i n y o u r c o u n t r y . T h e i s o fi x
mountings, the rear seats, the
passenger air bag and the disarming
of this air bag depend on the version
s o l d .
The child seats function and the
passenger air bag disarming function
are common to the entire CITROËN
r a n g e .
Although one of CITROËN's main
criteria when designing your vehicle,
the safety of your children also
d e p e n d s o n y o u .
For maximum safety, please follow
these precautions:
- a l l c h i l d r e n u n d e r t h e a g e o f 1 2 o r
l e s s t h a n o n e m e t r e fi f t y t a l l m u s t
travel in approved child seats suited
t o t h e i r w e i g h t , o n s e a t s fi t t e d w i t h
a s e a t b e l t o r I S O F I X m o u n t i n g s .
- statistically, the safest seats in your vehicle for the transportation of
children are the rear seats,
- a child weighing less than 9 kg must travel in the "rearwards-
facing" position both in the front
and in the rear,
- the passenger must not travel with a c h i l d o n h i s l a p .
Refer to chapter 4, "Air bags"
s e c t i o n .
If the passenger air bag is not
disarmed, the installation of a
"rearwards-facing" child seat in the
f r o n t i s s t r i c t l y p r o h i b i t e d .
Page 99 of 236
98
Child safety

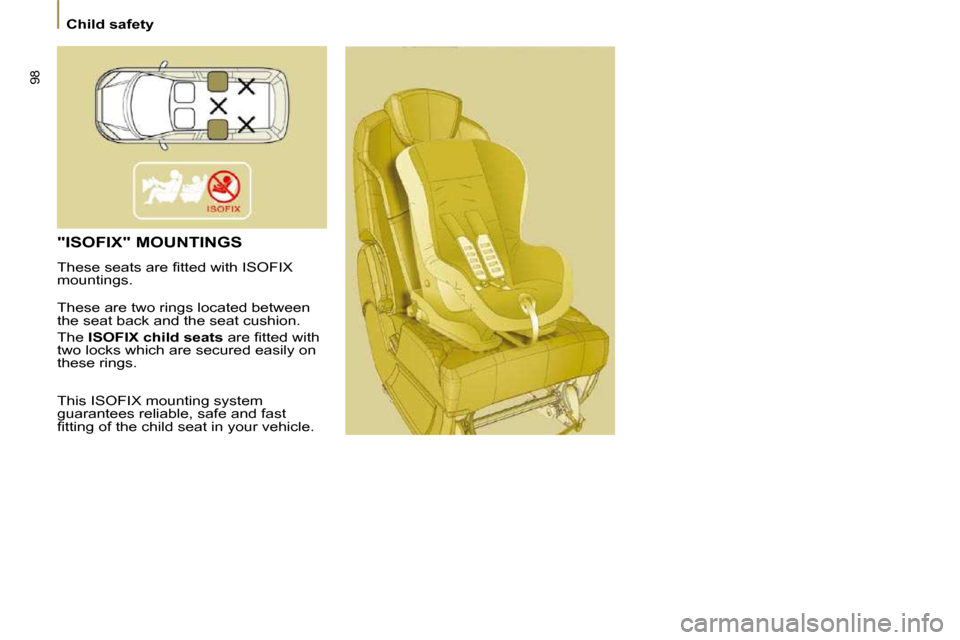

"ISOFIX" MOUNTINGS
T h e s e s e a t s a r e fi t t e d w i t h I S O F I X
m o u n t i n g s .
These are two rings located between
t h e s e a t b a c k a n d t h e s e a t c u s h i o n .
The ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
t h e s e r i n g s .
This ISOFIX mounting system
guarantees reliable, safe and fast
fi t t i n g o f t h e c h i l d s e a t i n y o u r v e h i c l e .
Page 100 of 236
SAFETY
99
Child safety
4

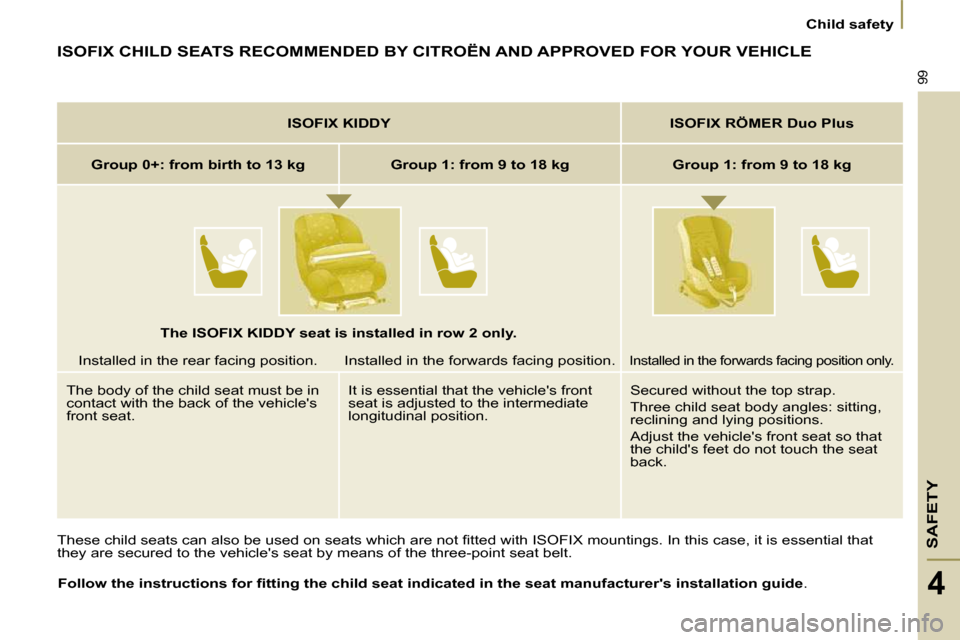

ISOFIX CHILD SEATS RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE
T h e s e c h i l d s e a t s c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t i s e s s e n t i a l t h a t
t h e y a r e s e c u r e d t o t h e v e h i c l e ' s s e a t b y m e a n s o f t h e t h r e e - p o i n t s e a t b e l t .
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t i n d i c a t e d i n t h e s e a t
manufacturer
's i
nstallation guide .
ISOFIX KIDDY
ISOFIX RÖMER Duo Plus
Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg Group 1: from 9 to 18 kg
I n s t a l l e d i n t h e r e a r f a c i n g p o s i t i o n . I n s t a l l e d i n t h e f o r w a r d s f a c i n g p o s i t i o n .
I n s t a l l e d i n t h e f o r w a r d s f a c i n g p o s i t i o n o n l y .
The body of the child seat must be in
contact with the back of the vehicle's
f r o n t s e a t . It is essential that the vehicle's front
seat is adjusted to the intermediate
l o n g i t u d i n a l p o s i t i o n . S e c u r e d w i t h o u t t h e t o p s t r a p .
Three child seat body angles: sitting,
r e c l i n i n g a n d l y i n g p o s i t i o n s .
Adjust the vehicle's front seat so that
the child's feet do not touch the seat
b a c k .
The ISOFIX KIDDY seat is installed in row 2 only.
Page 101 of 236
100
Child safety

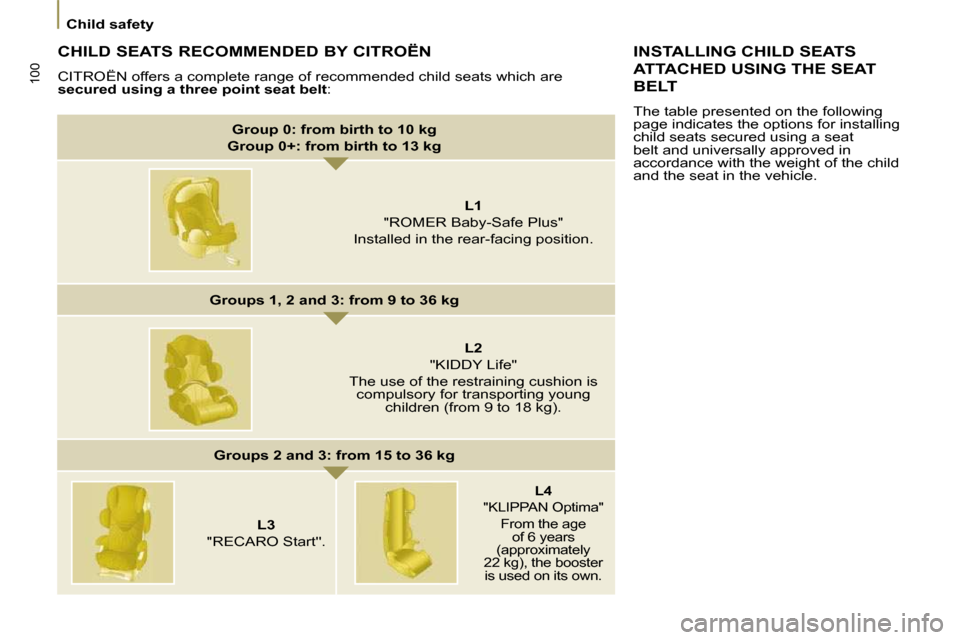

CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are
secured using a three point seat belt :
INSTALLING CHILD SEATS
ATTACHED USING THE SEAT
BELT
The table presented on the following
page indicates the options for installing
child seats secured using a seat
belt and universally approved in
accordance with the weight of the child
a n d t h e s e a t i n t h e v e h i c l e .
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
I n s t a l l e d i n t h e r e a r - f a c i n g p o s i t i o n .
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
The use of the restraining cushion is compulsory for transporting young c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' ' .
L4
"KLIPPAN Optima" From the age of 6 years
(approximately
2 2 k g ) , t h e b o o s t e r i s u s e d o n i t s o w n .
