Page 6 of 236
9
999
11
1
FAMILIARISATION
Interior
INSTRUMENTS AND CONTROLS
Truly ergonomic control for
access to the functions of
the NaviDrive.
MyWay
This ergonomic audio equipment offers
a map of Europe on an SD card, a
Bluetooth telephone connection and
t h e p l a y i n g o f M P 3 / W M A fi l e s .
c o n fi r m a t i o n
selection NaviDrive Audio system
This audio equipment incorporates a hard
disc with a capacity of 10 Gb, reserved
for your music.
I t p e r m i t s t h e p l a y i n g o f M P 3 C D s a n d
DVDs.
The Jukebox function permits the
selective playing of up to 10 hours of
music. The detailed map of Europe is
stored on this hard disc, without the
addition of a CD. This map is displayed
on the 16/9ths 7-inch colour screen and
offers a 3D view.
The hands-free GSM telephone, via your
S I M c a r d , a l s o a l l o w s y o u a c c e s s t o t h e
C I T R O Ë N e m e r g e n c y t e a m ( s u b j e c t t o
conditions).
Bluetooth functions
JACK/RCA socket
Page 108 of 236
107
Other accessories
ACCESSORIES
5
OTHER ACCESSORIES
These accessories and parts, after
being tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide choice of recommended
accessories and original parts is offered
by the CITROËN Marque.
To avoid any jamming under the
pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s are positioned correctly,
- never place one mat on top of another.
Compatible portable equipment
For the hands-free kit audio
e q u i p m e n t , t h e fi t t i n g o f a n R C A
a u x i l i a r y s o c k e t i s o f f e r e d s p e c i fi c a l l y
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also offered
by the network.
Following connection of the cable and
selection of the AUX mode, via the
source button, your portable equipment
is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button.
Audio systems, telephone, hands-free
kit, speakers, CD changer, navigation
system, DVD player, ... Alloy wheels, trims, aluminium interior
t r i m k i t , m u d fl a p s , . . .
Seat covers compatible with side
air bags, mats, boot tray, sunroof,
l u g g a g e n e t , d o o r d e fl e c t o r s , c o o l b o x
secured on the slides, clip armrest,
load carrying roof bars, roof box, snow
chains, ski carrier, tailgate bicycle
carrier, interior bicycle carrier, booster
s e a t s a n d c h i l d s e a t s , I s o fi x s e a t s , s i d e
sun blinds and rear blind, ...
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y a
CITROËN dealer. T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by CITROËN may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Screenwash, interior and exterior
maintenance and cleaning products,
replacement bulbs, ...
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle.
A further range is also available,
structured around comfort, leisure and
maintenance:
Anti-theft alarm, window engraving,
fi r s t a i d k i t , s a f e t y j a c k e t , r e a r p a r k i n g
assistance, warning triangle, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
c o n fi g u r a t i o n m e n u .
Before installing a radiocommunication
transmitter with aerial, contact a
CITROËN dealer who will inform you
o f t h e s p e c i fi c a t i o n s o f t h e t r a n s m i t t e r s
w h i c h c a n b e fi t t e d , i n a c c o r d a n c e w i t h
the Motor Vehicle Electromagnetic
Compatibility Directive (2004/104/EC).

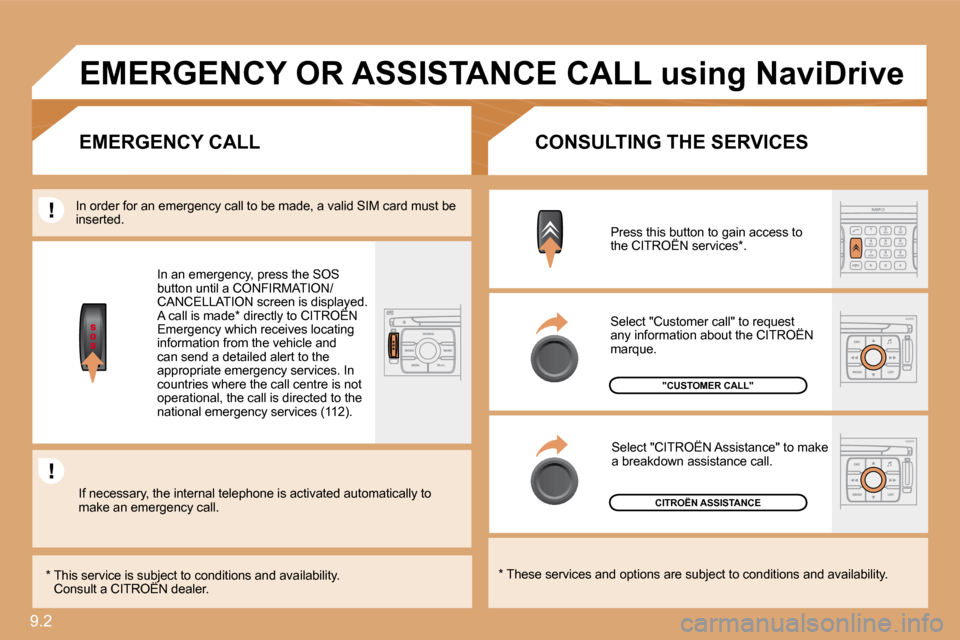

Page 141 of 236
9.2
CITROËN ASSISTANCE
"CUSTOMER CALL"
* These services and options are subject to conditions and availability.
CONSULTING THE SERVICES EMERGENCY CALL
Press this button to gain access tothe CITROËN services * . Press this button to gain ahis but
Select "Customer call" to request any information about the CITROËN marque.
Select "CITROËN Assistance" to make a breakdown assistance call.
In an emergency, press the SOS button until a CONFIRMATION/CANCELLATION screen is displayed. A call is made * directly to CITROËNen is displayed. isplaye
Emergency which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries where the call centre is not operational, the call is directed to the national emergency services (112).
* This service is subject to conditions and availability. Consult a CITROËN dealer. * This service is subject to cond
If necessary, the internal telephone is activated automautomatically to make an emergency call.
In order for an emergency call to be made, a vali d SIM c SIM card must be inserted.
EMERGENCY OR ASSISTANCE CALL using NaviDrive

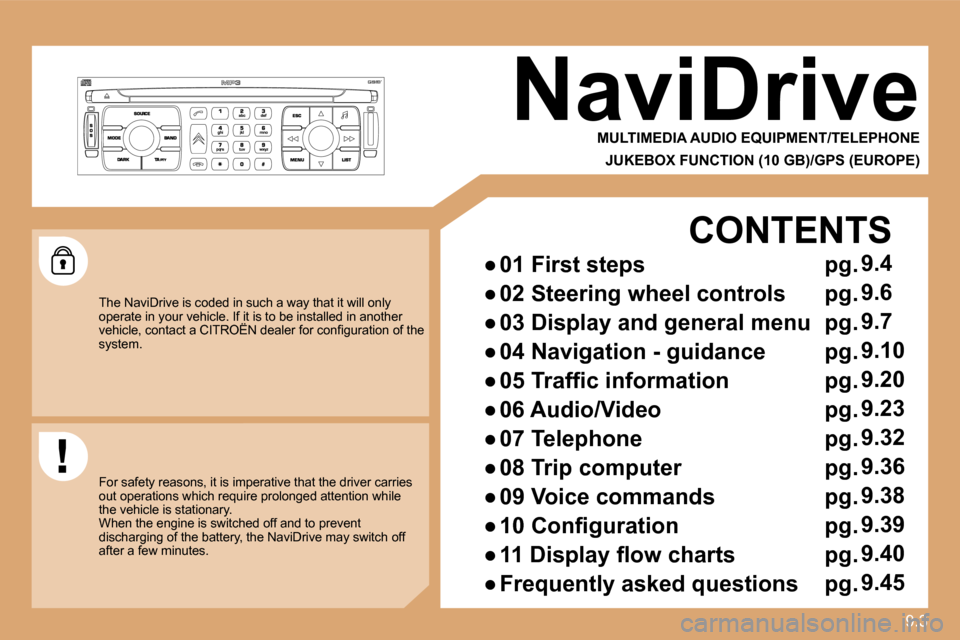

Page 142 of 236
9.33
NaviDrive
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
The NaviDrive is coded in such a way that it will only operate in your vehicle. If it is to be installed in another v e h i c l e , c o n t a c t a C I T R O Ë N d e a l e r f o r c o n fi g u r a t i o n o f t h e operate in your vehicle. If it is to be installed in another le. If it i
system.
For safety reasons, it is imperative that the dri ver carries out operations which require prolonged attention wh ile the vehicle is stationary. When the engine is switched off and to prevent discharging of the battery, the NaviDrive may switch off after a few minutes.
CONTENTS
Page 144 of 236
9.5
01 FIRST STEPS
ADDITIONAL CONTROL
Selection of the screen display mode. Press for more than 2 seconds: displaying of the general information.
Displaying of the AUDIO function contextual menu.
Displaying of the general menu. Press for more than 2 seconds: access to the help menu.
Displaying of the general ying oying oinformation/Trip computer ation/Tmenu.
Displaying of the NAVIGATION function contextual menu.
Displaying of the TELEPHONE function contextual menu.
Cancellation of the operation in progress. Clearing of the last superimposed display. Press for more than 2 seconds: return to the permanent application.
Selection
and
c o n fi r m a t i o n .
Page 145 of 236
9.6
0 2 STEERING MOUNTED CONTROLS
RADIO: selection of the next stored station. MP3/USB/JUKEBOX: selection of the next directory. Selection of the next item on a menu.
RADIO: selection of the previous stored station. MP3/USB/JUKEBOX: selection of the previous directory. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/MP3/USB/JUKEBOX: selection of the next track. CD/USB: continuous press: fast forwards play.
RADIO: automatic search for a lower frequency. CD/MP3/USB/JUKEBOX: selection of the previous track. CD/USB: continuous press: fast backwards play.
- Change of sound source. - C o n fi r m a t i o n o f a s e l e c t i o n . - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.
Volume increase.
Volume decrease.
Mute: by pressing the volume increase and decrease buttons simultaneously.
The sound is restored by pressing one of the two volume buttons.
Page 146 of 236
9.7
0 3
°
> COLOUR SCREEN
This displays the following information, via the audio control panel: - time, - date, - ambient temperature (if there is a risk of ice, you are warned by a message), - audio source displays (radio, CD, jukebox, ... ), - telematic system displays (telephone, services , ...), - check of openings (doors, boot, ...), - warning messages (e.g.: "Fuel level low") and vehicle function status messages (e.g.: "Auto lighting activated") displaye d temporarily, - trip computer information, - GPS (Europe) satellite navigation system information.
The system uses the complete and detailed NAVTEQ m aps installed directly on the equipment's hard disk. Updates of the maps of the UK and of the other Euro pean countries, offered by our partner NAVTEQ, are available from the CITROËN network. The system uses the complete and detailed NAVTEQ m aps installed directly on the equipment's hard disk.
S c r e e n c o n fi g u r a t i o n : r e f e r t o t h e s e c t i o n - S c r e e n m e n u m a p .
Telephone
Orange Time:
Date:
Page 147 of 236
9.8
0 3 SCREEN AND MAIN MENU
MAP: orientation, details, display. AUDIO FUNCTIONS: radio, CD, Jukebox, options.
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended without any additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, display, time, languages, voice, auxiliary socket (AUX) display, time, languages, ages,
parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS: warnings log, status of the functions.
NAVIGATION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION: TMC information, messages.
Long press on MENU: help.
Page 148 of 236
9.9
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0 3 SCREEN AND MAIN MENU
Press the OK dial to access short-cut menus according to the display on the screen.
INTERNAL TELEPHONE:
CALL LIST
DIAL
PHONE BOOK
VOICE MAIL NAVIGATION (IF NAVIGATION IS IN PROGRESS):
RESUME/STOP GUIDANCE
DIVERT ROUTE
ROUTE TYPE
CONSULT TRAFFIC INFO
ZOOM/SCROLL MAP
TRIP COMPUTER:
ALERT LOG
STATUS OF FUNCTIONS
BLUETOOTH TELEPHONE:
CALL LIST
CALL
PHONE BOOK
P R I V A T E M O D E / H A N D S - F R E E M O D E
PLACE CALL ON HOLD/RESUME CALL
C D ( M P 3 O R A U D I O ) :
COPY CD TO JBX/STOP COPY
ACTIVATE/DEACTIVATE INTROSCAN
ACTIVATE/DEACTIVATE RANDOM PLAY
ACTIVATE/DEACTIVATE REPEAT
RADIO:
ENTER A FREQUENCY
ACTIVATE/DEACTIVATE RDS
ACTIVATE/DEACTIVATE REG MODE
HIDE/DISPLAY "RADIO TEXT"
JUKEBOX:
SELECT PLAYLIST
ACTIVATE/DEACTIVATE INTROSCAN
ACTIVATE/DEACTIVATE RANDOM PLAY
ACTIVATE/DEACTIVATE REPEAT
USB:
COPY USB TO JBX/STOP COPY
EJECT USB
ACTIVATE/DEACTIVATE INTROSCAN
ACTIVATE/DEACTIVATE RANDOM PLAY
ACTIVATE/DEACTIVATE REPEAT
DISPLAY ACCORDING TO THE CONTEXT
IN "ZOOM/SCROLL" MODE:
POSITION INFO
SELECT AS DESTINATION
SELECT AS STAGE
STORE THIS POSITION
EXIT MAP MODE
GUIDANCE OPTION
Page 171 of 236
9.32
11
2 2
3 3
11
2 2
0 7 INTERNAL TELEPHONE
ENTERING THE PIN CODE
Access the slot by pressing the button using the tip of a pen.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
Your SIM card must be installed and removed with the NaviDrive audio and telematics system switched off and the ig nition off.
Enter the PIN code on the keypad.
C o n fi r m t h e P I N c o d e b y p r e s s i n g button #.
PIN CODE
When entering your PIN code, tick the STORE PIN t ab to gain access to the telephone without having to enter this code when it is used subsequently.
INSTALLING YOUR SIM CARD
(NOT SUPPLIED)
