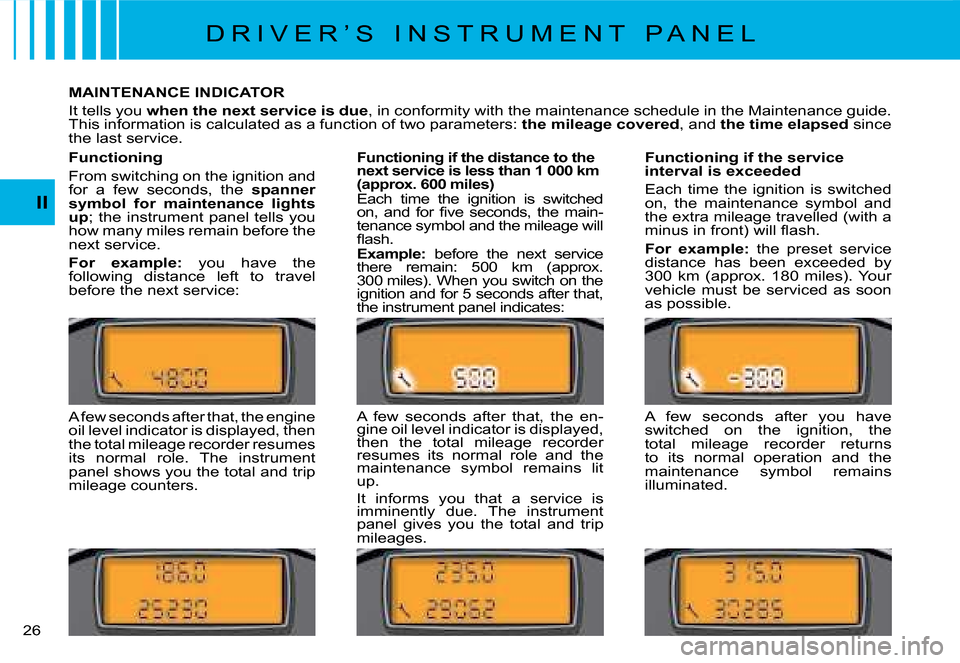

D R I V E R ’ S I N S T R U M E N T P A N E L
MAINTENANCE INDICATOR
It tells you when the next service is due , i n c o n f o r m i t y w i t h t h e m a i n t e n a n c e s c h e d u l e i n t h e M a i n t e n a n c e g u i d e .
T h i s i n f o r m a t i o n i s c a l c u l a t e d a s a f u n c t i o n o f t w o p a r a m e t e r s : the mileage covered , and the time elapsed since
the last service.
Functioning
F r o m s w i t c h i n g o n t h e i g n i t i o n a n d
f o r a f e w s e c o n d s , t h e spanner
symbol for maintenance lights
up ; the instrument panel tells you
h o w m a n y m i l e s r e m a i n b e f o r e t h e
next service.
For example: you have the
f o l l o w i n g d i s t a n c e l e f t t o t r a v e l
before the next service:
Functioning if the distance to the
next service is less than 1 000 km
(approx. 600 miles)
E a c h t i m e t h e i g n i t i o n i s s w i t c h e d
o n , a n d f o r i v e s e c o n d s , t h e m a i n -
t e n a n c e s y m b o l a n d t h e m i l e a g e w i l l
l a s h .
Example: before the next service
there remain: 500 km (approx.
3 0 0 m i l e s ) . W h e n y o u s w i t c h o n t h e
ignition and for 5 seconds after that,
the instrument panel indicates: Functioning if the service
interval is exceeded
E a c h t i m e t h e i g n i t i o n i s s w i t c h e d
on, the maintenance symbol and
t h e e x t r a m i l e a g e t r a v e l l e d ( w i t h a
m i n u s i n f r o n t ) w i l l l a s h .
For example:
the preset service
distance has been exceeded by
300 km (approx. 10 miles). Your
vehicle must be serviced as soon
as possible.
A f e w s e c o n d s a f t e r t h a t , t h e e n g i n e
oil level indicator is displayed, then
the total mileage recorder resumes
its normal role. The instrument
p a n e l s h o w s y o u t h e t o t a l a n d t r i p
mileage counters. A f e w s e c o n d s a f t e r t h a t , t h e e n
-
gine oil level indicator is displayed,
then the total mileage recorder
resumes its normal role and the
maintenance symbol remains lit
up.
It informs you that a service is
imminently due. The instrument
panel gives you the total and trip
mileages. A f e w s e c o n d s a f t e r y o u h a v e
s w i t c h e d o n t h e i g n i t i o n , t h e
total mileage recorder returns
to its normal operation and
the
maintenance symbol remains
illuminated.
Page 22 of 194
27
II

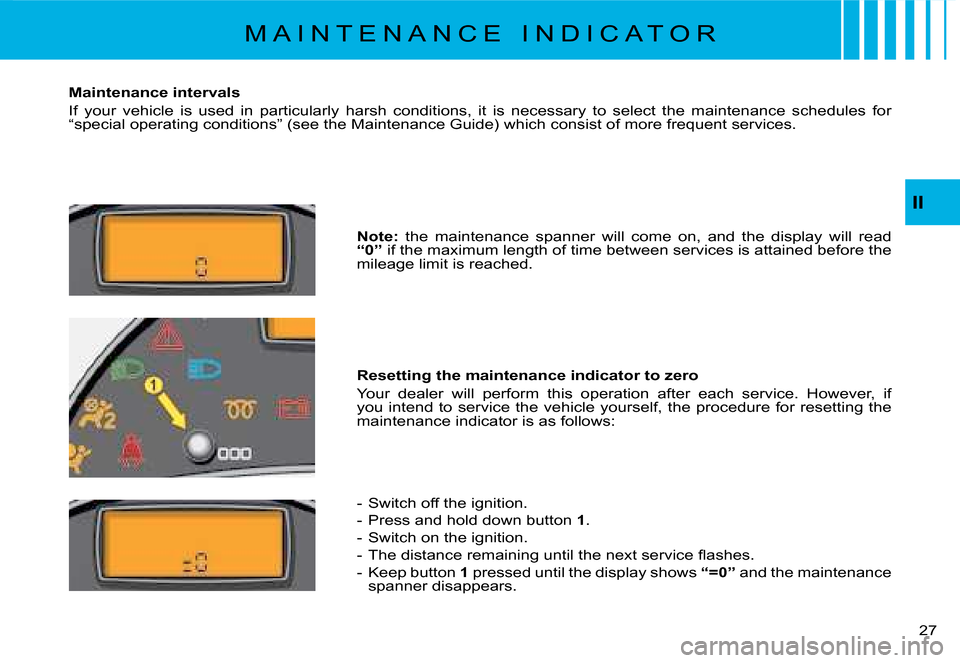

Maintenance intervals
If your vehicle is used in particularly harsh conditions, it is ne
cessary to select the maintenance schedules for
“ s p e c i a l o p e r a t i n g c o n d i t i o n s ” ( s e e t h e M a i n t e n a n c e G u i d e ) w h i c h c o n s i s t o f m o r e f r e q u e n t s e r v i c e s .
Note: t h e m a i n t e n a n c e s p a n n e r w i l l c o m e o n , a n d t h e d i s p l a y w i l l r e a d
“0’’ i f t h e m a x i m u m l e n g t h o f t i m e b e t w e e n s e r v i c e s i s a t t a i n e d b e f o r e t h e
mileage limit is reached.
Resetting the maintenance indicator to zero
Y o u r d e a l e r w i l l p e r f o r m t h i s o p e r a t i o n a f t e r e a c h s e r v i c e . H o w e v e r , i f
you intend to service the vehicle yourself, the procedure for reset ting the
m a i n t e n a n c e i n d i c a t o r i s a s f o l l o w s :
- S w i t c h o f f t h e i g n i t i o n .
- P r e s s a n d h o l d d o w n b u t t o n 1.
- S w i t c h o n t h e i g n i t i o n .
- T h e d i s t a n c e r e m a i n i n g u n t i l t h e n e x t s e r v i c e l a s h e s .
- Keep button 1 p r e s s e d u n t i l t h e d i s p l a y s h o w s “=0” and the maintenance
spanner disappears.
M A I N T E N A N C E I N D I C A T O R
Page 23 of 194
2 II

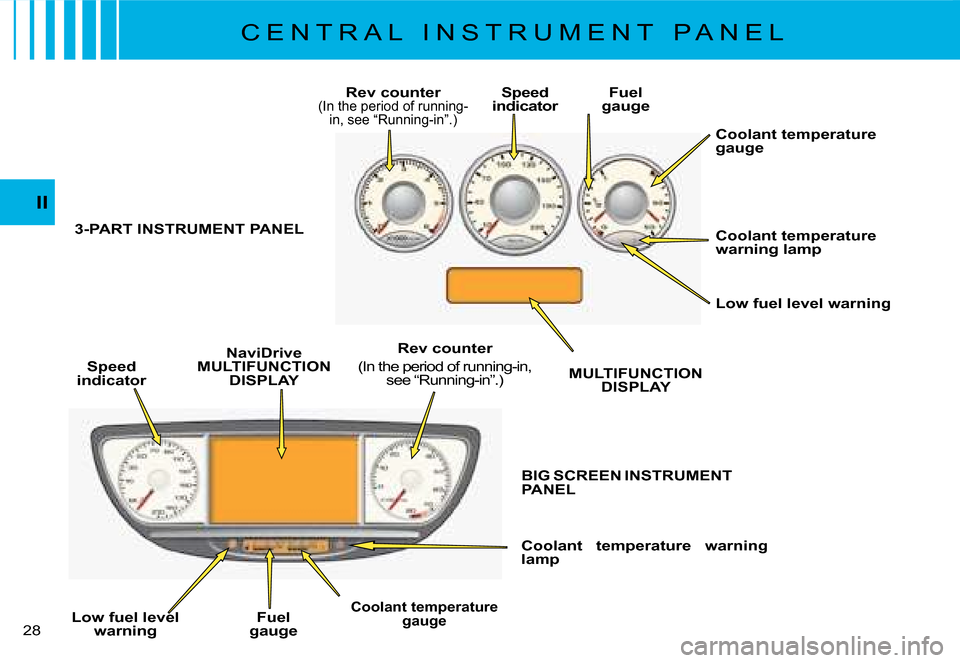

3-PART INSTRUMENT PANEL
BIG SCREEN INSTRUMENT
PANEL
Speed
indicator NaviDrive
MULTIFUNCTION DISPLAY Rev counter
(In the period of running-in, see “Running-in”.)
Coolant temperature warning
lamp
Coolant temperature gaugeFuel
gauge
Low fuel level
warning C E N T R A L I N S T R U M E N T P A N E L
Coolant temperature
gauge
Coolant temperature
warning lamp
Low fuel level warning
Rev counter
(In the period of running-
in, see “Running-in”.)Speed
indicator Fuel
gauge
MULTIFUNCTION DISPLAY
Page 24 of 194
2
II

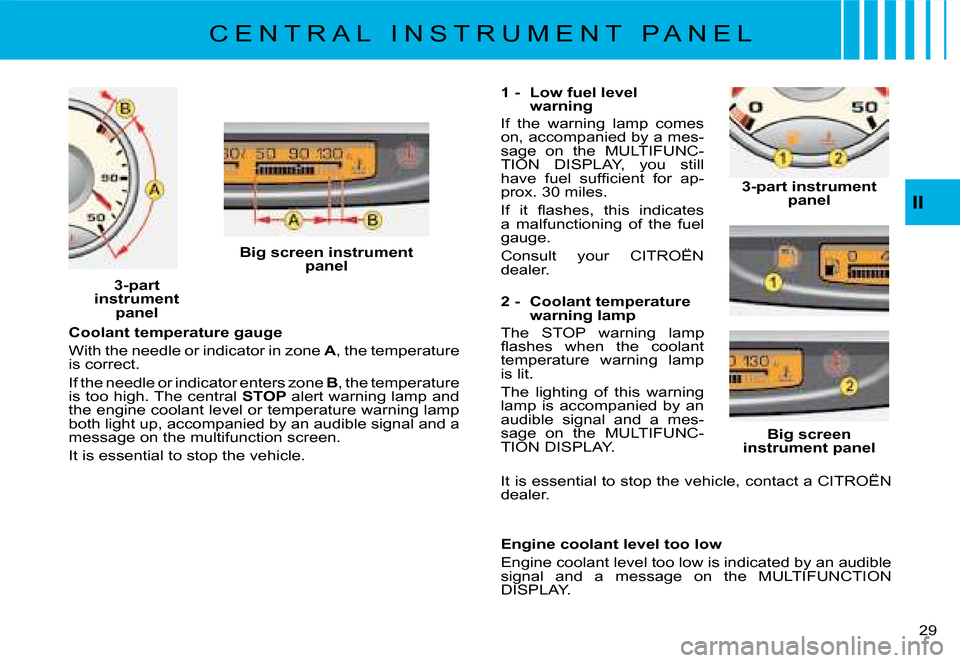

Coolant temperature gauge
With the needle or indicator in zone A, the temperature
is correct.
If the needle or indicator enters zone B, the temperature
is too high. The central STOP a l e r t w a r n i n g l a m p a n d
t h e e n g i n e c o o l a n t l e v e l o r t e m p e r a t u r e w a r n i n g l a m p
both light up, accompanied by an audible signal and a
message on the multifunction screen.
It is essential to stop the vehicle. 1 - Low fuel level
warning
I f t h e w a r n i n g l a m p c o m e s
on, accompanied by a mes-
sage on the MULTIFUNC-
TION DISPLAY, you still
h a v e f u e l s u f i c i e n t f o r a p -
prox. 30 miles.
I f i t l a s h e s , t h i s i n d i c a t e s
a malfunctioning of the fuel
gauge.
Consult your CITROËN
dealer.
2 - Coolant temperature warning lamp
T h e S T O P w a r n i n g l a m p
l a s h e s w h e n t h e c o o l a n t
t e m p e r a t u r e w a r n i n g l a m p
is lit.
T h e l i g h t i n g o f t h i s w a r n i n g
lamp is accompanied by an
audible signal and a mes-
sage on the MULTIFUNC-
TION DISPLAY.
It is essential to stop the vehicle, contact a CITROËN
dealer. 3-part instrument
panel
Big screen
instrument panel
Engine coolant level too low
E n g i n e c o o l a n t l e v e l t o o l o w i s i n d i c a t e d b y a n a u d i b l e
signal and a message on the MULTIFUNCTION
DISPLAY.
Big screen instrument
panel
3-part
instrument panel C E N T R A L I N S T R U M E N T P A N E L
Page 25 of 194
30 II

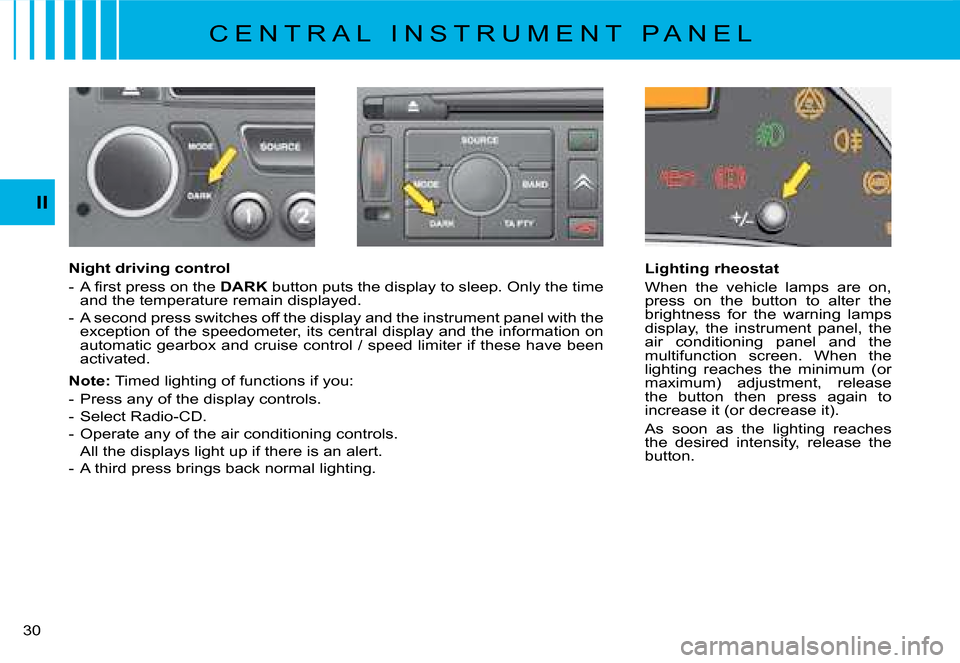

Lighting rheostat
When the vehicle lamps are on,
press on the button to alter the
b r i g h t n e s s f o r t h e w a r n i n g l a m p s
display, the instrument panel, the
air conditioning panel and the
multifunction screen. When the
lighting reaches the minimum (or
maximum) adjustment, release
the button then press again to
increase it (or decrease it).
As soon as the lighting reaches
the desired intensity, release the
button.
Night driving control
- A i r s t p r e s s o n t h e
DARK button puts the display to sleep. Only the time
and the temperature remain displayed.
- A s e c o n d p r e s s s w i t c h e s o f f t h e d i s p l a y a n d t h e i n s t r u m e n t p a n e l w i t h t h e
exception of the speedometer, its central display and the in formation on
automatic gearbox and cruise control / speed limiter if these ha ve been
activated.
Note: Timed lighting of functions if you:
- Press any of the display controls.
- Select Radio-CD.
- Operate any of the air conditioning controls.
All the displays light up if there is an alert.
- A third press brings back normal lighting. C E N T R A L I N S T R U M E N T P A N E L
Page 26 of 194
31
II

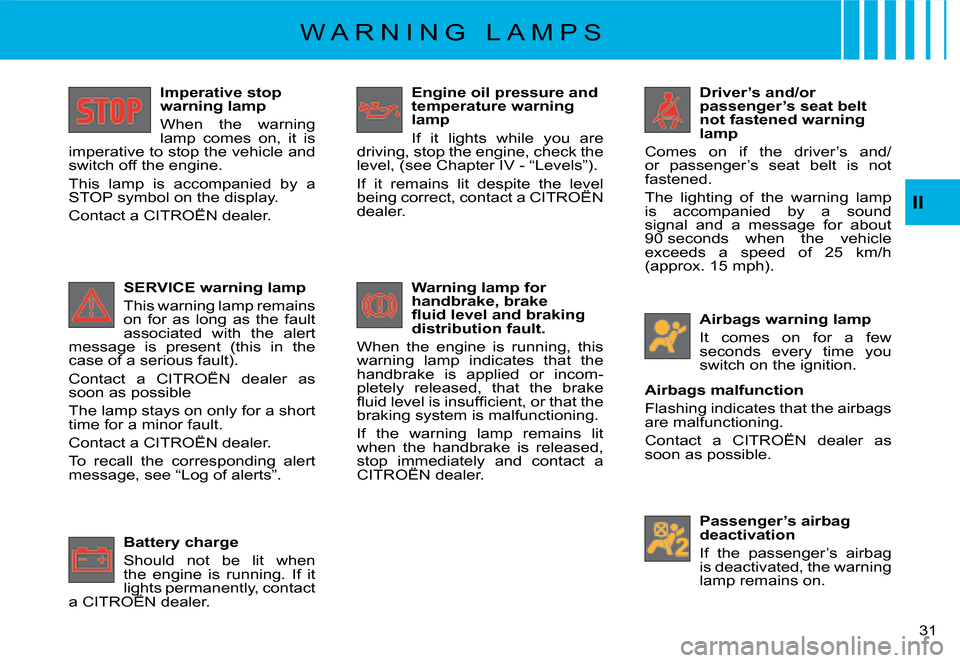

Imperative stop
warning lamp
W h e n t h e w a r n i n g
lamp comes on, it is
imperative to stop the vehicle and
s w i t c h o f f t h e e n g i n e .
This lamp is accompanied by a
STOP symbol on the display.
Contact a CITROËN dealer.
SERVICE warning lamp
T h i s w a r n i n g l a m p r e m a i n s
on for as long as the fault
a s s o c i a t e d w i t h t h e a l e r t
message is present (this in the
case of a serious fault).
Contact a CITROËN dealer as
soon as possible
The lamp stays on only for a short
time for a minor fault.
Contact a CITROËN dealer.
To recall the corresponding alert
message, see “Log of alerts”.
Battery charge
S h o u l d n o t b e l i t w h e n
the engine is running. If it
lights permanently, contact
a CITROËN dealer. Engine oil pressure and
temperature warning
lamp
I f i t l i g h t s w h i l e y o u a r e
driving, stop the engine, check the
level, (see Chapter IV - “Levels”).
If it remains lit despite the level
being correct, contact a CITROËN
dealer. Driver’s and/or
passenger’s seat belt
not fastened warning
lamp
Comes on if the driver’s and/
or passenger’s seat belt is not
fastened.
T h e l i g h t i n g o f t h e w a r n i n g l a m p
is accompanied by a sound
signal and a message for about
9 0 s e c o n d s w h e n t h e v e h i c l e
exceeds a speed of 25 km/h
(approx. 15 mph).
Warning lamp for
handbrake, brake
l u i d l e v e l a n d b r a k i n g
distribution fault.
When the engine is running, this
w a r n i n g l a m p i n d i c a t e s t h a t t h e
handbrake is applied or incom-
pletely released, that the brake
l u i d l e v e l i s i n s u f i c i e n t , o r t h a t t h e
braking system is malfunctioning.
I f t h e w a r n i n g l a m p r e m a i n s l i t
w h e n t h e h a n d b r a k e i s r e l e a s e d ,
stop immediately and contact a
CITROËN dealer. Airbags warning lamp
I t c o m e s o n f o r a f e w
seconds every time you
s w i t c h o n t h e i g n i t i o n .
Airbags malfunction
Flashing indicates that the airbags
are malfunctioning.
Contact a CITROËN dealer as
soon as possible.
Passenger’s airbag
deactivation
If the passenger’s airbag
i s d e a c t i v a t e d , t h e w a r n i n g
lamp remains on.
W A R N I N G L A M P S
Page 27 of 194
32 II

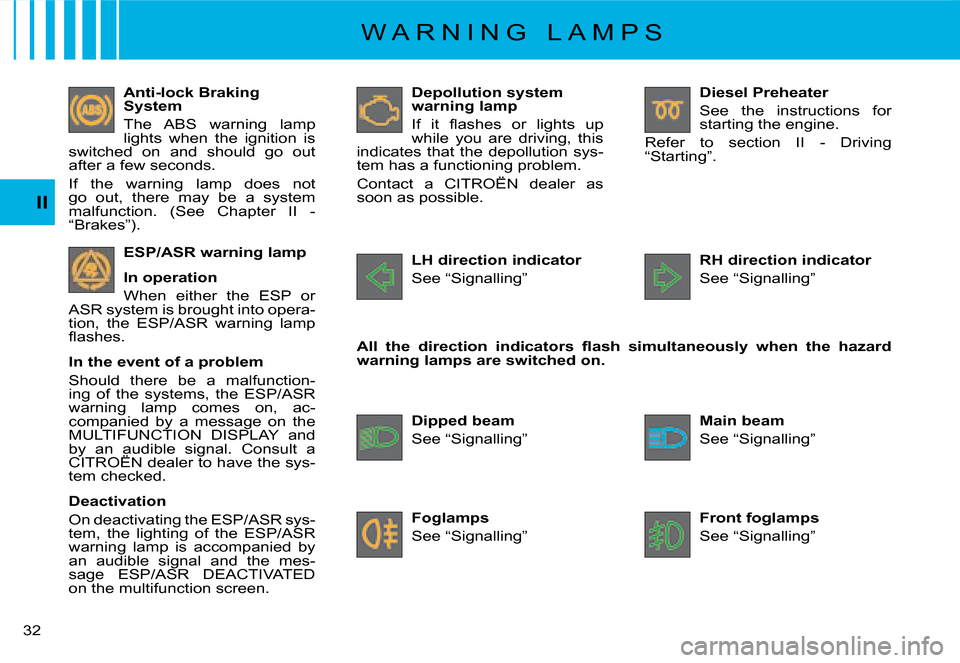

ESP/ASR warning lamp
In operation
When either the ESP or
ASR system is brought into opera-
t i o n , t h e E S P / A S R w a r n i n g l a m p
l a s h e s .
In the event of a problem
Should there be a malfunction-
ing of the systems, the ESP/ASR
w a r n i n g l a m p c o m e s o n , a c -
companied by a message on the
MULTIFUNCTION DISPLAY and
by an audible signal. Consult a
CITROËN dealer to have the sys-
tem checked.
Deactivation
On deactivating the ESP/ASR sys-
tem, the lighting of the ESP/ASR
w a r n i n g l a m p i s a c c o m p a n i e d b y
an audible signal and the mes-
sage ESP/ASR DEACTIVATED
on the multifunction screen. Anti-lock Braking
System
T h e A B S w a r n i n g l a m p
l i g h t s w h e n t h e i g n i t i o n i s
s w i t c h e d o n a n d s h o u l d g o o u t
a f t e r a f e w s e c o n d s .
I f t h e w a r n i n g l a m p d o e s n o t
go out, there may be a system
malfunction. (See Chapter II -
“Brakes”). Depollution system
warning lamp
I f i t l a s h e s o r l i g h t s u p
w h i l e y o u a r e d r i v i n g , t h i s
indicates that the depollution sys-
tem has a functioning problem.
Contact a CITROËN dealer as
soon as possible.
LH direction indicator
See “Signalling” Diesel Preheater
See the instructions for
starting the engine.
Refer to section II - Driving
“Starting”.
RH direction indicator
See “Signalling”
A l l t h e d i r e c t i o n i n d i c a t o r s l a s h s i m u l t a n e o u s l y w h e n t h e h a z a r d
warning lamps are switched on.
Dipped beam
See “Signalling” Main beam
See “Signalling”
Foglamps
See “Signalling” Front foglamps
See “Signalling”
W A R N I N G L A M P S
Page 28 of 194
33
II

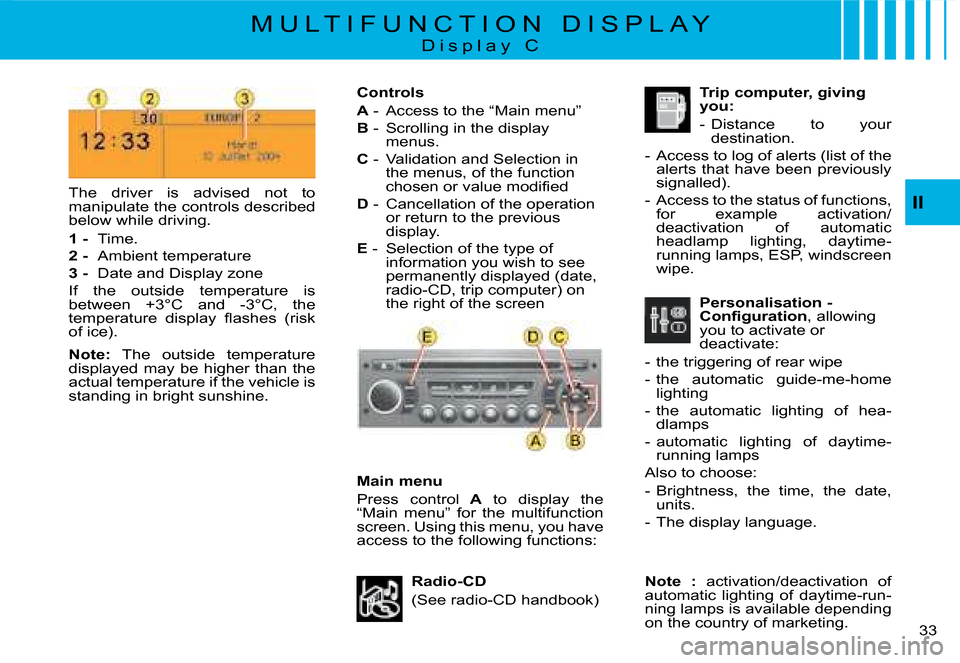

M U L T I F U N C T I O N D I S P L A Y
D i s p l a y C
Main menu
Press control
A to display the
“Main menu” for the multifunction
screen. Using this menu, you have
a c c e s s t o t h e f o l l o w i n g f u n c t i o n s :
The driver is advised not to
manipulate the controls described
b e l o w w h i l e d r i v i n g .
1 -
Time.
2 - Ambient temperature
3 - Date and Display zone
If the outside temperature is
b e t w e e n + 3 ° C a n d - 3 ° C , t h e
t e m p e r a t u r e d i s p l a y l a s h e s ( r i s k
of ice).
Note: The outside temperature
displayed may be higher than the
actual temperature if the vehicle is
standing in bright sunshine.
Radio-CD
(See radio-CD handbook)Trip computer, giving
you:
- Distance to your
destination.
- Access to log of alerts (list of the alerts that have been previously
signalled).
- Access to the status of functions, for example activation/
deactivation of automatic
headlamp lighting, daytime-
r u n n i n g l a m p s , E S P , w i n d s c r e e n
w i p e .
Personalisation -
C o n i g u r a t i o n , a l l o w i n g
you to activate or
deactivate:
- t h e t r i g g e r i n g o f r e a r w i p e
- the automatic guide-me-home lighting
- the automatic lighting of hea- dlamps
- automatic lighting of daytime- running lamps
Also to choose:
- Brightness, the time, the date, units.
- The display language.
Note : activation/deactivation of
automatic lighting of daytime-run-
ning lamps is available depending
on the country of marketing.
Controls
A
- Access to the “Main menu”
B - Scrolling in the display
menus.
C - Validation and Selection in
the menus, of the function
c h o s e n o r v a l u e m o d i i e d
D - Cancellation of the operation
or return to the previous
display.
E - Selection of the type of
i n f o r m a t i o n y o u w i s h t o s e e
permanently displayed (date,
radio-CD, trip computer) on
the right of the screen
Page 29 of 194
3 4 II
M U L T I F U N C T I O N D I S P L A Y
D i s p l a y C
PERSONALISATION and
CONFIGURATION
To activate/deactivate rear
screen wipe when engaging
reverse gear :
- Press
A.
- Select the “Personalisation- C o n i g u r a t i o n ” i c o n u s i n g B,
t h e n c o n i r m y o u r c h o i c e b y
pressing C.
- Then select the vehicle parame- ters sub-menu.
C o n i r m b y p r e s s i n g C.
- Using B, select rear screen
w i p e .
C o n i r m b y p r e s s i n g C.
- Then by pressing C, select/de-
s e l e c t r e a r s c r e e n w i p e t o a c t i -
vate/deactivate.
- Validate using “OK” on the dis-
play.
TRIP COMPUTER
To enter the distance to be
travelled in the trip computer:
- Press on
A.
- Use B to select the trip computer
i c o n , t h e n c o n i r m w i t h a p r e s s
on C.
- Select your entry of distance, using B . C o n i r m y o u r c h o i c e
w i t h a p r e s s o n C.
- To choose the distance, select t h e i g u r e t o b e m o d i i e d , u s i n g B,
t h e n c o n i r m w i t h a p r e s s o n C.
- Use B to adjust the value then
v a l i d a t e w i t h a p r e s s o n C.
- Validate on “OK” on the display.
To access the log of alerts in
the trip computer:
- Press on A.
- Use B to select the trip computer
i c o n , t h e n c o n i r m w i t h a p r e s s
on C.
- Select the log of alerts.
- When the list is displayed, scroll d o w n b y p r e s s i n g B.
- Press on D, to return to the
permanent display.
To access the status of
functions, proceed in a similar
manner. To activate/deactivate the
automatic guide-me-home
lighting:
- Press on
A.
- Use B to select the icon
“ P e r s o n a l i s a t i o n - C o n i g u r a t i o n ”
t h e n c o n i r m y o u r c h o i c e w i t h a
press on C.
- Then select the sub-menu for v e h i c l e p a r a m e t e r s . C o n i r m
y o u r c h o i c e w i t h a p r e s s o n C.
- Using B, select lighting and
s i g n a l l i n g . C o n i r m y o u r c h o i c e
w i t h a p r e s s o n C.
- T h e n w i t h a p r e s s o n C, select/
deselect guide-me-home lighting
to activate or deactivate it. After
activation, choose the duration:
press on C then use B to select
the duration and press on C.
- Validate on “OK” on the display.
To activate/deactivate the au-
tomatic lighting of headlamps,
proceed in a similar manner.
Page 30 of 194
35
II
M U L T I F U N C T I O N D I S P L A Y
D i s p l a y C
To adjust the date and the time:
- Press on
A.
- Use B to select the icon
“ P e r s o n a l i s a t i o n - C o n i g u r a t i o n ”
t h e n c o n i r m y o u r c h o i c e w i t h a
press on C.
- S e l e c t t h e d i s p l a y c o n i g u r a t i o n using B . C o n i r m w i t h a p r e s s
on C.
- Select the date and time adjustment, using B, then
c o n i r m w i t h a p r e s s o n C.
- Use B to select the values to be
m o d i i e d . C o n i r m w i t h a p r e s s
on C.
- Make your adjustments using B,
v a l i d a t i n g e a c h a d j u s t m e n t w i t h
a press on C.
- Validate on “OK” on the display. To choose units:
- Press on
A.
- Use B to select the icon
“ P e r s o n a l i s a t i o n - C o n i g u r a t i o n ”
t h e n c o n i r m y o u r c h o i c e w i t h a
press on C.
- S e l e c t t h e d i s p l a y c o n i g u r a t i o n using B . C o n i r m w i t h a p r e s s
on C.
- Then select the sub-menu for U n i t s . C o n i r m w i t h a p r e s s
on C.
- Using B, select the unit to
b e m o d i i e d ( T e m p e r a t u r e o r
C o n s u m p t i o n ) t h e n v a l i d a t e w i t h
a press on C.
- Validate on “OK” on the display.
Note: This choice concerns all
the types of information (fuel
consumption, speed, etc.) that
appear on the displays.
To choose the language:
- Press on A.
- Use B to select the icon
“ P e r s o n a l i s a t i o n - C o n i g u r a t i o n ”
t h e n c o n i r m y o u r c h o i c e w i t h a
press on C.
- Select the choice of language, using B.
- Using B, select the desired
language and validate your
c h o i c e w i t h a p r e s s o n C.
- Validate on “OK” on the display.
To adjust the display
brightness:
- Press on
A.
- Use B to select the icon
“ P e r s o n a l i s a t i o n - C o n i g u r a t i o n ”
t h e n c o n i r m y o u r c h o i c e w i t h a
press on C.
- S e l e c t t h e d i s p l a y c o n i g u r a t i o n using B . C o n i r m w i t h a p r e s s
on C.
- Select the adjustment of b r i g h t n e s s . C o n i r m w i t h a p r e s s
on C.
- Use B to select normal or other
display mode, then validate
w i t h a p r e s s o n C. To adjust
the brightness, select the
symbols “+” or “-” a n d c o n i r m
y o u r a d j u s t m e n t w i t h a p r e s s
on C.
- Validate on “OK” on the display.
