64 II

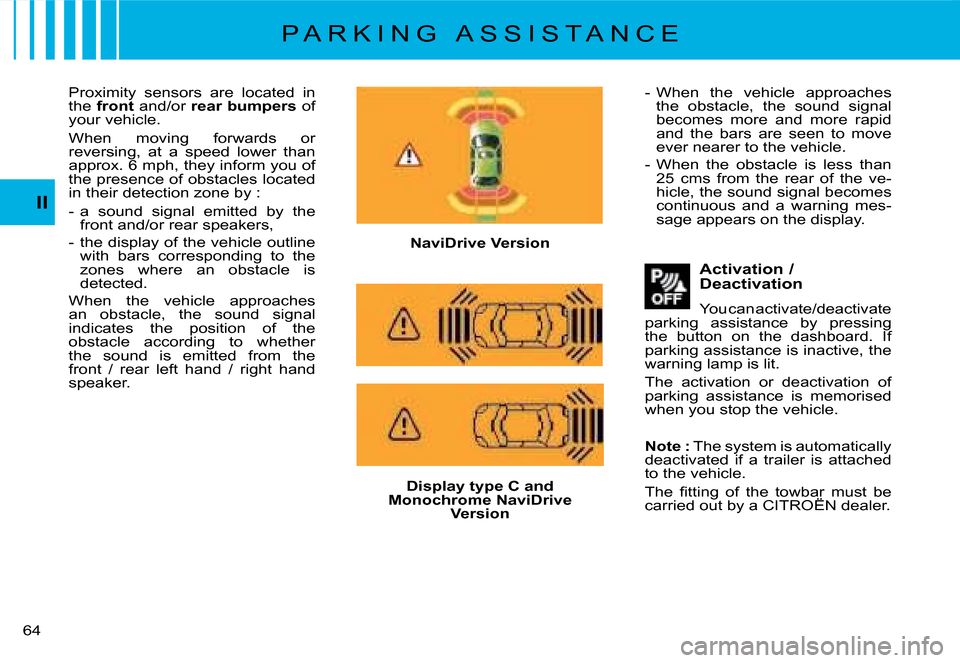

Proximity sensors are located in
the
front and/or rear bumpers of
your vehicle.
When moving forwards or
reversing, at a speed lower than
approx.  mph, they inform you of
the presence of obstacles located
in their detection zone by :
- a sound signal emitted by the front and/or rear speakers,
- the display of the vehicle outline with bars corresponding to the
zones where an obstacle is
detected.
When the vehicle approaches
an obstacle, the sound signal
indicates the position of the
obstacle according to whether
the sound is emitted from the
front / rear left hand / right hand
speaker. - When the vehicle approaches
the obstacle, the sound signal
becomes more and more rapid
and the bars are seen to move
ever nearer to the vehicle.
- When the obstacle is less than 25 cms from the rear of the ve-
hicle, the sound signal becomes
continuous and a warning mes -
sage appears on the display.
NaviDrive Version
Display type C and
Monochrome NaviDrive Version
P A R K I N G A S S I S T A N C E
Activation /
Deactivation
You can activate/deactivate
parking assistance by pressing
the button on the dashboard. If
parking assistance is inactive, the
warning lamp is lit.
The activation or deactivation of
parking assistance is memorised
when you stop the vehicle.
Note : The system is automatically
deactivated if a trailer is attached
to the vehicle.
The itting of the towbar must be
carried out by a CITROËN dealer.

5
II

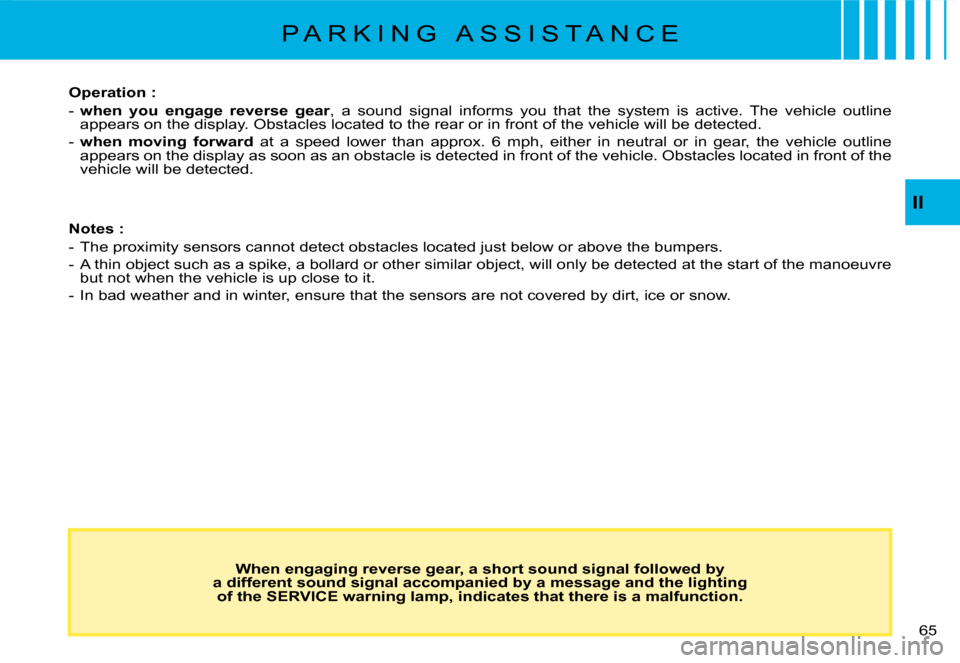

Operation :
-
when you engage reverse gear , a sound signal informs you that the system is active. The vehicl e outline
appears on the display. Obstacles located to the rear or in f ront of the vehicle will be detected.
- when moving forward at a speed lower than approx. 6 mph, either in neutral or in gear, the vehicle outline
appears on the display as soon as an obstacle is detected in f ront of the vehicle. Obstacles located in front of the
vehicle will be detected.
Notes :
- The proximity sensors cannot detect obstacles located just below or above the bumpers.
- A thin object such as a spike, a bollard or other similar obje ct, will only be detected at the start of the manoeuvre
but not when the vehicle is up close to it.
- In bad weather and in winter, ensure that the sensors are not covered by dirt, ice or snow.
P A R K I N G A S S I S T A N C E
When engaging reverse gear, a short sound signal foll owed by
a different sound signal accompanied by a message and the lighting
of the SERVICE warning lamp, indicates that there is a malfunc tion.

 III

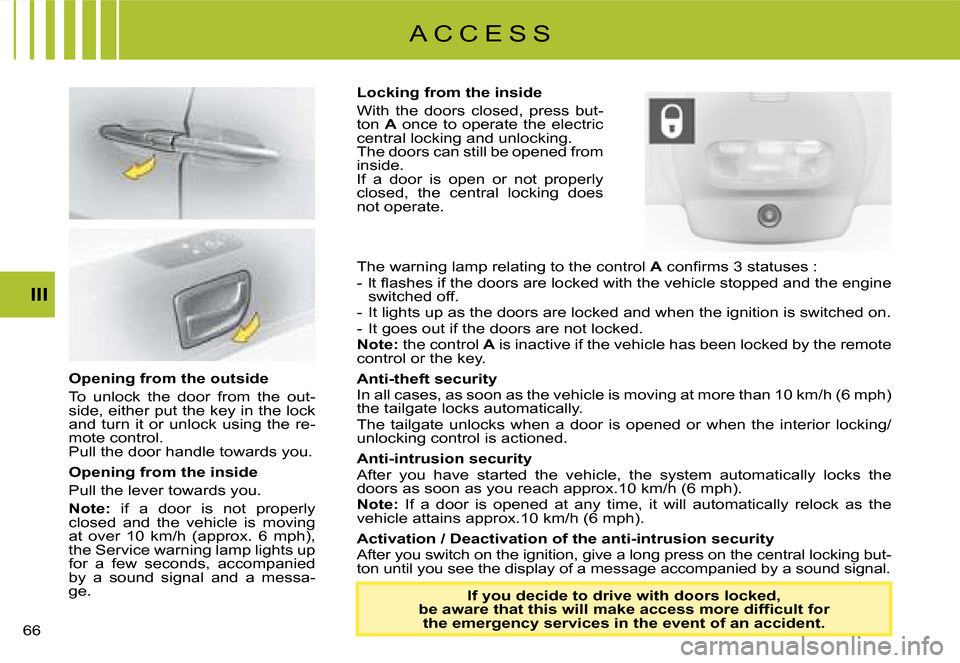

A C C E S S
The warning lamp relating to the control A conirms 3 statuses :
- lt lashes if the doors are locked with the vehicle stopped an d the engine
switched off.
- It lights up as the doors are locked and when the ignitio n is switched on.
- It goes out if the doors are not locked.
Note: the control A is inactive if the vehicle has been locked by the remote
control or the key.
Anti-theft security
In all cases, as soon as the vehicle is moving at more than 10 km/ h (6 mph)
the tailgate locks automatically.
The tailgate unlocks when a door is opened or when the in terior locking/
unlocking control is actioned.
Anti-intrusion security
After you have started the vehicle, the system automatically locks th e
doors as soon as you reach approx.10 km/h (6 mph).
Note: If a door is opened at any time, it will automatically relo ck as the
vehicle attains approx.10 km/h (6 mph).
Activation / Deactivation of the anti-intrusion security
After you switch on the ignition, give a long press on the central locking but-
ton until you see the display of a message accompan ied by a sound signal.
If you decide to drive with doors locked,
be aware that this will make access more difficult for the emergency services in the event of an accident.
Locking from the inside
With the doors closed, press but -
ton A once to operate the electric
central locking and unlocking.
The doors can still be opened from
inside.
If a door is open or not properly
closed, the central locking does
not operate.
Opening from the outside
To unlock the door from the out -
side, either put the key in the lock
and turn it or unlock using the re -
mote control.
Pull the door handle towards you.
Opening from the inside
Pull the lever towards you.
Note: if a door is not properly
closed and the vehicle is moving
at over 10 km/h (approx. 6 mph),
the Service warning lamp lights up
for a few seconds, accompanied
by a sound signal and a messa -
ge.

7
III

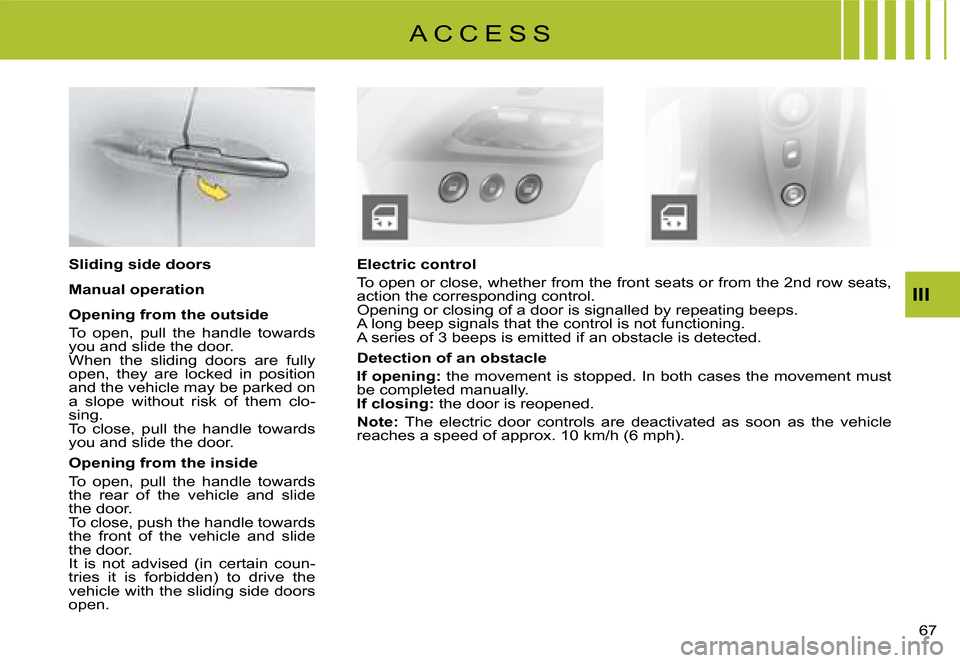

Electric control
To open or close, whether from the front seats or from the 2nd
row seats,
action the corresponding control.
Opening or closing of a door is signalled by repeating beep s.
A long beep signals that the control is not functioning.
A series of 3 beeps is emitted if an obstacle is detected.
Detection of an obstacle
If opening: the movement is stopped. In both cases the movement must
be completed manually.
If closing: the door is reopened.
Note: The electric door controls are deactivated as soon as the vehicle
reaches a speed of approx. 10 km/h (6 mph).
Sliding side doors
Manual operation
Opening from the outside
To open, pull the handle towards
you and slide the door.
When the sliding doors are fully
open, they are locked in position
and the vehicle may be parked on
a slope without risk of them clo
-
sing.
To close, pull the handle towards
you and slide the door.
Opening from the inside
To open, pull the handle towards
the rear of the vehicle and slide
the door.
To close, push the handle towards
the front of the vehicle and slide
the door.
It is not advised (in certain coun -
tries it is forbidden) to drive the
vehicle with the sliding side doors
open. A C C E S S

 III
A C C E S S
Do not leave children or animals unsupervised within
reach of the electric sliding side door controls.
If necessary, deactivate these, then remove the key from th e
ignition, even if only for a short time.
Before driving,
check that the doors are correctly closed and locked.

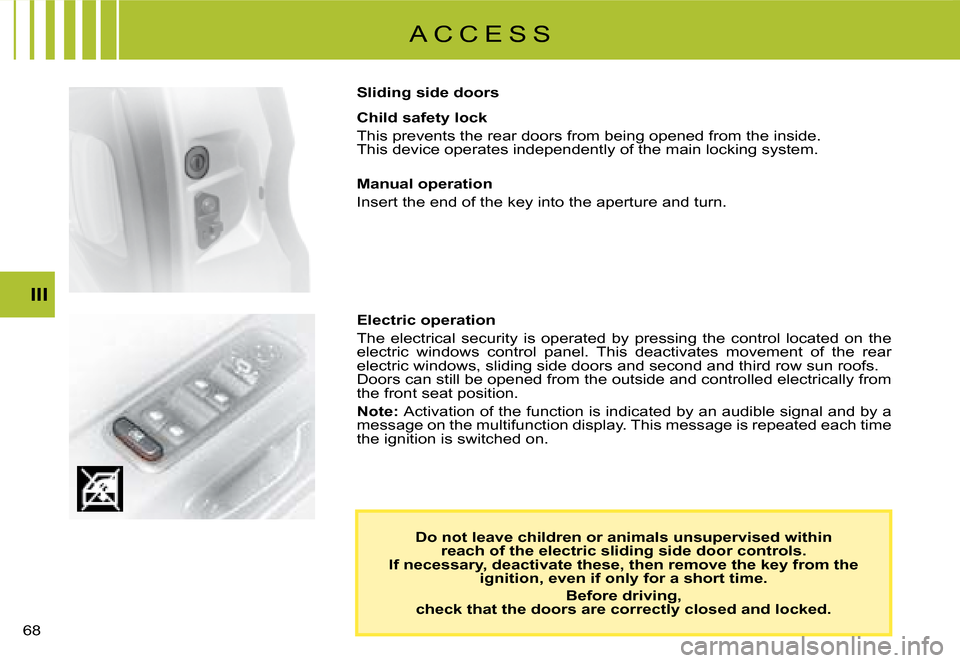

Sliding side doors
Child safety lock
This prevents the rear doors from being opened from the inside.
This device operates independently of the main locking system.
Manual operation
Insert the end of the key into the aperture and turn.
Electric operation
The electrical security is operated by pressing the control located
on the
electric windows control panel. This deactivates movement of the rear
electric windows, sliding side doors and second and third row su n roofs.
Doors can still be opened from the outside and controlled el ectrically from
the front seat position.
Note: Activation of the function is indicated by an audible signa l and by a
message on the multifunction display. This message is repeated each time
the ignition is switched on.


III
A C C E S S

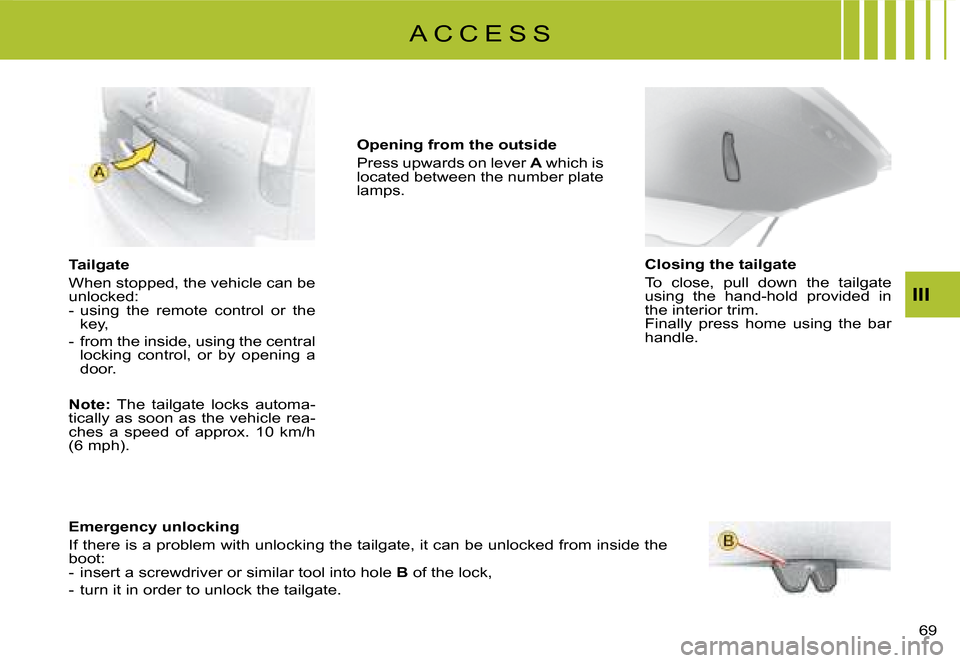

Tailgate
When stopped, the vehicle can be
unlocked:
- using the remote control or the key,
- from the inside, using the central locking control, or by opening a
door.
Note: The tailgate locks automa -
tically as soon as the vehicle rea -
ches a speed of approx. 10 km/h
(6 mph).
Emergency unlocking
If there is a problem with unlocking the tailgate, it can be unlocked from inside the
boot:
- insert a screwdriver or similar tool into hole B of the lock,
- turn it in order to unlock the tailgate. Opening from the outside
Press upwards on lever
A which is
located between the number plate
lamps.
Closing the tailgate
To close, pull down the tailgate
using the hand-hold provided in
the interior trim.
Finally press home using the bar
handle.

70 III

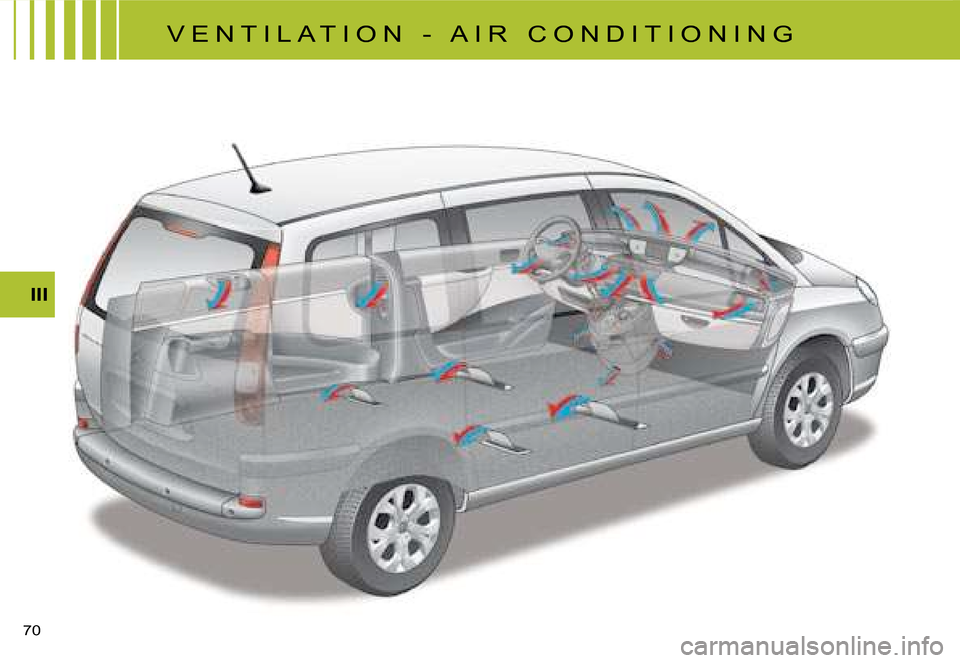

V E N T I L A T I O N - A I R C O N D I T I O N I N G

71
III
V E N T I L A T I O N - A I R C O N D I T I O N I N G

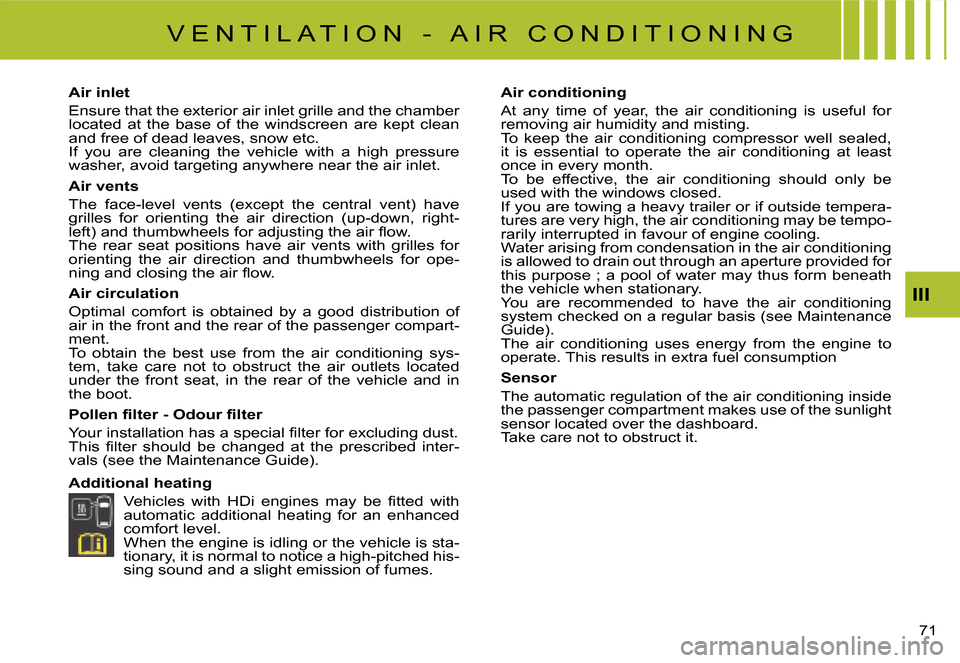

Air inlet
Ensure that the exterior air inlet grille and the chamber
located at the base of the windscreen are kept clean
and free of dead leaves, snow etc.
If you are cleaning the vehicle with a high pressure
washer, avoid targeting anywhere near the air inlet.
Air vents
The face-level vents (except the central vent) have
grilles for orienting the air direction (up-down, right-
left) and thumbwheels for adjusting the air low.
The rear seat positions have air vents with grilles for
orienting the air direction and thumbwheels for ope -
ning and closing the air low.
Air circulation
Optimal comfort is obtained by a good distribution of
air in the front and the rear of the passenger compart -
ment.
To obtain the best use from the air conditioning sys -
tem, take care not to obstruct the air outlets located
under the front seat, in the rear of the vehicle and in
the boot.
Pollen ilter - Odour ilter
Your installation has a special ilter for excluding dust.
This ilter should be changed at the prescribed inter -
vals (see the Maintenance Guide).
Additional heating
Vehicles with HDi engines may be itted with
automatic additional heating for an enhanced
comfort level.
When the engine is idling or the vehicle is sta -
tionary, it is normal to notice a high-pitched his -
sing sound and a slight emission of fumes.
Air conditioning
At any time of year, the air conditioning is useful for
removing air humidity and misting.
To keep the air conditioning compressor well sealed,
it is essential to operate the air conditioning at least
once in every month.
To be effective, the air conditioning should only be
used with the windows closed.
If you are towing a heavy trailer or if outside tempera -
tures are very high, the air conditioning may be tempo -
rarily interrupted in favour of engine cooling.
Water arising from condensation in the air conditioning
is allowed to drain out through an aperture provided for
this purpose ; a pool of water may thus form beneath
the vehicle when stationary.
You are recommended to have the air conditioning
system checked on a regular basis (see Maintenance
Guide).
The air conditioning uses energy from the engine to
operate. This results in extra fuel consumption
Sensor
The automatic regulation of the air conditioning inside
the passenger compartment makes use of the sunlight
sensor located over the dashboard.
Take care not to obstruct it.

1
23
4
6
7
5
72 III

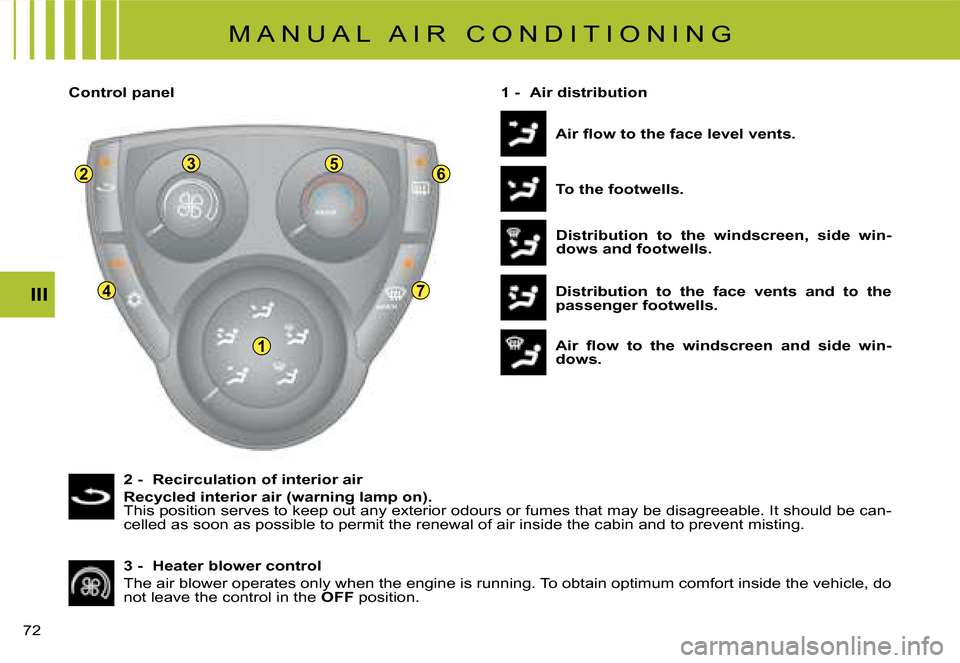

M A N U A L A I R C O N D I T I O N I N G
1 - Air distributionAir low to the face level vents.
To the footwells.
Distribution to the face vents and to the
passenger footwells.
Air low to the windscreen and side win -
dows.
2 - Recirculation of interior air
Recycled interior air (warning lamp on).
This position serves to keep out any exterior odours or fumes that may be disagreeable. It should be can-
celled as soon as possible to permit the renewal of air insid e the cabin and to prevent misting.
3 - Heater blower control
The air blower operates only when the engine is running. T o obtain optimum comfort inside the vehicle, do
not leave the control in the OFF position. Distribution to the windscreen, side win-
dows and footwells.
Control panel

73
III

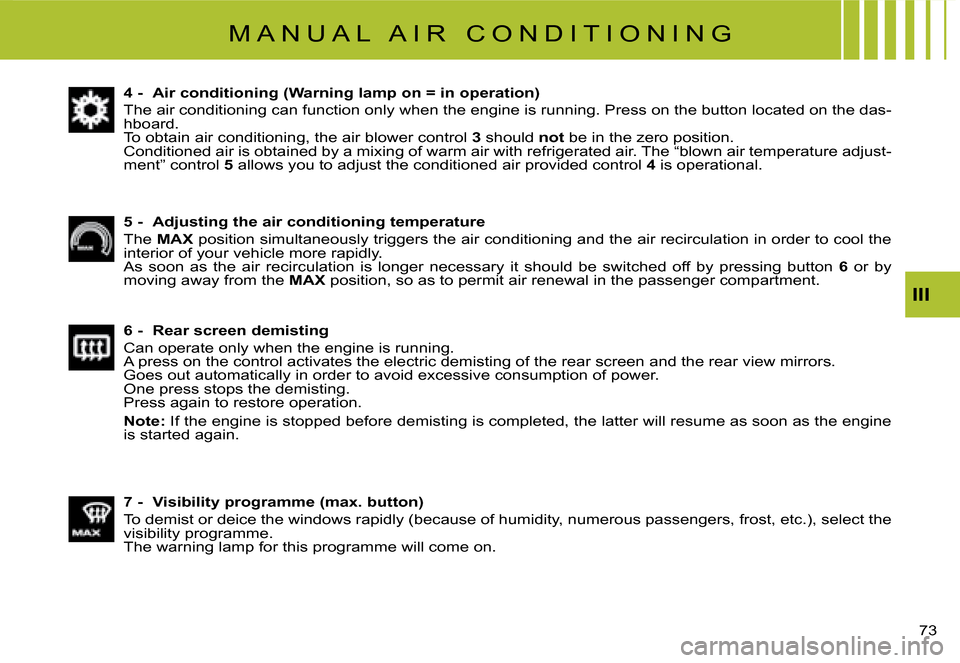

M A N U A L A I R C O N D I T I O N I N G
4 - Air conditioning (Warning lamp on = in operation)
The air conditioning can function only when the engine i s running. Press on the button located on the das-
hboard.
To obtain air conditioning, the air blower control 3 should not be in the zero position.
Conditioned air is obtained by a mixing of warm air with ref rigerated air. The “blown air temperature adjust-
ment” control 5 allows you to adjust the conditioned air provided control 4 is operational.
5 - Adjusting the air conditioning temperature
The MAX position simultaneously triggers the air conditioning and th e air recirculation in order to cool the
interior of your vehicle more rapidly.
As soon as the air recirculation is longer necessary it should be swi tched off by pressing button 6 or by
moving away from the MAX position, so as to permit air renewal in the passenger compart ment.
6 - Rear screen demisting
Can operate only when the engine is running.
A press on the control activates the electric demisting of the re ar screen and the rear view mirrors.
Goes out automatically in order to avoid excessive consumption of power.
One press stops the demisting.
Press again to restore operation.
Note: If the engine is stopped before demisting is completed, th e latter will resume as soon as the engine
is started again.
7 - Visibility programme (max. button)
To demist or deice the windows rapidly (because of humidity, n umerous passengers, frost, etc.), select the
visibility programme.
The warning lamp for this programme will come on.
