Page 4 of 252
9
1
FAMILIARISATION
Interior
13. Battery / Fuse box.
14. Passenger air bag.
15. Passenger's lower glove box /
CD changer / Fuse box.
16. Air conditioning controls.
17. Lighter / 12 V accessories socket.
18. Hazard warning lights switch.
19. Storage compartment or additional
telematics control.
20. Cooled compartment.
21. Ashtray / Can holder.
22. Seat adjustment control.
23. Storage compartment.
24. Handbrake - on the left.
1. Electric mirror controls.
- Electric window controls.
- Deactivation of the rear electric controls.
2. Driver's upper glove box.
3. Central adjustable vents.
4. Audio equipment or GPS
multimedia audio equipment with
fl a p .
5. I n s t r u m e n t p a n e l / L a r g e c o l o u r
display.
6. Sunshine and passenger
compartment temperature sensor.
7. Passenger's upper glove box.
8. Windscreen demisting vents.
9. Speaker (tweeter).
10. Front window demisting vents.
11. Passenger air bag disarming
s w i t c h , i f fi t t e d o n y o u r v e h i c l e .
12. Side adjustable vent.
25. Bonnet release under cover - on
the left.
26. Acoustic windscreen.
INTERIOR OVERVIEW
SETTING THE DATE AND
TIME
For more information about
this adjustment, refer to the "Setting
the date and time" section of the
" I n - c a r t e c h n o l o g y " c h a p t e r .
ADDITIONAL HEATER
With the engine at idle
or when the vehicle is
stationary, it is normal
to notice a high-pitched
whistling and a slight emission of
smoke and odour.
Page 41 of 252
Steering wheel controls
ERGONOMICS and COMFORT
3
45
Automatic lights
I f y o u r v e h i c l e i s fi t t e d
with a brightness
sensor.
Lights off
D i p p e d b e a m ( g r e e n )
M a i n b e a m ( b l u e )
DIRECTION INDICATORS
(green flashing)
STEERING WHEEL CONTROLS
C h e c k i n g b y m e a n s o f t h e i n d i c a t o r
lights on the instrument panel is
d e s c r i b e d i n t h e " I n s t r u m e n t s a n d
c o n t r o l s " s e c t i o n o f c h a p t e r 2 . S i d e l i g h t s
LIGHTING CONTROL
Left : d o w n w a r d s .
Right : u p w a r d s . Front and rear lights
Selection is by turning ring
A .
Page 42 of 252
Steering wheel controls
ERGONOMICS and COMFORT
3
45
Automatic lights
I f y o u r v e h i c l e i s fi t t e d
with a brightness
sensor.
Lights off
D i p p e d b e a m ( g r e e n )
M a i n b e a m ( b l u e )
DIRECTION INDICATORS
(green flashing)
STEERING WHEEL CONTROLS
C h e c k i n g b y m e a n s o f t h e i n d i c a t o r
lights on the instrument panel is
d e s c r i b e d i n t h e " I n s t r u m e n t s a n d
c o n t r o l s " s e c t i o n o f c h a p t e r 2 . S i d e l i g h t s
LIGHTING CONTROL
Left : d o w n w a r d s .
Right : u p w a r d s . Front and rear lights
Selection is by turning ring
A .
Page 44 of 252
Steering wheel controls
ERGONOMICS and COMFORT
3
47
Automatic "Follow-Me-Home"
lighting
W i t h t h e i g n i t i o n o f f , w h e n y o u l e a v e
your vehicle with the automatic
switching on of the lights function
activated , t h e s i d e l i g h t s a n d d i p p e d
h e a d l a m p s r e m a i n o n f o r t h e s e l e c t e d
d u r a t i o n .
T o d e a c t i v a t e o r a c t i v a t e t h i s
f u n c t i o n , g o t o t h e d i s p l a y
c o n fi g u r a t i o n m e n u .
T h e d u r a t i o n o f t h e t i m e d p e r i o d m u s t
a l s o b e s e t ( 1 5 , 3 0 , 6 0 s e c o n d s ) , v i a
t h e d i s p l a y c o n fi g u r a t i o n m e n u .
Carry out these operations when the
vehicle is stationary.
HEADLAMPS BEAM
D e p e n d i n g o n t h e l o a d i n y o u r
v e h i c l e , t h e b e a m s e t t i n g m u s t b e
a d j u s t e d .
0 - 1 o r 2 p e o p l e i n t h e f r o n t s e a t s .
1 - 5 people.
2 - 6 to 8 people.
3 - D r i v e r + m a x i m u m a u t h o r i s e d
l o a d s .
Initial setting is position 0.
I n f o g g y w e a t h e r o r i n s n o w ,
the brightness sensor can
d e t e c t s u f fi c i e n t l i g h t . A s a
c o n s e q u e n c e , t h e l i g h t s w i l l n o t c o m e
on automatically.
Automatic switching on of the lights Deactivation
T u r n t h e r i n g f o r w a r d s o r r e a r w a r d s .
T h e d e a c t i v a t i o n o f t h i s f u n c t i o n i s
a c c o m p a n i e d b y a m e s s a g e o n t h e
d i s p l a y .
T h e f u n c t i o n i s d e a c t i v a t e d t e m p o r a r i l y
when you use the manual lights stalk.
If the brightness sensor does not
function correctly , t h e l i g h t s c o m e o n
a c c o m p a n i e d b y t h e s e r v i c e w a r n i n g
l i g h t , a n a u d i b l e s i g n a l a n d a m e s s a g e
o n t h e d i s p l a y .
C o n t a c t a C I T R O Ë N d e a l e r .
Do not cover the brightness
s e n s o r l o c a t e d i n t h e c e n t r e o f t h e
f a s c i a . I t i s u s e d f o r t h e a u t o m a t i c
s w i t c h i n g o n o f t h e l i g h t s a n d f o r t h e
automatic wipers.
Activation
Turn the ring to the AUTO position.
The activation of this function is
a c c o m p a n i e d b y a m e s s a g e o n t h e
d i s p l a y .
AUTOMATIC ADJUSTMENT OF
THE XENON HEADLAMPS
O n v e h i c l e s w h i c h a r e fi t t e d w i t h x e n o n
h e a d l a m p s , t h i s s y s t e m a u t o m a t i c a l l y
c o r r e c t s t h e h e i g h t o f t h e l i g h t b e a m ,
r e g a r d l e s s o f t h e l o a d i n t h e v e h i c l e .
T h e d r i v e r i s t h e n g u a r a n t e e d o p t i m u m
l i g h t i n g w i t h o u t d a z z l i n g o t h e r r o a d
users.
Cancelling:
" fl a s h " t h e h e a d l a m p s ,
g e t o u t o f t h e v e h i c l e a n d l o c k i t .
I f y o u r v e h i c l e i s fi t t e d
with a brightness
s e n s o r , t h e s i d e l i g h t s
a n d d i p p e d b e a m
h e a d l a m p s s w i t c h o n
automatically if the
l i g h t i s p o o r , o r d u r i n g o p e r a t i o n o f t h e
w i n d s c r e e n w i p e r s . T h e y s w i t c h o f f
as soon as the light becomes bright
e n o u g h o r t h e w i n d s c r e e n w i p e r s s t o p .
This function is not compatible with the
d a y t i m e l i g h t s .
Page 55 of 252
58
Ventilation
AUTOMATIC AIR CONDITIONING WITH SEPARATE SETTINGS
Do not cover the sunshine sensor
l o c a t e d i n t h e c e n t r e o f t h e f a s c i a .
T h i s i s u s e d t o r e g u l a t e t h e a i r
c o n d i t i o n i n g .
L o c a t e d o n t h e c e n t r e c o n s o l e , t h e
control panel is to the right of the gear
lever.
1 - AUTO mode
This is the normal air
c o n d i t i o n i n g o p e r a t i n g m o d e .
Refer to the beginning of the
" V e n t i l a t i o n " s e c t i o n o f c h a p t e r 7 .
T h e d r i v e r a n d f r o n t p a s s e n g e r c a n
e a c h a d j u s t t h e a i r t e m p e r a t u r e t o s u i t
their requirements.
T h e y c a n a l s o a c t i v a t e o r d i s a r m t h e
r e a r v e n t i l a t i o n a d j u s t m e n t c o n t r o l s . F o r y o u r c o m f o r t , t h e s e t t i n g s s e l e c t e d
w h e n t h e i g n i t i o n i s s w i t c h e d o f f w i l l b e
r e t a i n e d w h e n i t i s s w i t c h e d o n a g a i n ,
if the temperature in the passenger
c o m p a r t m e n t h a s n o t c h a n g e d
s i g n i fi c a n t l y ; o t h e r w i s e , o p e r a t i o n w i l l
r e s u m e i n a u t o m a t i c m o d e .
- Press the
"AUTO" button.
D e p e n d i n g o n t h e c o m f o r t t e m p e r a t u r e
s e l e c t e d , t h e s y s t e m c o n t r o l s t h e a i r
d i s t r i b u t i o n , fl o w a n d i n t a k e s o t h a t t h e
passenger compartment is comfortable
a n d h a s a n a d e q u a t e c i r c u l a t i o n o f a i r .
Y o u d o n o t h a v e t o m a k e a n y f u r t h e r
a d j u s t m e n t s .
W h e n t h e e n g i n e i s c o l d , i n o r d e r
t o p r e v e n t a r u s h o f c o l d a i r , t h e
ventilation will reach its optimum level
progressively.
The "AUTO" s y m b o l i s d i s p l a y e d .
Page 164 of 252
Parking assistance
IN-CAR TECHNOLOGY
4
167

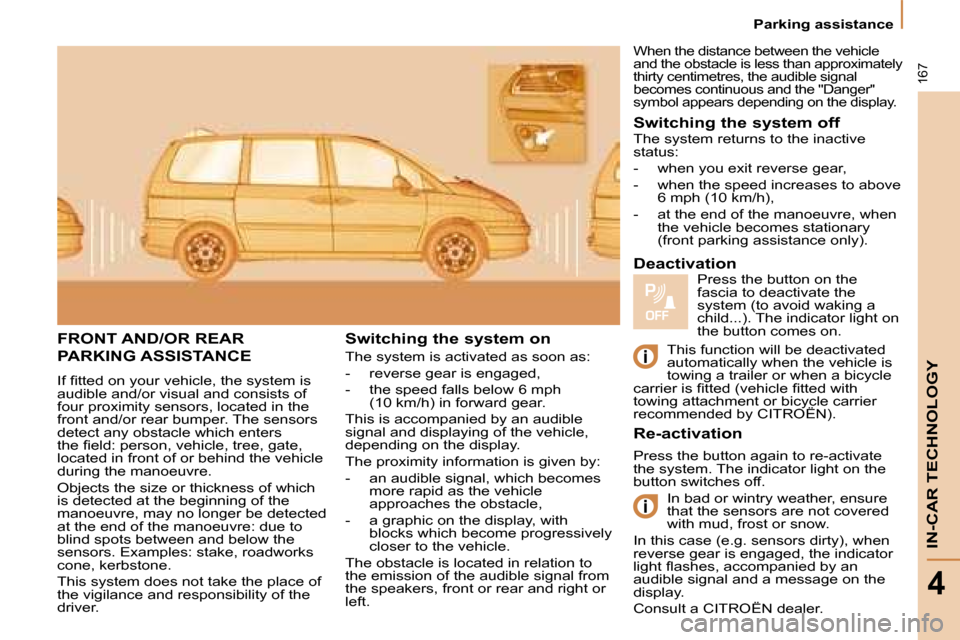

FRONT AND/OR REAR
PARKING ASSISTANCE
I f fi t t e d o n y o u r v e h i c l e , t h e s y s t e m i s
audible and/or visual and consists of
four proximity sensors, located in the
front and/or rear bumper. The sensors
detect any obstacle which enters
t h e fi e l d : p e r s o n , v e h i c l e , t r e e , g a t e ,
located in front of or behind the vehicle
during the manoeuvre.
Objects the size or thickness of which
is detected at the beginning of the
manoeuvre, may no longer be detected
at the end of the manoeuvre: due to
blind spots between and below the
sensors. Examples: stake, roadworks
cone, kerbstone.
This system does not take the place of
the vigilance and responsibility of the
driver. Switching the system on
The system is activated as soon as:
- reverse gear is engaged,
- the speed falls below 6 mph
(10 km/h) in forward gear.
This is accompanied by an audible
signal and displaying of the vehicle,
depending on the display.
The proximity information is given by:
- an audible signal, which becomes more rapid as the vehicle
approaches the obstacle,
- a graphic on the display, with blocks which become progressively
closer to the vehicle.
The obstacle is located in relation to
the emission of the audible signal from
the speakers, front or rear and right or
left. Switching the system off
Press the button again to re-activate
the system. The indicator light on the
button switches off.
In bad or wintry weather, ensure
that the sensors are not covered
with mud, frost or snow.
In this case (e.g. sensors dirty), when
reverse gear is engaged, the indicator
l i g h t fl a s h e s , a c c o m p a n i e d b y a n
audible signal and a message on the
display.
Consult a CITROËN dealer.
Deactivation
Press the button on the
fascia to deactivate the
system (to avoid waking a
child...). The indicator light on
the button comes on.
The system returns to the inactive
status:
- when you exit reverse gear,
- when the speed increases to above
6 mph (10 km/h),
- at the end of the manoeuvre, when the vehicle becomes stationary
(front parking assistance only).
Re-activation
When the distance between the vehicle
and the obstacle is less than approximately
thirty centimetres, the audible signal
becomes continuous and the "Danger"
symbol appears depending on the display.
This function will be deactivated
automatically when the vehicle is
towing a trailer or when a bicycle
c a r r i e r i s fi t t e d ( v e h i c l e fi t t e d w i t h
towing attachment or bicycle carrier
recommended by CITROËN ).
Page 168 of 252
172
Driving safety
TYRE UNDER-INFLATION
DETECTION
Sensors check the tyre pressure during
driving, and trigger a warning in the
event of a malfunction (speed greater
t h a n a p p r o x . 1 5 m p h [ 2 5 k m / h ] ) o r
p u n c t u r e .
An outline representing one or more
w h e e l s fl a s h i n g i n d i c a t e s t h e l o c a t i o n
o f t h e w h e e l o r w h e e l s c o n c e r n e d . Flat tyre
The SERVICE warning light
comes on, accompanied
by the message "Tyre(s)
d e fl a t e d " , an outline on the display,
a n d a n a u d i b l e s i g n a l .
Check the tyre pressure as soon as
p o s s i b l e . If the damaged tyre is temporarily
stored in the boot, it will again emit
this message to remind you of the
n e c e s s i t y o f h a v i n g i t r e p a i r e d . T h i s w i l l
prevent another warning of the same
t y p e b e i n g d i s p l a y e d .
Sensor(s) not detected
The SERVICE warning light
comes on, accompanied
by the message "X tyre
pressure sensor(s) missing" , an
outline on the display and an audible
s i g n a l .
U n d e r - i n fl a t i o n d e t e c t i o n i s a b s e n t
f r o m o n e ( o r s e v e r a l ) t y r e ( s ) . C o n s u l t a
CITROËN dealer to replace the faulty
s e n s o r ( s ) . This message is also displayed
when one of the tyres is away
from the vehicle (being repaired)
or when a wheel without a sensor is
fi t t e d .
All repairs and changing of
t y r e s o n a w h e e l fi t t e d w i t h t h i s
system must be carried out by a
C I T R O Ë N d e a l e r .
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is a driving aid which does
not take the place of vigilance or the
responsibility of the driver.
This system does not remove the
need to have the tyre pressure
checked regularly (including the spare
wheel), to ensure that the dynamic
performance of the vehicle remains
at its best and to avoid premature wear
of the tyres, in particular in the case
of arduous driving (heavy load, high
s p e e d ) .
The system may temporarily be
disturbed by radio broadcasts on a
f r e q u e n c y c l o s e t o i t .
Puncture
The STOP warning light
comes on, accompanied
by the message
"Punctured tyre(s)" , an outline on the
d i s p l a y a n d a n a u d i b l e s i g n a l .
Stop immediately, avoiding any sudden
movement of the steering wheel and
t h e b r a k e s .
Change the damaged (punctured or
v e r y d e fl a t e d ) t y r e , a n d h a v e t h e t y r e
p r e s s u r e c h e c k e d a s s o o n a s p o s s i b l e .
Refer to the "Changing a wheel"
s e c t i o n o f c h a p t e r 8 .
Page 208 of 252
208
Changing a fuse
INSTRUMENT PANEL FUSES
- O p e n t h e l o w e r g l o v e b o x o n t h e r i g h t - h a n d s i d e .
- Pull the handle to open the cover and access the fuses.
N°
Rating
(Amps)
Functions
1 15 Rear wiper.
2 - Not used.
3 5 Air bag control unit.
4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manu
al air conditioning, Clutch
s w i t c h , H e a d l a m p b e a m h e i g h t , P a r t i c l e e m i s s i o n fi l t e r p u m p , E l e c t r o c h r o m a t i c i n t e r i o r m i r r o r .
5 30 Electric mirrors, Electric window motor.
6 30 Front electric windows supply, Sunroof row 1.
7 5 C o u r t e s y l i g h t s , G l o v e b o x l i g h t , C o u r t e s y m i r r o r l i g h t s .
8 20 Multifunction display, Anti-theft alarm siren, Audio equipmen
t, Compact disc changer, Audio/
t e l e p h o n e , T r a i l e r f u s e b o x , D i e s e l a d d i t i v e c o n t r o l u n i t , T y r e u n d e r - i n fl a t i o n d e t e c t i o n c o n t r o l u n i t ,
Sliding doors module control unit.
9 30 Lighter.
10 15 S t e e r i n g w h e e l s w i t c h i n g , T r a i l e r f u s e b o x .
11 15 D i a g n o s t i c s o c k e t , I g n i t i o n s w i t c h , A u t o m a t i c g e a r b o x .
12 15 Driver's seat memory unit, Passenger's electric seat, Air bag control un
it, Parking assistance
control unit, Sliding side door buttons, Hands-free kit.
13 5 E n g i n e f u s e b o x , T r a i l e r f u s e b o x .
14 15 Rain sensor, Automatic air conditioning, Instrument panel, Su
nroofs, Odometer warning lights
unit, Audio-telematics control.
15 30 Locking/unlocking/deadlocking of the accesses.
16 - Not used.
17 40 Heated rear screen.
Page 252 of 252
1 0
T h e t a b l e b e l o w g r o u p s t o g e t h e r t h e a n s w e r s t o t h e m o s t f r e q u e n t l y a s k e d q u e s t i o n s c o n c e r n i n g t h e r o o f c o n s o l e d i s p l a y .
F R E Q U E N T L Y A S K E D Q U E S T I O N S
Q U E S T I O N S O L U T I O N
The player does not work. No reaction
w h e n t h e i g n i t i o n i s s w i t c h e d o n a n d w h e n
the POWER button is pressed. - Check the vehicle's fuses.
- Press the RESET button.
T h e p l a y e r d o e s n o t r e a c t t o p r e s s i n g o f t h e
remote control buttons. - T h e r e m o t e c o n t r o l b a t t e r i e s a r e l a t . R e p l a c e t h e
m w i t h a l k a l i n e m a n g a n e s e A A A t y p e b a t t e r i e s .
- The remote control sensor is hampered by objects or is dirty. Remove all objects on the remote control
r e c e i v e r o r c l e a n t h e s u r f a c e u s i n g a d a m p c l o t h .
I m a g e o r s o u n d i n t e r f e r e n c e w h i l e p l a y i n g
a D V D . T h e i m a g e r e m a i n s f r o z e n d u r i n g
play. T h e p l a y e r c a n n o t r e a d t h e d i s c . T h e d i s c s m a y b e d
a m a g e d o r d i r t y .
The player does not play the disc inserted. - T h e f o r m a t o f t h e d i s c d o e s n o t c o r r e s p o n d t o t h e s p e c i i c a t i o n s o f t h e p l a y e r .
- If it is cold, condensation may have formed on t he laser. Wait approximately 5 minutes to allow the humidity
to evaporate.
The player operates with no effect
( f r o z e n i m a g e ) . - Switch off the player then switch it back on to r
eturn to normal operation.
- Press the RESET button.
T h e l a n g u a g e i s i n c o r r e c t , t h e D V D m e n u
or the subtitles are set once the DVD has
been inserted. C h e c k t h e o u t p u t l a n g u a g e s o n t h e P R E F E R E N C E S m e n u .
When a DVD/VCD/SVCD is played, the
density of the colours is too weak/too
s t r o n g . - Remove the disc.
- U s i n g t h e 7 o r 8 b u t t o n s , s e t t h e C O L O U R v a l u e r e
q u i r e d a n d i n s e r t t h e d i s c a g a i n .
- To restore the default value, remove the disc and press the DISP button.
24
