Petrol and Diesel technical data
TECHNICAL DATA
9

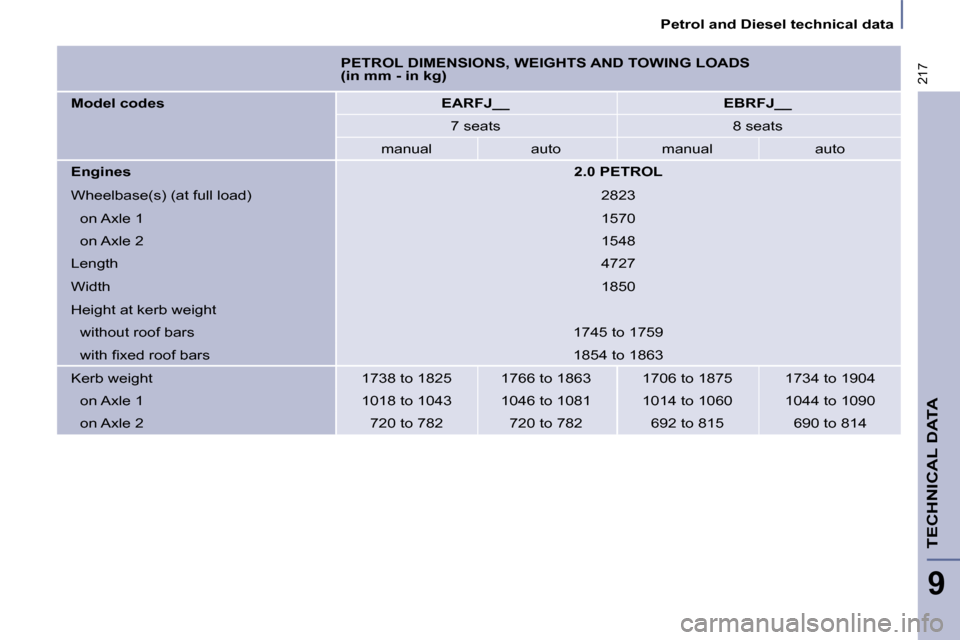

PETROL DIMENSIONS, WEIGHTS AND TOWING LOADS
(in mm - in kg)

Model codes
EARFJ__ EBRFJ__
7 seats 8 seats
manual auto manual auto

Engines
2.0 PETROL
Wheelbase(s) (at full load) 2823
on Axle 1 1570
on Axle 2 1548
Length 4727
Width 1850
Height at kerb weight

without roof bars 1745 to 1759
with fi xed roof bars 1854 to 1863
Kerb weight 1738 to 1825 1766 to 1863 1706 to 187 5 1734 to 1904
on Axle 1 1018 to 1043 1046 to 1081 1014 to 1060 1044 to 1090
on Axle 2 720 to 782 720 to 782 692 to 815 690 t o 814
Engines (with fi lter replacement)

221
Petrol and Diesel technical data
TECHNICAL DATA
9

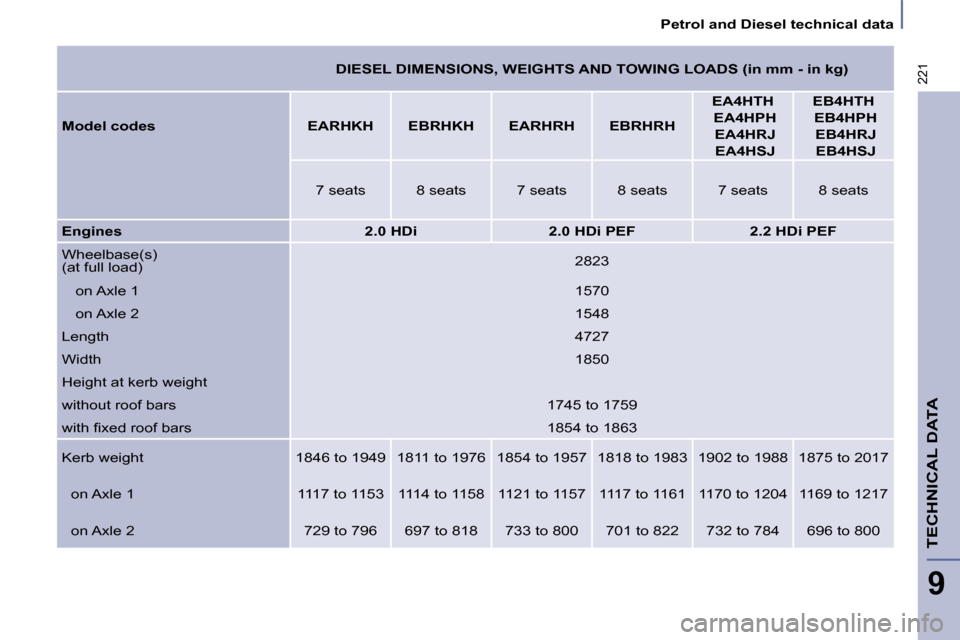

DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)

Model codes EARHKH EBRHKH EARHRH EBRHRH EA4HTH
EA4HPH EA4HRJ EA4HSJ EB4HTH
EB4HPH EB4HRJ EB4HSJ


7 seats 8 seats 7 seats 8 seats 7 seats 8 seats

Engines 2.0 HDi 2.0 HDi PEF 2.2 HDi PEF
Wheelbase(s)
(at full load) 2823
on Axle 1 1570
on Axle 2 1548
Length 4727
Width 1850
Height at kerb weight

without roof bars 1745 to 1759
with fi xed roof bars 1854 to 1863
Kerb weight 1846 to 1949 1811 to 1976 1854 to 1 957 1818 to 1983 1902 to 1988 1875 to 2017
on Axle 1 1117 to 1153 1114 to 1158 1121 to 115 7 1117 to 1161 1170 to 1204 1169 to 1217
on Axle 2 729 to 796 697 to 818 733 to 800 701 to 822 732 to 784 696 to 800
