Citroen C8 DAG 2009.5 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2009.5, Model line: C8 DAG, Model: Citroen C8 DAG 2009.5 1.GPages: 270, PDF Size: 13.36 MB
Page 101 of 270
SAFETY
101
Child safety
4
CHILD SAFETY
GENERAL POINTS RELATING
TO CHILD SEATS
"Rearwards-facing"
Recommended on the rear seats up to
t h e a g e o f 2 .
When a "rearwards-facing" child seat is
installed on the front passenger seat, it
is essential that the passenger air bag
i s d i s a r m e d . O t h e r w i s e , t h e c h i l d w o u l d
risk being seriously injured or killed if
t h e a i r b a g w e r e t o i n fl a t e . "Forwards-facing"
Recommended on the rear seats over
t h e a g e o f 2 .
When a "forwards-facing" child seat is
installed on the front passenger seat,
l e a v e t h e p a s s e n g e r a i r b a g a r m e d .
INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
The rules for transporting children are
s p e c i fi c t o e a c h c o u n t r y . C o n s u l t t h e
c u r r e n t l e g i s l a t i o n i n y o u r c o u n t r y .
Please consult the list of seats
a p p r o v e d i n y o u r c o u n t r y . T h e i s o fi x
mountings, the rear seats, the
passenger air bag and the disarming
of this air bag depend on the version
s o l d .
The child seats function and the
passenger air bag disarming function
are common to the entire CITROËN
r a n g e .
Although one of CITROËN's main
criteria when designing your vehicle,
the safety of your children also
d e p e n d s o n y o u .
For maximum safety, please follow
these precautions:
- all children under the age of 12 or
l e s s t h a n o n e m e t r e fi f t y t a l l m u s t
travel in approved child seats suited
t o t h e i r w e i g h t , o n s e a t s fi t t e d w i t h
a seat belt or ISOFIX mountings,
- statistically, the safest seats in your vehicle for the transportation of
children are the rear seats,
- a child weighing less than 9 kg must travel in the "rearwards-
facing" position both in the front
and in the rear,
- the passenger must not travel with a c h i l d o n h i s l a p .
Refer to chapter 4, "Air bags"
s e c t i o n .
If the passenger air bag is not
disarmed, the installation of a
"rearwards-facing" child seat in the
f r o n t i s s t r i c t l y p r o h i b i t e d .
Page 102 of 270
104
Child safety

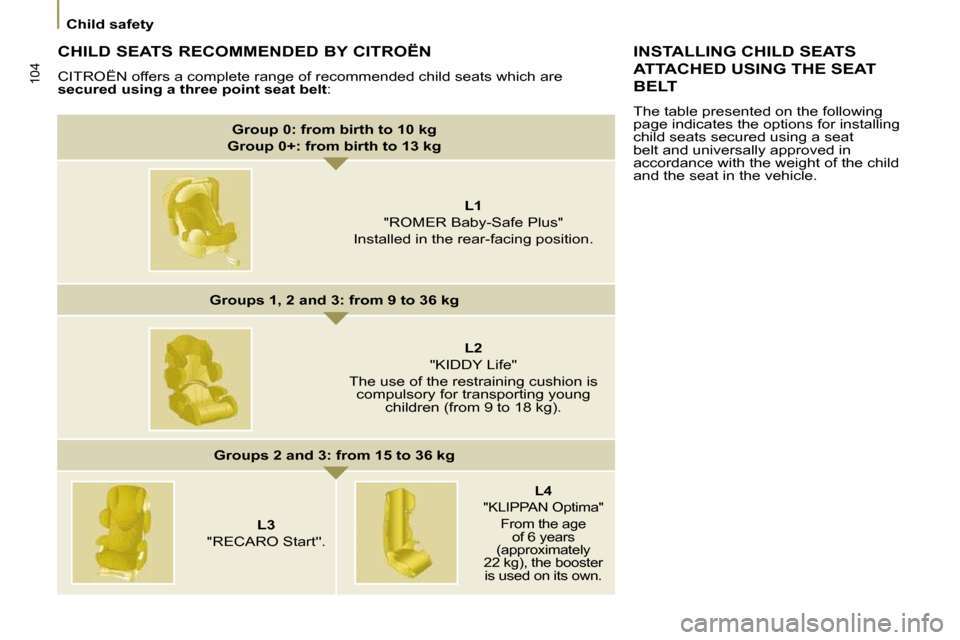

CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are
secured using a three point seat belt :
INSTALLING CHILD SEATS
ATTACHED USING THE SEAT
BELT
The table presented on the following
page indicates the options for installing
child seats secured using a seat
belt and universally approved in
accordance with the weight of the child
a n d t h e s e a t i n t h e v e h i c l e .
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
I n s t a l l e d i n t h e r e a r - f a c i n g p o s i t i o n .
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
The use of the restraining cushion is compulsory for transporting young c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' ' .
L4
"KLIPPAN Optima" From the age of 6 years
(approximately
22 kg), the booster i s u s e d o n i t s o w n .
Page 103 of 270
102
Child safety
"ISOFIX" MOUNTINGS
T h e s e s e a t s a r e fi t t e d w i t h I S O F I X
m o u n t i n g s .
These are two rings located between
t h e s e a t b a c k a n d t h e s e a t c u s h i o n .
The ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
t h e s e r i n g s .
This ISOFIX mounting system
guarantees reliable, safe and fast
fi t t i n g o f t h e c h i l d s e a t i n y o u r v e h i c l e .
Page 104 of 270
SAFETY
103
Child safety
4

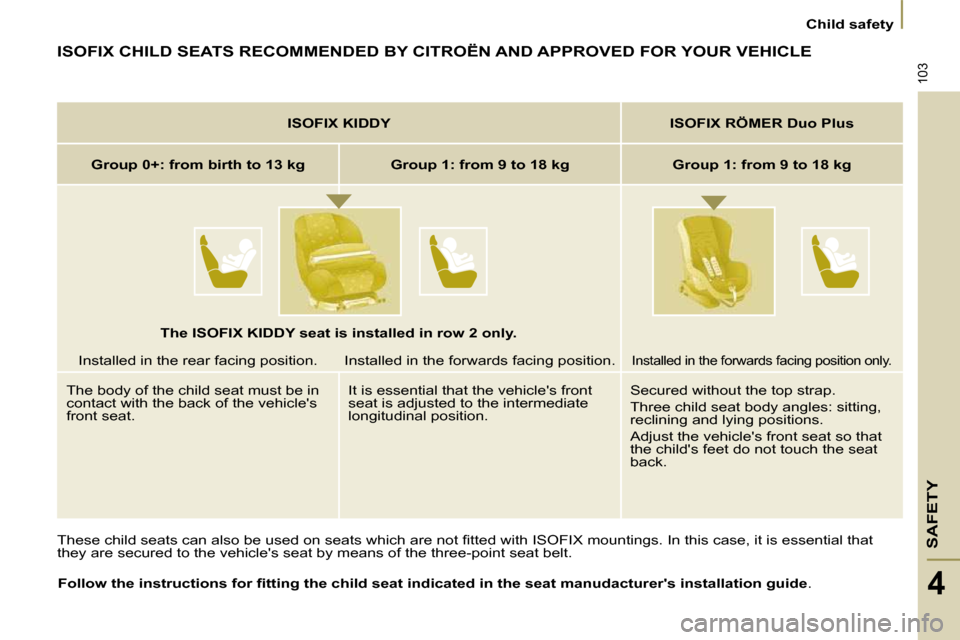

ISOFIX CHILD SEATS RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE
T h e s e c h i l d s e a t s c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t i s e s s e n t i a l t h a t
t h e y a r e s e c u r e d t o t h e v e h i c l e ' s s e a t b y m e a n s o f t h e t h r e e - p o i n t s e a t b e l t .
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t i n d i c a t e d i n t h e s e a t
manudacturer
's
i
nstallation
guide .
ISOFIX KIDDY
ISOFIX RÖMER Duo Plus
Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg Group 1: from 9 to 18 kg
I n s t a l l e d i n t h e r e a r f a c i n g p o s i t i o n . I n s t a l l e d i n t h e f o r w a r d s f a c i n g p o s i t i o n .
I n s t a l l e d i n t h e f o r w a r d s f a c i n g p o s i t i o n o n l y .
The body of the child seat must be in
contact with the back of the vehicle's
f r o n t s e a t . It is essential that the vehicle's front
seat is adjusted to the intermediate
l o n g i t u d i n a l p o s i t i o n . S e c u r e d w i t h o u t t h e t o p s t r a p .
Three child seat body angles: sitting,
r e c l i n i n g a n d l y i n g p o s i t i o n s .
Adjust the vehicle's front seat so that
the child's feet do not touch the seat
b a c k .
The ISOFIX KIDDY seat is installed in row 2 only.
Page 105 of 270
104
Child safety
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are
secured using a three point seat belt :
INSTALLING CHILD SEATS
ATTACHED USING THE SEAT
BELT
The table presented on the following
page indicates the options for installing
child seats secured using a seat
belt and universally approved in
accordance with the weight of the child
a n d t h e s e a t i n t h e v e h i c l e .
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
I n s t a l l e d i n t h e r e a r - f a c i n g p o s i t i o n .
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
The use of the restraining cushion is compulsory for transporting young c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' ' .
L4
"KLIPPAN Optima" From the age of 6 years
(approximately
22 kg), the booster i s u s e d o n i t s o w n .
Page 106 of 270
SAFETY
105
Child safety
4
a : G r o u p 0 : f r o m b i r t h t o 1 0 k g . I n f a n t c a r s e a t s a n d " c a r c o t s " c a n n o t b e i n s t a l l e d o n t h e f r o n t p a s s e n g e r s e a t .
b : c o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
U : seat suitable for the installation of a child seat secure d using a seat belt and universally approved, "rear facing" and/ or
" f o r w a r d f a c i n g " .
L- : o n l y t h e c h i l d s e a t s i n d i c a t e d c a n b e i n s t a l l e d o n t h e s e a t c o n c e r n e d ( a c c o r d i n g t o c o u n t r y ) .
X : s e a t n o t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a c h i l d s e a t o f t h e w e i g h t g r o u p i n d i c a t e d .

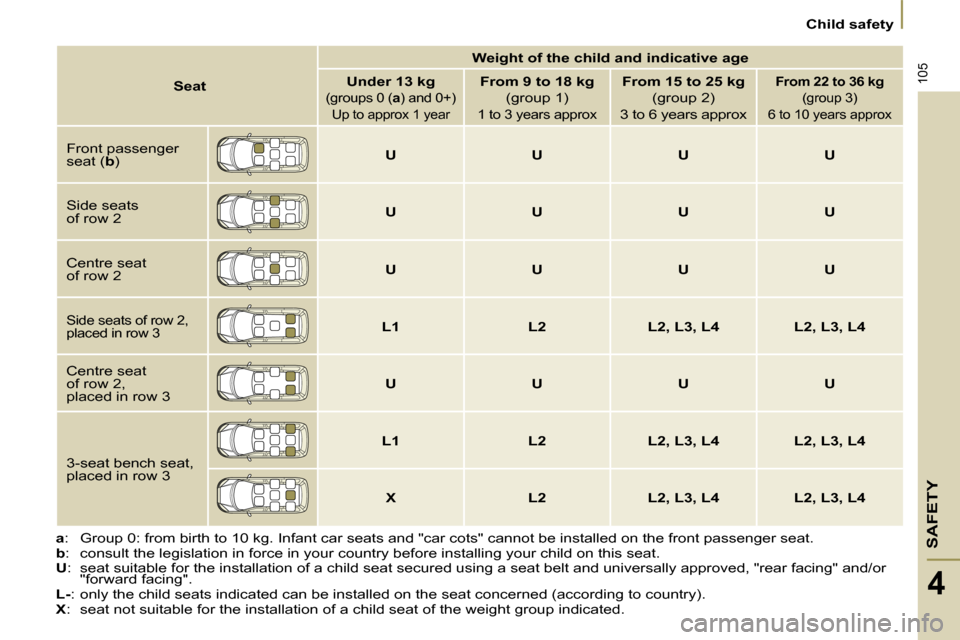

Seat
Weight of the child and indicative age
Under 13 kg (groups 0 ( a ) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( b )
U U U U
Side seats
of row 2
U U U U
Centre seat
of row 2
U U U U
Side seats of row 2,
placed in row 3
L1 L2 L2, L3, L4 L2, L3, L4
Centre seat
of row 2,
placed in row 3
U U U U
3-seat bench seat,
placed in row 3
L1 L2 L2, L3, L4 L2, L3, L4
X L2 L2, L3, L4 L2, L3, L4
Page 107 of 270
106
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
p r o t e c t i o n i n t h e e v e n t o f a n a c c i d e n t .
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to a
minimum , e v e n f o r s h o r t j o u r n e y s .
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s t o
t h e r e a r w i n d o w s .
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
s e a t s .
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
i n t e r i o r o f t h e v e h i c l e .
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle's seat and that the head
r e s t r a i n t d o e s n o t c a u s e a n y d i s c o m f o r t .
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
o f s h a r p b r a k i n g .
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
a b s e n t .
Disarm the passenger air bag when a
"rear facing" child seat is installed on
t h e f r o n t s e a t .
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e . As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children i n s i d e t h e v e h i c l e .
To prevent accidental opening of the
d o o r s , u s e t h e " C h i l d L o c k " .
Take care not to open the rear windows
b y m o r e t h a n o n e t h i r d .
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
w i t h o u t t o u c h i n g t h e n e c k .
Ensure that the lap part of the seat belt
p a s s e s c o r r e c t l y o v e r t h e c h i l d ' s t h i g h s .
CITROËN recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
w i t h a s e a t b e l t g u i d e a t s h o u l d e r l e v e l .
Page 108 of 270
106
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
p r o t e c t i o n i n t h e e v e n t o f a n a c c i d e n t .
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to a
minimum , e v e n f o r s h o r t j o u r n e y s .
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s t o
t h e r e a r w i n d o w s .
CHILD MONITORING MIRROR
This mirror enables the driver or front
passenger to observe all the rear
s e a t s .
Fitted on its own ball joint and able to
retract into its housing in the roof, it
provides a panoramic view of the rear
i n t e r i o r o f t h e v e h i c l e .
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle's seat and that the head
r e s t r a i n t d o e s n o t c a u s e a n y d i s c o m f o r t .
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
o f s h a r p b r a k i n g .
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
a b s e n t .
Disarm the passenger air bag when a
"rear facing" child seat is installed on
t h e f r o n t s e a t .
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e . As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children i n s i d e t h e v e h i c l e .
To prevent accidental opening of the
d o o r s , u s e t h e " C h i l d L o c k " .
Take care not to open the rear windows
b y m o r e t h a n o n e t h i r d .
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
w i t h o u t t o u c h i n g t h e n e c k .
Ensure that the lap part of the seat belt
p a s s e s c o r r e c t l y o v e r t h e c h i l d ' s t h i g h s .
CITROËN recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
w i t h a s e a t b e l t g u i d e a t s h o u l d e r l e v e l .
Page 109 of 270
107
Towing a trailer
ACCESSORIES
5
TOWING A TRAILER, CARAVAN, BOAT, ETC...
Refer to the administrative
documents (V5, ...) or to the Petrol
or Diesel "Dimensions, weights
and towed loads" section of
chapter 8.
Distribution of loads: distribute the
load in the trailer so that the heaviest
loads are as close as possible to the
axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.
Cooling: towing a trailer on a slope
increases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
Dimension A = 0.96 m
Driving advice
A towed vehicle must free wheel:
gearbox in neutral.
Page 110 of 270
108
Towing a trailer
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. P l e a s e c o n t a c t a C I T R O Ë N d e a l e r fi r s t
for further information .
Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.
In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power. In this
case, cutting off the air conditioning
allows the engine power to be
recovered, and therefore the towing
s p e e d t o b e s i g n i fi c a n t l y i n c r e a s e d
(approximately 12 mph [20 km/h]
more). Sequential control of the
gearbox may also become unavailable.
Lighting
Bicycle carrier
R e f e r t o t h e " I d e n t i fi c a t i o n
features" section of chapter 8. Refer to the "Steering wheel
controls" section of chapter 3.
When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 7.
If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.
Tyres: check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure.
Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
Towbar
We recommend the use of original
CITROËN towbars, which have been
tested for endurance from the design
stage of your vehicle.
T o w i n g e q u i p m e n t m u s t b e fi t t e d i n
accordance with the manufacturer's
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
t h e e l e c t r i c a l c o n n e c t i o n . A s t h i s fi t t i n g
should be carried out by a professional,
we recommend that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a C I T R O Ë N
dealer.
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
w i t h fi t t i n g a t o w b a r o r o t h e r e l e c t r i c a l
accessory which is not recommended
by the CITROËN network. Fitting such
equipment could result in a failure of
your vehicle's electronic system. Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.
I f y o u fi t a b i c y c l e c a r r i e r o n
the tailgate, deactivate the
rear wiper from the display's
c o n fi g u r a t i o n m e n u .
