F If your vehicle has the facility, place the backrest in the table position.
Fully folding a seat, access to row 3
(example of an individual seat)
It is not necessary to fold the backrest
(table position) to tip the bench seat for
access to row 3.
F

U

sing the handle, release the rear feet then
tip the seat for ward.
F

T

o return the seat to the normal position,
unfold the seat backwards until the rear
feet engage in their anchorages.
F

F

old the backrest onto the cushion.
F

T

o return the backrest to the normal
position, raise the lever and pull the
backrest up (from the rear, lower the lever).
Removing a seat
(example of an individual seat)
F

I
f your vehicle has the facility, place the
backrest in the table position.
F

T
ip the seat for ward.
F

R
elease the front feet using the handles.
F

D
isengage the seat from its anchorages.
F

R
emove the seat by the sliding door in
row
2 or from the rear in row 3.
3
Ease of use and comfort

100
Check that the seat has locked into
place on the floor when returning it to
the seating position.
Ensure that no object, or the feet of a
passenger seated at the rear, could
obstruct the anchorage points or prevent
the correct latching of the assembly.
Refitting a seat
(example of an individual seat)
F
C
heck that there is no object obstructing
the anchorages and preventing the feet
locking into place.
F

E
ngage the front feet in the anchorages on
the floor (as shown above).
F

L
ock the front feet using the handles.
F

U
nfold the seat toward the rear until the
rear feet lock into place.
Be aware of the feet of passengers when
refitting a seat. F

I
f fitted to your vehicle, pull the control to
raise the backrest (from the rear, lower the
lever).
If removing and storing a seat (or bench
seat) out of the vehicle, ensure that it is
placed in a clean area, so as to avoid
introducing any foreign bodies into the
mechanisms.
The seats (or bench seats) are not
designed for any use other than in the
vehicle. They have mechanisms and
functions that could be damaged if used
incorrectly or are if the seat is dropped.
Ease of use and comfort

101
Head restraints
F To raise a head restraint, pull it up until it engages in its notch.
F

T
o remove it, press the lug A and pull the
head restraint up.
F

T
o refit it, engage the head restraint rods in
the apertures keeping them in line with the
seat backrest.
F

T
o lower it, press on the lug A and on the
head restraint at the same time.
Rear seat and bench seat on rails
The different equipment and adjustments
described hereafter vary according to the
version and configuration of your vehicle.
For more information on the Seat belts ,
refer to the corresponding section. F

T
o recline the backrest, raise the control
(from the rear, lower the lever).
F

R
elease the control when the desired
position is obtained.
Reclining the backrest
The reclining backrest can be adjusted to
several positions.
The individual seat is always on the right and
the bench seat on the left (facing for ward).
The bench seat has two independent
backrests.
3
Ease of use and comfort

102
Two controls are provided for moving the seat
for wards and backwards:
F
F
rom the front, raise the control and slide
the seat for ward or back.
F

F
rom the rear, pull the strap without going
beyond the point of resistance and push
the seat for ward or pull it back.
Moving forward or backward
(example of an individual seat)
(example of an individual seat)
Folding the seat backrest to
the table position
F Place the head restraints in the low position.
Moving the seat along the full
length of the rail
Do not leave objects (such as a bag or
toys) on the cushion when folding the
backrest.
F

P

lace the seat backrest in the table
position.
F

S

lide the seat by pulling on the rear strap.
F

F

rom the front, raise the handle to release
the backrest.
F

F

rom the rear, lower the handle to release
the backrest.
F

F

old the backrest onto the cushion.
Ease of use and comfort

103

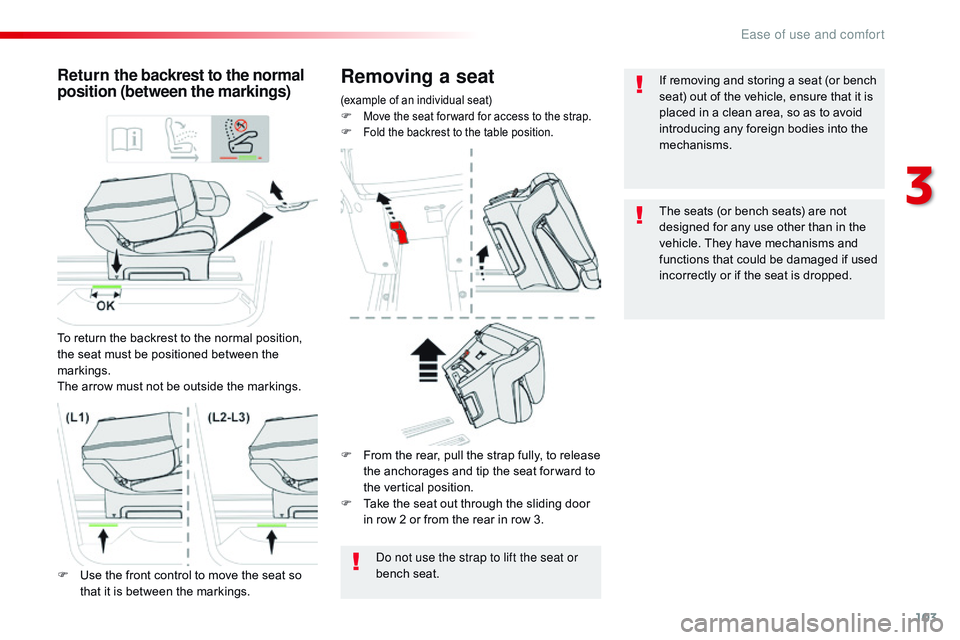

Removing a seat
(example of an individual seat)F Move the seat for ward for access to the strap.F Fold the backrest to the table position.
Retur n the backrest to the normal
position (between the markings)
To return the backrest to the normal position,
the seat must be positioned between the
markings.
The arrow must not be outside the markings.Do not use the strap to lift the seat or
bench seat.
F

U
se the front control to move the seat so
that it is between the markings. F

F
rom the rear, pull the strap fully, to release
the anchorages and tip the seat for ward to
the vertical position.
F

T
ake the seat out through the sliding door
in row 2 or from the rear in row 3. If removing and storing a seat (or bench
seat) out of the vehicle, ensure that it is
placed in a clean area, so as to avoid
introducing any foreign bodies into the
mechanisms.
The seats (or bench seats) are not
designed for any use other than in the
vehicle. They have mechanisms and
functions that could be damaged if used
incorrectly or if the seat is dropped.
3
Ease of use and comfort

104
F Place the front of the guides on the rails.
F T ip the seat back to align the rear of the
guides with the rails. F

S
lide the seat for ward or back until it
engages in the notches.
F
S
traighten the backrest.
(example of an individual seat)
F
C
heck that nothing is obstructing the rails.
Ensure that no object, or the feet of a
passenger seated at the rear, could
obstruct the anchorage points or prevent
the correct latching of the assembly. Check that seat engages correctly
in the floor when it is returned to the
seating position.
Do not use the strap to lift the seat or
bench seat. Before refitting a seat or bench seat
to the vehicle, pull the strap fully to
ensure that the latching mechanism has
engaged.
Refitting a seat
Ease of use and comfort

105
Individual seat(s) on rails
The different equipment and adjustments
described hereafter vary according to the
version and configuration of your vehicle.F

T
o raise a head restraint, pull it up until it
engages in its notch.
F

T
o remove it press the lug A and pull the
head restraint up.
F

T
o refit it, engage the head restraint rods in
the apertures keping them in line with the
seat backrest.
F

T
o lower it, press on the lug A and on the
head restraint at the same time.
Head restraints
The armrest has notches.
F P ull the armrest fully up.
F

L
ower it fully down.
F

R
aise the armrest to the desired position.
Ar mrest(s)
It can be placed forward facing or
rearward facing.
The individual seat is fitted with a three-point
inertia reel seat belt.
For more information on the Seat belts ,
refer to the corresponding section.
3
Ease of use and comfort

106
Folding the seat backrest to
the table position
F Place the head restraints in the low position.
Moving forward or backward
Two controls are provided for moving the seat
for ward and backward:
F

F
rom the front, raise the control and slide
the seat for ward or back.
F

F
rom the rear, pull the strap without going
beyond the point of resistance and push
the seat for ward or pull it back.
Reclining the backrest
The reclining backrest can be adjusted to
several positions.
F

T
o recline the backrest, raise the control
(from the rear, lower the lever).
F

R
elease the control when the desired
position is obtained. F

F
rom the front, raise the handle to release
the backrest.
F

F
rom the rear, lower the handle to release
the backrest.
F

F
old the backrest onto the cushion.
Ease of use and comfort

107
Removing a seat
F Move the seat for ward for access to the strap.F Fold the backrest to the table position.
Do not use the strap to lift seat.Do not use the strap to lift the seat. Before refitting a seat to the vehicle,
pull the strap fully to ensure that the
latching mechanism has engaged.
F

F

rom the rear, pull the strap, going
beyond the point of resistance, to free the
anchorages and tip the seat for ward to the
vertical position.
F

T

ake the seat out through the sliding door
in row 2 or from the rear in row 3.
Refitting a seatIf removing and storing a seat out of
the vehicle, ensure that it is placed
in a clean area, so as to avoid
introducing any foreign bodies into the
mechanisms.
The seats are not designed for any use
other than in the vehicle. They have
mechanisms and functions that could
be damaged if used incorrectly or are
dropped.
3
Ease of use and comfort

108
Ensure that no object, or the feet of a
passenger seated at the rear, could
obstruct the anchorage points or prevent
the correct latching of the assembly.
Check that seat engages correctly
in the floor when it is returned to the
seating position.
F
S
lide the seat for ward or back until it
engages in the notches.
F

S

traighten the backrest.
F

C

heck that nothing is obstructing the rails.
F

P

lace the front of the guides on the rails.
F

T

ip the seat back to align the rear of the
guides with the rails.
E
