Child seats recommended by CITROËN
CITROËN offers a range of child seats which are secured using a three point seat belt.
Group 0+: from bir th to 13 kg
L1
"RÖMER Baby-Safe Plus" Installed rear ward facing. L2

"Takata Baby P2C Mini"
Installed rear ward facing.
5
Safety

180

Spacetourer-VP_en_Chap05_securite_ed01-2016

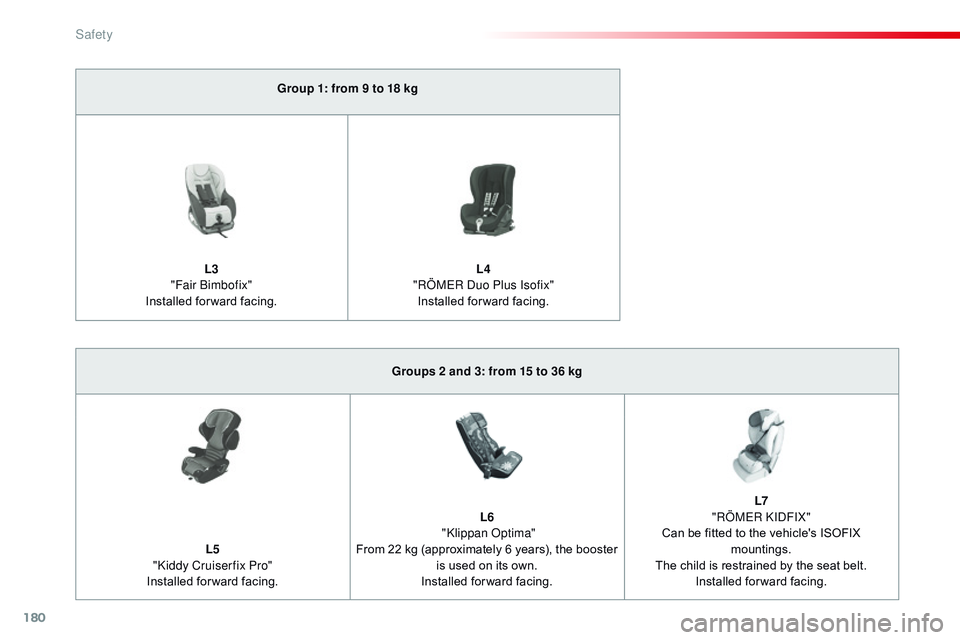

Group 1: from 9 to 18 kg
L3
"Fair Bimbofix"
Installed for ward facing. L4

"RÖMER Duo Plus Isofix" Installed for ward facing.
Groups 2 and 3: from 15 to 36 kg
L5
"Kiddy Cruiserfix Pro"
Installed for ward facing. L6

"Klippan Optima"
From 22 kg (approximately 6 years), the booster is used on its own.
Installed for ward facing. L7

"RÖMER KIDFIX"
Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt. Installed for ward facing.
Safety

181
Spacetourer-VP_en_Chap05_securite_ed01-2016
In line with European legislation, this table indicates the options for installing child seats secured using a seat belt and universally approved (a) for the
weight of the child and the seat in the vehicle.Seat Weight of the child and indicative age
Under 13 kg
(groups 0 (b) a n d


0 +)
Up to approx 1 year From 9 to 18 kg
(group 1)
1 to 3 years approx From 15 to 25 kg
(group 2)
3 to 6 years approx From 22 to 36 kg
(group 3)
6 to 10 years approx
Row 1 (c) (d) With individual
seat, passenger seat U
UUU
With bench seat, outer seat U
UUU
With bench seat, centre seat X
XXX
Row 2 (e) (f) Outer seats
UUUU
Centre seat UUUU
Row 3 (e) (f) Outer seats
UUUU
Centre seat UUUU
Locations for child seats secured with a seat belt
5
Safety

182
Spacetourer-VP_en_Chap05_securite_ed01-2016
(a) Universal child seat: child seat that can be installed in any vehicle using the seat belt.
(b)

G
roup 0: from birth to 10 kg. Infant car
seats and "car cots" cannot be installed on
the front passenger seat.
(c)

C
onsult the legislation in force in your
country before installing your child on this
seat.
(d)

W
hen a rear ward facing child seat is
installed on the front passenger seat,
the front passenger airbag must be
deactivated. Other wise the child risks
being seriously injured or even killed if the
airbag is deployed.
W

hen a for ward facing child seat is
installed on the front passenger seat, the
front passenger airbag must remain active.
(e)

T
o install a child seat on a rear seat, move
the seat in front for ward, then straighten
the backrest to leave sufficient space for
the child seat and the child's legs.
(f)

T
o install a child seat on a rear seat,
rear ward facing or for ward facing, adjust
the rear seat to the fully back position with
the backrest straightened. Remove and stow the head restraint
before installing a child seat with
backrest on a passenger seat.
Refit the head restraint once the child
seat has been removed.
U
S eat suitable for the installation of a child
seat secured using the seat belt and
universally approved, rear ward facing and/
or for ward facing.
X

S
eat not suitable for the installation of a
chld seat of the weight group indicated.
Safety

183
Spacetourer-VP_en_Chap05_securite_ed01-2016
"ISOFIX" mountings
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information on the possibilities for
installing ISOFIX child seats in your
vehicle, refer to the locations table. Observe strictly the fitting instructions
provided with the child seat.
Your vehicle has been approved to the latest
ISOFIX regulation.
If fitted on your vehicle, the regulation ISOFIX
mountings are located by labels.
The mountings comprise three rings for each
seat:
-

T

wo front rings A , located between
the vehicle seat backrest and cushion,
indicated by an "ISOFIX" marking,
-

I

f fitted to your vehicle, a rear ring B ,
located behind the vehicle's seat, called
the Top Tether, for securing the upper
strap, indicated by a "Top Tether" marking.
The Top Tether is used to secure the upper
strap of child seats that have one. In the event
of a front impact, this system limits the for ward
tipping of the child seat. This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats are fitted with two
latches which are secured on the two front
rings
A.
Some also have an upper strap which is
attached to the rear ring B .
To secure the child seat to the Top Tether:
-

r

emove and stow the head restraint before
installing a child seat on this seat (refit it
once the child seat has been removed),
-

p

ass the child seat upper strap over the
top of the seat backrest, between the
apertures for the head restraint rods, -

f

ix the hook on the end of the upper strap
to the rear ring B ,
-

t

ighten the upper strap.
5
Safety

184
Spacetourer-VP_en_Chap05_securite_ed01-2016
ISOFIX child seats recommended by CITROËN
CITROËN offers a range of ISOFIX child seats listed and type approved for your vehicle.
Refer also to the child seat manufacturer's fitting instructions for information on installing and removing the seat.
Baby P2C Mini and its ISOFIX bas e
(size categories: C, D, E)
Group 0+: from bir th to 13 kg
Installed rear ward facing using an ISOFIX
base which is attached to the rings A .
The base has a support leg, adjustable for
height, which sits on the vehicle's floor.
This seat can also be secured with a seat
belt.
In this case only the seat shell is used and is
attached to the vehicle's seat by the
three-point seat belt. FAIR Bimbofix ISOFIX and its ISOFIX
base (size category: C or A )
Group 0+: from bir th up to 13 kg Group 1: from 9 to 18 kg
Can be installed for ward facing or rear ward
facing using an ISOFIX base which is
attached to the rings A .
The base includes a support leg which
extends down to the floor of the vehicle.
6 seat body angle positions.
This child seat can also be used in a for ward
facing position on seats not fitted with
ISOFIX mountings.
In this case, it must be secured to the vehicle
seat by the three-point seat belt.
Adjust the front seat of the vehicle so that the
child's feet do not touch the backrest.
"RÖMER Baby- Safe Plus" and its ISOFIX base (size category: E)
Group 0+: from bir th to 13 kg
Installed rear ward facing using an ISOFIX
base which is attached to the rings A .
The base has a support leg, adjustable for
height, which sits on the vehicle's floor.
This child seat can also be secured with a
seat belt. In this case, only the shell is used
and attached to the vehicle's seat by the
three-point seat belt.
Safety

185
Spacetourer-VP_en_Chap05_securite_ed01-2016
"Baby P2C Midi" and its ISOFIX base (size categories: D, C, A, B, B1)
Group 1: from 9 to 18 kg
Installed rear ward facing using an ISOFIX
base which is attached to the rings A .
The base has a support leg, adjustable for
height, which sits on the vehicle's floor.
This child seat can also be used for ward
facing.
This seat can not be secured with a seat
belt.
We recommend that you use the seat in the
rear ward facing position up to the age of
3

years. "RÖMER Duo Plus ISOFIX"
(size category: B1 )
Group 1: from 9 to 18 kg
Is installed only in the for ward facing
position.
Is attached to the rings A and the upper
ring
B, referred to as the TOP TETHER,
using an upper strap.
Three seat body angles: sitting, reclining,
lying down.
This child seat can also be used on seats
not equipped with ISOFIX mountings. In
this case, it must be secured to the vehicle's
seat by the three-point seat belt. Adjust the
position of the vehicle's front seat so that the
child's feet are not touching the backrest.
5
Safety

186
Spacetourer-VP_en_Chap05_securite_ed01-2016
Locations for ISOFIX child seats
In line with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the vehicle fitted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G, is indicated on the child
seat next to the ISOFIX logo.
Weight of the child / indicative age
Less than 10 kg (group 0)
Up to approx. 6
monthsLess than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to approx. 1 year From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Cotrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 1 with 2-seat bench seat
or individual seat Not ISOFIX
Row 2 with
2-seat bench seat in row 1 Right outer
seat
X
XIL- SU X I U F, I L - S U
Centre seat XXIL- SU X I U F, I L - S U
Left outer seat XIL- SU IL- SUI U F, I L - S U
Safety

187
Spacetourer-VP_en_Chap05_securite_ed01-2016
Weight of the child / indicative age
Less than 10 kg (group 0)
Up to approx. 6

months Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to approx. 1 year From 9 to 18 kg (group 1)
From 1 to 3 years approx.
Type of ISOFIX child seat Cotrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 2 with individual
seats in row 1 Right outer
seat
X
IL- SU IL- SU IL- SUI U F, I L - S U
Centre seat IL- SUIL- SUIL- SUI U F, I L - S U
Left outer seat XIL- SU IL- SUI U F, I L - S U
Row 3 XXXI U F, I L - S U
5
Safety

188
Spacetourer-VP_en_Chap05_securite_ed01-2016
IUF Seat suitable for the installation of an Isofix
U niversal seat, F or ward facing secured
using the upper strap.
IL- SU
S

eat suitable for the installation of an
I sofix S emi-Universal seat either:
-

r
ear ward facing fitted with an upper
strap or a support leg,
-

f
or ward facing fitted with a
support
leg,
-

a
n cot fitted with an upper strap or a
support leg.
X

S
eat not suitable for the installation of a
child seat of the weight group indicated. Remove and stow the head restraint
before fitting a child seat with a
backrest to a passenger seat.
Refit the head restraint when the child
seat is removed. For more information on the ISOFIX
mountings
and in particular the
upper strap, refer to the corresponding
section.
Safety
