Page 33 of 248
43Instruments and controls

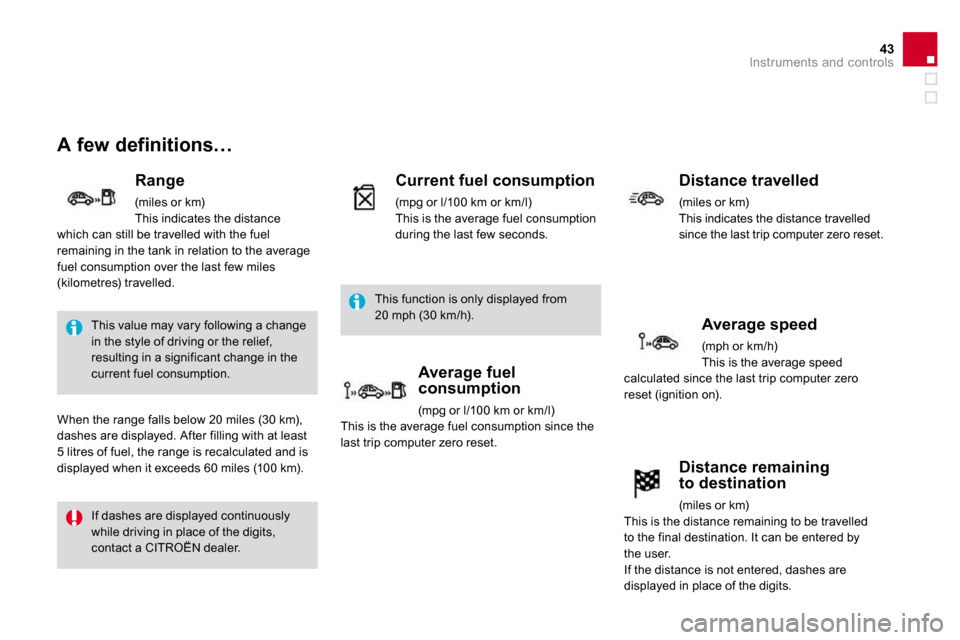

A few definitions…
Range
(miles or km) This indicates the distance which can still be travelled with the fuel remaining in the tank in relation to the average fuel consumption over the last few miles (kilometres) travelled.
Current fuel consumption
(mpg or l/100 km or km/l) This is the average fuel consumption during the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l) This is the average fuel consumption since the last trip computer zero reset.
Distance travelled
(miles or km) This indicates the distance travelled since the last trip computer zero reset.
Average speed
(mph or km/h) This is the average speed calculated since the last trip computer zero reset (ignition on).
Distance remaining
to destination
(miles or km) This is the distance remaining to be travelled
to the final destination. It can be entered by the user. If the distance is not entered, dashes are displayed in place of the digits.
This value may vary following a change in the style of driving or the relief, resulting in a significant change in the current fuel consumption.
If dashes are displayed continuously while driving in place of the digits, contact a CITROËN dealer.
This function is only displayed from 20 mph (30 km/h).
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
Page 34 of 248
Monochrome screen A
This displays the following information: - time, - date, - ambient temperature (this flashes if there is a risk of ice), - status of the doors and boot, - audio sources (radio, CD...), - trip computer (refer to the "Instruments and Controls" section). Warning messages (e.g.: "Emission control
system faulty") or information messages (e.g.: "Boot open") may appear temporarily. These can be cleared by pressing the "ESC" button.
Displays on the screen
From the control panel of your Audio system, you can: press the "MENU" button to gain access to the main menu , press the " " or " " buttons to scroll through the items on the screen, press the "MODE" button to change the permanent application (date, audio source...), press the " " or " " buttons to change a setting value, press the "OK" button to confirm, or press the "ESC" button to abandon the operation in progress.
Controls
Press the "MENU" button to gain access to the main menu , then press the " " or " " buttons to scroll through the various menus: - radio- CD, - vehicle configuration, - options, - display settings, - languages, - units. Press the "OK" button to select the menu required.
Main menu
Page 36 of 248
L a n g u a g e s
Once the "Languages" menu has been selected, you can change the language used by the display (Français, Italiano, Nederlands, Portugues, Portugues-Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been selected, you can change the units of the following parameters: - temperature (°C or °F), - fuel consumption (l/100 km, mpg or km/l).
Once the fuel consumption units have been set to mpg, the information in the instrument panel screen on speed and distance will also be in mph and miles. For safety reasons, configuration by the driver of the multifunction screen must only be done when stationary.
D i s p l a y s e t t i n g s
Once the "Display settings" menu has been selected, you can gain access to the following settings: - year, - month, - day, - hour, - minutes, - 12 or 24 hour mode.
Once you have selected a setting, press the " " or " " buttons to change its value.
Press the " " or " " buttons to switch respectively to the previous or next setting. Press the "OK" button to save the change and return to the normal display or press the "ESC" button to cancel.
Page 37 of 248
49Multifunction screens
Monochrome screen C
This displays the following information: - time, - date, - ambient temperature (this flashes if there is a risk of ice), - status of doors and boot, - audio sources (radio, CD, USB por t, jack socket etc.), - trip computer (refer to the "Instruments and controls" section). Warning messages (E.g. "Emisions control system faulty") or information messages (E.g.: Automatic headlamps active") may appear temporarily. These can be cleared by pressing the "ESC" button.
Displays on the screen
From your Audio system control panel, you can: press the "MENU" button to gain access to the main menu , press the " " or " " buttons to scroll through the items on the screen, press the "MODE" button to change the permanent application (trip computer, audio source...), press the " " or " " buttons to change a setting value,
press the "OK" button to confirm, or press the "ESC" button to abandon the operation in progress.
Controls
Press the "MENU" button to gain access to the main menu : - audio functions, - the trip computer, - personalisation-configuration, - telephone (hands-free kit). Press the " " or " " buttons to select the menu required, then confirm by pressing the "OK" button.
Main menu
Page 38 of 248
With the Audio system switched on, once this menu has been selected you can activate
or deactivate the functions linked with use of the radio (RDS, REG, RadioText), the CD (introscan, shuffle, CD repeat) or the MP3 player (USB por t /jack socket). For fur ther details on the "Audio functions" application , refer to the Audio system par t of the "Audio and Telematics" section.
"Audio functions"
menu
"Trip computer" menu
Once this menu has been selected, you can consult information concerning the status of the
vehicle (warnings log, status of functions, etc.).
A l e r t l o g
This summarises the active warning messages, displaying them in succession on the multifunction screen.
Status of functions
This summarises the status (active or inactive) of the vehicle's functions.
Enter distance to destination
This allows you to enter an approximate distance until your final destination.
Press the "MENU" button to gain access to the general menu.
Press the arrows, then the "OK" button to select the "Trip computer" menu.
In the "Trip computer" menu, select one of the following applications:
Page 39 of 248
51Multifunction screens
"Personalisation-
C o n f i g u r a t i o n " m e n u
Once this menu has been selected, you can gain access to the following functions: - define the vehicle parameters, - display configuration, - choice of language.
D e fi n e t h e v e h i c l e p a r a m e t e r s
Once this menu has been selected, you can activate or deactivate the following equipment: - wiper linked to reverse gear (refer to the "Visibility" section), - "guide-me-home" lighting - parking sensors (refer to the "Driving" section).
Example: setting of the duration of the "guide-
me-home" lighting Press the " " or " " buttons, then the "OK" button to select the menu required.
Press the " " or " " buttons, then the "OK" button to select the "Guide-me-home headlamps" line.
Press the " " or " " buttons to set the value required (15, 30 or 60 seconds), then press the "OK" button to confirm.
Press the " " or " " buttons, then the "OK" button to select the "OK" box and confirm or press the "ESC" button to cancel.
Page 40 of 248
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you can gain access to the following settings: - brightness-video setting, - date and time setting, - selection of units.
Once the fuel consumption units have been changed to mpg, the information in the screen relating to speed and distance also changes to mph and miles respectively.
For safety reasons, configuration by the driver of the multifunction screen must only be done when stationary.
C h o i c e o f l a n g u a g e
Once this menu has been selected, you can change the language used by the display (Deutsch, English, Espanol, Français, Italiano, Nederlands, Por tugues, Por tugues-Brasil, Türkçe * ).
* According to country of destination.
With Audio system on, once this menu is selected you can configure your Bluetooth hands-free kit (pairing), view the various telephone directories (list of calls, ser vices...) and manage your calls (call, hang up, second call, secret mode...). For more details on the "Telephone" function, refer to the Audio system par t of the "Audio and telematics" section.
"Telephone" Menu
Page 41 of 248
53Multifunction screens
16/9 colour screen (MyWay)
It displays the following information automatically and directly: - time, - date, - altitude, - ambient temperature (the value displayed flashes if there is a risk of ice),
- check of the doors, - warning and vehicle function status messages, displayed temporarily,
- audio functions, - satellite navigation system information.
Displays on the screen
MyWay To select one of the applications, at the control panel: press the dedicated "R ADIO" , "MUSIC" , "NAV" , "TR AFFIC" , "SETUP" or "PHONE" button for access to the corresponding menu, turn the dial to change the selection, press the dial to confirm the selection, or press the "ESC" button to abandon the
current operation and return to the previous display.
Controls
For fur ther information on these applications, refer to the "Audio and Telematics" section or to the specific user guide given to you with the other owner's documents.
Page 42 of 248
"SETUP" menu
Press the "SETUP" button to gain access to the "SETUP" menu. This allows you to select from the following functions: - "System language",
- "Date and time", - "Display", - "Vehicle", - "Units", - "System".
S y s t e m l a n g u a g e
This menu allows you to select the language used by the display: Deutsch, English, Espanol, Français, Italiano, Nederlands, Polski, Por tugues, Türkçe * .
Date and time
This menu allows you to set the date and time, the format of the date and the format of the time (refer to the "Audio and Telematics" section or to the specific user guide given to you with the other owner's documents).
Display
This menu allows you to set the brightness of the screen, the screen colour scheme and the colour of the map (day/night or auto mode).
* According to country.
Vehicle
This menu allows you to activate or deactivate cer tain driving and comfor t equipment: - wiper linked with reverse gear (refer to the "Visibility" section), - guide-me-home lighting and duration (refer to the "Visibility" section), - parking sensors (refer to the "Driving" section).
Units
This menu allows you to select the units: temperature (°C or °F) and fuel consumption (km/l, l/100 or mpg).
System
This menu allows you to restore the factory
configuration, display the software version and activate scrolling text.
For safety reasons, configuration of the multifunction screen by the driver must only be done when stationary.
Page 57 of 248
Digital air conditioning The air conditioning can only operate when the engine is running.
Automatic operation
1. Automatic "comfort" programme
Press the "AUTO" button. The "AUTO" symbol is displayed. We recommend that you use this mode. It provides optimised automatic control of all of the following functions: passenger compar tment temperature, air flow, air distribution and air intake, in accordance with the comfor t value that you have chosen. This system is designed to operate effectively in all seasons, with the windows closed.
For your comfor t, when the engine is switched off, the settings are retained
until the engine is switched on again. To prevent too great a distribution of cold air when the engine is cold, the air flow will only reach its optimum level gradually.
2. Temperature adjustment
The value indicated on the display corresponds to a level of comfor t and not to a temperature in degrees Celsius or Fahrenheit.
On entering the vehicle, if the interior is very cold or hot, there is no need to
change the value displayed in order to reach the required level of comfor t. The system corrects the temperature difference automatically and as quickly as possible.
Press the " " and " " buttons to change this value. A setting around the value 21 enables optimum comfor t to be obtained. However, depending on your requirements, a setting between 18 and 24 is usual.
3 . A u t o m a t i c " v i s i b i l i t y " programme
The automatic comfort programme may not be sufficient for rapid demisting or defrosting of the windscreen and side windows (humidity, several passengers, ice, etc.). In this case, select the automatic visibility programme. The button 3 indicator lamp comes on. The system automatically controls the air conditioning and the flow of air and provides optimum air distribution to the windscreen and side windows. It deactivates air recirculation 5 . To exit this programme, press button 3 again or "AUTO" , the indicator lamp on the button is TO"
switched off and "AUTO" is displayed.
