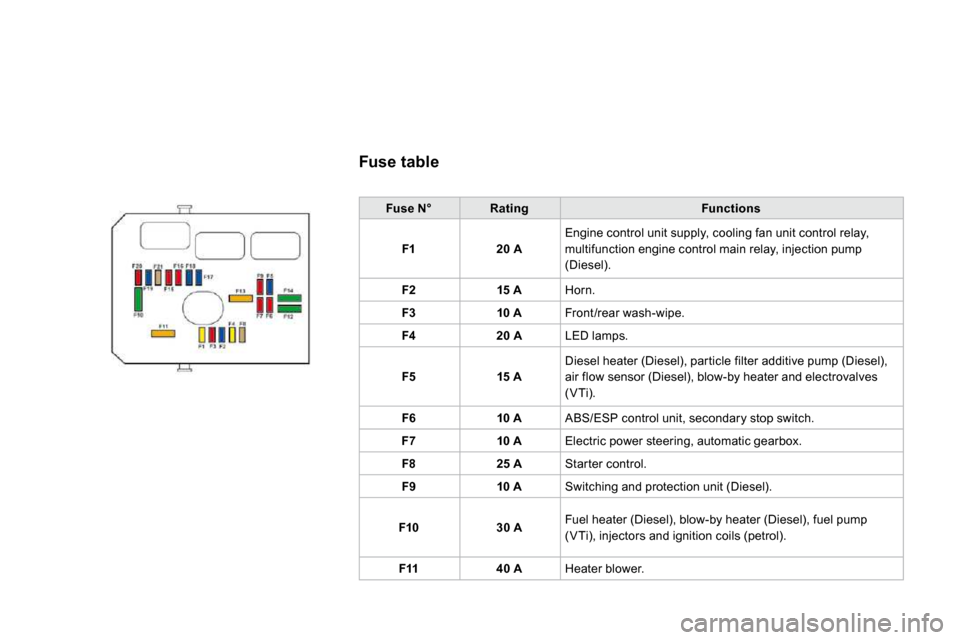

Fuse table
Fuse N°RatingFunctions
F120 A Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel).
F215 A Horn.
F310 A Front /rear wash-wipe.
F420 A LED lamps.
F515 A Diesel heater (Diesel), par ticle filter additive pum p (Diesel), air flow sensor (Diesel), blow-by heater and electroval ves (VTi).
F610 A ABS/ESP control unit, secondary stop switch.
F710 A Electric power steering, automatic gearbox.
F825 A Star ter control.
F910 A Switching and protection unit (Diesel).
F1030 A Fuel heater (Diesel), blow-by heater (Diesel), fuel pump (VTi), injectors and ignition coils (petrol).
F1140 A Heater blower.
Table of maxi-fuses
Fuse N°RatingFunctions
MF1 * 60 A Fan assembly.
MF2 * 30 A ABS/ESP pump.
MF3 * 30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in Systems Inter face (BSI) supply.
MF5 * 60 A Built-in Systems Inter face (BSI) supply.
MF6 * 20 A Additional cooling fan unit (THP).
MF7 * - Dashboard fusebox.
MF8 * - Not used.
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses m ust be carried out by a CITROËN dealer.
Practical information

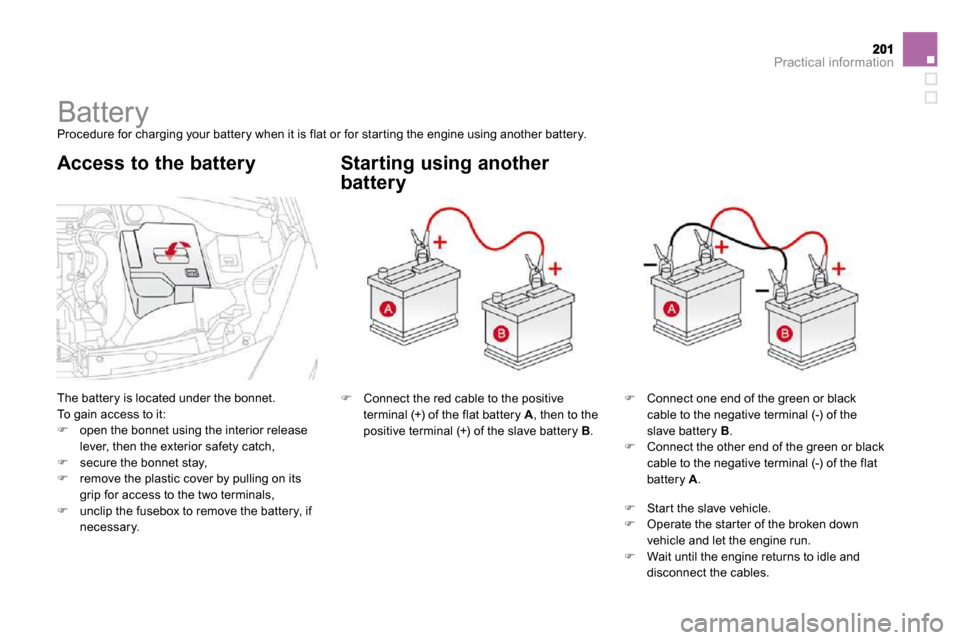

Battery
Procedure for charging your battery when it is flat or for star ting the engine using another battery.
The battery is located under the bonnet. To gain access to it: open the bonnet using the interior release lever, then the exterior safety catch, secure the bonnet stay,
remove the plastic cover by pulling on its grip for access to the two terminals, unclip the fusebox to remove the battery, if necessary.
Access to the battery
Connect the red cable to the positive terminal (+) of the flat battery A , then to the positive terminal (+) of the slave battery B .
Starting using another
battery
Connect one end of the green or black cable to the negative terminal (-) of the slave battery B . Connect the other end of the green or black cable to the negative terminal (-) of the flat
battery A .
Star t the slave vehicle. Operate the star ter of the broken down
vehicle and let the engine run. Wait until the engine returns to idle and disconnect the cables.
