air condition Citroen DS3 2009.5 1.G Owner's Manual

Exterior features
Personalisation kits
These expresive stickers form par t of a range of kits, very different one from another, which allow you to create a unique and attractive exterior for your vehicle.
Guide-me-home lighting
After switching off the ignition, under low lighting conditions the headlamps remain on for a few seconds to help you leave the vehicle.
Rear parking sensors
This system provides a warning when reversing by detecting obstacles located behind the vehicle.
19
103
ary puncture repair kit
omplete system consisting of a compressor and integral sealant product, to allow the temporary repair of a tyre.
176

Interior features
Interior mood lighting
This subdued passenger compar tment lighting improves visibilty inside the vehicle in low lighting conditions. It comprises several
lamps, located in the footwells and in the lower dashboard storage compar tment.
Gear change indicator
Associated with the manual gearbox, this system suggests when to change up to obtain optimum fuel consumption.
Scented air freshener
The scented air freshener diffuses the selected fragrance throughout the passenger compar tment from its location in the ventilation system.
Digital air conditioning
After setting the desired level of comfor t, the system then automatically controls this level according to the exterior climatic conditions.
111
150
69
66
249
Audio and communication systems
These systems benefit from the latest technology: MP3 compatible Audio system, Bluetooth system and USB Box, MyWay with 16/9 colour screen, auxiliary inputs, Hi-Fi audio system. MyWay
221
Audio system

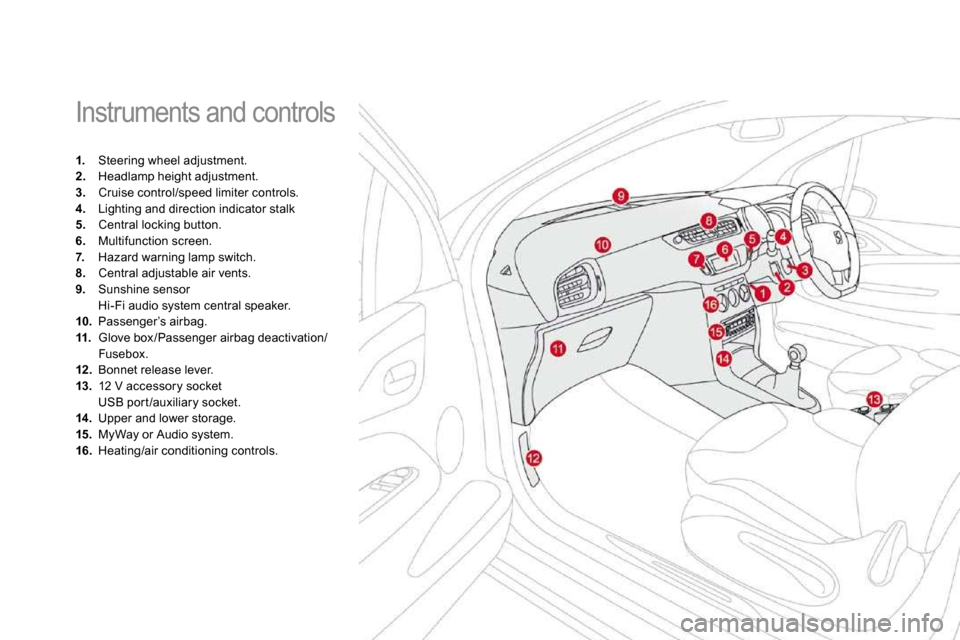

Instruments and controls
1. Steering wheel adjustment. 2. Headlamp height adjustment. 3. Cruise control/speed limiter controls. 4. Lighting and direction indicator stalk 5. Central locking button. 6. Multifunction screen. 7. Hazard warning lamp switch. 8. Central adjustable air vents. 9. Sunshine sensor Hi-Fi audio system central speaker. 10. Passenger’s airbag. 11. Glove box /Passenger airbag deactivation/Fusebox. 12. Bonnet release lever. 13. 12 V accessory socket USB por t /auxiliary socket. 14. Upper and lower storage. 15. MyWay or Audio system. 16. Heating/air conditioning controls.

17Familiarisation
Ventilation
Advice on interior settings
I require...
Heating or Manual air conditioning
Air distributionAir flowAir recirculation / Exterior air intakeTemperatureManual A /C
HEAT
COOL
DEMISTINGDEFROSTING
Digital air conditioning: use of the fully automatic mode by pressing the "AUTO" button is preferable.

Warning lampis onCauseAction/Obser vations
Diesel engine pre-heating fixed. The ignition switch is at the 2 nd position (ignition on). Wait until the warning lamp has switched off before starting. The duration for which the warning lamp is on is determined by the climatic conditions.
Parking brake fixed. The parking brake is applied or not properly released. Release the parking brake to switch off the warnin g lamp, keeping your foot on the brake pedal. Obser ve the safety recommendations. For fur ther information on the parking brake, refer t o the "Driving" section.
Engine coolant temperature fixed blue. On star ting the engine, it indicates that the engine is cold. After a few minutes driving, it swiches off to indicate that the engine temperature is normal. In order to protect your engine, avoid driving too hard until the warning lamp has switched off.
Foot on the brake pedal fixed. With an automatic gearbox, you have forgotten to press the brake pedal to come out of the P postion.
With the engine running, before releasing the park ing brake you must press the brake pedal to unlock the th e automatic gear selector lever and come out of the P position.
Automatic wiping fixed. The wiper control is pushed downwards. Automatic front wiping is activated.

Passenger's airbag system fixed. The control switch, located in the glove box, is in the " ON " position. The passenger's front airbag is activated. In this case, do not install a rear-facing child seat.
Turn the control switch to the " OFF " position to deactivate the front passenger's airbag. In this case you can install a rear-facing child seat. The passenger's airbag system is automatically put into ser vice on star ting the vehicle (" ON " position).

Ventilation
Air intake
The air circulating in the passenger compartment is filtered and originates either from the outside via the grille located at the base of the windscreen or from the inside in air recirculation mode.
Air treatment
The incoming air follows various routes depending on the controls selected by the driver: - direct arrival in the passenger compar tment (air intake), - passage through a heating circuit (heating), - passage through a cooling circuit (air conditioning). The temperature control enables you to obtain the level of comfor t required by mixing the air of the various circuits. The air distribution control enables you to diffuse the air in the passenger compar tment combining several air vents. The air flow control enables you to increase or reduce the speed of the ventilation blower.
Control panel
The controls of this system are grouped together on control panel A on the centre console. Depending on the model, the functions offered are: - the level of comfor t required, - air flow, - air distribution, - demisting-defrosting, - manual or digital air conditioning controls.
Air distribution
1. Windscreen demisting-defrosting vents. 2. Front side window demisting-defrosting vents. 3. Side adjustable air vents. 4. Central adjustable air vents. 5. Air outlets to the front footwells. 6. Air outlets to the rear footwells.

59Comfort

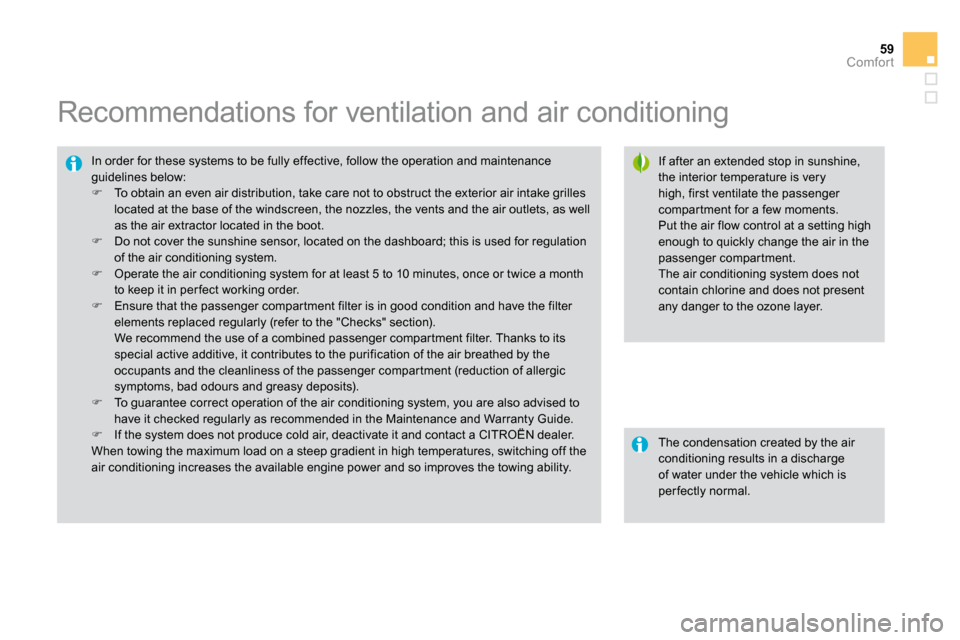

Recommendations for ventilation and air co nditioning
If after an extended stop in sunshine, the interior temperature is very high, first ventilate the passenger compar tment for a few moments.
Put the air flow control at a setting high enough to quickly change the air in the passenger compar tment. The air conditioning system does not contain chlorine and does not present any danger to the ozone layer.
In order for these systems to be fully effective, follow the operation and maintenance guidelines below:  To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as well as the air extractor located in the boot.  Do not cover the sunshine sensor, located on the d ashboard; this is used for regulation of the air conditioning system.  Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month to keep it in per fect working order.  Ensure that the passenger compar tment filter is in g ood condition and have the filter elements replaced regularly (refer to the "Checks" secti on). We recommend the use of a combined passenger compa r tment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by the occupants and the cleanliness of the passenger compar t ment (reduction of allergic symptoms, bad odours and greasy deposits).  To guarantee correct operation of the air conditioning system, you are also advised to have it checked regularly as recommended in the Maint enance and Warranty Guide.
 If the system does not produce cold air, deactivate it and contact a CITROËN dealer. When towing the maximum load on a steep gradient in high temperatures, switching off the air conditioning increases the available engine power and so improves the towing ability.
The condensation created by the air conditioning results in a discharge of water under the vehicle which is per fectly normal.

Comfort
5. Air conditioning On/Off
The air conditioning is designed to operate effectively in all seasons, with the windows closed.
Electric control panel
 Press the button to recirculate the interior air. This is confirmed by lighting of the indicator lamp.
 Press the button again to allow fresh air into the passenger compartment. This is confirmed by the indicator lamp switching off.
It enables you to: - lower the temperature, in summer, - increase the effectiveness of the demisting in winter, above 3 °C.
Switching on
 Press the "A /C" button, the associated green indicator lamp comes on. The air conditioning does not operate when the air flow adjustment control 2 is in position "0".
Switching off
 Press the "A/C" button again, the associated green indicator lamp switches off.

Front demist - defrost
With the heating/ventilation
system
 Put the temperature and air flow controls to the dedicated marked position.  Put the air intake control to the "Exterior air intake" position (manual control to the right or electric control with indicator lamp off).  Put the air distribution control to the " Windscreen" position.
These markings on the control panel indicate the control positions for rapid demisting or defrosting of the windscreen and side windows.
With the manual air
conditioning system
 Put the temperature and air flow controls to the dedicated marked position.  Put the air intake control to the "Exterior air intake" position (manual control to the right or electric control with indicator lamp off).  Put the air distribution control to the " Windscreen" position.  Switch on the air conditioning by pressing the "A /C" button; the associated green
warning lamp comes on.

61Comfort

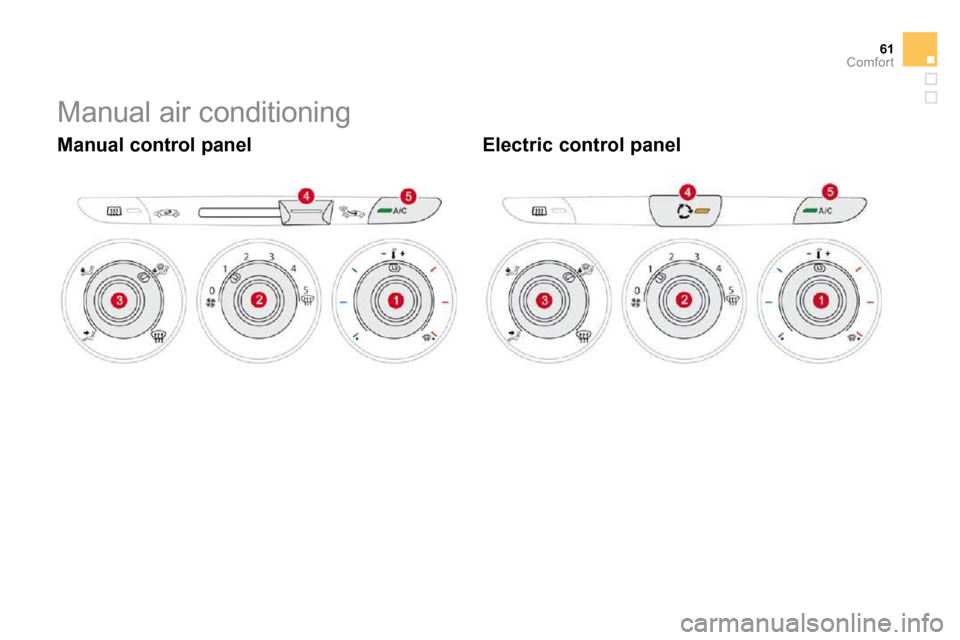

Manual air conditioning
Manual control panel Electric control panel
