Page 4 of 248
11Familiarisation
Instruments and controls
1. Audio equipment steering wheel controls. 2. Steering lock and ignition. 3. Wipers/wash-wipe/trip computer stalk. 4. Instrument panel. 5. Scented air freshener. 6. Driver’s airbag. Horn. 7. Gear lever. 8. Parking brake. 9. Central armrest with storage. 10. Door mirror controls. Electric window controls. 11. Oddments storage 12. Alarm button Electronic stability programme button (ESP/ASR). 13. Side adjustable air vent. 14. Front door window demisting/defrosting vent. 15. Speaker (tweeter). 16. Windscreen demisting/defrosting vent.
Page 43 of 248
Ventilation
Air intake
The air circulating in the passenger compartment is filtered and originates either from the outside via the grille located at the base of the windscreen or from the inside in air recirculation mode.
Air treatment
The incoming air follows various routes depending on the controls selected by the driver: - direct arrival in the passenger compar tment (air intake), - passage through a heating circuit (heating), - passage through a cooling circuit (air conditioning). The temperature control enables you to obtain the level of comfor t required by mixing the air of the various circuits. The air distribution control enables you to diffuse the air in the passenger compar tment combining several air vents. The air flow control enables you to increase or reduce the speed of the ventilation blower.
Control panel
The controls of this system are grouped together on control panel A on the centre console. Depending on the model, the functions offered are: - the level of comfor t required, - air flow, - air distribution, - demisting-defrosting, - manual or digital air conditioning controls.

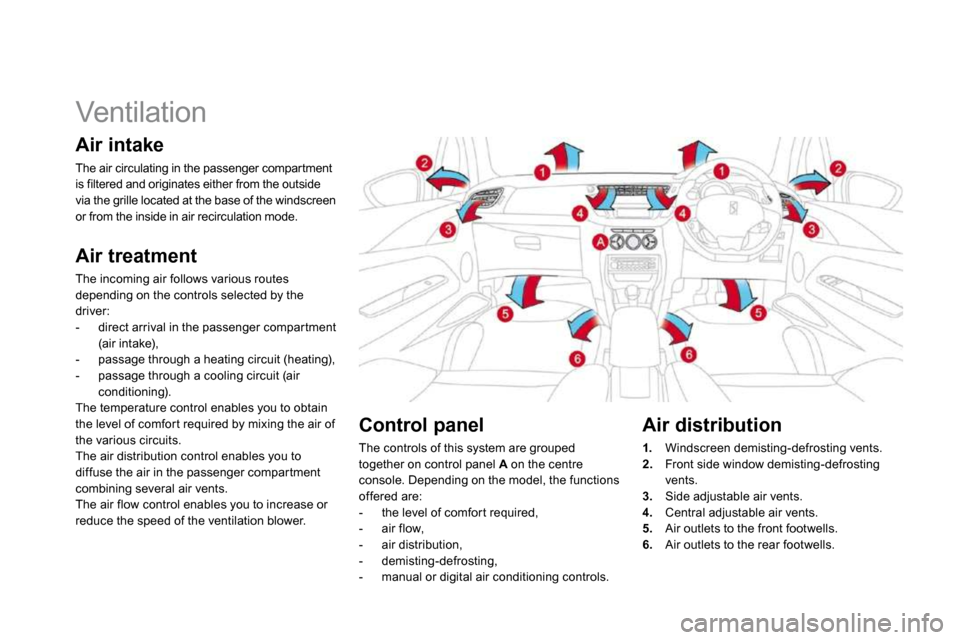

Air distribution
1. Windscreen demisting-defrosting vents. 2. Front side window demisting-defrosting vents. 3. Side adjustable air vents. 4. Central adjustable air vents. 5. Air outlets to the front footwells. 6. Air outlets to the rear footwells.
Page 46 of 248
1. Temperature adjustment
Turn the dial from blue (cold) to red (hot) to adjust the temperature to your requirements.
2 . A i r fl o w a d j u s t m e n t
Turn the dial from position 1to position 5 to obtain a comfor table air flow.
If you place the air flow control in position 0 (deactivation of the
system), the temperature is no longer maintained at a comfor table level. However, a slight flow of air, due to the movement of the vehicle,
can still be felt.
3. Air distribution adjustment
Windscreen and side windows.
Windscreen, side windows and footwells.
Footwells.
Central and side vents.
The air distribution can be adapted by placing the dial in an intermediate position.
4. Air intake/Air recirculation
The intake of exterior air avoids the formation of mist on the windscreen and side windows. The recirculation of interior air insulates the passenger compar tment from exterior odours and smoke. Return to exterior air intake as soon as possible to prevent deterioration of the air quality and the formation of mist.
Manual control panel
Press the button to recirculate the interior air. The indicator lamp comes on to confirm this.
Press the button again to permit the intake of exterior air. The indicator lamp switches off to confirm this.
Page 47 of 248
Comfort
5. Air conditioning On/Off
The air conditioning is designed to operate effectively in all seasons, with the windows closed.
Electric control panel
Press the button to recirculate the interior air. This is confirmed by lighting of the indicator lamp.
Press the button again to allow fresh air into the passenger compartment. This is confirmed by the indicator lamp switching off.
It enables you to: - lower the temperature, in summer, - increase the effectiveness of the demisting in winter, above 3 °C.
S w i t c h i n g o n
Press the "A /C" button, the associated green indicator lamp comes on. T h e a i r c o n d i t i o n i n g d o e s n o t o p e r a t e w h e n t h e a i r f l o w a d j u s t m e n t c o n t r o l 2 is in position "0".
S w i t c h i n g o f f
Press the "A/C" button again, the associated green indicator lamp switches off.
Page 48 of 248
Front demist - defrost
W i t h t h e h e a t i n g / v e n t i l a t i o n
system
Put the temperature and air flow controls to the dedicated marked position. Put the air intake control to the "Exterior air intake" position (manual control to the right or electric control with indicator lamp off). Put the air distribution control to the " Windscreen" position.
These markings on the control panel indicate the control positions for rapid demisting or defrosting of the windscreen and side windows.
W i t h t h e m a n u a l a i r
conditioning system
Put the temperature and air flow controls to the dedicated marked position. Put the air intake control to the "Exterior air intake" position (manual control to the right or electric control with indicator lamp off). Put the air distribution control to the " Windscreen" position. Switch on the air conditioning by pressing the "A /C" button; the associated green
warning lamp comes on.
Page 51 of 248
1. Temperature adjustment
Turn the dial from blue (cold) to red (hot) to adjust the temperature to your requirements.
2 . A i r fl o w a d j u s t m e n t
Turn the dial from position 1to position 5 to obtain a comfor table air flow.
If you place the air flow control in position 0 (deactivation of the
system), the temperature is no longer maintained at a comfor table level. However, a slight flow of air, due to the movement of the vehicle,
can still be felt.
3. Air distribution adjustment
Windscreen and side windows.
Windscreen, side windows and footwells.
Footwells.
Central and side vents.
The air distribution can be adapted by placing the dial in an intermediate position.
4. Air intake/Air recirculation
The intake of exterior air avoids the formation of mist on the windscreen and side windows. The recirculation of interior air insulates the passenger compar tment from exterior odours and smoke. Return to exterior air intake as soon as possible to prevent deterioration of the air quality and the formation of mist.
Manual control panel
Press the button to recirculate the interior air. The indicator lamp comes on to confirm this.
Press the button again to permit the intake of exterior air. The indicator lamp switches off to confirm this.
Page 52 of 248
Comfort
5. Air conditioning On/Off
The air conditioning is designed to operate effectively in all seasons, with the windows closed.
Electric control panel
Press the button to recirculate the interior air. This is confirmed by lighting of the indicator lamp.
Press the button again to allow fresh air into the passenger compartment. This is confirmed by the indicator lamp switching off.
It enables you to: - lower the temperature, in summer, - increase the effectiveness of the demisting in winter, above 3 °C.
S w i t c h i n g o n
Press the "A /C" button, the associated green indicator lamp comes on. T h e a i r c o n d i t i o n i n g d o e s n o t o p e r a t e w h e n t h e a i r f l o w a d j u s t m e n t c o n t r o l 2 is in position "0".
S w i t c h i n g o f f
Press the "A/C" button again, the associated green indicator lamp switches off.
Page 53 of 248
Front demist - defrost
W i t h t h e h e a t i n g / v e n t i l a t i o n
system
Put the temperature and air flow controls to the dedicated marked position. Put the air intake control to the "Exterior air intake" position (manual control to the right or electric control with indicator lamp off). Put the air distribution control to the " Windscreen" position.
These markings on the control panel indicate the control positions for rapid demisting or defrosting of the windscreen and side windows.
W i t h t h e m a n u a l a i r
conditioning system
Put the temperature and air flow controls to the dedicated marked position. Put the air intake control to the "Exterior air intake" position (manual control to the right or electric control with indicator lamp off). Put the air distribution control to the " Windscreen" position. Switch on the air conditioning by pressing the "A /C" button; the associated green
warning lamp comes on.
Page 55 of 248
Front demist - defrost
W i t h t h e h e a t i n g / v e n t i l a t i o n
system
Put the temperature and air flow controls to the dedicated marked position. Put the air intake control to the "Exterior air intake" position (manual control to the right or electric control with indicator lamp off). Put the air distribution control to the " Windscreen" position.
These markings on the control panel indicate the control positions for rapid demisting or defrosting of the windscreen and side windows.
W i t h t h e m a n u a l a i r
conditioning system
Put the temperature and air flow controls to the dedicated marked position. Put the air intake control to the "Exterior air intake" position (manual control to the right or electric control with indicator lamp off). Put the air distribution control to the " Windscreen" position. Switch on the air conditioning by pressing the "A /C" button; the associated green
warning lamp comes on.
Page 57 of 248
Digital air conditioning The air conditioning can only operate when the engine is running.
Automatic operation
1. Automatic "comfort" programme
Press the "AUTO" button. The "AUTO" symbol is displayed. We recommend that you use this mode. It provides optimised automatic control of all of the following functions: passenger compar tment temperature, air flow, air distribution and air intake, in accordance with the comfor t value that you have chosen. This system is designed to operate effectively in all seasons, with the windows closed.
For your comfor t, when the engine is switched off, the settings are retained
until the engine is switched on again. To prevent too great a distribution of cold air when the engine is cold, the air flow will only reach its optimum level gradually.
2. Temperature adjustment
The value indicated on the display corresponds to a level of comfor t and not to a temperature in degrees Celsius or Fahrenheit.
On entering the vehicle, if the interior is very cold or hot, there is no need to
change the value displayed in order to reach the required level of comfor t. The system corrects the temperature difference automatically and as quickly as possible.
Press the " " and " " buttons to change this value. A setting around the value 21 enables optimum comfor t to be obtained. However, depending on your requirements, a setting between 18 and 24 is usual.
3 . A u t o m a t i c " v i s i b i l i t y " programme
The automatic comfort programme may not be sufficient for rapid demisting or defrosting of the windscreen and side windows (humidity, several passengers, ice, etc.). In this case, select the automatic visibility programme. The button 3 indicator lamp comes on. The system automatically controls the air conditioning and the flow of air and provides optimum air distribution to the windscreen and side windows. It deactivates air recirculation 5 . To exit this programme, press button 3 again or "AUTO" , the indicator lamp on the button is TO"
switched off and "AUTO" is displayed.
