Bluetooth Citroen DS3 2011 1.G User Guide

06
1
2
3
4
5
6
7
8
9
10
291
BLUETOOTH FUNCTIONS


For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth
mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.

Press the MENU button.

A window is displayed with "Searching...".
Activate the telephone's Bluetooth function.

In the menu, select:


- Bluetooth telephone function -
Audio

- Bluetooth confi guration

- Perform a Bluetooth search

The services offered depend on the network, the SIM card and the
compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which
services are available to you. A list of mobile telephones which offer the best
range of services is available from the network. Consult a CITROËN dealer.










BLUETOOTH TELEPHONE

SCREEN C

The TELEPHONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.

The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the
screen: enter a code with at least 4 digits.
Confi rm by pressing OK.

"Pairing of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.

A message is displayed on the screen of the telephone
chosen: to accept the pairing, enter the same code on
the telephone, then confi rm by pressing OK.
The automatic connection authorised is only active after the
telephone has been confi gured.
The directory and the call list can be accessed after
the synchronisation period.
PAIRING A TELEPHONE

The pairing can also be initiated from the telephone.
(AVAILABILITY DEPENDS ON MODEL AND VERSION)

* If your telephone is fully compatible.

If pairing fails, the number of attempts is not limited.

06
1
2
1
2
1
2
3

RECEIVING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.

Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle
must be stationary with the key in the ignition.

Select the telephone to be connected from the telephone function menu.
The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display
using the buttons and confi rm by
pressing OK.

Press the steering mounted control OK to accept
the call.








BLUETOOTH AUDIO STREAMING


Wireless transmission of the telephone's music fi les via the audio
equipment. The telephone must be able to manage the appropriate
bluetooth profi les (Profi les A2DP/AVRCP).

*
In certain cases, playing of the Audio fi les must be initiated from
the keypad.

** If the telephone supports the function.
Activate the streaming source by
pressing the SOURCE button * .
The tracks to be played can be
controlled as usual via the buttons
on the Radio control panel and
the steering mounted controls ** .
The contextual information can be
displayed on the screen.



MAKING A CALL


From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the end of the steering mounted control for
more than two seconds to gain access to your
directory.
Or
To dial a number, use your telephone's keypad,
with the vehicle stationary.


BLUETOOTH FUNCTIONS

09 SCREEN MENU MAP


BLUETOOTH TELEPHONE


Connect/Disconnect a device

Consult the paired device
BLUETOOTH CONFIGURATION

Telephone function


Audio Streaming function

Delete a paired device
Perform a Bluetooth search

Calls list

CALL
Directory

Terminate the current call

MANAGE THE TELEPHONE CALL


Activate private mode



1
2
3
3
3
4
4
4
2
3
4
2
3
3

301

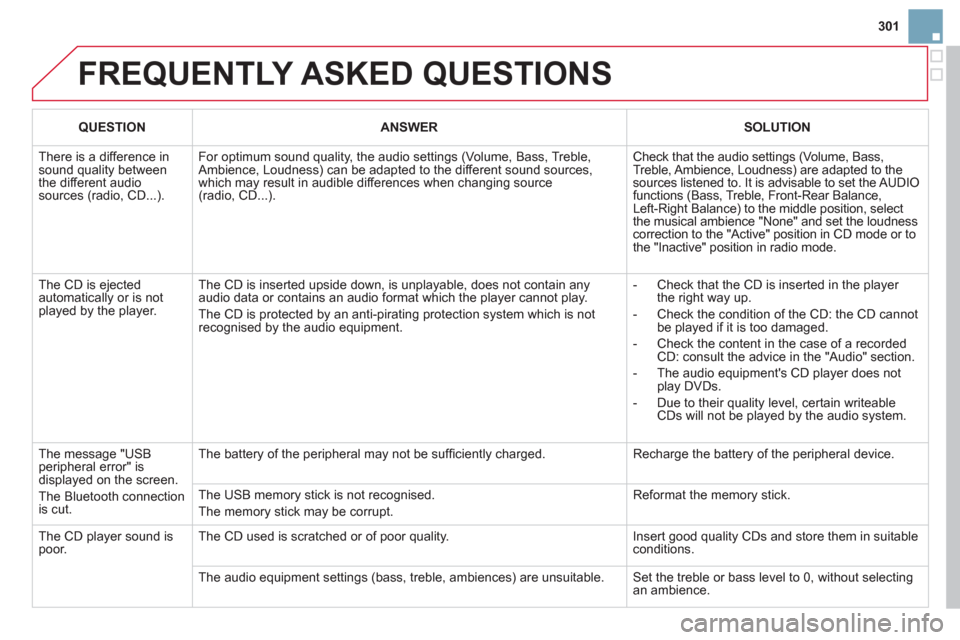

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


There is a difference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source
(radio, CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to the
sources listened to. It is advisable to set the AUDIO
functions (Bass, Treble, Front-Rear Balance,
Left-Right Balance) to the middle position, select
the musical ambience "None" and set the loudness
correction to the "Active" position in CD mode or to
the "Inactive" position in radio mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player
the right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

A
ABS and EBFD systems ............................. 142
Accessories ................................................ 225
Accessories socket, 12 V ............................ 122
Access to rear seats ............................... 79, 80
Adjusting headlamps .................................. 111
Adjusting head restraints .............................. 78
Adjusting the steering wheel ......................... 83
Air conditioning ............................................. 22
Air conditioning
(digital) .................................................. 65, 71
Air conditioning (manual) ........................65, 68
Air filter ........................................................ 186
Air intake ....................................................... 71
Air recirculation ............................................. 71
Air vents ........................................................ 64
Anti-lock braking system
(ABS) ........................................................ 142
Anti-pinch ...................................................... 94
Anti-theft steering lock .................................. 90
Assistance call .................................... 141, 246
Audible warning .......................................... 141
Audio streaming
(Bluetooth) ................................................ 292
Audio system ...................... 282, 283, 296, 298
Automatic gearbox .............................. 162, 187
Automatic illumination
of headlamps .....................................107, 110
Automatic operation
of hazard warning lamps .......................... 141
Automatic rain sensitive
windscreen wipers .............................112, 114
Auxiliary socket ...........................................266
Auxiliary sockets .........................................290Capacity, fuel tank ...................................... 100
CD MP3 ...............................................265, 287
Central locking ........................................ 89, 97
Changing a bulb .......................... 203, 207, 208
Changing a fuse .......................................... 210
Changing a wheel ....................................... 196
Changing a wiper blade ...................... 115, 220
Changing the date ....................................... 270
Changing the remote control battery ............ 92
Changing the time ...................... 270, 293, 294
Checking levels ................................... 183, 185
Checking the engine oil level ........................ 43
Checking tyre pressures (using the kit) ...... 190Checks ................................ 181, 182, 186, 187
Children ........................................132, 134-136
Child seats ......................................... 128, 132
Closing the boot ......................................89, 99
Closing the doors ....................................89, 96
Connectors, audio .............. 122, 266, 288, 290
Control stalk, wipers .............................112-114
Coolant level ......................................... 40, 183
Coolant temperature ..................................... 40
Coolant temperature indicator ...................... 40
Cour tesy lamps ........................................... 209
Cour tesy mirror ........................................... 121
Cruise control .............................................. 171
Cup holder ................................................... 120
Cur tain airbags ................................... 152, 153 Battery ................................................. 186, 217
Battery, remote control ...........................92, 93
Battery recharge ......................................... 217
Bench seat, rear ............................................ 82
Black panel .................................................... 45
Bluetooth (hands-free) ................ 267, 268, 291
Bluetooth (telephone) .......................... 267, 268
Bonnet ......................................................... 179
Boot ............................................................... 99
Boot lamp ............................................ 117, 209
Brake discs .................................................. 187
Brake lamps ................................................ 207
Brake pads .................................................. 187
Brakes ......................................................... 187
Braking assistance system ......................... 142
B
C
Dashboard fusebox ..................................... 210
Date (display) .............................................. 270
Deactivating the passenger airbag ............. 149
Defrosting ................................................ 68, 74
Demisting ................................................ 68, 71
Dials and gauges .................................... 26, 28
Diesel additive level .................................... 185
Diesel engine .............................. 101, 182, 236
Dimensions ................................................. 238
Dipped beam .......................................106, 204
Dipstick .................................................. 43, 183
Direction indicators ............................. 140, 207
Door mirrors .................................................. 84
D
