Bluetooth Citroen DS3 2011 1.G Owner's Manual

Interior


Interior mood lighting

This subdued passenger compar tment lighting
improves visibility inside the vehicle in low
lighting conditions. It comprises several
lamps, located in the footwells and in the lower
dashboard storage compar tment.

Gear shift indicator

Associated with the manual gearbox, this
system suggests when to change up to obtain
optimum fuel consumption.

Scented air freshener

The scented air freshener diffuses the
selected fragrance throughout the passenger
compartment from its location in the ventilation
system.

Digital air conditioning

After setting the desired level of comfor t, the
system then automatically controls this level
according to the exterior climatic conditions.



117




15 8




75





71





281





Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible Audio system,
Bluetooth system and USB Box, MyWay with
16/9 colour screen, auxiliary inputs, Hi-Fi audio
system.

MyWay




247


Audio system

Display confi guration

Once this menu has been selected, you can
gain access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of units.
Once the fuel consumption units have
been changed to mpg, the information
in the screen relating to speed and
distance also changes to mph and
miles respectively. For safety reasons, configuration by the
driver of the multifunction screen must
only be done when stationary.



Choice of language

Once this menu has been selected, you can
change the language used by the display
(Deutsch, English, Espanol, Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe * ).

*
According to country of destination. With Audio system on, once this menu is
selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)
and manage your calls (call, hang up, second
call, secret mode...).
For more information on the "Telephone"
function, refer to the Audio system par t of the
"Audio and telematics" section.


"Telephone" Menu

013
Audio and telematics


This section covers emergency and assistance calls, as well as the
functions of the audio-navigation units, such as MP3 -compatible player,
USB player, Bluetooth system, MyWay with 16/9 colour screen, auxiliary
inputs, Hi-Fi audio system.

247

The MyWay is protected in such a way that it will only
operate in your vehicle. If it is to be installed in another
vehicle, contact a CITROËN dealer for confi guration of
the system.

Certain functions described in this handbook will
become available during the year.


MYWAY


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the MyWay switches off
following the activation of the Energy Economy mode.


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD


01 First steps
CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Configuration

10 Trip computer p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

11 Screen menu map

Frequently asked questions p.
p. 248
249
250
253
261
263
264
267
270
271
272
276

08
1
2
3
4
267

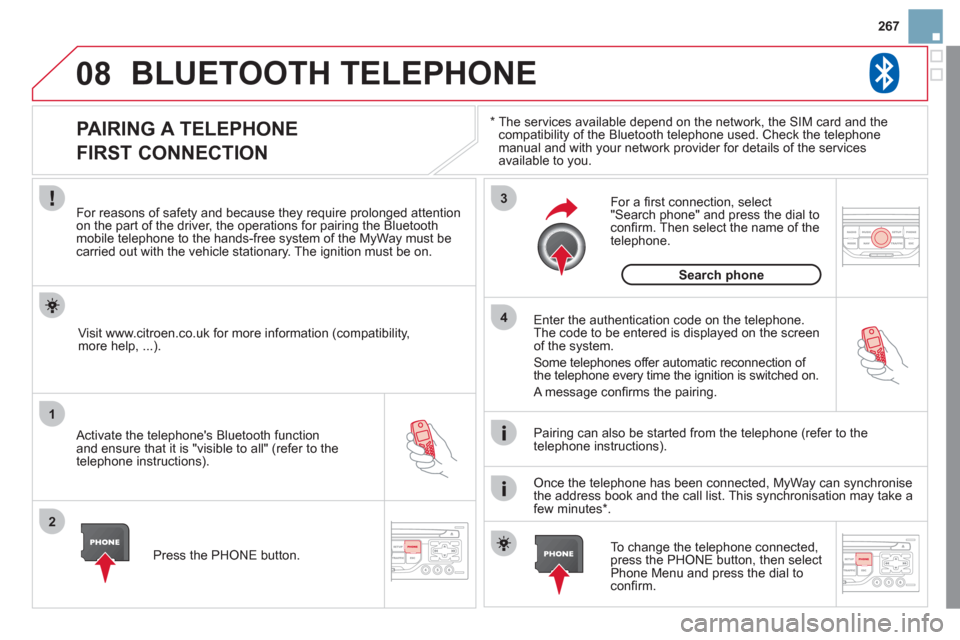

BLUETOOTH TELEPHONE


*
The services available depend on the network, the SIM card and the
compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you.















PAIRING A TELEPHONE
FIRST CONNECTION



For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the MyWay must be
carried out with the vehicle stationary. The ignition must be on.

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (refer to the
telephone instructions).
Enter the authentication code on the telephone.
The code to be entered is displayed on the screen
of the system.
Some telephones offer automatic reconnection of
the telephone every time the ignition is switched on.
A message confi rms the pairing.

To change the telephone connected,
press the PHONE button, then select
Phone Menu and press the dial to
confi rm.

Once the telephone has been connected, MyWay can synchronise
the address book and the call list. This synchronisation may take a
few minutes * .
Pairing can also be started from the telephone (refer to the
telephone instructions).
Visit www.citroen.co.uk for more information (compatibility,
more help, ...).

Press the PHONE button.
For a fi rst connection, select
"Search phone" and press the dial to
confi rm. Then select the name of the
telephone.

Search phone

08
1
2
2
1

*
The services available depend on the network, the SIM card and the
compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you.

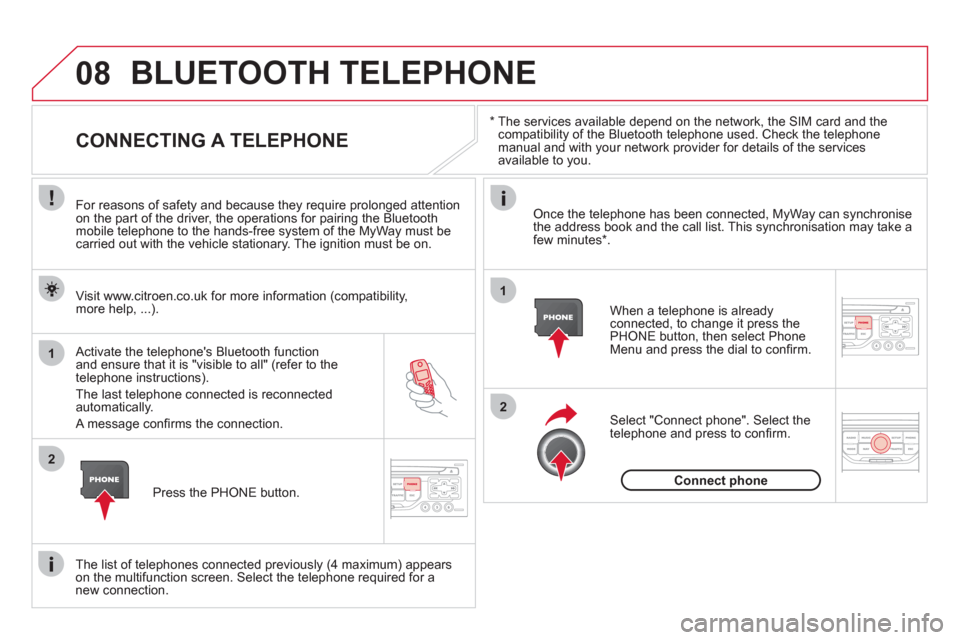

BLUETOOTH TELEPHONE
















CONNECTING A TELEPHONE



For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the MyWay must be
carried out with the vehicle stationary. The ignition must be on.

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (refer to the
telephone instructions).
The last telephone connected is reconnected
automatically.
A message confi rms the connection.
When a telephone is already
connected, to change it press the
PHONE button, then select Phone
Menu and press the dial to confi rm.
Once the telephone has been connected, MyWay can synchronise
the address book and the call list. This synchronisation may take a
few minutes * .

The list of telephones connected previously (4 maximum) appears
on the multifunction screen. Select the telephone required for a
new connection.
Visit www.citroen.co.uk for more information (compatibility,
more help, ...).

Press the PHONE button.
Select "Connect phone". Select the
telephone and press to confi rm.

Connect phone

08
1
3 2
2 1
269

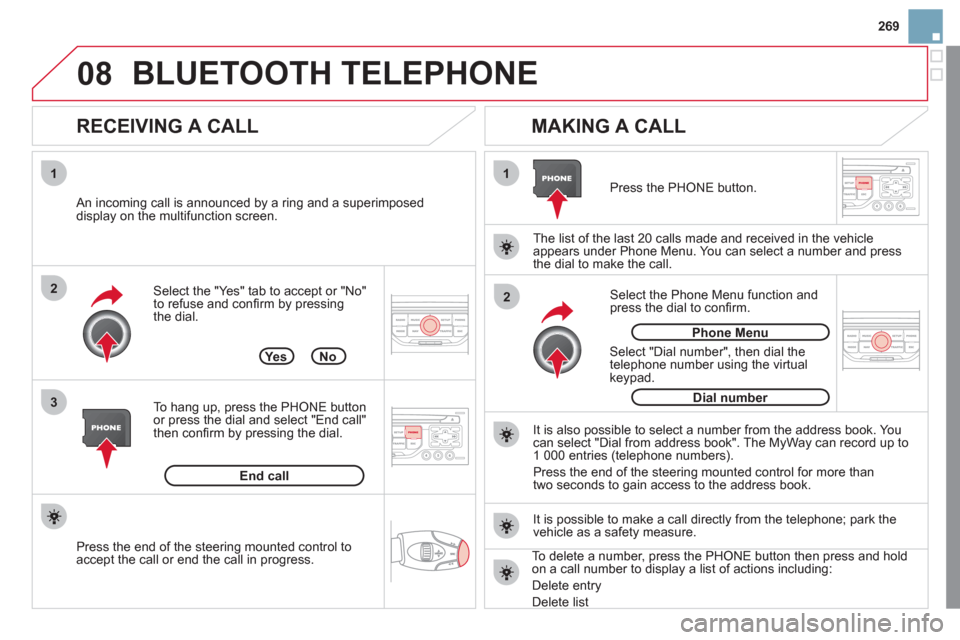

Select the "Yes" tab to accept or "No"
to refuse and confi rm by pressing
the dial.

RECEIVING A CALL
MAKING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.


Ye s


To hang up, press the PHONE button
or press the dial and select "End call"
then confi rm by pressing the dial.

End call



Press the PHONE button.
Select "Dial number", then dial the
telephone number using the virtual
keypad.
No


Select the Phone Menu function and
press the dial to confi rm.
The list of the last 20 calls made and received in the vehicle
appears under Phone Menu. You can select a number and press
the dial to make the call.


It is also possible to select a number from the address book. You
can select "Dial from address book". The MyWay can record up to
1 000 entries (telephone numbers).
Press the end of the steering mounted control for more than
two seconds to gain access to the address book.


Phone Menu


Dial number



It is possible to make a call directly from the telephone; park the
vehicle as a safety measure.

BLUETOOTH TELEPHONE



Press the end of the steering mounted control to
accept the call or end the call in progress.

To delete a number, press the PHONE button then press and hold
on a call number to display a list of actions including:
Delete entry
Delete list

279

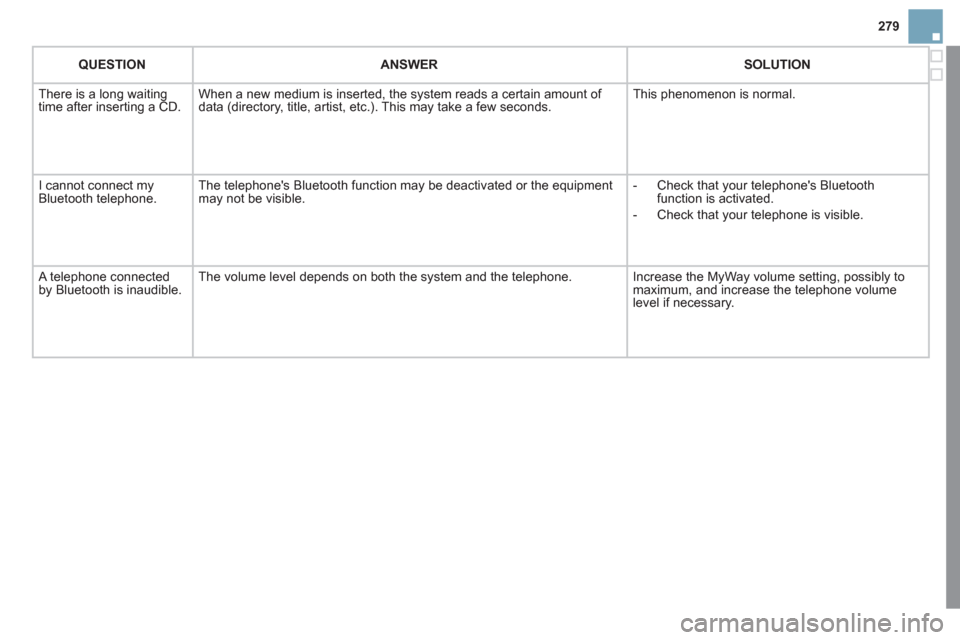

QUESTION



ANSWER



SOLUTION


There is a long waiting
time after inserting a CD. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be deactivated or the equipment
may not be visible.

- Check that your telephone's Bluetooth
function is activated.

- Check that your telephone is visible.
A telephone connected
by Bluetooth is inaudible. The volume level depends on both the system and the telephone. Increase the MyWay volume setting, possibly to
maximum, and increase the telephone volume
level if necessary.

281
AUDIO SYSTEM


Your Audio system is coded in such a way that it will
only operate in your vehicle. If it is to be installed in
another vehicle, contact your CITROËN dealer for
confi guration of the system.

For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the audio equipment may
switch off after a few minutes.



AUDIO SYSTEM/BLUETOOTH

01 First steps

02 Steering mounted controls

03 Main menu

04 Audio

05 USB Box

06 Bluetooth functions

07 Configuration

08 Trip computer

09 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p. 282
283
284
285
288
291
293
295
296
CONTENTS

Frequently asked questions p. 301

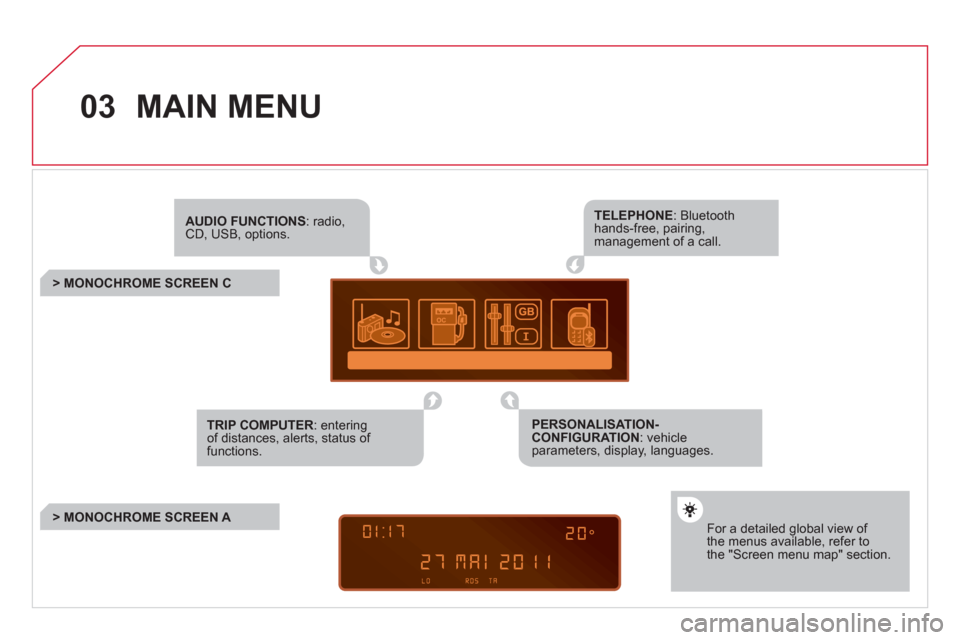

03 MAIN MENU



AUDIO FUNCTIONS
: radio,
CD, USB, options.








> MONOCHROME SCREEN C

For a detailed global view of
the menus available, refer to
the "Screen menu map" section.


TELEPHONE
: Bluetooth
hands-free, pairing,
management of a call.


PERSONALISATION-
CONFIGURATION
: vehicle
parameters, display, languages.

TRIP COMPUTER
: entering
of distances, alerts, status of
functions.










> MONOCHROME SCREEN A
