59Multifunction screens














16/9 colour screen (MyWay)

It displays the following information
automatically and directly:


- time,

- date,

- altitude,

- ambient temperature (the value displayed
flashes if there is a risk of ice),

- check of the doors,

- warning and vehicle function status
messages, displayed temporarily,

- audio functions,

- trip computer information (see the
"Monitoring" section),

- satellite navigation system information.



Displays on the screen

MyWay To select one of the applications, at the
control panel:


)
press the dedicated "RADIO"
, "MUSIC"
,
"NAV"
, "TRAFFIC"
, "SETUP"
or
"PHONE"
button for access to the
corresponding menu,

)
turn the dial to change the selection,

)
press the dial to confirm the selection,
or

)
press the "ESC"
button to abandon the
current operation and return to the previous
display.


Controls

For more information on these applications,
refer to the "Audio and Telematics" section or
to the specific user guide given to you with the
other owner's documents.

"SETUP" menu




)
Press the "SETUP"
button to gain access
to the "SETUP"
menu. This allows you to
select from the following functions:


- "System language",

- "Date and time",

- "Display",

- "Vehicle",

- "Units",

- "System".




System language

This menu allows you to select the language
used by the display: Deutsch, English,
Espanol, Français, Italiano, Nederlands, Polski,
Portugues, Türkçe * .


Date and time

This menu allows you to set the date and time,
the format of the date and the format of the time
(refer to the "Audio and Telematics" section or
to the specific user guide given to you with the
other owner's documents).


Display

This menu allows you to set the brightness of
the screen, the screen colour scheme and the
colour of the map (day/night or auto mode).

*
According to country.


Vehicle

This menu allows you to activate or deactivate
cer tain driving and comfor t equipment:


- wiper linked with reverse gear (refer to the
"Visibility" section),

- guide-me-home lighting and duration (refer
to the "Visibility" section),

- parking sensors (refer to the "Driving"
section).



Units

This menu allows you to select the units:
temperature (°C or °F) and fuel consumption
(km/l, l/100 or mpg).


System

This menu allows you to restore the factory
configuration, display the software version and
activate scrolling text.
For safety reasons, configuration of the
multifunction screen by the driver must
only be done when stationary.

71Comfort

















Digital air conditioning
The air conditioning operates when the engine is running, as well as in STOP mode with Stop & Start.


Automatic operation


1. Automatic "comfort"
programme
Press the "AU TO "
button. The
"AU TO "
symbol is displayed.
We recommend that you use
this mode. It provides optimised
automatic control of all of the following
functions: passenger compar tment
temperature, air flow, air distribution and air
intake, in accordance with the comfort value
that you have chosen.
This system is designed to operate effectively
in all seasons, with the windows closed. For your comfor t, when the engine is
switched off, the settings are retained
until the engine is switched on again.
To prevent too great a distribution of
cold air when the engine is cold, the air
flow will only reach its optimum level
gradually.


2. Temperature adjustment

The value indicated on the display corresponds
to a level of comfor t and not to a temperature in
degrees Celsius or Fahrenheit. On entering the vehicle, if the interior
is very cold or hot, there is no need to
change the value displayed in order
to reach the required level of comfor t.
The system corrects the temperature
difference automatically and as quickly
as possible.
Press the "



"
and "



"
buttons to
change this value. A setting around
the value 21
enables optimum
comfor t to be obtained. However,
depending on your requirements, a
setting between 18 and 24 is usual.

3. Automatic "visibility"
programme

The automatic comfor t programme
may not be sufficient for rapid
demisting or defrosting of the
windscreen and side windows
(humidity, several passengers, ice, etc.).
In this case, select the automatic visibility
programme. The button 3
indicator lamp
comes on.
The system automatically controls the air
conditioning and the flow of air and provides
optimum air distribution to the windscreen and
side windows. It deactivates air recirculation 5
.
To exit this programme, press button 3
again or
"AU TO "
, the indicator lamp on the button goes
off and "AU TO "
is displayed.







With Stop & Star t, when demisting has
been activated, the STOP mode is not
available.

It is possible to adjust one or more functions
manually while leaving the other functions in
automatic mode.
The "AU TO "
symbol switches off.
To return to automatic mode, press the "AU TO "

button.

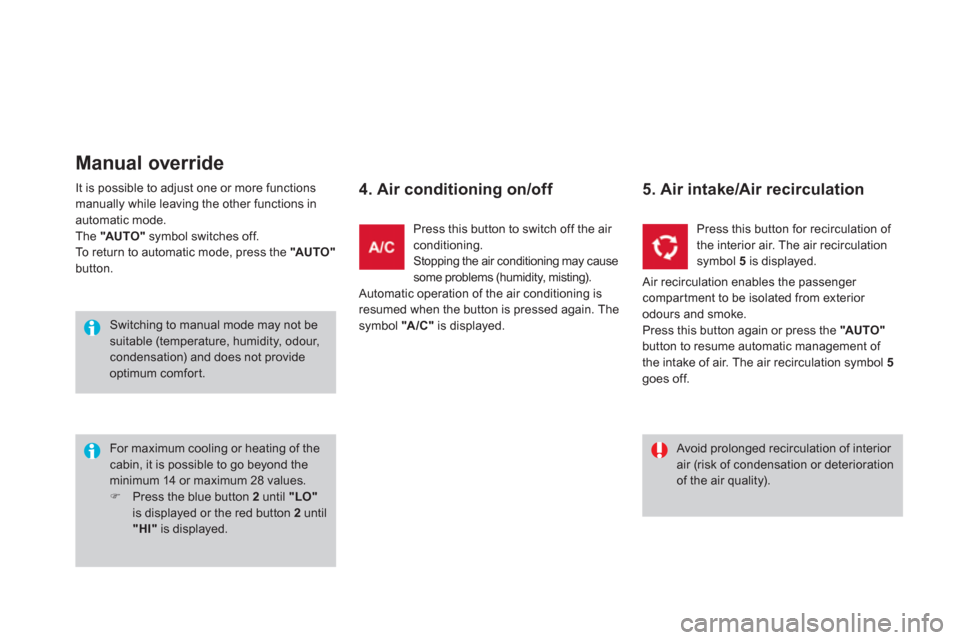

Manual override


4. Air conditioning on/off

For maximum cooling or heating of the
cabin, it is possible to go beyond the
minimum 14 or maximum 28 values.


)
Press the blue button 2
until "LO"

is displayed or the red button 2
until
"HI"
is displayed. Press this button to switch off the air
conditioning.
Stopping the air conditioning may cause
some problems (humidity, misting).
Automatic operation of the air conditioning is
resumed when the button is pressed again. The
symbol "A /C "
is displayed.


5. Air intake/Air recirculation

Press this button for recirculation of
the interior air. The air recirculation
symbol 5
is displayed.
Air recirculation enables the passenger
compar tment to be isolated from exterior
odours and smoke.
Press this button again or press the "AU TO "

button to resume automatic management of
the intake of air. The air recirculation symbol 5

goes off.
Avoid prolonged recirculation of interior
air (risk of condensation or deterioration
of the air quality). Switching to manual mode may not be
suitable (temperature, humidity, odour,
condensation) and does not provide
optimum comfort.

107Visibility


Model without AUTO lighting



Model with AUTO lighting



Manual controls

The lighting commands are issued directly by
the driver by means of the ring A
and the stalk B
.





Automatic illumination of headlamps.

B.
Stalk for switching the headlamp beam:
pull the stalk to switch between dipped and
main beam headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
A.
Main lighting mode selection ring: turn it
to position the symbol required facing the
mark.
Lamps off.
Sidelamps only.
Dipped headlamps or main beam
headlamps.

Displays

Lighting of the corresponding indicator lamp on
the instrument panel confirms the switching on
of the lighting selected.
The instrument panel has permanent back-
lighting. Illumination of the instrument panel is
therefore not linked to the exterior lighting.

The sidelamps and dipped beam headlamps
are switched on automatically, without any
action on the par t of the driver, when a low level
of external light is detected or in cer tain cases
of activation of the windscreen wipers.
As soon as the brightness returns to a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.









Automatic illumination of
headlamps

Activation



)
Turn ring A
to the "AU TO "
position. The
automatic illumination of headlamps
is accompanied by a message in the
multifunction screen.



Deactivation



)
Turn ring A
to a position other than
"AU TO "
. Deactivation is accompanied by a
message in the multifunction screen.



Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic illumination of
headlamps provides "guide-me-home" lighting
with the following additional options:


- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters in the multifunction screen
configuration menu (except in the case of
the monochrome screen A, for which the
duration is set: 60 seconds),

- automatic activation of "guide-me-home"
lighting when automatic illumination of
headlamps is in operation.



Operating fault

In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp is displayed in the
instrument panel and/or a message appears in
the multifunction screen, accompanied by an
audible signal.
Contact a CITROËN dealer or a qualified
workshop.
In fog or snow, the sunshine sensor
may detect sufficient light. Therefore,
the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.

Auxiliary socket


The auxiliary socket is located in the " AUX "
box on the centre console.
It permits the connection of a por table device,
such as a digital audio player of the iPod
® type,
to listen to your music files using the vehicle's
speakers.














USB Player


For more information on the use of this
equipment, refer to the MyWay or Audio system
part of the "Audio and Telematics" section.

When it is in use, the por table device
charges automatically.
The USB por t is located in the "AU X "
box on
the centre console.
It permits the connection of a por table device,
such as a digital audio player of the iPod
®
generation 5 and later type or USB memory
stick type.
It reads the audio file formats (mp3, ogg,
wma, wav...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio equipment
control panel and display them on the
multifunction screen.

For more information on the use of this
equipment, refer to the Audio system par t of the
"Audio and Telematics" section.






12 V accessory
socket


)
To connect a 12 V accessory (max power:
120 W), lift the cover and connect a
suitable adaptor. The management of the files is done
using your portable device.

Displays in the instrument panel


Gear lever positions


N
. Neutral.

R
. Reverse.

1 2 3 4 5.
Gears engaged.

AUTO.
This comes on when the automated
mode is selected. It switches off on
changing to sequential mode.

7
In the automated mode, if the gearbox
detects poor grip, this warning lamp comes on.


)
Place your foot on the brake

when this warning lamp flashes
(e.g.: starting the engine).
There is an audible signal on
engagement of reverse.



Moving off



)
Select position N
.

)
Press the brake pedal firmly.

)
Star t the engine.

N
appears in the instrument panel.

N
flashes in the instrument panel
screen if the gear lever is not in position
N
on star ting.


)
Select first gear (position M
or A
) or
reverse (position R
)

)
Release the parking brake.

)
Take your foot off the brake pedal, then
accelerate.

AUTO
and 1
or R
appear in the
instrument panel.

Stopping - Moving off on a slope

When stopping on a slope, do not use the
accelerator to immobilise the vehicle; apply the
parking brake.
When moving off on a slope, accelerate
gradually while releasing the parking brake.



Sequential mode



)
After star ting the vehicle, select position M

to change to sequential mode.

AUTO
disappears and the gears
engaged appear in succession in the
instrument panel.
The gear change requests are only carried out
if the engine speed permits.
When driving at low speed, on approaching
a stop sign or traffic lights for example,
the gearbox changes down to first gear
automatically.


Automated mode



)
Following use of the sequential mode,
select position A
to return to the automated
mode.

AUTO
and the gear engaged appear
in the instrument panel.
The gearbox then operates in auto-adaptive
mode, without any action on the par t of the
driver. It continuously selects the most suitable
gear in relation to the following parameters:


- driving style,

- road conditions,

- vehicle load.

161Driving
If you press the accelerator pedal
beyond the point of resistance, the
gearbox selects the gear below to
permit sharper acceleration.
You must press the brake pedal while
star ting the engine.
Never select neutral N
while the vehicle
is moving.
Only engage reverse gear R
when the
vehicle is immobilised, with your foot on
the brake pedal.
In all cases, you must apply the parking
brake to immobilise the vehicle.


"Auto sequential" mode

In the automated mode, you can resume
control temporarily at any time using the
steering mounted control paddles.
The use of these paddles permits manual
selection of the gears in situations which
require a more rapid change-down than in
the automated mode (arrival at a roundabout,
leaving a car park with a steep gradient,
over taking...).
The gearbox engages the required gear if
the engine speed permits. AUTO
remains
displayed in the instrument panel.
After a few minutes, the gearbox resumes
automatic control of the gears.


Stopping the vehicle

Before switching off the engine, you can
change to position N
to be in neutral.
In this case, you must apply the parking brake
to immobilise the vehicle.


Reinitialisation

Following disconnection of the battery, the
gearbox must be reinitialised.


)
Switch on the ignition.

AUTO
and -
appear in the instrument
panel.


)
Select position N
.

)
Press the brake pedal.

)
Wait approximately 30 seconds until N
or a
gear appears in the instrument panel.

)
Release the brake pedal.
The gearbox is operational again.


Operating fault

With the ignition on, if this warning
lamp comes on and AUTO
flashes,
accompanied by an audible signal and a
message in the multifunction screen, this
indicates a gearbox fault.
Have it checked by a CITROËN dealer or a
qualified workshop.

163Driving
When you move the lever in the gate to select
a position, the corresponding indicator is
displayed in the instrument panel.

P.
Park

R.
Reverse

N.
Neutral

D.
Drive (Automatic driving)

S.
Sport
programme

7
.
Snow
programme

1 2 3 4
.
Gears engaged during manual operation

-.
Invalid value during manual operation

Displays in the instrument panel


Foot on brake



)
Press the brake pedal when this
indicator lamp is displayed in the
instrument panel (e.g.: starting
the engine).




Moving off

If position N
is engaged inadvertently
while driving, allow the engine to
return to idle then engage position D
to
accelerate. When the engine is running at idle, with
the brakes released, if position R
, D
or
M
is selected, the vehicle moves even
without the accelerator being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P
.

)
Apply the parking brake.

)
Select position P
or N
.

)
Star t the engine.
If this procedure is not followed, an audible
signal is heard, accompanied by a message in
the multifunction screen.


)
With the engine running, press the brake
pedal.

)
Release the parking brake.

)
Select position R
, D
or M
.

)
Gradually release the brake pedal.
The vehicle moves off immediately.
