display Citroen DS3 2011 1.G Workshop Manual

08
1
3 2
2 1
269

Select the "Yes" tab to accept or "No"
to refuse and confi rm by pressing
the dial.

RECEIVING A CALL
MAKING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.


Ye s


To hang up, press the PHONE button
or press the dial and select "End call"
then confi rm by pressing the dial.

End call



Press the PHONE button.
Select "Dial number", then dial the
telephone number using the virtual
keypad.
No


Select the Phone Menu function and
press the dial to confi rm.
The list of the last 20 calls made and received in the vehicle
appears under Phone Menu. You can select a number and press
the dial to make the call.


It is also possible to select a number from the address book. You
can select "Dial from address book". The MyWay can record up to
1 000 entries (telephone numbers).
Press the end of the steering mounted control for more than
two seconds to gain access to the address book.


Phone Menu


Dial number



It is possible to make a call directly from the telephone; park the
vehicle as a safety measure.

BLUETOOTH TELEPHONE



Press the end of the steering mounted control to
accept the call or end the call in progress.

To delete a number, press the PHONE button then press and hold
on a call number to display a list of actions including:
Delete entry
Delete list

09
4 3 2 1
65
CONFIGURATION
















SETTING THE DATE AND TIME

The SETUP function gives access to the following options: System
language, Date & Time, Display (Brightness, Colour, Map colour), Vehicle,
Units, System.

Adjust the settings one by one using
the direction arrows and confi rm by
means of the dial.
Select the "Date format" function and
press the dial to confi rm.

Select the "Set date & time" function
and press the dial to confi rm.

Confi rm the format required using the dial.
Pressing the SETUP button for more than 2 seconds gives
access to:
These settings must be entered again if the battery has been
disconnected.

Press the SETUP button.

Confi rm the format required using
the dial.
Select the "Time format" function and
press the dial to confi rm.

Set date & time


Select the "Date & Time" function
and press the dial to confi rm.

Demo mode



GPS coverage

Description of the unit



Date & Time

10
1
271
TRIP COMPUTER/VEHICLE PARAMETERS


TRIP COMPUTER

Press the MODE button several
times in succession until the trip
computer is displayed.
Range:
displays the distance which can travelled with the
remaining fuel detected in the tank, based on the average fuel
consumption over the last few miles (kilometres).
This displayed value may vary signifi cantly following a change in
the vehicle speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are
displayed. After fi lling with at least 5 litres of fuel, the range is
recalculated and is displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of the
digits, contact a CITROËN dealer.

Each press of the button at the end of the wiper stalk displays
the different trip computer information in succession, according to
the screen.



A FEW DEFINITIONS



- The "vehicle" tab:
The range, the current fuel
consumption and the distance
remaining or the Stop & Start
time counter.

- The "1" (trip 1) tab with :
The average speed, the average
fuel consumption and the
distance travelled calculated
over trip "1".

- The "2" (trip 2) tab with the same
functions for a second trip.
Current fuel consumption:
only calculated and displayed above
20 mph (30 km/h).

Average fuel consumption:
this is the average fuel consumption
since the last trip computer zero reset.

Distance travelled:
calculated since the last trip computer zero
reset.

Distance remaining to the destination:
calculated with reference
to the fi nal destination, entered by the user. If guidance is activated,
the navigation system calculates it as a current value.

Average speed:
this is the average speed calculated since the last
trip computer zero reset (ignition on).







Stop & Start time counter
(minutes/seconds or hours/minutes)
If your vehicle is fi tted with Stop & Start, a time counter calculates
the time spent in STOP mode during a journey.
It resets to zero every time the ignition is switched on with the key.

Avoid ferries

Recalculate



Settings

Navi volume


POI categories on Map


Set parameters for risk areas

Display on map
Visual alert
Sound alert

3
2
4
3
3
3
4
4
4


Dial number

Dial from address book


"Phone" Menu


Search phone

Call lists

Connect phone

Select ring tone


Phone/Ring tone volume

Phones connected


Enter mailbox number



Settings Disconnect phone
Rename phone
Delete pairing
Delete all pairings
Show details


"SETUP" menu


System language *

English


Español

Deutsch


Italiano

Français


Nederlands


Polski


Portuguese



Date & Time *

Set date & time


Date format



Time format


1
2
2
2
2
3
3
4
4
4
4
4
2
3
3
3
1
2
3
3
3
3
3
3
3
3
3
3
3
2

Avoid motorways
Route dynamics

Traffi c independent
Semi-dynamic

Avoidance criteria

Avoid toll roads Optimized route
3
3
4
4
4
4
4


*
Available according to model.

275

* Available according to model. Dark blue

Map colour

Night mode for map
Units
Day mode for map

Vehicle *

Vehicle information

Alert log
Status of functions
Temperature

Celsius
Fahrenheit

Metric/Imperial

Kilometres (Consumption: l/100)
Kilometres (Consumption: km/l)
Miles (Consumption: MPG)

System
Auto. Day/Night for map
Factory reset


Software version


Automatic scrolling



3
4
4
2
4
3
4
4
2
3
4
4
3
4
4
4
2
4
3
3
3


Colour

Pop titanium
Toffee
Blue steel
Technogrey 3
4
4
4
4


Display

Brightness
2
3

277


QUESTION



ANSWER



SOLUTION


The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.

QUESTION



ANSWER



SOLUTION


TA is selected. However,
certain traffi c jams
along the route are not
indicated in real time. On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received
correctly (displaying of the traffi c information
symbols on the map).
In certain countries, only major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
I receive a speed camera
alert for a camera which
is not on my route. The system announces all speed cameras located in a conical zone
forward of the vehicle. It may detect speed cameras on nearby or parallel
roads. Zoom the map to view the exact position of the
speed camera.
The audible speed
camera alert is not
working. Audible alerts are not active. Activate audible alerts in Navigation Menu,
Settings, Set parameters for risk areas.
The alert volume level is set to minimum. Increase the speed camera alert volume.
The altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 3 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
3 satellites (long press on the SETUP button, then
select GPS coverage).
Depending on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS signal.
The route is not
calculated successfully. The exclusion criteria may confl ict with the current location (exclusion of
toll roads on a motorway with tolls). Check the exclusion criteria.

01
1 2
1011
13 14 153456 789
12

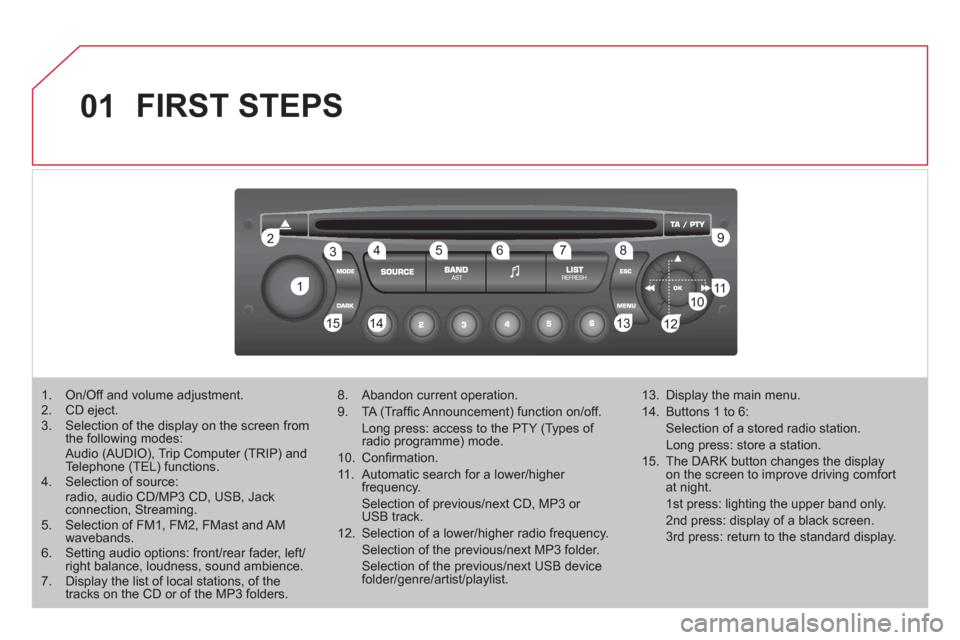

FIRST STEPS








1. On/Off and volume adjustment.

2. CD eject.

3. Selection of the display on the screen from
the following modes:
Audio (AUDIO), Trip Computer (TRIP) and
Telephone (TEL) functions.

4. Selection of source:
radio, audio CD/MP3 CD, USB, Jack
connection, Streaming.

5. Selection of FM1, FM2, FMast and AM
wavebands.

6. Setting audio options: front/rear fader, left/
right balance, loudness, sound ambience.

7. Display the list of local stations, of the
tracks on the CD or of the MP3 folders.
8. Abandon current operation.

9. TA (Traffi c Announcement) function on/off.
Long press: access to the PTY (Types of
radio programme) mode.

10. Confi rmation.

11. Automatic search for a lower/higher
frequency.
Selection of previous/next CD, MP3 or
USB track.

12. Selection of a lower/higher radio frequency.
Selection of the previous/next MP3 folder.
Selection of the previous/next USB device
folder/genre/artist/playlist.
13. Display the main menu.

14. Buttons 1 to 6:
Selection of a stored radio station.
Long press: store a station.

15. The DARK button changes the display
on the screen to improve driving comfort
at night.
1st press: lighting the upper band only.
2nd press: display of a black screen.
3rd press: return to the standard display.

03 MAIN MENU



AUDIO FUNCTIONS
: radio,
CD, USB, options.








> MONOCHROME SCREEN C

For a detailed global view of
the menus available, refer to
the "Screen menu map" section.


TELEPHONE
: Bluetooth
hands-free, pairing,
management of a call.


PERSONALISATION-
CONFIGURATION
: vehicle
parameters, display, languages.

TRIP COMPUTER
: entering
of distances, alerts, status of
functions.










> MONOCHROME SCREEN A

04
1
2
3
4
1
2
3
4
285
AUDIO

Press the SOURCE button several
times in succession and select
the radio.

Press the BAND AST button to select
a waveband: FM1, FM2, FMast, AM.

Briefl y press one of the buttons to
carry out an automatic search of the
radio stations.

Press one of the buttons to carry out a
manual search of the radio stations.

Press the LIST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more than
two seconds.
The external environment (hills, buildings, tunnels, basement car parks, ...)
may block reception, including in RDS mode. This is a normal effect of the
way in which radio waves are transmitted and does not indicate any failure
of the audio system.

RDS






RADIO


SELECTING A STATION
Press the MENU button.
Select AUDIO FUNCTIONS then
press OK.
Select the FM WAVEBAND
PREFERENCES function then press
OK.
Select ACTIVATE RDS then press
OK. RDS appears on the screen.
The RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative fequencies. However, in
certain conditions, coverage of an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a journey.
