Doors


Opening


From outside



)
After unlocking the vehicle using the
remote control or the key, pull the door
handle.





From inside



)
Pull the door lever to open the door; this
unlocks this vehicle completely.




Closing

When a door is not closed correctly:


- when the engine is running
,
this warning lamp comes on,
accompanied by a message in
the multifunction screen for a
few seconds,

- when the vehicle is moving
(speed
higher than 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message in the
multifunction screen for a few seconds.

99Access











Boot


Opening



)
After unlocking the vehicle using the
remote control or the key, pull the handle
and raise the tailgate.



Closing



)
Lower the tailgate using the interior grab
handle.
If the tailgate is not closed correctly:


- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen for a
few seconds,

- when the vehicle is moving
(speed above
6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a message on the multifunction screen for
a few seconds.
System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.






Ta i l g a t e r e l e a s e


Unlocking



)
Fold back the rear benchseat to gain
access to the lock from inside the boot.

)
Inser t a small screwdriver into hole A
of the
lock to unlock the tailgate.

Fuel tank

Fuel tank capacity: approximately 50 litres (petrol) or 46 litres (Diesel); (Depending on version: approximately 30 litres (petrol or Diesel)).



Low fuel level

Filling

A label affixed to the inside of the flap reminds
you of the type of fuel to be used depending on
your engine.
Additions of fuel must be of at least 5 litres,
in order to be taken into account by the fuel
gauge.
The key cannot be removed from the
lock until the cap is refitted.
Opening the filler cap may create a
noise caused by an inrush of air. This
vacuum is entirely normal, resulting
from the sealing of the fuel system. To fill the tank safely:


)
the engine must be switched off,


)
open the fuel filler flap,

)
inser t the key in the cap, then turn it to the
left,
)
remove the cap and hook it onto the clip
located on the inside of the flap,

)
fill the tank, but do not continue after the
3rd cut- off of the pump
; this could cause
malfunctions.
When you have filled the tank:


)
put the cap back in place,

)
turn the key to the right, then remove it
from the cap,

)
close the flap.
When the fuel tank minimum level
is reached this warning lamp comes
on on the instrument panel. When it
first comes on there remains approximately
5 litres
of fuel in the tank.
You must refuel as soon as possible to avoid
running out of fuel.
If you run out of fuel (Diesel), refer also to the
"Checks" section.






With Stop & Star t, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.

101Access










Quality of the fuel used for
petrol engines

The petrol engines are per fectly compatible
with E10 type petrol biofuels (containing
10 % ethanol), conforming to European
standards EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reser ved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must
comply with European standard EN 15293.
For Brazil only, special vehicles are marketed
to run on fuels containing up to 100 % ethanol
(E100 type).













Quality of the fuel used for
Diesel engines

The Diesel engines are per fectly compatible
with biofuels which conform to current and
future European standards (Diesel fuel which
complies with standard EN 590 mixed with a
biofuel which complies with standard EN 14214)
available at the pumps (containing up to 7 %
Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer tain Diesel
engines; however, this use is subject to strict
application of the special ser vicing conditions.
Contact a CITROËN dealer or a qualified
workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

*
According to destination country.

















Misfuel prevention *
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the
wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.


Operation

When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.

Do not persist but introduce a Diesel type
filler nozzle.

It is still possible to use a fuel can to fill
the reser voir.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device.

This equipment will become available during
the year.



Tr a v e l l i n g a b r o a d

As Diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impossible.
Before travelling abroad, we
recommend that you check with the
CITROËN dealer network, whether
your vehicle is suitable for the fuel
pumps in the country in which you want
to travel.

A.
Courtesy lamp


B.
Map reading lamps














Courtesy lamp

In this position, the cour tesy lamp
comes on gradually:

Courtesy lamp



- when the vehicle is unlocked,

- when the key is removed from the ignition,

- when a door is opened,

- when the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
With the "permanent lighting" mode, the
duration of lighting varies, depending
on the circumstances:


- with the ignition off, approximately
ten minutes,

- in energy economy mode,
approximately thirty seconds,

- with the engine running, unlimited.



Map reading lamps



)
With the ignition on, press the
corresponding switch.

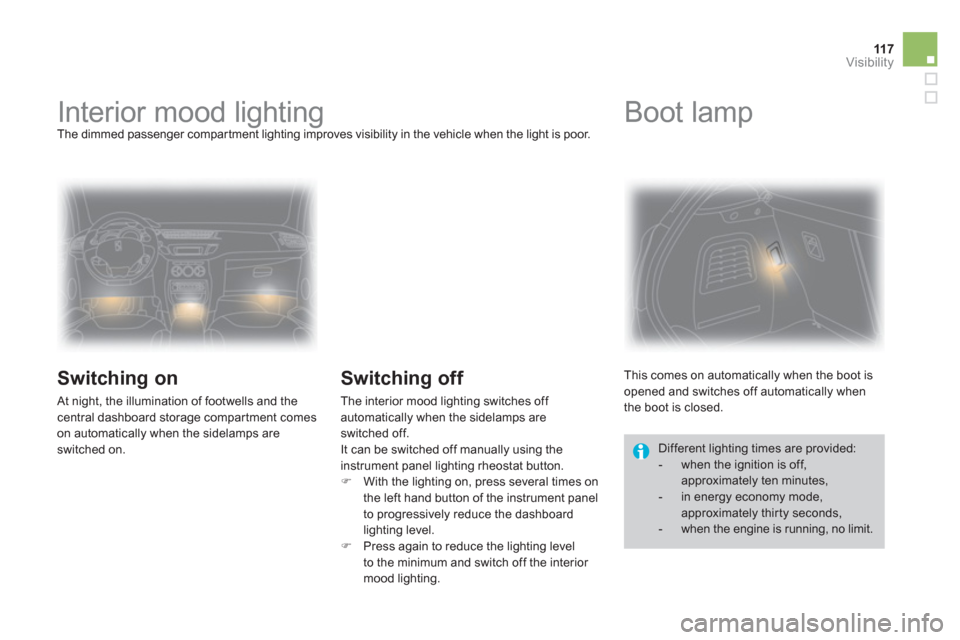

11 7Visibility








Interior mood lighting
The dimmed passenger compar tment lighting improves visibility in the vehicle when the light is poor.


Switching on

At night, the illumination of footwells and the
central dashboard storage compartment comes
on automatically when the sidelamps are
switched on.


Switching off

The interior mood lighting switches off
automatically when the sidelamps are
switched off.
It can be switched off manually using the
instrument panel lighting rheostat button.


)
With the lighting on, press several times on
the left hand button of the instrument panel
to progressively reduce the dashboard
lighting level.

)
Press again to reduce the lighting level
to the minimum and switch off the interior
mood lighting.
This comes on automatically when the boot is
opened and switches off automatically when
the boot is closed.





Boot lamp

Different lighting times are provided:


- when the ignition is off,
approximately ten minutes,

- in energy economy mode,
approximately thirty seconds,

- when the engine is running, no limit.

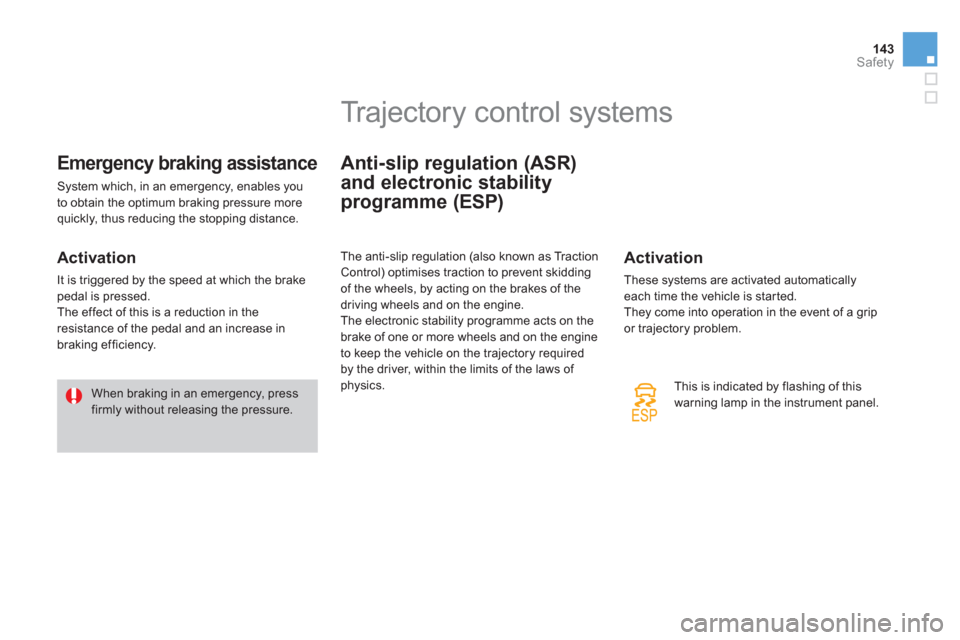

143Safety









Emergency braking assistance

System which, in an emergency, enables you
to obtain the optimum braking pressure more
quickly, thus reducing the stopping distance.

Activation

It is triggered by the speed at which the brake
pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase in
braking efficiency.
When braking in an emergency, press
firmly without releasing the pressure.
















Trajectory control systems


Anti-slip regulation (ASR)
and electronic stability
programme (ESP)

The anti-slip regulation (also known as Traction
Control) optimises traction to prevent skidding
of the wheels, by acting on the brakes of the
driving wheels and on the engine.
The electronic stability programme acts on the
brake of one or more wheels and on the engine
to keep the vehicle on the trajectory required
by the driver, within the limits of the laws of
physics.

Activation

These systems are activated automatically
each time the vehicle is star ted.
They come into operation in the event of a grip
or trajectory problem.
This is indicated by flashing of this
warning lamp in the instrument panel.

Deactivation

In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground...), it may be advisable to deactivate the
ASR and ESP systems, so that the wheels can
move freely and regain grip.


)
Press the "ESP OFF"
button, located on
the left below the steering wheel.

If this warning lamp comes on in the
instrument panel and the indicator
lamp in the button comes on, this
indicates that the ASR and ESP
systems are deactivated.


Reactivation

These systems are reactivated automatically
each time the ignition is switched back on or
from 30 mph (50 km/h) (except 1.6 litre
THP 150 and R ACING petrol engines).


)
Press the "ESP OFF"
button again to
reactivate them manually.



Operating fault

The ESP/ASR systems offer
exceptional safety in normal driving, but
this should not encourage the driver to
take extra risks or drive at high speed.
The correct functioning of these
systems depends on obser vation of the
manufacturer's recommendations on:


- wheels (tyres and rims),

- braking components,

- electronic components,

- assembly and repair procedures.
After an impact, have these systems
checked by a CITROËN dealer or a
qualified workshop.
If this warning lamp comes on,
accompanied by an audible signal and a
message in the multifunction screen, this
indicates a malfunction of these systems.
Have it checked by a CITROËN dealer or a
qualified workshop.

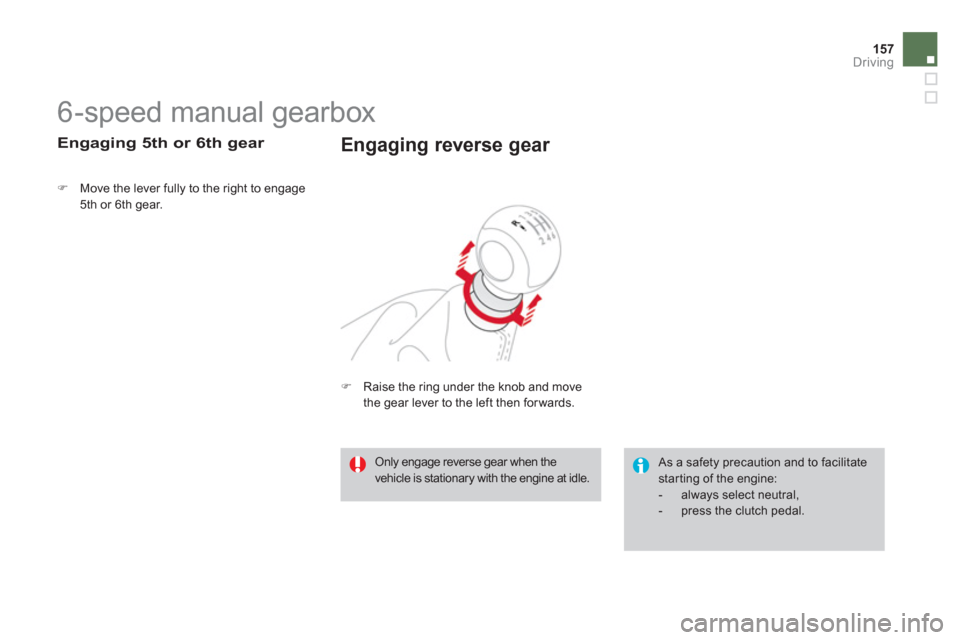

157Driving








6-speed manual gearbox



)
Move the lever fully to the right to engage
5 th or 6 th gear.



Engaging 5 th or 6 th gear

As a safety precaution and to facilitate
star ting of the engine:


- always select neutral,

- press the clutch pedal.
Only engage reverse gear when the
vehicle is stationary with the engine at idle.

Engaging reverse gear



)
Raise the ring under the knob and move
the gear lever to the left then for wards.
