Page 54 of 324
Monochrome screen A
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there is
a risk of ice),
- status of the doors and boot,
- audio sources (radio, CD...),
- trip computer (refer to the "Instruments and
Controls" section).
Warning messages (e.g.: "Emission control
system faulty") or information messages
(e.g.: "Boot open") may appear temporarily.
These can be cleared by pressing the "ESC"
button.
Displays on the screen
From the control panel of your Audio system,
you can:
)
press the "MENU"
button to gain access to
the main
menu
,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change
the permanent application (date, audio
source...),
)
press the "
" or "
" buttons to change a
setting value,
)
press the "OK"
button to confirm,
or
)
press the "ESC"
button to abandon the
operation in progress.
Controls
)
Press the "MENU"
button to gain access
to the main
menu
, then press the "
" or
"
" buttons to scroll through the various
menus:
- radio-CD,
- vehicle configuration,
- options,
- display settings,
- languages,
- units.
)
Press the "OK"
button to select the menu
required.
Main menu
Page 55 of 324
53Multifunction screens
Radio-CD
With the Audio system switched on, once the
"Radio-CD" menu has been selected you can
activate or deactivate the functions linked
with use of the radio (RDS, REG), or the CD
(introscan, shuffle, CD repeat).
For more information on the "Radio- CD"
application, refer to the Audio system part of
the "Audio and Telematics" section.
Vehicle confi guration
Once the "Vehicle Configuration" menu has
been selected, you can activate or deactivate
the following equipment:
- wiper linked with reverse gear (refer to the
"Visibility" section),
- guide-me-home lighting (refer to the
"Visibility" section),
- parking sensors (refer to the "Driving"
section).
Options
Once the "Options" menu has been selected,
you can start diagnostics of the status of the
equipment (active, not active, faulty).
Page 57 of 324
55Multifunction screens
Monochrome screen C
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there is
a risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB por t, jack
socket etc.),
- trip computer (refer to the "Instruments and
controls" section).
Warning messages (E.g. "Emisions control
system faulty") or information messages
(E.g.: Automatic headlamps active") may
appear temporarily. These can be cleared by
pressing the "ESC"
button.
Displays on the screen
From your Audio system control panel, you can:
)
press the "MENU"
button to gain access to
the main
menu
,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change the
permanent application (trip computer, audio
source...),
)
press the "
" or "
" buttons to change a
setting value,
)
press the "OK"
button to confirm,
or
)
press the "ESC"
button to abandon the
operation in progress.
Controls
)
Press the "MENU"
button to gain access to
the main
menu
:
- audio functions,
- the trip computer,
- personalisation-configuration,
- telephone (hands-free kit).
)
Press the "
" or "
" buttons to select the
menu required, then confirm by pressing
the "OK"
button.
Main menu
Page 58 of 324
With the Audio system switched on, once this
menu has been selected you can activate
or deactivate the functions linked with use
of the radio (RDS, REG, RadioText), the CD
(introscan, shuffle, CD repeat) or the MP3
player (USB por t /jack socket).
For more information on the "Audio functions"
application , refer to the Audio system par t of
the "Audio and Telematics" section.
"Au d i o f u n c t i o n s"
menu
"Trip computer" menu
Once this menu has been selected, you can
consult information concerning the status of the
vehicle (warnings log, status of functions, etc.).
Alert log
This summarises the active warning messages,
displaying them in succession on the
multifunction screen.
Status of functions
This summarises the status (active or inactive)
of the vehicle's functions.
Enter distance to destination
This allows you to enter an approximate
distance until your final destination.
)
Press the "MENU"
button to gain access to
the general menu.
)
Press the arrows, then the "OK"
button to
select the "
Tr i p c o m p u t e r
"
menu.
)
In the "
Tr i p c o m p u t e r
"
menu, select one
of the following applications:
Page 61 of 324
59Multifunction screens
16/9 colour screen (MyWay)
It displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value displayed
flashes if there is a risk of ice),
- check of the doors,
- warning and vehicle function status
messages, displayed temporarily,
- audio functions,
- trip computer information (see the
"Monitoring" section),
- satellite navigation system information.
Displays on the screen
MyWay To select one of the applications, at the
control panel:
)
press the dedicated "RADIO"
, "MUSIC"
,
"NAV"
, "TRAFFIC"
, "SETUP"
or
"PHONE"
button for access to the
corresponding menu,
)
turn the dial to change the selection,
)
press the dial to confirm the selection,
or
)
press the "ESC"
button to abandon the
current operation and return to the previous
display.
Controls
For more information on these applications,
refer to the "Audio and Telematics" section or
to the specific user guide given to you with the
other owner's documents.
Page 214 of 324
Fuse N°
Rating
Functions
F8
20 A
Multifunction screen, audio system, navigation radio, alarm
control unit, alarm siren.
F9
30 A
12 V socket, portable navigation support supply.
F10
15 A
Steering mounted controls.
F11
15 A
Ignition, diagnostic socket, automatic gearbox control unit.
F12
15 A
Rain/sunshine sensor, trailer relay unit.
F13
5 A
Main stop switch, engine relay unit.
F14
15 A
Parking sensors control unit, airbag control unit, instrument
panel, digital air conditioning, USB Box, Hi-Fi amplifier.
F15
30 A
Locking.
F16
-
Not used.
F17
40 A
Rear screen and door mirrors demisting/defrosting.
SH
-
PA RC shunt .
Page 228 of 324
"Multimedia":
hands-free system, audio systems, semi-
integral satellite navigation system, por table
navigation systems, mapping update CD,
speed camera warning, DVD player, reversing
camera, USB Box, speakers, Hi-Fi module,
230V socket, WiFi on Board...
By visiting a CITROËN dealer, you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products from the "TECHNATURE" range,
products for topping up (screenwash fluid...),
touch-up pens and paint aerosols for the exact
colour of your vehicle, refills (cartridge for the
temporar y puncture repair kit...), ...
Installation of radio
communication transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the range
of recommended equipment and
accessories.
Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
Page 249 of 324
247
The MyWay is protected in such a way that it will only
operate in your vehicle. If it is to be installed in another
vehicle, contact a CITROËN dealer for confi guration of
the system.
Certain functions described in this handbook will
become available during the year.
MYWAY
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the MyWay switches off
following the activation of the Energy Economy mode.
MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD
01 First steps
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Radio
07 Music media players
08 Bluetooth telephone
09 Configuration
10 Trip computer p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
11 Screen menu map
Frequently asked questions p.
p. 248
249
250
253
261
263
264
267
270
271
272
276
Page 250 of 324

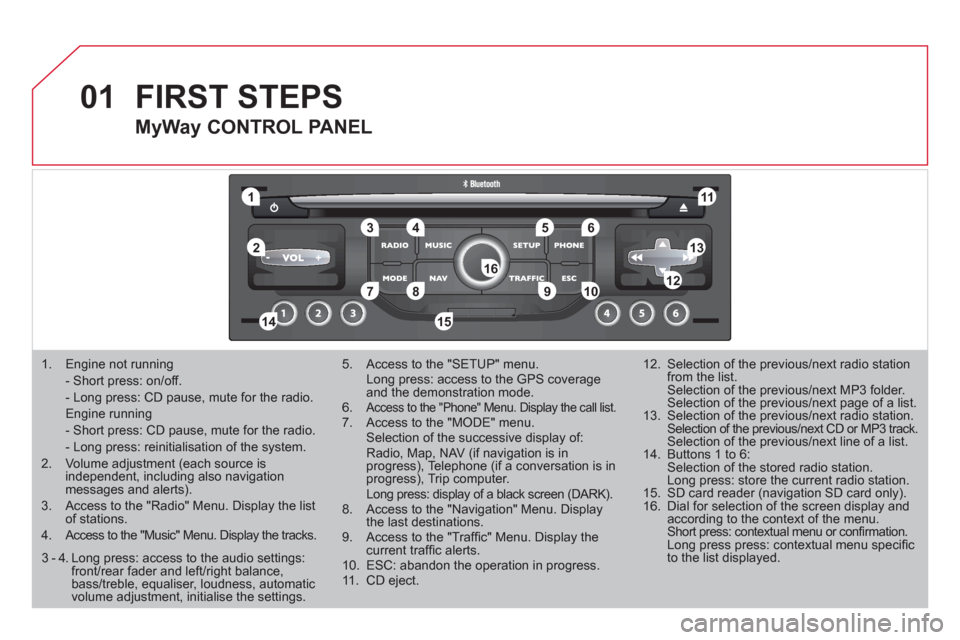

01
1
5
10 234 6
1311
9
14 157812 16
1. Engine not running
- Short press: on/off.
- Long press: CD pause, mute for the radio.
Engine running
- Short press: CD pause, mute for the radio.
- Long press: reinitialisation of the system.
2. Volume adjustment (each source is
independent, including also navigation
messages and alerts).
3. Access to the "Radio" Menu. Display the list
of stations.
4. Access to the "Music" Menu. Display the tracks.
5. Access to the "SETUP" menu.
Long press: access to the GPS coverage
and the demonstration mode.
6.
Access to the "Phone" Menu. Display the call list.
7. Access to the "MODE" menu.
Selection of the successive display of:
Radio, Map, NAV (if navigation is in
progress), Telephone (if a conversation is in
progress), Trip computer.
Long press: display of a black screen (DARK).
8. Access to the "Navigation" Menu. Display
the last destinations.
9. Access to the "Traffi c" Menu. Display the
current traffi c alerts.
10. ESC: abandon the operation in progress.
11. CD eject.
12. Selection of the previous/next radio station
from the list.
Selection of the previous/next MP3 folder.
Selection of the previous/next page of a list.
13. Selection of the previous/next radio station.
Selection of the previous/next CD or MP3 track.
Selection of the previous/next line of a list.
14. Buttons 1 to 6:
Selection of the stored radio station.
Long press: store the current radio station.
15. SD card reader (navigation SD card only).
16. Dial for selection of the screen display and
according to the context of the menu.
Short press: contextual menu or confi rmation.
Long press press: contextual menu specifi c
to the list displayed.
FIRST STEPS
MyWay CONTROL PANEL
3 - 4. Long press: access to the audio settings:
front/rear fader and left/right balance,
bass/treble, equaliser, loudness, automatic
volume adjustment, initialise the settings.
Page 251 of 324
02
249

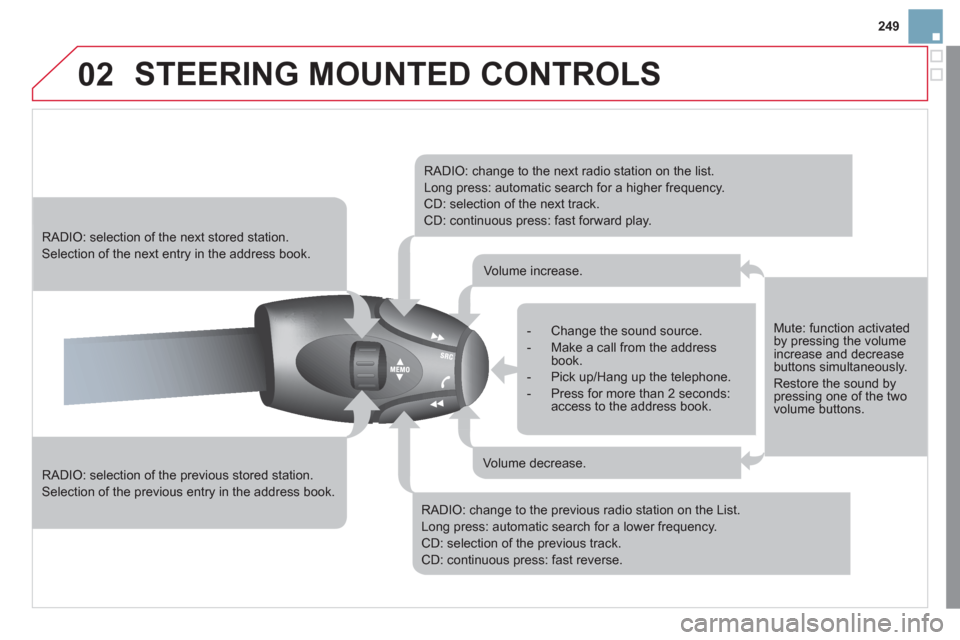

STEERING MOUNTED CONTROLS
RADIO: selection of the previous stored station.
Selection of the previous entry in the address book.
RADIO: selection of the next stored station.
Selection of the next entry in the address book.
RADIO: change to the next radio station on the list.
Long press: automatic search for a higher frequency.
CD: selection of the next track.
CD: continuous press: fast forward play.
RADIO: change to the previous radio station on the List.
Long press: automatic search for a lower frequency.
CD: selection of the previous track.
CD: continuous press: fast reverse.
- Change the sound source.
- Make a call from the address
book.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the address book.
Volume increase.
Volume decrease.
Mute: function activated
by pressing the volume
increase and decrease
buttons simultaneously.
Restore the sound by
pressing one of the two
volume buttons.
