alarm Citroen DS3 2012.5 1.G Owner's Manual

MULTIFUNCTION
SCREENSCOMFORT ACCESS VISIBILITY
54 Monochrome screenA
57 Monochrome screenC
6116/9 colour screen (MyWay)
66 Ventilation
68Heating
69 Manual air conditioning
73Digital air conditioning
76Rear screen demist - defrost
77Scented air freshener
79 Front seats
84Rear seats
85Steering wheel adjustment
86Mirrors
90 Remote control key
96 Alarm
100 Window controls
102Doors
105Boot
106 Fuel tank
108 Misfuel prevention (Diesel)
112 Lighting controls
117LED lamps
117Headlamp adjustment
118Wiper controls
122Courtesy lamp
123 Interior mood lighting
123 Boot lamp
004004005005002002003003

11Familiarisation
Instruments and controls
1.
Audio equipment steering wheel controls.2.Steering lock and ignition. 3.Wiper/screenwash/trip computer stalk.4.
Instrument panel.
5. Scented air freshener.
6.Driver’s airbag.
Horn. 7. Gear lever. 8.Parking brake.9.
Central armrest with storage. 10.Door mirror controls.
Electric window controls. 11. Oddments storage12.
Alarm button.
Electronic stability programme button (ESP/ASR).
Stop & Star t button.
13.Side adjustable air vent.14 .Front door window demisting/defrosting
vent. 15.Speaker (tweeter). 16. Windscreen demisting/defrosting vent.

Monitoring
On switching on, the dial needles go to theextent of their travel then return to 0. A.
With the ignition on, the fuel gauge bars for
the fuel remaining should light up. B.With the engine running, the associated low level warning lamp should switch off.C.With the ignition on, the oil level indicator
should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the level
whi
ch is low.
Instrument panels

28, 30
1.With the ignition on, the orange and red
warning lamps come on.
2
. With the engine running, these warning lamps should go off.
If a warning lamp remains on, refer to the pageconcerned.


Warning lamps
32, 37 Li
ghting of the indicator lamp indicates the state
of the corresponding system.
A.Deactivation of alarm interior volumetricprotection.

Switch panel


98
B.Deactivation of the ESP/ASR system.


15 0
C
.Deactivation of the Stop & Start system.

175

Alarm System which protects and provides a deterrent against the theft of your vehicle. It provides two types of protection, exterior and interior, as well as aself-protection function.
Exterior perimeter
protection
The system detects opening of the vehicle.
The alarm is triggered if anyone tries to enter
the vehicle by forcing a door, the boot or
the bonnet.
Interior volumetric
protection

The system detects any variation in the volume
in the passenger compartment.
The alarm is triggered if anyone breaks a
window or moves inside the vehicle.
If you wish to leave a pet in the vehicle or a
window partially open, deactivate the interior
volumetric protection.

Self-protection function

The system detects the putting out of ser vice of its components.
The alarm is triggered if anyone tries to put
the wires of the siren, the central control or the
battery out of ser vice.
Do not make any modifications to the alarmsystem, this could cause malfunctions.

Access

Locking the vehicle with full
alarm

Activation
)Switch off the ignition and get out of
the vehicle. )Lock or deadlock the vehicle using the
locking button on the remote control.
The alarm is activated; the indicator lamp in
button Aflashes once per second.
If an opening - door or boot - is notclosed fully, the vehicle is not locked,but the exterior perimeter protection will be activated after 45 seconds atthe same time as the interior volumetricprotection.

Deactivation
)
Unlock the vehicle using the unlockingbutton on the remote control.
The alarm is deactivated; the indicator lamp in button Agoes off.
The exterior perimeter protection is activated,5 seconds after the locking button on theremote control is pressed.
The interior volumetric protection is activated,
45 seconds after the locking button on the remote control is pressed.

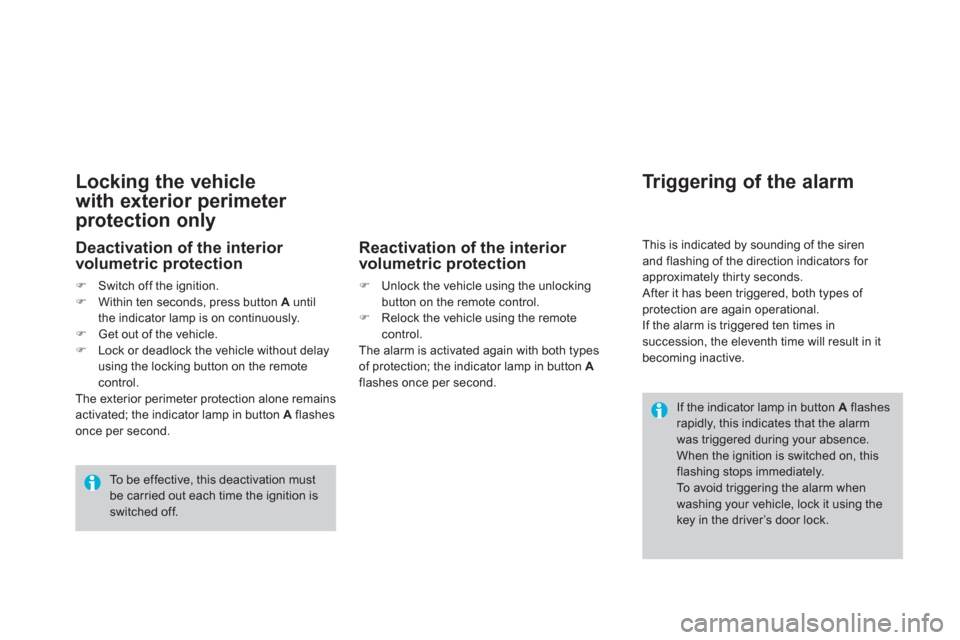

Locking the vehicle
with exterior
perimeter
protection only
To be effective, this deactivation mustbe carried out each time the ignition is switched off.

If the indicator lamp in button Aflashes rapidly, this indicates that the alarmwas triggered during your absence. When the ignition is switched on, thisflashing stops immediately.
To a v o i d t r iggering the alarm when washing your vehicle, lock it using the key in the driver’s door lock.
Deactivation of the interior volumetric protection
)Switch off the ignition.)Within ten seconds, press button Auntil
the indicator lamp is on continuously.
)Get out of the vehicle.)Lock or deadlock the vehicle without delay using the locking button on the remote control.
The exterior perimeter protection alone remains
activated; the indicator lamp in button A flashes
once per second.

Reactivation of the interior volumetric protection
)
Unlock the vehicle using the unlockingbutton on the remote control. )
Relock the vehicle using the remotecontrol.
The alarm is activated again with both types
of protection; the indicator lamp in button A
flashes once per second.



Tr iggering of the alarm


This is indicated by sounding of the siren
and flashing of the direction indicators for
approximately thirty seconds.
After it has been triggered, both types of protection are again operational.
If the alarm is triggered ten times in succession, the eleventh time will result in it
becoming inactive.

99Access

Failure of the remote control
)Unlock the vehicle using the key in thedriver’s door lock. )Open the door; the alarm is triggered.)Switch on the ignition; the alarm stops.
Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using the keyin the driver’s door lock.


Malfunction
When the ignition is switched on, illumination of
the indicator lamp in button Afor ten seconds indicates malfunction with the siren.
Have it checked by a CITROËN dealer or a
qualified workshop.

*
Accordin
g to country.


Automatic activation *



2 minutes after the last door or the boot is closed, the alarm is activated automatically. )
To avoid triggering the alarm on enteringthe vehicle, first press the unlocking button on the remote control.

Fuse N°RatingFunctions
F
820 AMultifunction screen, audio system, navigation radio, alarm control unit, alarm siren.
F
930 A12 V socket, portable navigation suppor t supply.
F1
015 ASteering wheel controls.
F1
115 AIgnition, diagnostic socket, automatic gearbox control unit.
F12 15
ARain/brightness sensor, trailer relay unit.
F1
35 AMain stop switch, engine relay unit.
F1415 AParking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, Hi-Fi amplifier.
F1
530 ALocking.
F16
-Not used.
F1740 ARear screen and door mirrors demisting/defrosting.
S
H-PA RC shunt.

A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
The
y are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.





Accessories
"Comfort":
sun blinds, air deflectors, isotherm module,ashtray, fragrance car tridges, coat hanger fixed
to head restraint, front centre armrest, movable
mirror, reading lamp, front and rear parking sensors...
"Transport solutions":
boot liner, boot spacers, boot carpet, boot net,
transverse roof bars, bicycle carrier, ski carrier, roof boxes, towbars, towbar wiring harnesses...

"Styling":
full grain leather steering wheel, coloured and carbotech dashboards, coloured and leather gear lever knobs, aluminium footrest, spoiler,
alloy wheels, coloured wheel trims, coloured
wheel caps, exterior expressive stickers,
exterior chrome kit...

*

To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.


"Security and safety":

anti-intrusion alarm, wheel security devices,
vehicle tracking system, breathalyser, first aid kit, warning triangle, high visibility safety vest,child seats, snow chains, non-skid covers, fire extinguisher...


"Protection":

mats *
, mudflaps, seat covers, vehicle covers,
bumper protectors...

When fitting a towbar outside the CITROËN dealer network, the installation must be done using thevehicle's electrical pre-equipment and following the vehicle manufacturer'srecommendations.

Exterior
- opening/closing
- anti-theft protection
- startin
g
- battery
Lighting controls 112-117
Headlamp adjustment 117
Changing bulbs 211-214
- front lamps
- foglamps
- direction indicator repeatersWiper controls
11 8-121 Changing
a wiper blade 228
Door mirrors 86
D
oors 102-104
- opening/closing
- central locking- emergency control
Alarm 96-99
Electric windows 10 0-101
Fuel tank 1
06-107
Misfuel prevention 108 -109
Accessories
234-235

Hill
start assist 177
Braking assistance 148-149
Tr ajectory control 149 -150
Tyre pressures 203, 248 B
oot 105 Temporary puncture
repair kit 198 -203
Chan
ging a wheel 204-210
- tools- removing/refitting


Chan
ging bulbs 215 -216
- rear lamps
-
3rd brake lamp
- number plate lamps

Rear parking sensors 182-183
T
owbar 231-232
To w i ng 229 -230
