11 7Visibility

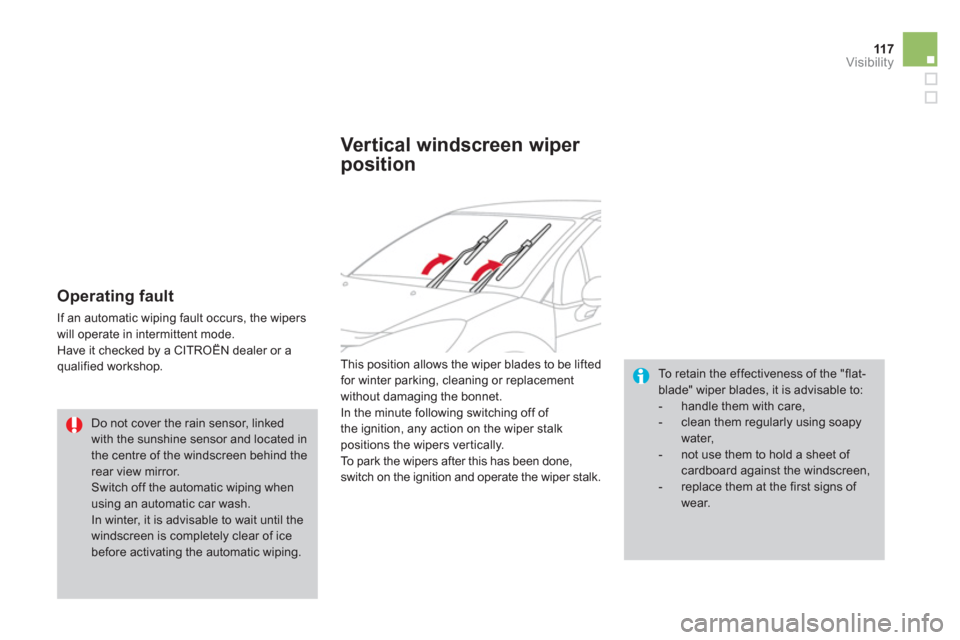

Operating fault

If an automatic wiping fault occurs, the wipers
will operate in intermittent mode.
Have it checked by a CITROËN dealer or a qualified workshop.
To retain the effectiveness of the "flat-blade" wiper blades, it is advisable to:


- handle them with care,

- clean them regularly using soapywater,

- not use them to hold a sheet of cardboard against the windscreen,

- replace them at the first signs of wear.


Do not cover the rain sensor, linked with the sunshine sensor and located inthe centre of the windscreen behind the rear view mirror. Switch off the automatic wiping whenusing an automatic car wash.
In winter, it is advisable to wait until the windscreen is completely clear of ice before activating the automatic wiping.
This
position allows the wiper blades to be liftedfor winter parking, cleaning or replacement without damaging the bonnet.
In the minute following switching off of
the ignition, any action on the wiper stalkpositions the wipers vertically.
To park the wipers after this has been done,
switch on the ignition and operate the wiper stalk.
Vertical windscreen wiper
position

009
Driving
This section describes the use of the parking brake, the manual,electronic or automatic gearbox, the gear shift indicator and Stop & Star t
to help reduce fuel consumption, hill start assist, the speed limiter to
avoid exceeding a programmed speed, cruise control to maintain aprogrammed speed, the rear parking sensors to detect obstacles.

Rear parking sensors
System consisting of four proximity sensors,
located in the rear bumper.
This detects an
y obstacle (person, vehicle,
tree, gate, etc.) behind the vehicle, except
obstacles located just below the bumper.
An object, such as a stake, a roadworks cone or any other similar object may be detected at the beginning of themanoeuvre, but may no longer be detected when the vehicle comes close to it.
The parking sensor system cannot, in any circumstances, take the place of the vigilance and responsibility of the driver. The system is activated as soon as reverse
gear is engaged, accompanied by an audible
signal. The proximity information is given by:


- an audible signal, which becomes
more rapid as the vehicle approaches
th
e obstacle.

- a graphic (according to version) in the
multifunction screen, with blocks whichbecome increasingly closer to the vehicle.

Activation
When the distance between the rear of thevehicle and the obstacle is less than thirtycentimetres, the audible signal becomescontinuous and the "Danger" symbol appears
in the multifunction screen.
On completion of the manoeuvre, when you exit
reverse gear, the system becomes inactive.

179Driving

ProgrammingOperating faults

If there is an operating fault,
when reverse gear is engaged
this warning lamp comes on in the instrumentpanel, accompanied by an audible signal (short
beep) and a message in the multifunction screen. You can activate or deactivate the s
ystem bymeans of the multifunction screen configuration menu. The system state is memorised when
switching off the ignition.
For more information on access to the parkingsensors menu, refer to "Configuration/Vehic leparameters" in the "Multifunction screens"section corresponding to your screen.

The system will be deactivated automatically when towing a trailer or when a bicycle carrier is fitted (vehiclefitted with a towbar or bicycle carrier recommended by CITROËN).
In bad or wintry weather, ensure that the sensors are not covered with mud,frost or snow.

215
Practical information

Dashboard fusebox

The fusebox is located in the lower dashboard(left-hand side).


Access to the fuses
)Refer to the paragraph "Access to the tools".
Fuse tables
Fuse N°RatingFunctions
FH365 ATr a i l e r r e l ay unit.
FH37
-Not used.
FH3
820 AHi-Fi amplifier.
FH3
920 AHeated seats.
FH40
40 ATr a i l e r r e l ay unit.
Fuse N°RatingFunctions
F115 ARear wiper.
F2-Not used.
F
35 A Airbags and pretensioners control unit.
F410 A Air conditioning, clutch switch, electrochromatic mirror,particle filter pump (Diesel), diagnostic socket, air flowsensor (Diesel).
F5
30 AElectric windows panel, passenger's electric window control,front electric window motor.
F
630 ADriver's electric window motor.
F7 5
ACourtesy lamp, glove box lighting.

Fuse N°RatingFunctions
F
820 AMultifunction screen, audio system, navigation radio, alarm control unit, alarm siren.
F
930 A12 V socket, portable navigation suppor t supply.
F1
015 ASteering mounted controls.
F1
115 AIgnition, diagnostic socket, automatic gearbox control unit.
F12 15
ARain/sunshine sensor, trailer relay unit.
F1
35 AMain stop switch, engine relay unit.
F1415 AParking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, Hi-Fi amplifier.
F1
530 ALocking.
F16
-Not used.
F1740 ARear screen and door mirrors demisting/defrosting.
S
H-PA RC shunt.

Fuse table
Fuse N°RatingFunctions
F120 A Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump(Diesel).
F
215 A Horn.
F
310 A Front/rear screenwash.
F420 A LED lamps.
F
515 A Diesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), blow-by heater and electrovalves (VTi).
F
610 A ABS/ESP control unit, secondary stop switch.
F
710 A Electric power steering, automatic gearbox.
F
825 A Starter control.
F9
10 A Switching and protection unit (Diesel).
F10
30 A Fuel heater (Diesel), blow-by heater (Diesel), fuel pump (VTi), injectors and ignition coils (petrol).
F1140 A Heater blower.

219Practical information

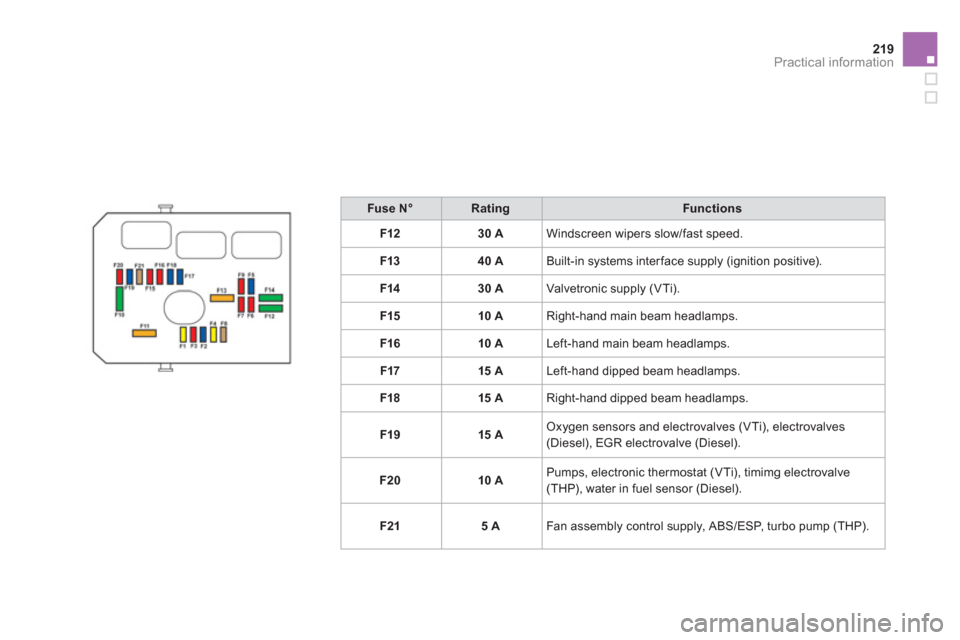

Fuse N°RatingFunctions
F1230 AWindscreen wipers slow/fast speed.
F1
340 ABuilt-in systems inter face supply (ignition positive).
F1
430 AValvetronic supply (VTi).
F15 10
ARight-hand main beam headlamps.
F1
610 ALeft-hand main beam headlamps.
F1715 ALeft-hand dipped beam headlamps.
F1
815 ARight-hand dipped beam headlamps.
F1
915 AOxygen sensors and electrovalves (VTi), electrovalves
(Diesel), EGR electrovalve (Diesel).
F20 10
APumps, electronic thermostat (VTi), timimg electrovalve(THP), water in fuel sensor (Diesel).
F2
15 AFan assembly control supply, ABS/ESP, turbo pump (THP).

The rear parking sensors will be deactivated automatically if a genuineCITROËN towbar is used.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its coolingcapacity is not dependent on the engine speed. )To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
Braking
To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a longmountain type of descent, the use of engine braking is recommended.

Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.

Lighting
)
Check the electrical lighting and signallingon the trailer.
)
If the warning lamp and the
STOPwarning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.

RACING towbar

Your vehicle cannot be fitted with a towbar. The space occupied by thesport diffuser prevents this.

A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
The
y are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.





Accessories
"Comfort":
sun blinds, air deflectors, isotherm module,ashtray, fragrance car tridges, coat hanger fixed
to head restraint, front centre armrest, movable
mirror, reading lamp, front and rear parking sensors...
"Transport solutions":
boot liner, boot spacers, boot carpet, boot net,
transverse roof bars, bicycle carrier, ski carrier, roof boxes, towbars, towbar wiring harnesses...

"Styling":
full grain leather steering wheel, coloured and carbotech dashboards, coloured and leather gear lever knobs, aluminium footrest, spoiler,
alloy wheels, coloured wheel trims, coloured
wheel caps, exterior expressive stickers,
exterior chrome kit...

*

To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.


"Security and safety":

anti-intrusion alarm, wheel security devices,
vehicle tracking system, breathalyser, first aid kit, warning triangle, high visibility safety vest,child seats, snow chains, non-skid covers, fire extinguisher...


"Protection":

mats *
, mudflaps, seat covers, vehicle covers,
bumper protectors...

When fitting a towbar outside the CITROËN dealer network, the installation must be done using thevehicle's electrical pre-equipment and following the vehicle manufacturer'srecommendations.
