SAFETY DRIVING FITTINGS CHILD SAFETY
158Parking brake
15 96 -speed manual gearbox
160Gear shift indicator
161 Electronic gearbox
166Automatic gearbox
170Stop & Start
173 Hill start assist
174Speed limiter
176 Cruise control
178Rear parking sensors
142 Direction indicators
142 Hazard warning lamps
14 3Horn
14 3Emergency or assistance call
14
4 Braking assistance systems
145 Tr ajectory control systems
147 Front seat belts
150 Airbags
130Child seats
136 ISOFIX child seats
122Interior fi ttings
126 Boot fi ttings
008008009009006006007007

Exterior
Customising kits
These expressive stickers form par t of a range
of kits, very different one from another, whichallow you to create a unique and attractive exterior for your vehicle
Guide-me-home lighting
After switching off the ignition, under lowlighting conditions the headlamps remain on for a few seconds to help you leave the vehicle.

Rear parking sensors

This system provides a warning when reversingby detecting obstacles located behind
the vehicle.
111
puncture repair kit
plete system consisting of a compressor and a sealant cartridge, to allow
the temporary repair of a tyre.
194
Stop & Start
This system puts the engine
temporarily on standby during
stops in the traffic (red lights, trafficjams, etc...). The engine restartsautomatically as soon as you want tomove off. The Stop & Star t system reduces fuel consumption, exhaustemissions and the noise level whenstationary.
170

Instruments and controls
1.
Steering lock and ignition. 2.
Audio equipment steering wheel controls.3.
Wiper/screenwash/trip computer stalk.4.
Scented air freshener.5.
Central locking switch.
6.Multifunction screen.
7. Hazard warning lamp switch.8.Central adjustable air vents.9.
Sunshine sensor
Hi-Fi audio system central speaker. 10.Passenger's airbag. 11.
Side adjustable air vent. 12.Glove box/Passenger's airbag deactivation. 13.Parking brake.14.Central armrest with storage.15.
Upper and lower storage.16.
MyWay or Audio system. 17.Heating/air conditioning controls.

55
Multifunction screens

Radio-CD
With the Audio system switched on, once the
"Radio-CD" menu has been selected you canactivate or deactivate the functions linked
with use of the radio (RDS, REG), or the CD(introscan, shuffle, CD repeat).
For more information on the "Radio- CD"
application, refer to the Audio s
ystem part of
the "Audio and Telematics" section.
Vehicle confi guration
Once the "Vehicle Configuration" menu has been selected, you can activate or deactivate
the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- guide-me-home lighting (refer to the"Visibility" section),
- parking sensors (refer to the "Driving"section).


Options
Once the "Options" menu has been selected,you can star t diagnostics of the status of the equipment (active, not active, faulty).

59Multifunction screens
"Personalisation-
Confi
guration" menu
Once this menu has been selected, you can gain access to the following functions:


- define the vehicle parameters,

- display configuration,

- choice of language.


Defi ne the vehicle parameters
Once this menu has been selected, you can
activate or deactivate the following equipment:


- wiper linked to reverse gear (refer to the
"Visibility" section),

- guide-me-home lighting and duration(see "Visibility" section),

- parking sensors (refer to the "Driving" section). Example: settin
g of the duration of the guide-
me-home lighting) Press the " " or "" buttons, then the"OK"
button to select the menu required.
)
Press the "
" or "" buttons, then the"OK"
button to select the "Guide-me-home
headlamps" line.
) Press the " " or " " buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK"button to confirm.
) Press the "
" or "
" buttons, then the "OK"button to select the "OK"
box and confirm or press the "ESC"button to cancel.

"SETUP" menu
)Press the "SETUP"button to gain access
to the "SETUP"
menu. This allows you to
select from the following functions:
- "System language",
- "Date and time",
- "Displa
y",
- "Vehicle",- "Units",
- "System".




System language

This menu allows you to select the language used by the display: Deutsch, English,
Espanol, Français, Italiano, Nederlands, Polski,
Por tugues, Türkçe * .

Date and time
This menu allows you to set the date and time,
the format of the date and the format of the time (refer to the "Audio and Telematics" section or
to the specific user guide given to you with the
other owner's documents).

Display

This menu allows you to set the brightness of
the screen, the screen colour scheme and the
colour of the map (day/night or auto mode).

*
Accordin
g to country.

Vehicle

This menu allows you to activate or deactivatecertain driving and comfor t equipment:


- wiper linked with reverse gear(refer to the "Visibility" section),

- guide-me-home lighting and duration(refer to the "Visibility" section),

- parking sensors (refer to the "Driving" section).


Units
This menu allows you to select the units:
temperature (°C or °F) and fuel consumption(km/l, l/100 or mpg).

System

This menu allows you to restore the factory configuration, display the software version and
activate scrolling text.

For safety reasons, configuration of the multifunction screen by the driver mustonly be done when stationary.

67
Comfort











Recommendations for ventilation and air conditioning


If after an extended stop in sunshine, the interior temperature is veryhigh, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.
The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.

In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. )
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in perfect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compar tment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly as recommended in the ser vicing booklet. )
If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off theair conditioning increases the available engine power and so improves the towing ability.

The condensation created by the air conditioning results in a dischargeof water under the vehicle which is perfectly normal.

87
Comfort

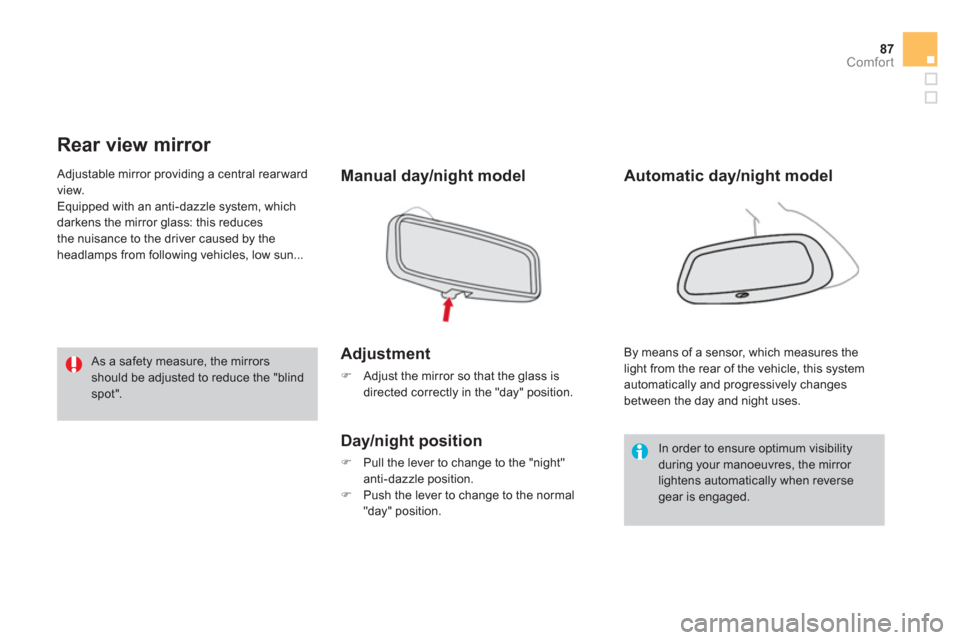

Rear view mirror
Manual day/night model
Adjustment
)
Adjust the mirror so that the glass is
directed correctly in the "day" position.
Day/night position
) Pull the lever to change to the "night"
anti-dazzle position. ) Push the lever to change to the normal "day" position.

B
y means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
Automatic day/night model

In order to ensure optimum visibilityduring your manoeuvres, the mirror lightens automatically when reversegear is engaged.

As a safety measure, the mirrorsshould be adjusted to reduce the "blindspot".

Adjustable mirror providing a central rearwardview.
Equipped with an anti-dazzle system, whichdarkens the mirror glass: this reduces
the nuisance to the driver caused by the headlamps from following vehicles, low sun...

switched on automatically, without any action on
the part of the driver, when a low level of external
light is detected or in certain cases of activation of
the windscreen wipers.

As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automaticall
y.

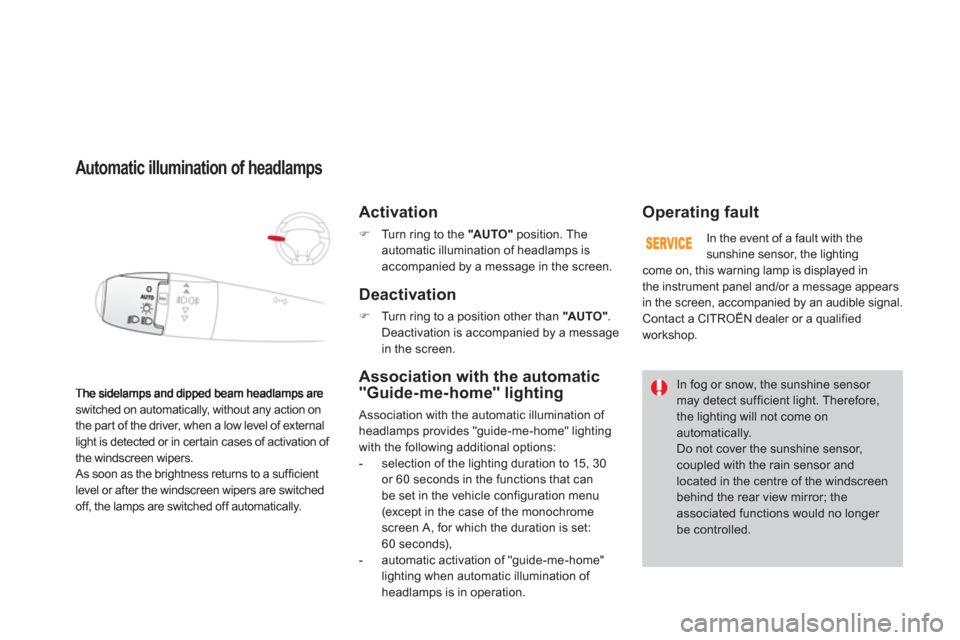

Automatic illumination of headlamps
Activation
)
Turn ring to the "AU TO "position. The
automatic illumination of headlamps is
accompanied by a message in the screen.

Deactivation
)
Turn ring to a position other than "AU TO ".
Deactivation is accompanied by a message
in the screen.

Association with the automatic "Guide-me-home" lighting

Association with the automatic illumination of
headlamps provides "guide-me-home" lighting
with the following additional options:


- selection of the lighting duration to 15, 30or 60 seconds in the functions that can
be set in the vehicle configuration menu(except in the case of the monochrome screen A, for which the duration is set:
60 seconds),

- automatic activation of "guide-me-home"lighting when automatic illumination of
headlamps is in operation.



Operating fault

In the event of a fault with thesunshine sensor, the lightingcome on, this warning lamp is displayed in
the instrument panel and/or a message appears
in the screen, accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
workshop.
In fog or snow, the sunshine sensor may detect sufficient light. Therefore, the lighting will not come onautomatically.
Do not cover the sunshine sensor,coupled with the rain sensor and located in the centre of the windscreenbehind the rear view mirror; theassociated functions would no longer be controlled.

windscreen wipers
The windscreen wipers operate automatically,
without any action on the par t of the driver, if rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of
the rainfall.
Activation
This is controlled manually by the driver bypushing stalk Ato the "AU TO "position.
It is accompanied by the illumination of this indicator lamp in the instrument panel and amessage in the multifunction screen.


Switching off

This is controlled manually by the driver by moving stalk A
upwards, returning it to position A"0".
It is accompanied b
y the indicator lamp
in the instrument panel going off and a
message in the multifunction screen.
The automatic wiping must be reactivated if the ignition has been off for more than one minute, by pushingstalk Adownwards.
