135
Child safety

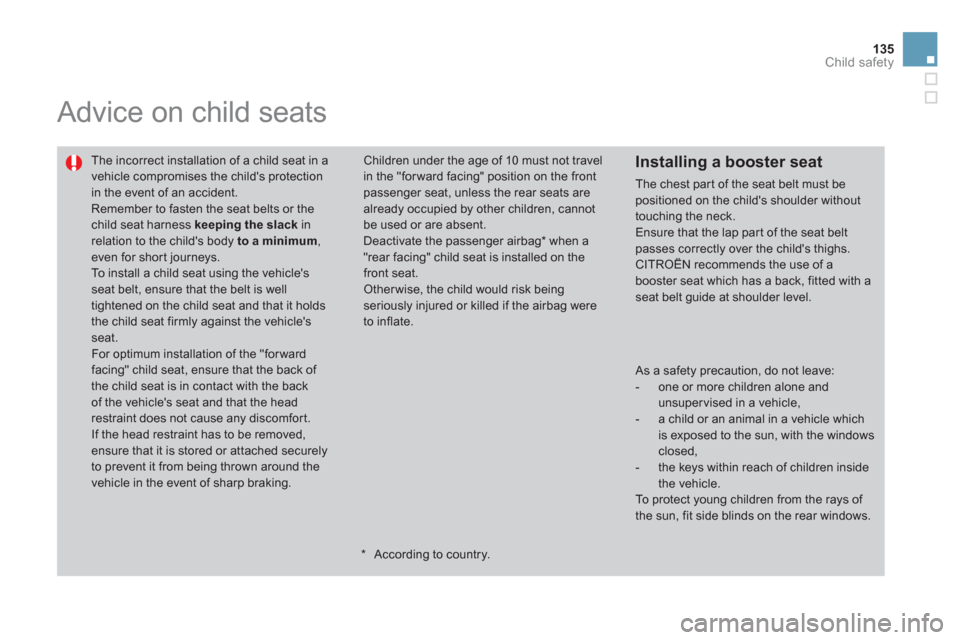

Advice on child seats

The incorrect installation of a child seat in avehicle compromises the child's protectionin the event of an accident.
Remember to fasten the seat belts or the child seat harness keeping the slackin relation to the child's body to a minimum , even for shor t journeys.
To install a child seat using the vehicle'sseat belt, ensure that the belt is well tightened on the child seat and that it holdsthe child seat firmly against the vehicle's seat.
For optimum installation of the "forwardfacing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.
Children under the age of 10 must not travel in the "forward facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag
* when a "rear facing" child seat is installed on thefront seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.
Installing a booster seat
The chest par t of the seat belt must bepositioned on the child's shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs.CITROËN recommends the use of abooster seat which has a back, fitted with aseat belt guide at shoulder level.
*
According to country.

As a safety precaution, do not leave: - one or more children alone and unsuper vised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windowsclosed, - the keys within reach of children inside the vehicle.To protect young children from the rays of the sun, fit side blinds on the rear windows.

Your vehicle has been approved in accordance
with the newISOFIX regulation.The seats, represented below, are fitted withregulation ISOFIX mountings:





















"ISOFIX" mountings

There are three rings for each seat:


- two rings A, located between the vehicle seat back and cushion, indicated by a label,

- a rin
g B , behind the seat, referred to as theTOP TETHER
for fixing the upper strap. This I
SOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats
are fitted with
two latches which are secured on the two rings A.
When fitting an ISOFIX child seat to the right hand rear seat, before fixing the seat in place,first move the centre rear seat belt towards themiddle of the vehicle so as to not interfere with
the operation of the seat belt.
Some seats also have an upper strap
which isattached to ring B.
To attach this strap, raise the vehicle seat's
head restraint then pass the hook between its
rods. Then fix the hook on ring Band tighten
the upper strap.
The incorrect installation of a child seat in a vehicle compromises the child'sprotection in the event of an accident.
For in
formation regarding the ISOFIX childseats which can be installed in your vehicle,
refer to the table showing the locations for
installing I
SOFIX child seats.

A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
The
y are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.





Accessories
"Comfort":
sun blinds, air deflectors, isotherm module,ashtray, fragrance car tridges, coat hanger fixed
to head restraint, front centre armrest, movable
mirror, reading lamp, front and rear parking sensors...
"Transport solutions":
boot liner, boot spacers, boot carpet, boot net,
transverse roof bars, bicycle carrier, ski carrier, roof boxes, towbars, towbar wiring harnesses...

"Styling":
full grain leather steering wheel, coloured and carbotech dashboards, coloured and leather gear lever knobs, aluminium footrest, spoiler,
alloy wheels, coloured wheel trims, coloured
wheel caps, exterior expressive stickers,
exterior chrome kit...

*

To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.


"Security and safety":

anti-intrusion alarm, wheel security devices,
vehicle tracking system, breathalyser, first aid kit, warning triangle, high visibility safety vest,child seats, snow chains, non-skid covers, fire extinguisher...


"Protection":

mats *
, mudflaps, seat covers, vehicle covers,
bumper protectors...

When fitting a towbar outside the CITROËN dealer network, the installation must be done using thevehicle's electrical pre-equipment and following the vehicle manufacturer'srecommendations.

A
ABS and EBFD systems...............................144Accessories ..................................................230Accessory socket, 12 V ................................124Access to rear seats.................................81,83Adjusting headlamps ....................................113Adjusting head restraints................................80Adjusting the steering wheel...........................85Advice on care and maintenance.................229Airbags, curtain.....................................154,155Airbags, front.........................................151,155Airbags, lateral......................................153,155Air conditioning ...............................................24Air conditioning, digital ..............................67, 73Air conditioning, manual...........................67,70Air filter..........................................................r190Air flow......................................................24, 66Air intake ...................................................66, 73Air recirculation .........................................70, 74Air vents..........................................................66Alloy wheels ..................................................229Anti-lock braking system (ABS)....................144Anti-pinch ........................................................97Anti-theft..........................................................92Armrest, front................................................123Assistance call ......................................143, 250Audible warning............................................143Audio streaming (Bluetooth).........................295Audio system.................................................283Automatic illumination of headlamps....109,112Automatic operation of hazard warning lamps .....143Automatic rain sensitivewindscreen wipers..............................114, 116Auxiliary socket ....................124, 270, 290,292
Capacity, fuel tank ........................................102CD MP3.................................................269, 289Central locking ..........................................91, 99Changing a bulb ..................................... 207-213Changing a fuse ....................................214-220Changing a wheel .................................200-206Changing a wiper blade........................117,224Changing the date.........................274, 296, 297Changing the remote control battery..............94Changing the time .........................274, 296, 297Checking levels......................................187-189Checking the engine oil level ..........................45Checking tyre pressures (using the kit)........194Checks ...................................................185-191
Children..................................128 -138, 149, 152Child seats ............................................130-135Cleaning (advice) ..........................................229Closing the boot ......................................91,101Closing the doors ......................................91,98Connectors, audio ................124, 270, 290,292Control panel.........................................252, 284Coolant level...........................................42, 187Coolant temperature.......................................42Coolant temperature indicator........................r42Courtesy lamps.....................................11 8,213Courtesy mirror.............................................r123Cruise control................................................176Cup holder.....................................................r122
Battery...................................................190,221Battery, charging...........................................221Battery, remote control.............................94, 95Black panel......................................................47Bluetooth (hands-free)........................................271,293Bluetooth (telephone)............................271,293Bonnet...........................................................183Boot...............................................................101Boot lamp..............................................119, 213Brake discs....................................................191Brake lamps..................................................211Brake pads ....................................................191Brakes ...........................................................191Braking assistance system ...........................144
B
C
Dashboard fusebox .......................................215Date (setting).................................274,296,297Daytime running lamps (LEDs).............113, 220Deactivating the passenger airbag...............152
Defrosting............................................70, 73, 76Demisting............................................70, 73, 76
Dials and gauges ......................................28,30Diesel additive level......................................189Dimensions...................................................242Dipped beam .........................................108, 208Dipstick....................................................45, 187Direction indicators.......................142, 208, 211Door pockets .................................................122Doors...............................................................98Doors emergency control.............................100Driving economically ......................................24
D

313Alphabetical index
Fragrance car tridge........................................77Front seats................................................79, 82Fuel..........................................................24, 103Fuel consumption............................................24Fuel filler flap.........................................102,104Fuel gauge ....................................................102Fuel tank................................................102,104Fuses.............................................................214
G.P.S. ............................................................ 257Gearbox, automatic ..............................166,191Gearbox, electronic.......................161,170,191Gearbox, manual..................159, 160,170,191Gear lever,
automatic gearbox......................................166Gear lever,electronic gearbox system .........................161Gear lever, manual gearbox .........................159Gear shift indicator........................................ 160Glove box ...................................................... 123Grab handles.............................................81,83Guidance.......................................................257
Indicators, direction......................142, 208, 211Inflating accessories (using the kit)..............19 9Inflating tyres ..........................................24, 242Inputs for audio system........124, 270, 290,292Instrument panel lighting................................46Instrument panels.....................................28,30Instrument panelscreen....................28,30, 160 , 167, 174, 176Interior fittings ...............................................122Interior lamp..........................................118, 123Interior mood lighting ....................................119ISOFIX child seats .................................136-138ISOFIX mountings.................................136,138
G
EBA(Emergency braking assistance)........144,145Eco-driving.....................................................24Economy mode .............................................223Electric window controls .................................96Electronic brake force distribution(EBFD)........................................................ 144Electronic engine immobiliser..............................................92,95Emergency boot release...............................101Emergency braking system..........................145Emergency call.....................................143, 250Emergency warning lamps ...................142,143Energy economy mode .................................223Engine, Diesel ...............................103,186,240Engine, petrol ...............................103,185, 234Engine compartment.............................185, 186Engine compartmentfusebox.......................................................217Engine oil level indicator.........................r45, 187Engines ........................................234, 238,240Environment ......................24, 76,95, 189, 222ESP/ASR.......................................................145
I
J
Jack ...............................................................200JACK socket.........................124, 270,290,292
Head restraints, front......................................80Head restraints, rear.......................................r84Heated seats...................................................80Heating ................................................24, 70, 73Height and reach adjustment,steering wheel ..............................................85Hill start assist...............................................173Horn...............................................................143
E
Filling with fuel.......................................102-104Fittings, boot .................................................126Flashing indicators ................................ 142, 143Foglamps, front.....................................110,210Foglamps, rear......................................r110, 211
F
H
Halogen headlamps......................................207Hands-free kit........................................271,293Hazard warning lamps ..........................142, 143
