seats Citroen DS3 2013 1.G Owner's Manual

MULTIFUNCTION
SCREENSCOMFORT ACCESS VISIBILITY
54 Monochrome screenA
57 Monochrome screenC
6116/9 colour screen (MyWay)
66 Ventilation
68Heating
69 Manual air conditioning
73Digital air conditioning
76Rear screen demist - defrost
77Scented air freshener
79 Front seats
84Rear seats
85Steering wheel adjustment
86Mirrors
90 Remote control key
96 Window controls
98 Doors
101Boot
102Fuel tank
104Misfuel prevention (Diesel)
108Lighting controls
113LED lamps
113Headlamp adjustment
114 Wiper controls
118Courtesy lamp
119Interior mood lighting
119Boot lamp
004004005005002002003003

SAFETY DRIVING FITTINGS CHILD SAFETY
158Parking brake
15 96 -speed manual gearbox
160Gear shift indicator
161 Electronic gearbox
166Automatic gearbox
170Stop & Start
173 Hill start assist
174Speed limiter
176 Cruise control
178Rear parking sensors
142 Direction indicators
142 Hazard warning lamps
14 3Horn
14 3Emergency or assistance call
14
4 Braking assistance systems
145 Tr ajectory control systems
147 Front seat belts
150 Airbags
130Child seats
136 ISOFIX child seats
122Interior fi ttings
126 Boot fi ttings
008008009009006006007007

13Familiarisation
Sitting comfortably
3. Seat back angle adjustment.
79, 82


Front seats
1.
Forwards-backwards adjustment.2.
Height adjustment.

Sitting comfortably
)To raise it, pull it upwards. )To lower it, press simultaneously on the
tab A
and down on the head restraint.
Adjusting the height of
a head restraint
Other function available...
Heated seats.
80, 83
1.
Release the adjustment mechanism. 2.Adjust for height and reach.3.Lock the adjustment mechanism.


Steering wheel adjustment
85

For reasons of safety, these operationsmust only be carried out with the vehicle stationary.


Access to rear seats
)
Pull the control lever up to fold the backrestand move the seat forwards.

8
1
Take care to use only the correctcontrol, located at the top of the backrest.

25
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot, as close as possible to the rear seats. Limit the loads carried in the vehicle andreduce wind resistance (roof bars, roof rack,bicycle carrier, trailer...). Use a roof box in preference. Remove roof bars and roof racks after use.


At the end of winter, remove snow tyres andrefit your summer tyres.



Observe the recommendations
on maintenance


Check the tyre pressures regularly, whencold, referring to the label in the door aperture, driver's side.
Carry out this check in par ticular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.


Have your vehicle ser viced regularly (engineoil, oil filter, air filter...) and obser ve theschedule of operations recommended by the manufacturer.




When refuelling, do not continue after the 3 rd
cut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settledown to a consistent average.
Switch off the headlamps and front foglamps when the level of light does not require their use.

Avoid running the engine before moving off,particularly in winter; your vehicle will warmup much faster while driving.

As a passenger, if you avoid connecting your multimedia devices (film, music, videogame...), you will contribute towards limitingthe consumption of electrical energy, and soof fuel. Disconnect your por table devices beforeleaving the vehicle.

003
Comfort
This section describes the operation of the heating, ventilation and air conditioning system, the scented air freshener and all of the adjustments
for the seats, steering wheel and mirrors, for your comfor t and an optimum driving position.

79Comfort








Front seats Seat consisting of a seat cushion, a seat back and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.

Manual adjustments


Forwards-backwards adjustment
)Raise the control and slide the seatforwards or backwards.

Height adjustment
)
Pull the control upwards to raise or pushit downwards to lower, as many times as required, to obtain the position required.


Seat back angle adjustment
)
Push the control rearwards.

Additional adjustments
Head restraint height adjustment
)To raise the head restraint, pull it upwards. )To remove the head restraint, press the lug Aand pull the head restraint upwards. )To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat back. )To lower the head restraint, press the lug Aand the head restraint at the same time.
The head restraint is fitted with a framewith notches which prevents it fromlowering; this is a safety device in caseof impact. The adjustment is correct when theupper edge of the head restraint is level with the top of the head.Never drive with the head restraintsremoved; they must be in place andadjusted correctly.

Heated seats control

With the engine running, the front seats can be heated separately.)Use the adjustment dial, placed on the side
of each front seat, to switch on and select
the level of heating required: 0: Off. 1: Low. 2
: Medium. 3
: High.

81Comfort

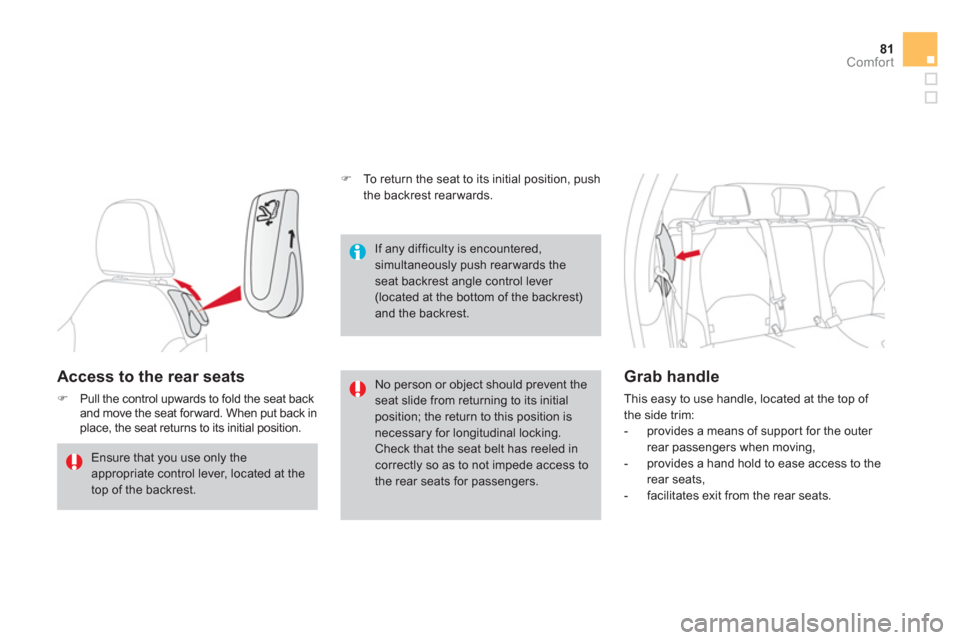

Access to the rear seats
)Pull the control upwards to fold the seat backand move the seat for ward. When put back in place, the seat returns to its initial position.
No person or object should prevent the seat slide from returning to its initialposition; the return to this position isnecessary for longitudinal locking. Check that the seat belt has reeled in correctly so as to not impede access to the rear seats for passengers.

Grab handle

This easy to use handle, located at the top of
the side trim:


- provides a means of suppor t for the outer
rear passengers when moving,

- provides a hand hold to ease access to the
rear seats,

-
facilitates exit from the rear seats.


If any difficulty is encountered,simultaneously push rear wards the seat backrest angle control lever (located at the bottom of the backrest)and the backrest.

Ensure that you use only the appropriate control lever, located at the top of the backrest.
)
To return the seat to its initial position, push
the backrest rearwards.

RACING front seats Seat consisting of a seat cushion and backrest which can be adjusted to adapt your position for maximum ease of driving and comfort.
Manual adjustments
Forwards-backwards adjustment
)Lift the control and slide the seat forwardsor backwards.

Height adjustment
)
Pull the handle upwards to raise or push
it downwards to lower, as many times as
necessar
y to obtain the required position.
Backrest angle adjustment
)Push the handle towards the rear and move
the seat backrest forwards or backwards.
