controls CITROEN DS3 CABRIO 2013 Handbook (in English)

57
Multifunction screens

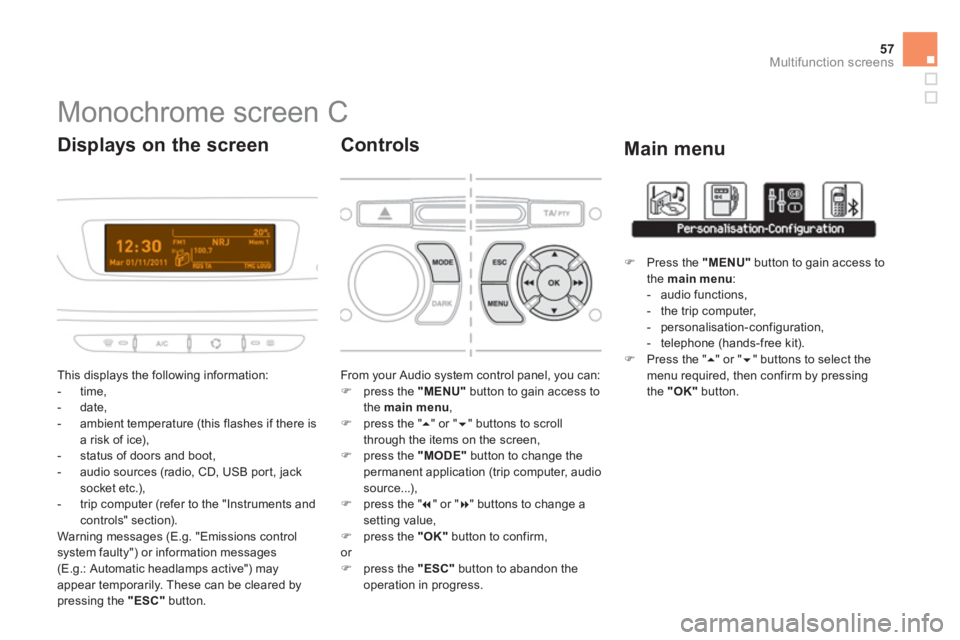

Monochrome screen C

This displays the following information:


- time,

- date,

- ambient temperature
(this flashes if there isa risk of ice),

- status of doors and boot,

- audio sources (radio, CD, USB por t, jacksocket etc.),

- trip computer (refer to the "Instruments andcontrols" section).
Warning messages
(E.g. "Emissions controlsystem faulty") or information messages(E.g.: Automatic headlamps active") may
appear temporarily. These can be cleared by pressing the "ESC"
button.


Displays on the screen
From your Audio system control panel, you can:)
press the "MENU"
button to gain access to
the main menu,)
press the "
" or " " buttons to scroll
through the items on the screen, ) press the "MODE"
button to change the
permanent application (trip computer, audiosource...),) press the "  " or " " buttons to change asetting value,)
press the "OK"button to confirm,or )
press the "ESC"button to abandon theoperation in progress.

Controls
)
Press the "MENU"
button to gain access to
the main menu:- audio functions,
- the trip computer,
- personalisation-configuration,
- telephone (hands-free kit). )
Press the "
" or "
" buttons to select themenu required, then confirm by pressing
the "OK"
button.


Main menu

61Multifunction screens

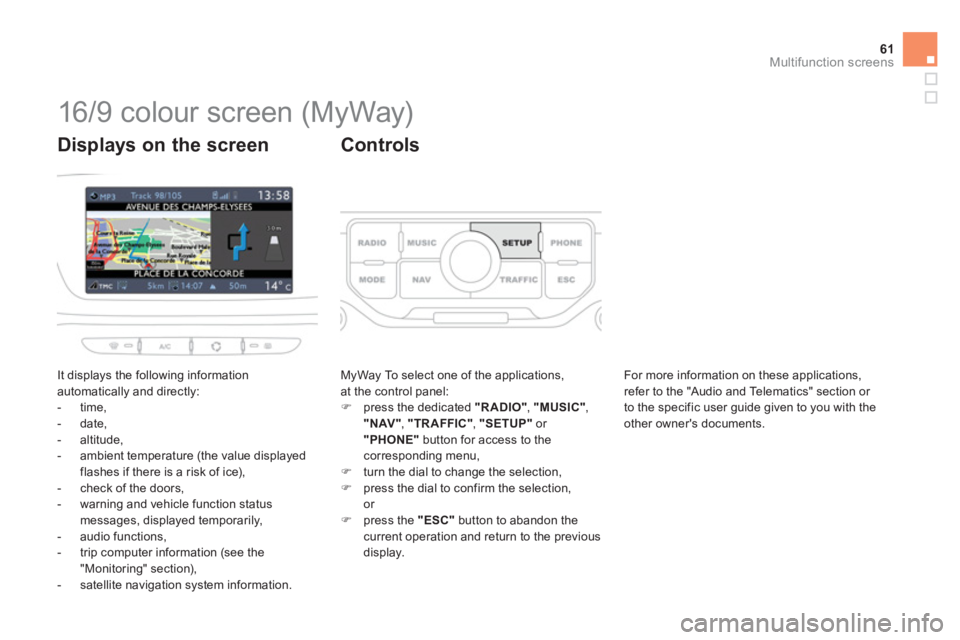

16/9 colour screen (MyWay)

It displays the following information
automatically and directly:


- time,

- date,

- altitude,

- ambient temperature
(the value displayedflashes if there is a risk of ice),

- check of the doors,

- warning and vehicle function status messages, displayed temporarily,

- audio functions,

- trip computer information (see the
"Monitoring" section),

- satellite navigation system information.



Displays on the screen
MyWay To select one of the applications,at the control panel:)
press the dedicated "RADIO"
, "MUSIC","NAV"
, "TRAFFIC", "SETUP"or "PHONE"
button for access to thecorresponding menu,)
turn the dial to change the selection, )
press the dial to confirm the selection, or )
press the "ESC"button to abandon the
current operation and return to the previous
display.
Controls

For more information on these applications,
refer to the "Audio and Telematics" section or
to the specific user guide given to you with the other owner's documents.

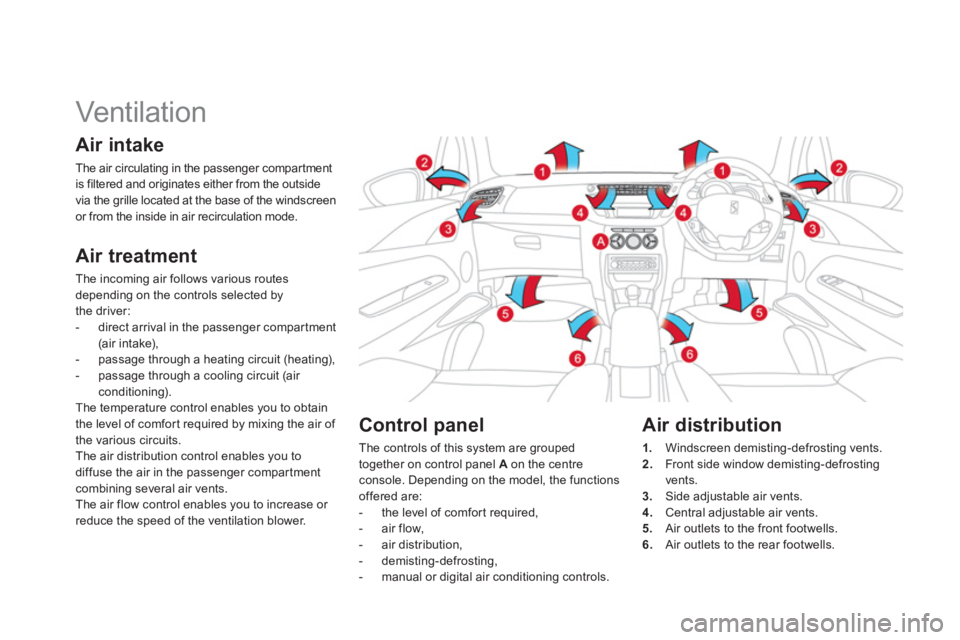

Vent ilat ion
Air intake
The air circulating in the passenger compar tment
is filtered and originates either from the outside
via the grille located at the base of the windscreen or from the inside in air recirculation mode.
Air treatment
The incoming air follows various routesdepending on the controls selected by
the driver:
- direct arrival in the passenger compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).The temperature control enables you to obtain
the level of comfor t required by mixing the air of
the various circuits.
The air distribution control enables you to
di
ffuse the air in the passenger compar tment combining several air vents.
The air flow control enables you to increase or reduce the speed of the ventilation blower.


Control panel

The controls of this system are grouped
together on control panel Aon the centre console. Depending on the model, the functionsoffered are:


- the level of comfort required,

- air flow,

- air distribution,

- demistin
g-defrosting,

- manual or digital air conditioning controls.



Air distribution
1.
Windscreen demisting-defrosting vents. 2.Front side window demisting-defrostingvents.3.Side adjustable air vents. 4.
Central adjustable air vents.
5. Air outlets to the front footwells.
6.Air outlets to the rear footwells.

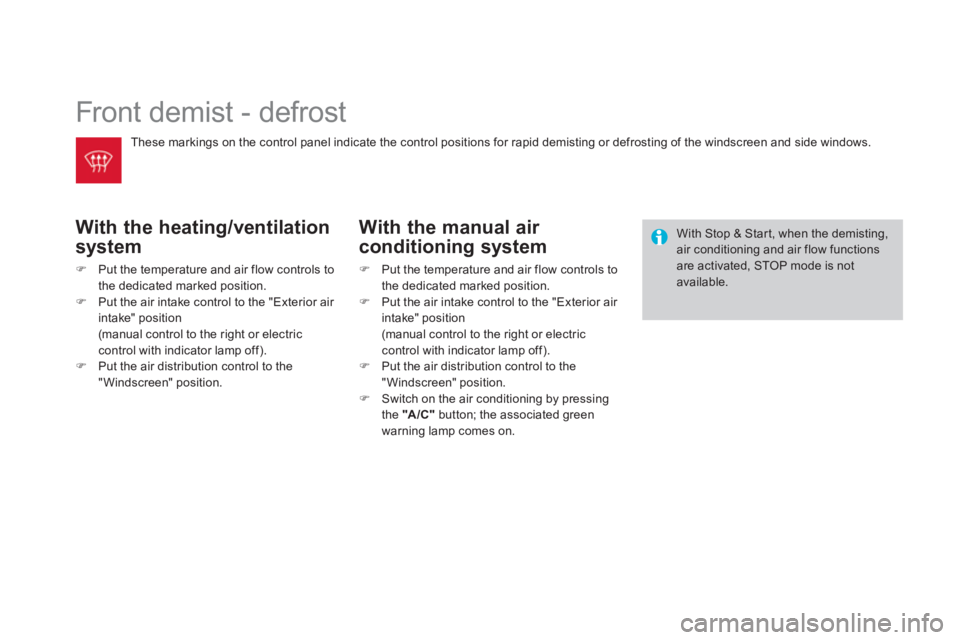

Front demist - defrost
With the heating/ventilation
s
ystem
)Put the temperature and air flow controls to
the dedicated marked position. )Put the air intake control to the "Exterior air intake" position (manual control to the right or electric control with indicator lamp off). )Put the air distribution control to the"Windscreen" position.
These markin
gs on the control panel indicate the control positions for rapid demisting or defrosting of the windscreen and side windows.


With the manual air
conditioning system
)
Put the temperature and air flow controls to
the dedicated marked position.) Put the air intake control to the "Exterior air
intake" position
(manual control to the right or electriccontrol with indicator lamp off).) Put the air distribution control to the "Windscreen" position. )
Switch on the air conditioning by pressingthe "A/C"
button; the associated green
warn
ing lamp comes on.

With Stop & Star t, when the demisting, air conditioning and air flow functionsare activated, STOP mode is notavailable.

73Comfort

















Digital air conditioning
The air conditioning operates when the engine is running, as well as in STOP mode with Stop & Start.


Automatic operation


1. Automatic "comfort" programme
Press the "AUTO"button. The "AUTO"symbol is displayed.We recommend that you use
this mode. It provides optimisedautomatic control of all of the following functions: passenger compar tment
temperature, air flow, air distribution and air
intake, in accordance with the comfort value
that
you have chosen.
This system is designed to operate effectivelyin all seasons, with the windows closed.
For your comfor t, when the engine isswitched off, the settings are retained until the engine is switched on again. To prevent too great a distribution of cold air when the engine is cold, the air flow will only reach its optimum level gradually.
2. Temperature adjustment
The value indicated on the display corresponds
to a level of comfor t and not to a temperature in
de
grees Celsius or Fahrenheit.
On entering the vehicle, if the interior is very cold or hot, there is no need tochange the value displayed in order to reach the required level of comfort. The system corrects the temperature difference automatically and as quickly as possible.
Pr
ess the ""
and ""
buttons tochange this value. A setting around
the value 21 enables optimum comfor t to be obtained. However,
depending on your requirements, asetting between 18 and 24 is usual.

3. Automatic "visibility" programme
The automatic comfor t programmemay not be sufficient for rapid
demisting or defrosting of the
windscreen and side windows(humidity, several passengers, ice, etc.).
In this case, select the automatic visibility
programme. The button 3 indicator lamp comes on.
The system automatically controls the air conditioning and the flow of air and provides optimum air distribution to the windscreen andside windows. It deactivates air recirculation 5.
To exit this programme, press button 3
again or "AUTO"
, the indicator lamp on the button goes off and "AUTO"
is displayed.
With Stop & Start, when demisting has been activated, the STOP mode is notavailable.

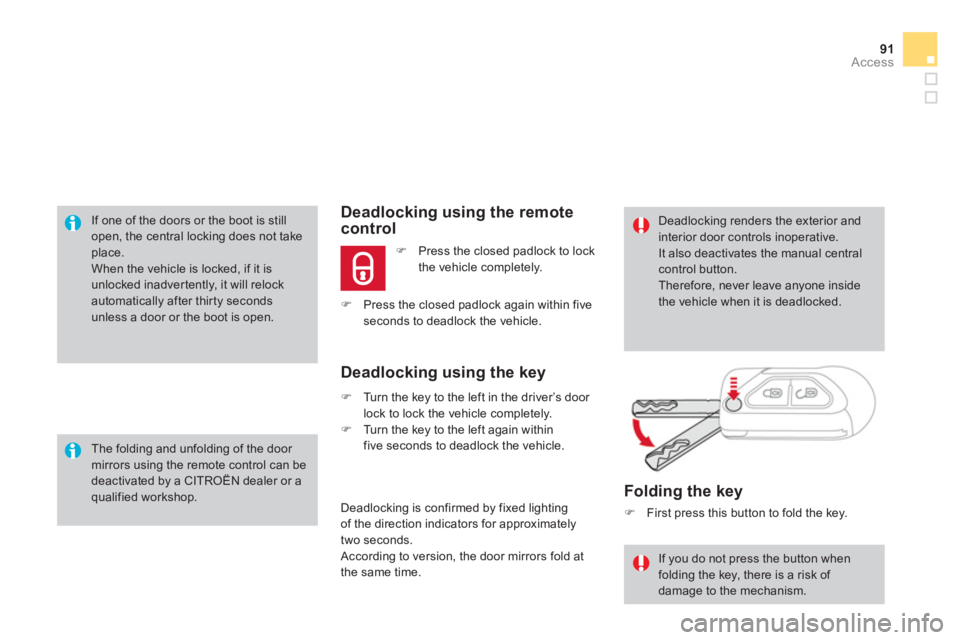

91Access
If one of the doors or the boot is stillopen, the central locking does not takeplace.
When the vehicle is locked, if it isunlocked inadvertently, it will relockautomatically after thirty secondsunless a door or the boot is open.

The folding and unfolding of the door mirrors using the remote control can bedeactivated by a CITROËN dealer or a qualified workshop.



Folding the key
)
First press this button to fold the key.
Deadlocking using the remote
control

)
Press the closed padlock again within fiveseconds to deadlock the vehicle.


Deadlocking using the key
)
Turn the key to the left in the driver’s door lock to lock the vehicle completely.
)
Turn the key to the left again within five seconds to deadlock the vehicle.
)
Press the closed padlock to lock
the vehicle completely.
Deadlocking renders the exterior andinterior door controls inoperative.
It also deactivates the manual centralcontrol button.
Therefore, never leave anyone insidethe vehicle when it is deadlocked.
Deadlockin
g is confirmed by fixed lightingof the direction indicators for approximately
two seconds.
According to version, the door mirrors fold at
the same time. If you do not press the button when folding the key, there is a risk of damage to the mechanism.

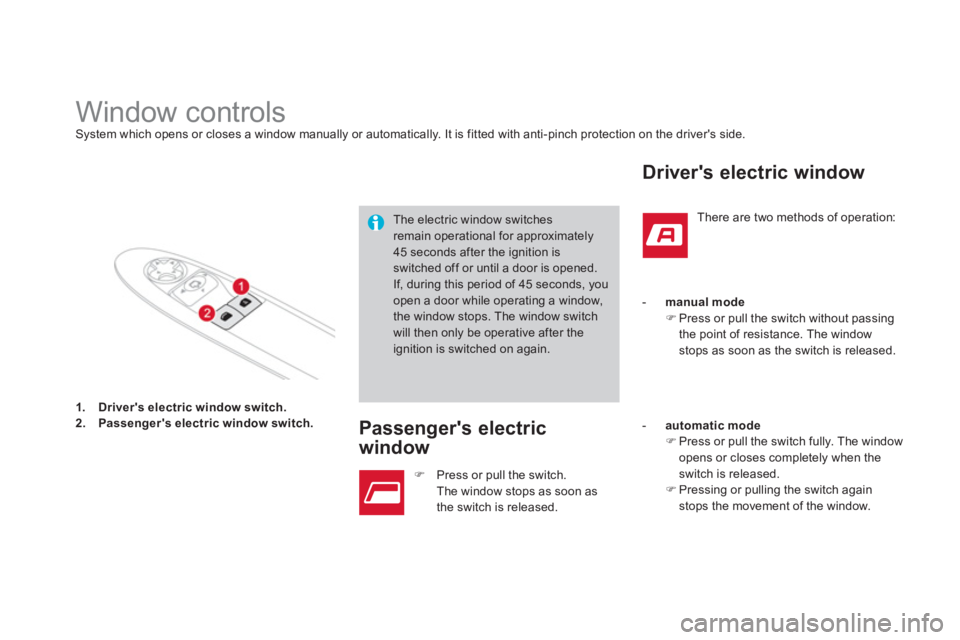

1.Driver's electric window switch.2.Passenger's electric window switch.














Window controls System which opens or closes a window manually or automatically. It is fitted with anti-pinch protection on the driver's side.
The electric window switches remain operational for approximately 45 seconds after the ignition isswitched off or until a door is opened.If, during this period of 45 seconds, youopen a door while operating a window, the window stops. The window switch will then only be operative after the ignition is switched on again.
)Press or pull the switch.
The window stops as soon as
th
e switch is released.



Passenger's electric
window
There are two methods of operation:

Driver's electric window
-manual mode)Press or pull the switch without passing
the point of resistance. The window
stops as soon as the switch is released.

-
automatic mode
)Press or pull the switch fully. The window
opens or closes completely when theswitch is released. )Pressing or pulling the switch again
stops the movement of the window.

Doors
Opening
From out side
)After unlocking the vehicle using theremote control or the key, pull the door handle.



From inside
)
Pull the door lever to open the door; thisunlocks this vehicle completely.




Closing

When a door is not closed correctly:
-when the engine is running,this warning lamp comes on,
accompanied by a message in
the multifunction screen for a
few seconds,
-when the vehicle is moving(speedhigher than 6 mph (10 km/h)), this warning
lamp comes on, accompanied by anaudible signal and a message in the multifunction screen for a few seconds.

Version withdeadlocking

The interior door controls donot operate when the vehicle is deadlocked.

005
Visibility
This section describes all of the lighting and wiper controls, headlamp adjustment, the various interior lamps including the interior mood lighting and in par ticular, the LED lamps, a true signature of your vehicle.

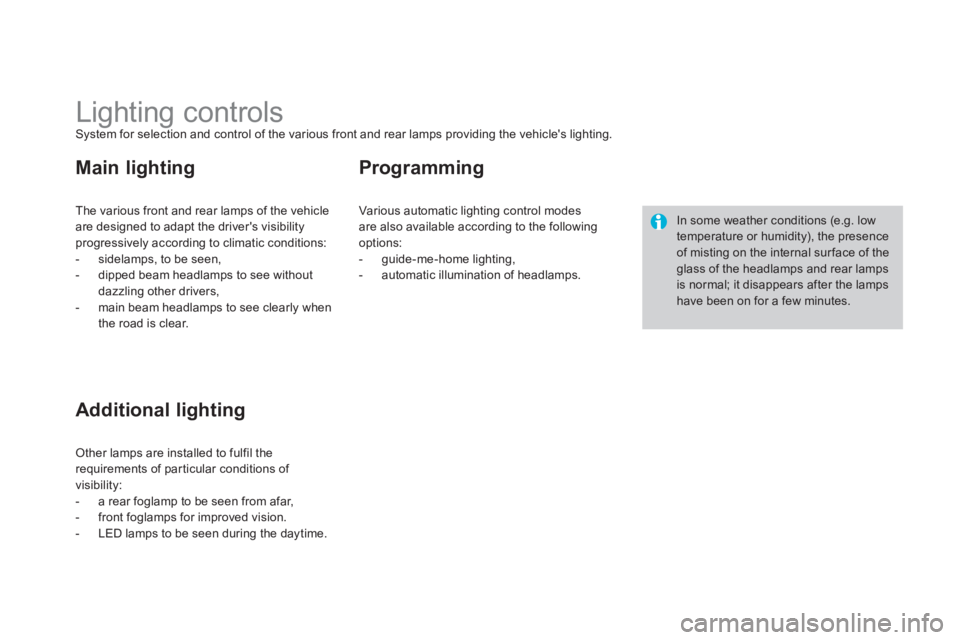

Lighting controls System for selection and control of the various front and rear lamps providing the vehicle's lighting.
The various front and rear lamps of the vehicle
are designed to adapt the driver's visibility progressively according to climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when
th
e road is clear.

Main lighting
Other lamps are installed to fulfil therequirements of particular conditions of
visibility:
- a rear foglamp to be seen from afar,
- front foglamps for improved vision.
- LED lamps to be seen during the daytime.

Additional lighting

Various automatic lighting control modes
are also available accordin
g to the followingoptions:


- guide-me-home lighting,

- automatic illumination of headlamps.

Programming

In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal surface of theglass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.
