59Multifunction screens
"Personalisation-
Confi
guration" menu
Once this menu has been selected, you can gain access to the following functions:


- define the vehicle parameters,

- display configuration,

- choice of language.


Defi ne the vehicle parameters
Once this menu has been selected, you can
activate or deactivate the following equipment:


- wiper linked to reverse gear (refer to the
"Visibility" section),

- guide-me-home lighting and duration(see "Visibility" section),

- parking sensors (refer to the "Driving" section). Example: settin
g of the duration of the guide-
me-home lighting) Press the " " or "" buttons, then the"OK"
button to select the menu required.
)
Press the "
" or "" buttons, then the"OK"
button to select the "Guide-me-home
headlamps" line.
) Press the " " or " " buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK"button to confirm.
) Press the "
" or "
" buttons, then the "OK"button to select the "OK"
box
and confirm or press the "ESC"button
to cancel.

Display confi guration
Once this menu has been selected, you can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units havebeen changed to mpg, the information in the screen relating to speed and distance also changes to mph andmiles respectively.
For safety reasons, configuration by thedriver of the multifunction screen must only be done when stationary.



Choice of language
Once this menu has been selected, you canchange the language used by the display(Deutsch, English, Espanol, Français, Italiano,Nederlands, Portugues, Portugues-Brasil,Türkçe * ).

*
Accordin
g to country of destination. With Audio s
ystem on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the Audio s
ystem par t of the
"Audio and telematics" section.

"Telephone" Menu

61Multifunction screens













16/9 colour screen (MyWay)

It displays the following information
automatically and directly:


- time,

- date,

- altitude,

- ambient temperature
(the value displayedflashes if there is a risk of ice),

- check of the doors,

- warning and vehicle function status messages, displayed temporarily,

- audio functions,

- trip computer information (see the
"Monitoring" section),

- satellite navigation system information.



Displays on the screen
MyWay To select one of the applications,at the control panel:)
press the dedicated "RADIO"
, "MUSIC","NAV"
, "TRAFFIC", "SETUP"or "PHONE"
button for access to thecorresponding menu,)
turn the dial to change the selection, )
press the dial to confirm the selection, or )
press the "ESC"button to abandon the
current operation and return to the previous
display.
Controls

For more information on these applications,
refer to the "Audio and Telematics" section or
to the specific user guide given to you with the other owner's documents.

"SETUP" menu
)Press the "SETUP"button to gain access
to the "SETUP"
menu. This allows you to
select from the following functions:
- "System language",
- "Date and time",
- "Displa
y",
- "Vehicle",- "Units",
- "System".




System language

This menu allows you to select the language used by the display: Deutsch, English,
Espanol, Français, Italiano, Nederlands, Polski,
Por tugues, Türkçe * .

Date and time
This menu allows you to set the date and time,
the format of the date and the format of the time (refer to the "Audio and Telematics" section or
to the specific user guide given to you with the
other owner's documents).

Display

This menu allows you to set the brightness of
the screen, the screen colour scheme and the
colour of the map (day/night or auto mode).

*
Accordin
g to country.

Vehicle

This menu allows you to activate or deactivatecertain driving and comfor t equipment:


- wiper linked with reverse gear(refer to the "Visibility" section),

- guide-me-home lighting and duration(refer to the "Visibility" section),

- parking sensors (refer to the "Driving" section).


Units
This menu allows you to select the units:
temperature (°C or °F) and fuel consumption(km/l, l/100 or mpg).

System

This menu allows you to restore the factory configuration, display the software version and
activate scrolling text.

For safety reasons, configuration of the multifunction screen by the driver mustonly be done when stationary.

73Comfort

















Digital air conditioning
The air conditioning operates when the engine is running, as well as in STOP mode with Stop & Start.


Automatic operation


1. Automatic "comfort" programme
Press the "AUTO"button. The "AUTO"symbol is displayed.We recommend that you use
this mode. It provides optimisedautomatic control of all of the following functions: passenger compar tment
temperature, air flow, air distribution and air
intake, in accordance with the comfort value
that
you have chosen.
This system is designed to operate effectivelyin all seasons, with the windows closed.
For your comfor t, when the engine isswitched off, the settings are retained until the engine is switched on again. To prevent too great a distribution of cold air when the engine is cold, the air flow will only reach its optimum level gradually.
2. Temperature adjustment
The value indicated on the display corresponds
to a level of comfor t and not to a temperature in
de
grees Celsius or Fahrenheit.
On entering the vehicle, if the interior is very cold or hot, there is no need tochange the value displayed in order to reach the required level of comfort. The system corrects the temperature difference automatically and as quickly as possible.
Pr
ess the ""
and ""
buttons tochange this value. A setting around
the value 21 enables optimum comfor t to be obtained. However,
depending on your requirements, asetting between 18 and 24 is usual.

3. Automatic "visibility" programme
The automatic comfor t programmemay not be sufficient for rapid
demisting or defrosting of the
windscreen and side windows(humidity, several passengers, ice, etc.).
In this case, select the automatic visibility
programme. The button 3 indicator lamp comes on.
The system automatically controls the air conditioning and the flow of air and provides optimum air distribution to the windscreen andside windows. It deactivates air recirculation 5.
To exit this programme, press button 3
again or "AUTO"
, the indicator lamp on the button goes off and "AUTO"
is displayed.
With Stop & Start, when demisting has been activated, the STOP mode is notavailable.

It is possible to adjust one or more functionsmanually while leaving the other functions in automatic mode.
The "AUTO"
symbol switches off.
To return to automatic mode, press the "AUTO"button.

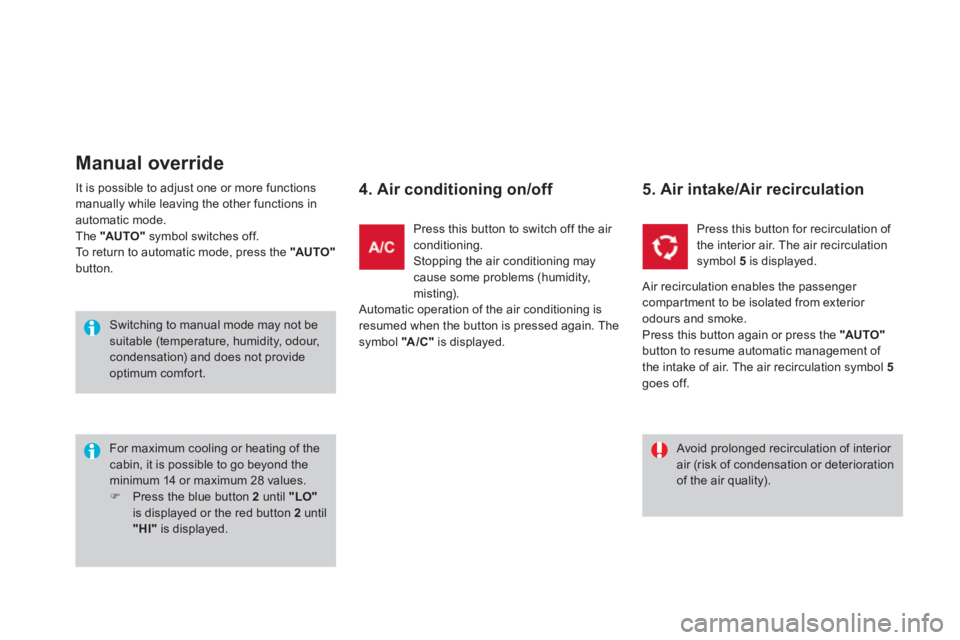

Manual override

4. Air conditioning on/off

For maximum cooling or heating of the cabin, it is possible to go beyond the minimum 14 or maximum 28 values.)Press the blue button 2
until "LO"is displayed or the red button 2
until"HI"
is displayed. Pr
ess this button to switch off the air conditioning.

Stopping the air conditioning maycause some problems (humidity,
misting).
Automatic operation of the air conditioning isresumed when the button is pressed again. The
symbol "A/C"is displayed.


5. Air intake/Air recirculation
Press this button for recirculation of
the interior air. The air recirculation symbol 5is displayed.

Air recirculation enables the passenger compartment to be isolated from exterior odours and smoke.
Press this button again or press the "AU TO "
button to resume automatic management of
the intake of air. The air recirculation symbol 5goes off.
Avoid prolonged recirculation of interior air (risk of condensation or deterioration of the air quality).

Switching to manual mode may not besuitable (temperature, humidity, odour,condensation) and does not provide optimum comfort.

113Visibility


Model without AUTO lighting



Model with AUTO lighting
Manual controls
The lighting is controlled directly by the driver
by means of the ring Aand the stalk B.
Automatic illumination of headlamps.
B
. Stalk for switching the headlamp beam:
pull the stalk to switch between dipped and
main beam headlamps.
In the lamps off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a pull on the stalk.
A. Main lighting mode selection ring: turn it
to position the symbol required facing the
mark.
Lam
ps off.

Sidelamps only.
Dipped headlamps or main beam headlamps.

Displays

Lighting of the corresponding indicator lamp on
the instrument panel confirms the switching onof the lighting selected.
The instrument panel has permanent back-
lighting. Illumination of the instrument panel is
therefore not linked to the exterior lighting.

switched on automatically, without any action on
the part of the driver, when a low level of external
light is detected or in certain cases of activation of
the windscreen wipers.

As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automaticall
y.
Automatic illumination of headlamps
Activation
)
Turn ring to the "AU TO "position. The
automatic illumination of headlamps is
accompanied by a message in the screen.

Deactivation
)
Turn ring to a position other than "AU TO ".
Deactivation is accompanied by a message
in the screen.

Association with the automatic "Guide-me-home" lighting

Association with the automatic illumination of
headlamps provides "guide-me-home" lighting
with the following additional options:


- selection of the lighting duration to 15,30 or 60 seconds in the functions that can
be set in the vehicle configuration menu(except in the case of the monochrome screen A, for which the duration is set:
60 seconds),

- automatic activation of "guide-me-home"lighting when automatic illumination of
headlamps is in operation.



Operating fault

In the event of a fault with thesunshine sensor, the lightingcome on, this warning lamp is displayed in
the instrument panel and/or a message appears
in the screen, accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
workshop.
In fog or snow, the sunshine sensor may detect sufficient light. Therefore, the lighting will not come onautomatically.
Do not cover the sunshine sensor,coupled with the rain sensor and located in the centre of the windscreenbehind the rear view mirror; theassociated functions would no longer be controlled.

Auxiliary socket
The auxiliary socket is located in the " AUX "box on the centre console.
It permits the connection of a por table device,such as a digital audio player of the iPod ®type,
to listen to your music files using the vehicle'sspeakers.














USB Player
For more information on the use of this equipment, refer to the MyWay or Audio systempar t of the "Audio and Telematics" section.
When it is in use, the por table devicecharges automatically.
The U
SB por t is located in the "AU X "box on
the centre console.
It permits the connection of a por table device,
such as a digital audio player of the iPod®
generation 5 and later type or USB memory
stick type.
It reads the audio file formats (mp3, ogg,
wma, wav...) which are transmitted to your
audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio equipmentcontrol panel and display them on the
multifunction screen.

F
or more information on the use of thisequipment, refer to the Audio system par t of the
"Audio and Telematics" section.






12 V accessory
socket
)To connect a 12 V accessory(max power: 120 W), lift the cover and connect a suitable adaptor.

The management of the files is doneusing your por table device.

Display in the instrument panel
Gear lever positions
N. Neutral R.Reverse1 2 3 4 5/6. Gears in manual mode.AUTO.
This comes on when automated modeis selected. It goes off when changing to manual mode.
)Place your foot on the brakewhen this warning lamp flashes (e.g.: star ting the engine).


You must keep your foot on the brake pedal while star ting the engine.


Moving off
)
Select position N
. )
Press the brake pedal fully. )
Star t the engine.
N
appears in the instrument panel.
N
flashes in the instrument panel screen if the gear lever is not in position Nwhen starting.
)
Select automated mode (position A
), Amanual mode (position M ) or reverse(position R
) R
AUTOand 1
, 1or R
appear in the
instrument panel.
) Release the parking brake.)
Progressively take your foot off the brakepedal.

Vehic les fitted with the 6 -speedelectronic gearbox system then moveoff on their own (refer to the paragraph "Creep function").

Do not press the brake and clutchpedals simultaneously. This can causerapid clutch wear.
)Accelerate away.
