49Monitoring





Monochrome screen C


Information displays
)Press the button, located at the end of
the wiper stalk
, to display the various tripcomputer tabs in succession.- th
e current information tabwith:
●
the range,
●
th
e current fuel consumption,
●
the distance remaining
to be travelled or the Stop & Star t time counter.
- the trip "1"
t
ab with:
●
the distance travelled,
●
the average fuelconsumption,
●
the average speed,for the first trip.
- t
he trip "2"tab with:
●
the distance travelled,
●
the average fuelconsumption,
●
the average speed,
for the second trip.

)
Pressing the button again returns you to
the normal display.
16/9 colour screen (MyWay)


Trip zero reset
)
When the trip required is displayed, press
the button on the end of the wiper stalk for more than two seconds.
Trips "1"
and "2"are independent but their useis identical.
For example, trip "1"can be used for daily figures, and trip "2"for monthly figures.

A few definitions…

Range
(miles or km)
This indicates the distance
which can still be travelled with the fuelremaining in the tank in relation to the average
fuel consumption over the last few miles
(kilometres) travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuelconsumption
(mpg or l/100 km or km/l) This is the average fuel consumption since the last trip computer zero reset.
Average speed
(mph or km/h)This is the average speed calculatedsince the last trip computer zero reset(ignition on).


Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip computer zero reset.
Stop & Start timecounter
(minutes/seconds or hours/minutes)
If your vehicle is fitted with Stop &Star t, a time counter calculates the time spent
in STOP mode during a journey. It resets to zero every time the ignition isswitched on with the key.


This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.

If dashes are displayed continuously while driving in place of the digits, contact a CITROËN dealer or a qualified workshop.
This function is only displayed from 20 mph (30 km/h).
When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).
Distance remaining to
destination
(miles or km)
This is the distance remaining to be travelled
to the final destination. It can be entered bythe user.
If the distance is not entered, dashes are
displayed in place of the digits.

51Monitoring

002

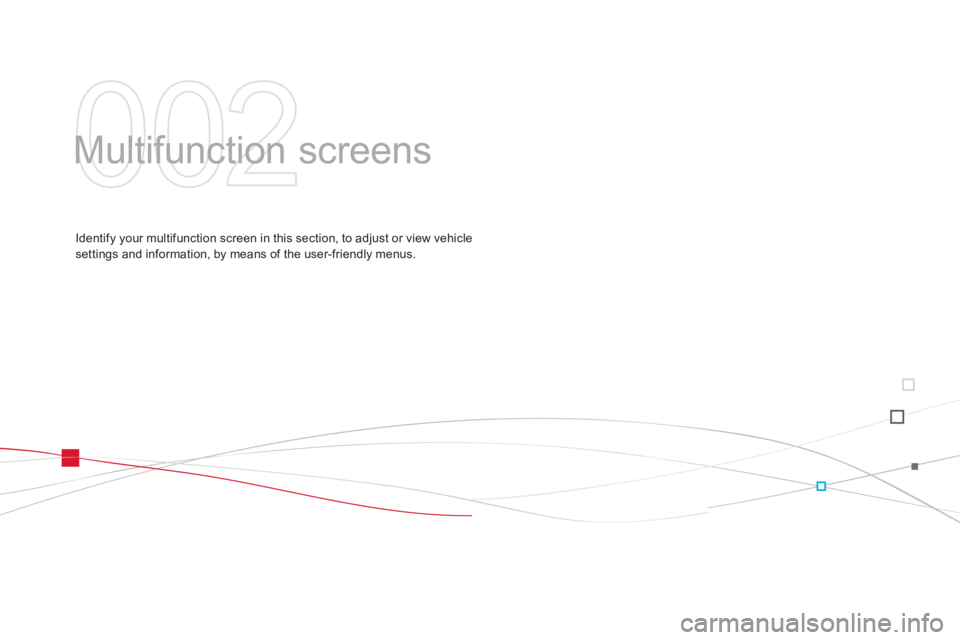

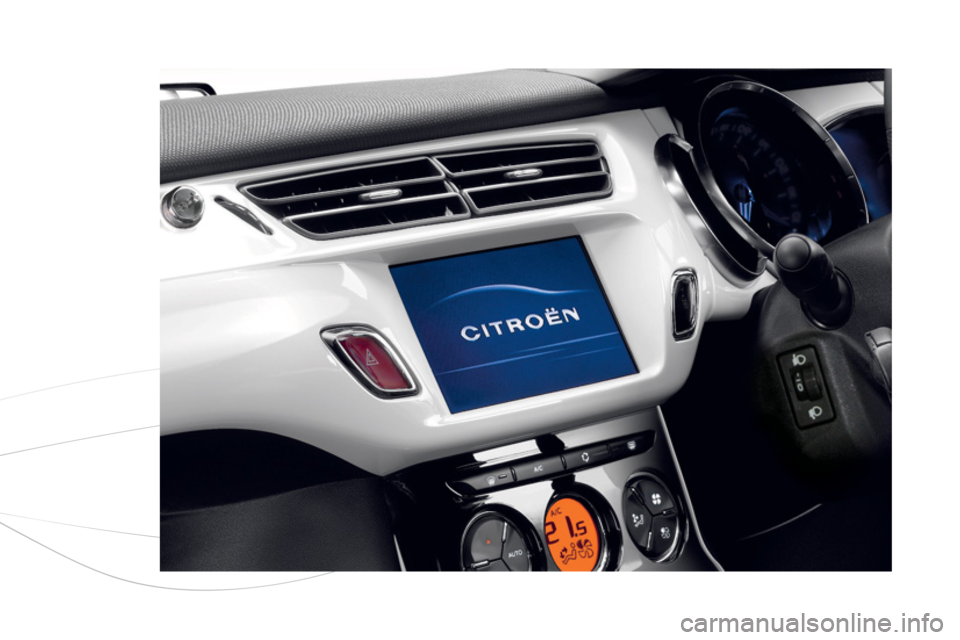

Multifunction screens
Identify your multifunction screen in this section, to adjust or view vehiclesettings and information, by means of the user-friendly menus.

Monochrome screen A
This displays the following information:
- time,
- date,
- ambient temperature
(this flashes if there isa risk of ice),
- status of the doors and boot,
- audio sources (radio, CD...),
- trip computer (refer to the "Instruments andControls" section).
Warning messages (e.g.: "Emission control
system faulty") or information messages(e.g.: "Boot open") may appear temporarily.
These can be cleared by pressing
the "ESC"button.
Displays on the screen

From the control panel of your Audio system, you can:)
press the "MENU"
button to gain access to
the main menu,
)
press the " " or " " buttons to scroll
through the items on the screen,) press the "MODE"button to change
the permanent application (date, audio source...), ) press the "
" or "
" buttons to change
a setting value, ) press the "OK"button to confirm,or )
press the "ESC"button to abandon
the operation in progress.

Controls
)Press the "MENU"
button to gain access
to the main menu
, then press the "  " or " " buttons to scroll through the variousmenus:
- radio-CD,
- vehicle configuration,
- options,
- displa
y settings,
- languages,
-
units. )Press the "OK"button to select the menurequired.

Main menu

55
Multifunction screens

Radio-CD
With the Audio system switched on, once the
"Radio-CD" menu has been selected you canactivate or deactivate the functions linked
with use of the radio (RDS, REG), or the CD(introscan, shuffle, CD repeat).
For more information on the "Radio- CD"
application, refer to the Audio s
ystem part of
the "Audio and Telematics" section.
Vehicle confi guration
Once the "Vehicle Configuration" menu has been selected, you can activate or deactivate
the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- guide-me-home lighting (refer to the"Visibility" section),
- parking sensors (refer to the "Driving"section).


Options
Once the "Options" menu has been selected,you can star t diagnostics of the status of the equipment (active, not active, faulty).

Languages
Once the "Languages" menu has been selected,you can change the language used by the display (Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been selected, you can change the units of the followingparameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or km/l).
Once the fuel consumption units havebeen set to mpg, the information in the instrument panel screen on speed anddistance will also be in mph and miles.
For safety reasons, configuration by the driver of the multifunction screen mustonly be done when stationary.
Display settings
Once the "Display settings" menu has beenselected, you can gain access to the following settings:
- year,
- month,
- day,
- hour,
- minutes,
-
12 or 24 hour mode.
)
Once you have selected a setting, press
the "  " or " " buttons to change its value.
) Press the "
" or "
" buttons to switch
respectively to the previous or next setting.) Press the "OK"
button to save the change
and return to the normal display or press
the "ESC"button to cancel.

57
Multifunction screens










Monochrome screen C

This displays the following information:


- time,

- date,

- ambient temperature
(this flashes if there isa risk of ice),

- status of doors and boot,

- audio sources (radio, CD, USB por t, jacksocket etc.),

- trip computer (refer to the "Instruments andcontrols" section).
Warning messages
(E.g. "Emissions controlsystem faulty") or information messages(E.g.: Automatic headlamps active") may
appear temporarily. These can be cleared by pressing the "ESC"
button.


Displays on the screen
From your Audio system control panel, you can:)
press the "MENU"
button to gain access to
the main menu,)
press the "
" or " " buttons to scroll
through the items on the screen, ) press the "MODE"
button to change the
permanent application (trip computer, audiosource...),) press the "  " or " " buttons to change asetting value,)
press the "OK"button to confirm,or )
press the "ESC"button to abandon theoperation in progress.

Controls
)
Press the "MENU"
button to gain access to
the main menu:- audio functions,
- the trip computer,
- personalisation-configuration,
- telephone (hands-free kit). )
Press the "
" or "
" buttons to select themenu required, then confirm by pressing
the "OK"
button.


Main menu

With the Audio system switched on, once this menu has been selected you can activate
or deactivate the functions linked with use
of the radio (RDS, REG, RadioText), the CD (introscan, shuffle, CD repeat) or the MP3 player (USB por t/jack socket).
For more information on the "Audio functions"application, refer to the Audio system part of
the "Audio and Telematics" section.


"Au d i o f u n c t i o n s"
menu"Tri
p computer" menu
Once this menu has been selected, you canconsult information concerning the status of the
vehicle
(warnings log, status of functions, etc.)

Alert log
This summarises the active warning messages,
displaying them in succession on the
m
ultifunction screen.

Status of functions

This summarises the status (active or inactive)of the vehicle's functions.


Enter distance to destination

This allows you to enter an approximate
distance until your final destination.
)Press the "MENU"
button to gain access to
the general menu.
)Press the arrows, then the "OK"
button to select the "Trip computer"
menu.
)In the "Trip computer"
menu, select one
of the following applications:
