MULTIFUNCTION
SCREENSCOMFORT ACCESS VISIBILITY
54 Monochrome screenA
57 Monochrome screenC
6116/9 colour screen (MyWay)
66 Ventilation
68Heating
69 Manual air conditioning
73Digital air conditioning
76Rear screen demist - defrost
77Scented air freshener
79 Front seats
84Rear seats
85Steering wheel adjustment
86Mirrors
90 Remote control key
96 Alarm
100 Window controls
102Doors
105Boot
106 Fuel tank
108 Misfuel prevention (Diesel)
112 Lighting controls
117LED lamps
117Headlamp adjustment
118Wiper controls
122Courtesy lamp
123 Interior mood lighting
123 Boot lamp
004004005005002002003003

Exterior
Customising kits
These expressive stickers form par t of a range
of kits, very different one from another, whichallow you to create a unique and attractive exterior for your vehicle
Guide-me-home lighting
After switching off the ignition, under lowlighting conditions the headlamps remain on for a few seconds to help you leave the vehicle.

Rear parking sensors

This system provides a warning when reversingby detecting obstacles located behind
the vehicle.

115
puncture repair kit
plete system consisting of a compressor and sealant car tridge, for the
temporary repair of a tyre.

1
98
Stop & Start
This system puts the engine
temporarily on standby during
stops in the traffic (red lights, trafficjams, etc...). The engine restartsautomatically as soon as you want tomove off. Stop & Star t reduces fuel consumption, exhaust emissions andnoise levels when stationary.
174

Interior
Interior mood lighting
This subdued passenger compartment lightingimproves visibility inside the vehicle in low lighting conditions. It comprises several
lamps, located in the footwells and in the lower
dashboard storage compar tment.
Digital air conditioning
After setting the desired level of comfort, the system then automatically controls this levelaccording to the ambient conditions.
Scented air freshener

The scented air freshener diffuses theselected fragrance throughout the passenger compartment from its location in the ventilation
system.

Gear effi ciency indicator
Associated with the manual gearbox, this system suggests when to change up to obtain
optimum fuel consumption.

12
3


73
77


164


287


Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible Audio system,
Bluetooth system and USB Box, MyWay with
16/9 colour screen, auxiliary inputs, Hi-Fi audio system.MyWay

255
Audio system

Instruments and controls
1. Steering wheel adjustment. 2.
Headlamp height adjustment. 3.
Cruise control/speed limiter controls. 4.
Lighting and direction indicator stalk5.
Central locking button.
6.Multifunction screen.
7. Hazard warning lamp switch.8.Central adjustable air vents.9.
Sunshine sensor
Hi-Fi audio system central speaker. 10.Passenger’s airbag. 11.
Glove box/Passenger’s airbag
deactivation/Fusebox. 12.Bonnet release lever.13.12 V accessory socket
USB por t /auxiliary socket.14 .Upper and lower storage.15. MyWay or Audio system. 16.
Heating/air conditioning controls.

Familiarisation
Vent ilat ion


Advice on interior settings
Digital air conditioning:use of the fully automatic mode by pressing the "AUTO"
button is recommended.
I require...
Heating or Manual air conditioning
Air distributionAir flowAir recirculation/
Exterior air intakeTemperatureManual A/C
HEAT
COOL
DEMISTINGDEFROSTING

Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently,change up without waiting and drive by changing up quite soon. If your vehicle has the system, the gear efficiency indicator invites you to change up; it is displayed in the instrument panel, follow its instructions.
With an automatic or electronic gearbox, stay in Drive "D"or Auto "A"
, according to the type of gearbox, without pressing theaccelerator pedal heavily or suddenly.


Drive smoothly


Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These practices contribute towards a reduction in fuel consumption and CO2emissions and also helpsreduce the background traffic noise.


If your vehicle has cruise control, make use of the system at speeds above 25 mph (40 km/h) when the traffic is flowing well.



Control the use of your
electrical equipment


Before moving off, if the passenger compartment is too warm, ventilate it by opening the windows and air vents before using the air conditioning. Above 30 mph (50 km/h), close the windowsand leave the air vents open.
Remember to make use of equipment that can help keep the temperature in thepassenger compar tment down (sunroof and window blinds...). Switch off the air conditioning, unless it hasautomatic digital regulation, as soon as the
desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic. Switch off the heated seat as soon as possible.

003
Comfort
This section describes the operation of the heating, ventilation and air conditioning system, the scented air freshener and all of the adjustments
for the seats, steering wheel and mirrors, for your comfor t and an optimum driving position.

Vent ilat ion
Air intake
The air circulating in the passenger compar tment
is filtered and originates either from the outside
via the grille located at the base of the windscreen or from the inside in air recirculation mode.
Air treatment
The incoming air follows various routesdepending on the controls selected by
the driver:
- direct arrival in the passenger compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).The temperature control enables you to obtain
the level of comfor t required by mixing the air of
the various circuits.
The air distribution control enables you to
di
ffuse the air in the passenger compar tment combining several air vents.
The air flow control enables you to increase or reduce the speed of the ventilation blower.


Control panel

The controls of this system are grouped
together on control panel Aon the centre console. Depending on the model, the functionsoffered are:


- the level of comfort required,

- air flow,

- air distribution,

- demistin
g-defrosting,

- manual or digital air conditioning controls.



Air distribution
1.
Windscreen demisting-defrosting vents. 2.Front side window demisting-defrostingvents.3.Side adjustable air vents. 4.
Central adjustable air vents.
5. Air outlets to the front footwells.
6.Air outlets to the rear footwells.

67
Comfort











Recommendations for ventilation and air conditioning


If after an extended stop in sunshine, the interior temperature is veryhigh, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.
The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.

In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. )
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in perfect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compar tment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly as recommended in the ser vicing booklet. )
If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off theair conditioning increases the available engine power and so improves the towing ability.

The condensation created by the air conditioning results in a dischargeof water under the vehicle which is perfectly normal.

69Comfort

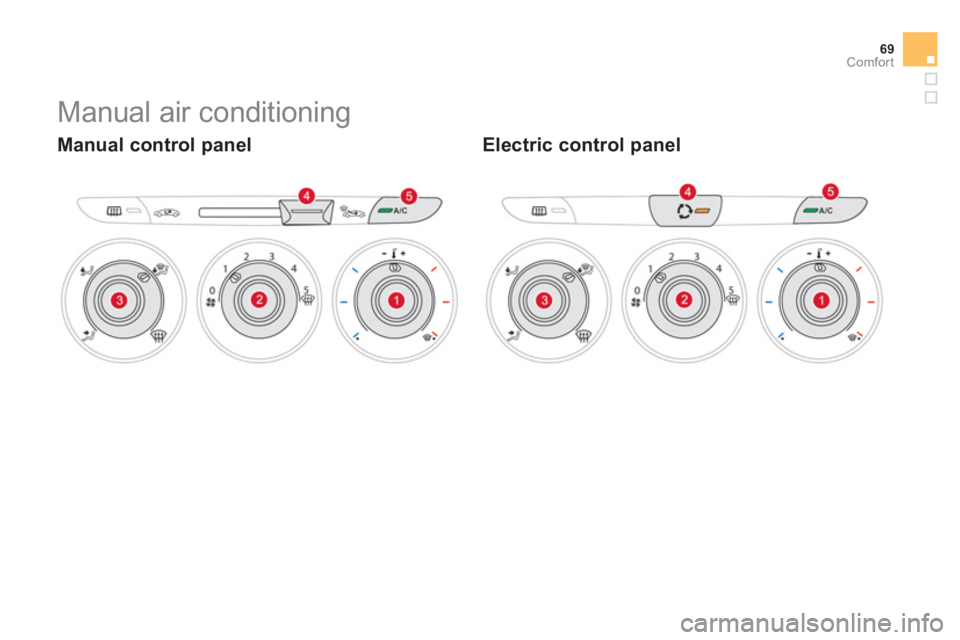

Manual air conditioning


Manual control panel Electric control panel
