Driving safely
Stop & Start
Going into engine STOP mode
174

The "ECO"
warning lamp comes on
in the instrument panel and the enginegoes into standby automatically:
- with a manual
gearbox
: at speeds below
12 mph (20 km/h), when you put the gear lever in neutral and you release the clutch pedal,

Going into engine START mode

Deactivation
/Reactivation

You can deactivate the system at any time bypressing the "ECO OFF"
button; the button’s
warning lamp comes on.
17
5

175

The system is automatically reactivated every time the engine is star ted withthe key.

Before refuelling or doing anything under the bonnet, you must switch off the ignition with the key. Th
e "ECO"
warning lamp goes off
and the engine restarts automatically:


-
with a manual gearbox:when you fullydepress the clutch pedal.
-
with a 5 or 6 speed electronic gearbox:at speeds below 5 mph (8 km/h), when you press the brake pedal or when you put thegear lever in position N .

-
with a 5 or 6 speed electronic gearbox
:


●
gear lever in position A
or M, when you
release the brake pedal,

●
or gear lever in position N
and brakepedal released, when you put the gear
lever into position A
or M
,

●
or when you engage reverse.

In certain circumstances, the ST
OP modemay not be available; the "ECO"
warning lamp
flashes for a few seconds, then goes off. In certain circumstances, STA R T m o d e m ay be
invoked automatically; the "ECO"warning lamp
flashes for a few seconds, then goes off.

35
Monitoring



Foot on thebrake pedal

fixed. The brake pedal must be pressed. With an electronic gearbox, press the brake pedal
to star t the engine (lever in position N). With an automatic gearbox, with the engine running,press the brake pedal before releasing the parking
brake, to unlock the lever and come out of position P.PIf you wish to release the parking brake without pressing the brake pedal, this warning lamp will
remain on.

flashing. With an electronic gearbox, if you hold the vehicle on an incline using
the accelerator for too long, the clutchoverheats. Use the brake pedal and
/or the parking brake.
Automatic wipingfixed. The wiper control is pushed downwards. Automatic front wiping is activated.




Passenger'sairbag systemfixed. The control switch, located in theglove box, is in the "ON" position. The passenger's front airbag is activated.
In this case, do not install a rear-
facin
g child seat.T
urn the control switch to the " OFF
" position
to deactivate the front passenger's airbag.
In this case you can install a rear-facing child seat.
Warning lampis onCauseAction/Observations

163Driving








6-speed manual gearbox
)Move the lever fully to the right to engage5th or 6th gear.


Engaging 5th or 6th gear

As a safety precaution and to facilitate starting of the engine:


- always select neutral,

- press the clutch pedal.

Only engage reverse gear when thevehicle is stationary with the engine at idle.
Engaging reverse gear
)
Raise the ring under the knob and move
the gear lever to the left then forwards.

Display in the instrument panel
Gear lever positions
N. Neutral R.Reverse1 2 3 4 5/6. Gears in manual mode.AUTO.
This comes on when automated modeis selected. It goes off when changing to manual mode.
)Place your foot on the brakewhen this warning lamp flashes (e.g.: star ting the engine).


You must keep your foot on the brake pedal while star ting the engine.


Moving off
)
Select position N
. )
Press the brake pedal fully. )
Star t the engine.
N
appears in the instrument panel.
N
flashes in the instrument panel screen if the gear lever is not in position Nwhen starting.
)
Select automated mode (position A
), Amanual mode (position M ) or reverse(position R
) R
AUTOand 1
, 1or R
appear in the
instrument panel.
) Release the parking brake.)
Progressively take your foot off the brakepedal.

Vehic les fitted with the 6 -speedelectronic gearbox system then moveoff on their own (refer to the paragraph "Creep function").

Do not press the brake and clutchpedals simultaneously. This can causerapid clutch wear.
)Accelerate away.

167
Driving

Creep function
(6-speed electronic gearbox
system)
This function allows the vehicle to be manoeuvred more easily at low speeds (whenparking, in traffic jams...).
With the gear lever in position A
, Mor R, the vehicle moves as soon as you take your foot off the brake pedal
, at low speed and
with the engine at idle.
Automated mode
AUTOand the gear engaged appear
in the instrument panel.
The gearbox then operates in auto-adaptive
mode, without an
y action on the par t of the
driver. It continuously selects the most suitablegear taking account of:
- optimisation of fuel consumption,
- drivin
g style,
- road conditions,
- vehicle load. For optimum acceleration, when overtaking another vehicle for example, press theaccelerator pedal fully down, beyond the pointof resistance.
You can change mode at any time bymoving the gear lever from Ato M
or the other way round.

The creep function may be temporarilyunavailable if the clutch temperature istoo high or the slope too steep.

Do not leave children unsuper visedinside the vehicle when the engine is running.
)
Select position A.
Never select neutral (position N) whenmoving.


Te m p o r a ry control of gear
changing

You can temporarily take over control of gear changes using the steering mounted "+"and "-"
control paddles: if the engine speed
allows, the gear change is carried out.
This function allows you to anticipate certainsituations such as over taking another vehicleor approaching a bend.
After a few moments without any action on the
paddles, the gearbox resumes control of gear changing automatically.

Stop & Start The Stop & Start system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...).
The engine restar ts automatically - START mode - as soon as you want to move off. The restar t takes place instantly, quickly and silently.
Per
fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Operation
Going into engine STOP mode
For your comfor t, during parkingmanoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...
Never refuel with the engine in STOPmode; you must switch off the ignition with the key. Th
e "ECO"warning lamp comes
on in the instrument panel and the engine goes into standby:
- with a manual gearbox
, at speeds below
12 mph (20 km/h), when you put the gear lever into neutral, and you release theclutch pedal. -with a 5 or 6-speed electronic gearbox ,
at speeds below 5 mph (8 km/h), when you press the brake pedal or put the gear lever in position N.
A time counter calculates the sum
of the periods in STOP mode
during a journey. It rests itself
to zero every time the ignition is switched on with the key.
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph(10 km/h) since the last engine star t using
the key,

- the engine is needed to maintain acomfortable temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge, engine temperature, braking assistance,ambient temperature...) where the engine isneeded to assure control of a system.


Special cases: STOP mode not available

The "ECO"warning lamp flashes for
a few seconds then goes off.
This operation is per fectly normal.

175
Driving

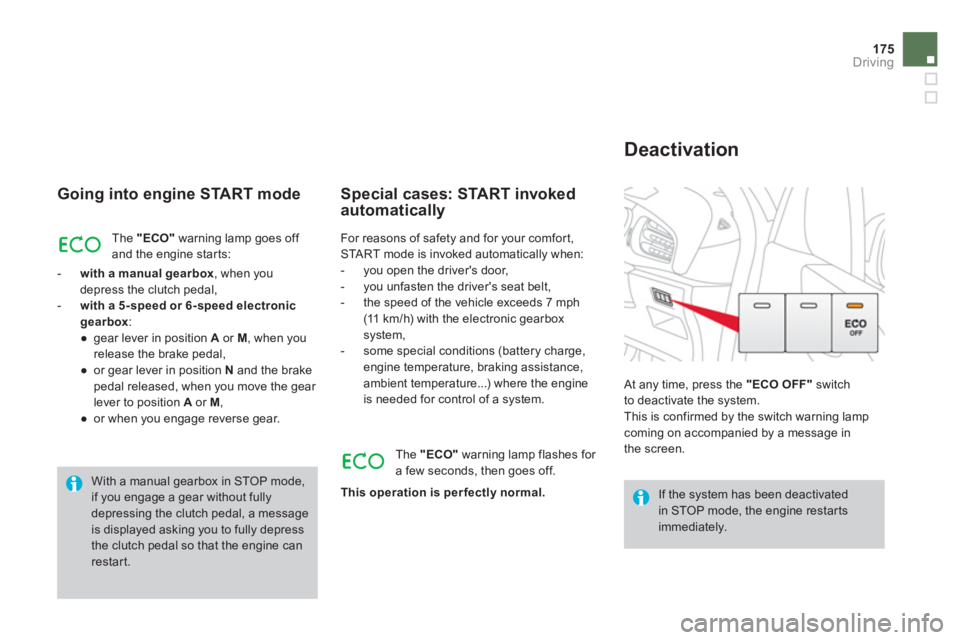

Going into engine START mode
The "ECO"warning lamp goes off and the engine star ts:


-
with a manual gearbox
, when you
depress the clutch pedal,

- with a 5-s
peed or 6-speed electronic gearbox:
●
gear lever in position Aor M
, when yourelease the brake pedal,
●
or gear lever in position Nand the brake pedal released, when you move the gear lever to position A
or M,
●
or when you engage reverse gear.


Special cases: START invoked automatically


If the system has been deactivatedin STOP mode, the engine restar ts immediately.

At any time, press the "ECO OFF"
switchto deactivate the system.
This is confirmed by the switch warning lamp coming on accompanied by a message in
the screen.

Deactivation
For reasons of safety and for your comfort,START mode is invoked automatically when:
- you open the driver's door,
- you unfasten the driver's seat belt,
- the speed of the vehicle exceeds 7 mph
(11 k m/h) with the electronic gearbox system,
- some special conditions (battery charge,engine temperature, braking assistance,
ambient temperature...) where the engine
is needed for control of a system.
Th
e "ECO"
warning lamp flashes for
a few seconds, then goes off.
This operation is per fectly normal.
With a manual gearbox in STOP mode,if you engage a gear without fully depressing the clutch pedal, a message is displayed asking you to fully depressthe clutch pedal so that the engine can restart.

Cruise control
System which automatically maintains the
speed of the vehicle at the value programmed
by the driver, without any action on the accelerator pedal.
The cruise control is switched on
manually:
it requires a minimum vehicle speed of 25 mph
(40 km/h), as well as the engagement of:
- fourth gear on a manual gearbox,
- second gear on a or automatic or electronic
gearbox, in sequential mode,
-
position A
on an electronic gearbox or position D
on an automatic gearbox.
The cruise control is switched offmanuallyfor by pressing the brake or clutch pedal or
on triggering of the ESP system for safety reasons. It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any programmed speed value. The controls o
f this system are grouped
together on stalk A
.
1.Cruise control mode selection thumb wheel.
2. Value decrease button. 3.
Value increase button. 4.Cruise control off/resume button.



Steering mounted controls
The cruise control cannot, in anycircumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibilityon the part of the driver. The programmed in
formation is grouped
together in the instrument panel screen.
5. Cruise control off/resume indication.
6. Cruise control mode selection indication.
7. Programmed speed value.


Displays in the instrument panel

219Practical information

Dashboard fusebox

The fusebox is loacted inside the glove box.


Access to the fuses
)Refer to the paragraph "Access to the tools".
Fuse tables
Fuse N°RatingFunctions
FH365 ATr a i l e r r e l ay unit.
FH37
-Not used.
FH3
820 AHi-Fi amplifier.
FH3
9-Not used.
FH40
40 ATr a i l e r r e l ay unit.
Fuse N°RatingFunctions
F115 ARear wiper.
F2-Not used.
F
35 A Airbags and pretensioners control unit.
F410 A Air conditioning, clutch switch, electrochromatic mirror,particle filter pump (Diesel), diagnostic socket, air flowsensor (Diesel).
F5
30 AElectric windows panel, passenger’s electric window control,front electric window motor.
F
630 ADriver’s electric window motor.
F7 5
ACourtesy lamp.
