fuel cap CITROEN DS3 CABRIO 2013 Handbook (in English)

Familiarisation

90

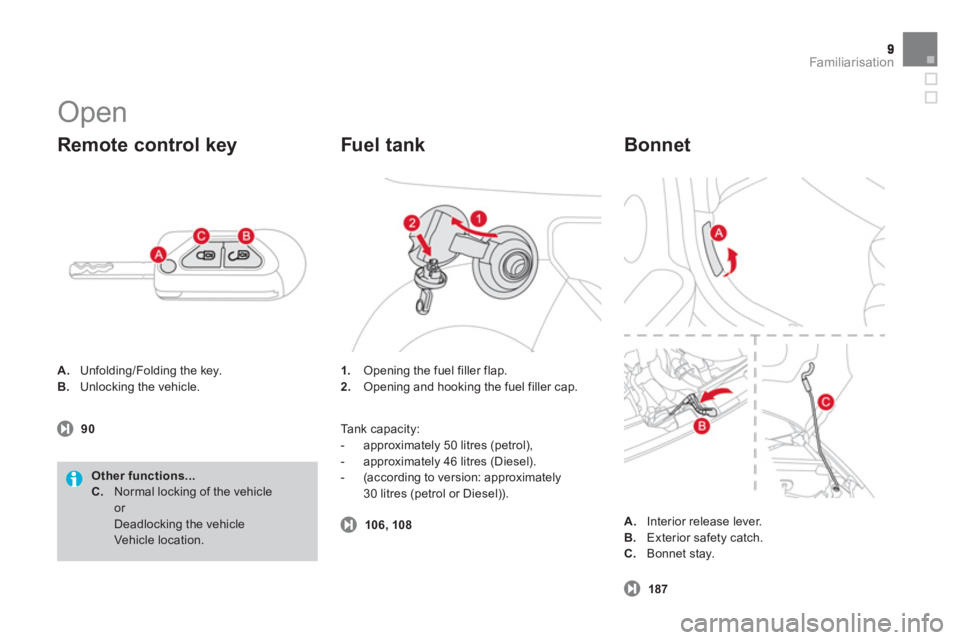

Open
A.Unfolding/Folding the key.
B. Unlocking the vehicle.


Remote control key
Other functions...C.
Normal locking of the vehicle or
Deadlocking the vehicle
Vehicle location.1
.Opening the fuel filler flap.
2. Opening and hooking the fuel filler cap.
Fuel t ank
106, 108


187 Ta n k c a p a c i t
y:
- approximately 50 litres (petrol),
- approximately 46 litres (Diesel).
- (according to version: approximately30 litres (petrol or Diesel)).
A.Interior release lever.B.
Exterior safety catch. C.
Bonnet stay.


Bonnet

39Monitoring
Warning lampis onCauseAction/Observations
Engineautodiagnosis system
flashing. The engine management system has a fault.Risk of destruction of the catalytic conver ter.
Have it checked by a CITROËN dealer or a qualified workshop.
fixed. The emission control system has a fault.The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or qualified workshop without delay.
Low fuel levelfixed. When it first comes on there remains approximately 5 litres offuelin thetank. You must refuel as soon as possible to avoid runnin
gout of fuel.
This warning lamp will come on every time the ignition is
switched on, until a sufficient addition of fuel is made.
Fuel tank capacity: approximately 50 litres (petrol) or
46 litres (Diesel); depending on version: approximately 30 litres (petrol or Diesel).
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Maximum coolanttemperaturefixed red. The temperature of the cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before toppingup the level, if necessary.
If the problem persists, contact a CITROËN dealer or qualified workshop.

Fuel tank Fuel tank capacity: approximately 50 litres (petrol) or 46 litres (Diesel); (Depending on version: approximately 30 litres (petrol or Diesel)).
Low fuel level
Fillin
g
A label affixed to the inside of the flap remindsyou of the type of fuel to be used depending onyour engine.
Additions of fuel must be of at least 5 litres, in
order to be re
gistered by the fuel gauge.
The key cannot be removed from the lock until the cap is refitted. Opening the filler cap may create a noise caused by an inrush of air. This vacuum is entirely normal, resultingfrom the sealing of the fuel system. To
fill the tank safely: )the engine must be switched off,)
open the fuel filler flap,)
inser t the key in the cap, then turn it to
the left,
)remove the cap and hook it onto the clip
located on the inside of the flap, )fill the tank, but do not continue after the
3rd cut- off of the pump
; this could cause
malfunctions.
When
you have filled the tank:)put the cap back in place,)turn the key to the right, then remove it from the cap,)close the flap. Wh
en the fuel tank minimum level is reached this warning lamp comes on
on the instrument panel. When it
firstcomes on there remains approximately 5 litres
of fuel in the tank.
You must refuel as soon as possible to avoid running out of fuel.
If you run out of fuel (Diesel), refer also to the
"Checks" section.
With Stop & Star t, never refuel with the system in STOP mode; you must switch off the ignition with the key.

*
According to country of sale.

















Misfuel prevention (Diesel) * Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the
wrong fuel.
Located in the
filler neck, the misfuel prevention device appears when the filler cap is removed.
Operation
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The s
ystem remainsclosed and prevents filling.Do not persist but introduce a Diesel type filler nozzle.
It remains possible to use a fuel can to fill the tank. In order to ensure a good flow of fuel,do not place the nozzle of the fuel can in direct contact with the flap of the misfuel prevention device and pour slowly.



Tr a v e l l i ng abroad

As Diesel fuel pump nozzles maybe different in other countries, the presence of the misfuel prevention device may make refuelling impossible.
Before travelling abroad, we recommend that you check withthe CITROËN dealer network, whether your vehicle is suitable for the fuel pumps in the country in which you want to travel.

Diesel engines
1.
Screenwash fluid reservoir.2.
Coolant header tank.3.
Air filter.
4.
Brake fluid reservoir.5.
Battery.
6.Fusebox.
7. Engine oil dipstick. 8.Engine oil filler cap.9.
Priming pump (on fuel filter).

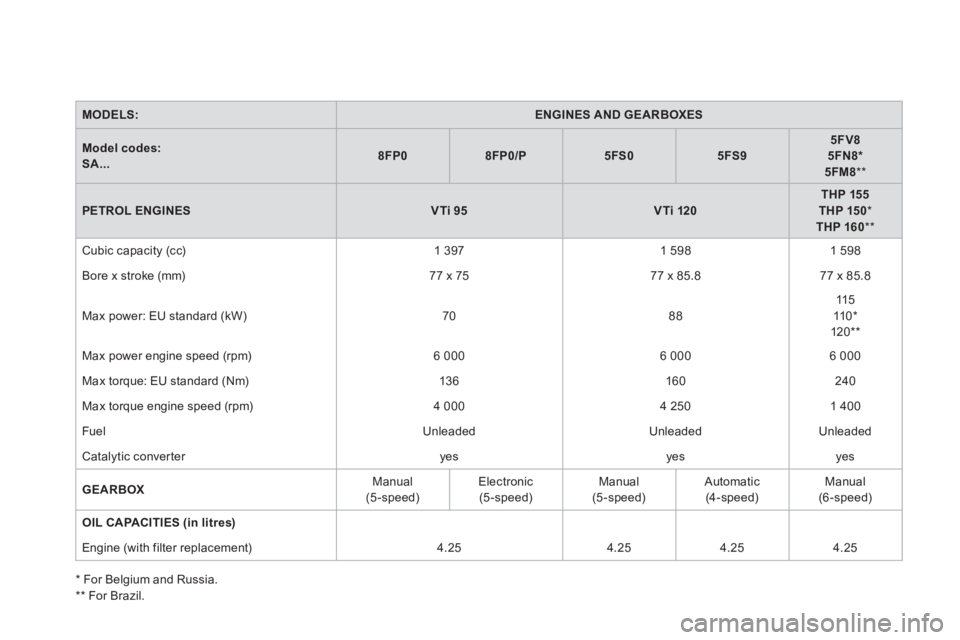

MODELS:ENGINES AND GEARBOXES
Model codes:SA...8FP08FP0/P5FS05FS95FV85FN8 * 5FM8**
PETROL ENGINESVTi 95VTi 120THP 155THP 150
*
THP 160
**
Cubic capacity (cc)
1 397
1 598

1 598

Bore x stroke (mm)
77 x 75
77 x 85.8

77 x 85.8

Max power: EU standard
(kW)
70
88 115
11 0 *

120 **

Max power engine speed
(rpm)
6 000 6 000 6 000
Max torque: EU standard
(Nm) 13 6
160240

Max torque en
gine speed (rpm)
4 000
4 2501 400


Fuel Unleaded
UnleadedUnleaded
Catalytic conver ter yes
yes
yes
GEARBOX

Manual(5-speed)

Electronic
(5-speed)
Manual (5-speed)

Automatic
(4-speed)

Manual(6-speed)
OIL CAPACITIES (in litres)

En
gine (with filter replacement) 4.25
4.25

4.25

4.25
*
For Belgium and Russia.
**
For Brazil.

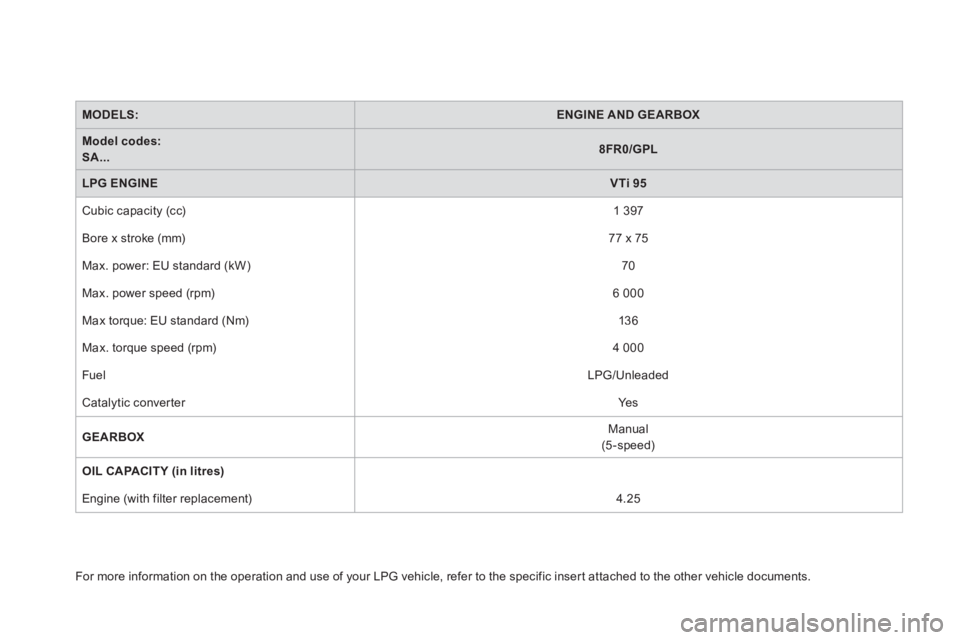

MODELS:ENGINE AND GEARBOX
Model codes:SA...8FR0/GPL
LPG ENGINEVTi 95
Cubic capacity (cc)

1 397
Bore x stroke
(mm)77 x 75

Max. power: EU standard
(kW) 70

Max. power speed
(rpm) 6 000

Max torque: EU standard (Nm)
136
Max. torque speed
(rpm) 4 000

Fuel

LPG/Unleaded
Catal
ytic conver ter

Yes
GEARBOX

Manual(5-speed)

OIL CAPACITY
(in litres)
En
gine (with filter replacement)
4.25
For more information on the operation and use of your LPG vehicle, refer to the specific insert attached to the other vehicle documents.

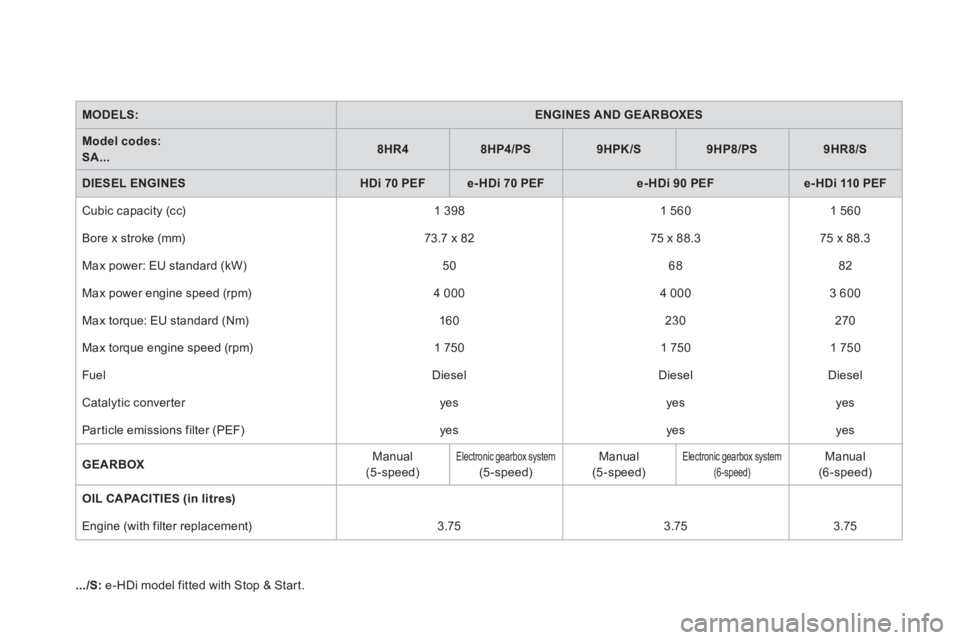

MODELS:ENGINES AND GEARBOXES
Model codes: SA...8HR48HP4/PS9HPK/S9HP8/PS9HR8/S
DIESEL ENGINESHDi 70PEFe-HDi 70PEFe-HDi 90 PEFe-HDi 110 PEF

Cubic capacity (cc) 1 398
1 560 1 560
Bore x stroke
(mm)

73.7 x 8275 x 88.3

75 x 88.3

Max power: EU standard (kW) 50
68
82
Max power en
gine speed (rpm)
4 000
4 0003 600

Max torque: EU standard
(Nm) 160
230
270
Max torque en
gine speed (rpm)
1 750
1 7501 750

Fuel Diesel
Diesel
Diesel
Catal
ytic conver ter yes
yes
yes

Particle emissions filter (PEF) yes
yes
yes
GEARBOX
Manual(5-speed)
Electronic gearbox system(5-speed)
Manual
(5-speed)
Electronic gearbox system (6-speed)
Manual(6-speed)
OIL CAPACITIES (in litres)





En
gine (with filter replacement) 3.75 3.75 3.75
.../S
:e-HDi model fitted with Stop & Start.
