warning lights CITROEN DS3 CABRIO 2013 Handbook (in English)

Exterior
Customising kits
These expressive stickers form par t of a range
of kits, very different one from another, whichallow you to create a unique and attractive exterior for your vehicle
Guide-me-home lighting
After switching off the ignition, under lowlighting conditions the headlamps remain on for a few seconds to help you leave the vehicle.

Rear parking sensors

This system provides a warning when reversingby detecting obstacles located behind
the vehicle.

115
puncture repair kit
plete system consisting of a compressor and sealant car tridge, for the
temporary repair of a tyre.

1
98
Stop & Start
This system puts the engine
temporarily on standby during
stops in the traffic (red lights, trafficjams, etc...). The engine restartsautomatically as soon as you want tomove off. Stop & Star t reduces fuel consumption, exhaust emissions andnoise levels when stationary.
174

Warning lampis onCauseAction/Observations


Diesel enginepre-heating
fixed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp goes off before star ting.
The period of illumination of the warning lamp is
determined by the climatic conditions (up to about
thir ty seconds in extreme climatic conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then star t the engine.
Parking brake
fixed. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning lamp, keeping your foot on the brake pedal.
Obser ve the safety.
For fur ther information on the parking brake, refer to
the "Driving" section.

Stop & Startfixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start
system has put the engine into STOPmode.The warnin
g lamp goes off and the engine restarts
automatically in START mode, as soon as you want
t
o move off.
flashes for afew seconds, then goes off.
STOP mode is temporarily unavailable. or STA R T m o d e i s i n v o ke dautomatically. Re
fer to "Driving - § Stop & Start" for special cases
with STOP mode and START mode.

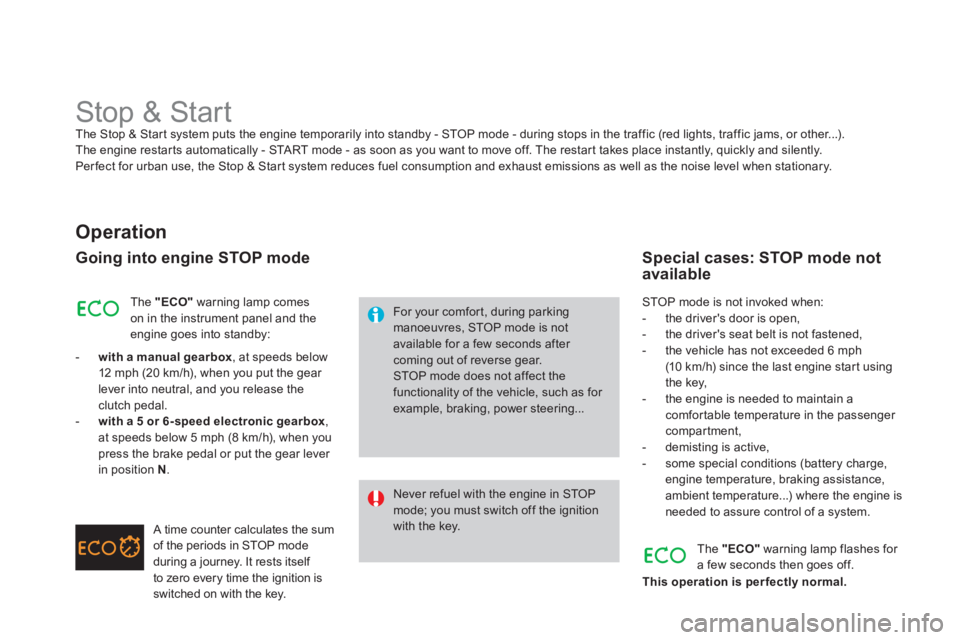

Stop & Start The Stop & Start system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...).
The engine restar ts automatically - START mode - as soon as you want to move off. The restar t takes place instantly, quickly and silently.
Per
fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Operation
Going into engine STOP mode
For your comfor t, during parkingmanoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...
Never refuel with the engine in STOPmode; you must switch off the ignition with the key. Th
e "ECO"warning lamp comes
on in the instrument panel and the engine goes into standby:
- with a manual gearbox
, at speeds below
12 mph (20 km/h), when you put the gear lever into neutral, and you release theclutch pedal. -with a 5 or 6-speed electronic gearbox ,
at speeds below 5 mph (8 km/h), when you press the brake pedal or put the gear lever in position N.
A time counter calculates the sum
of the periods in STOP mode
during a journey. It rests itself
to zero every time the ignition is switched on with the key.
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph(10 km/h) since the last engine star t using
the key,

- the engine is needed to maintain acomfortable temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge, engine temperature, braking assistance,ambient temperature...) where the engine isneeded to assure control of a system.


Special cases: STOP mode not available

The "ECO"warning lamp flashes for
a few seconds then goes off.
This operation is per fectly normal.
